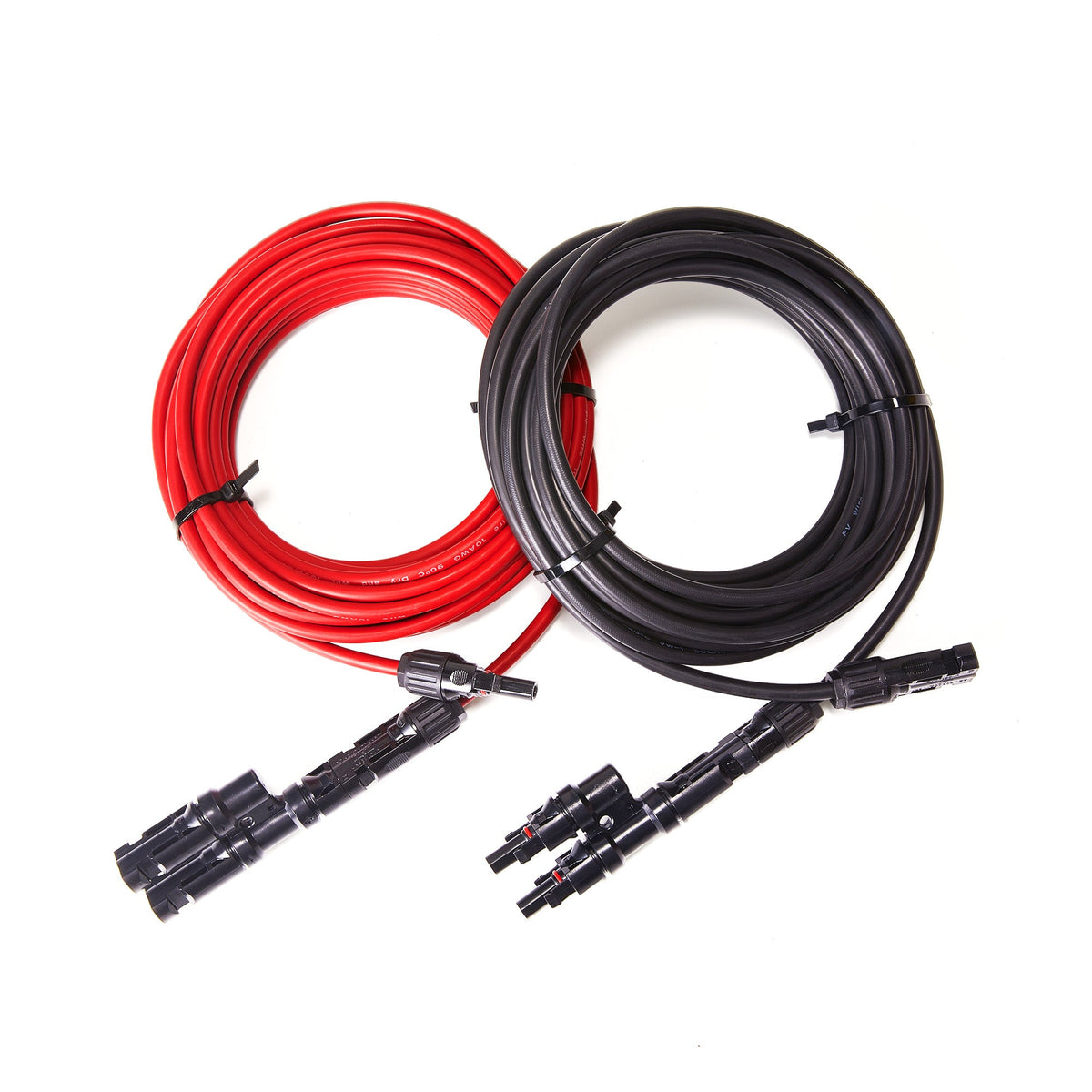

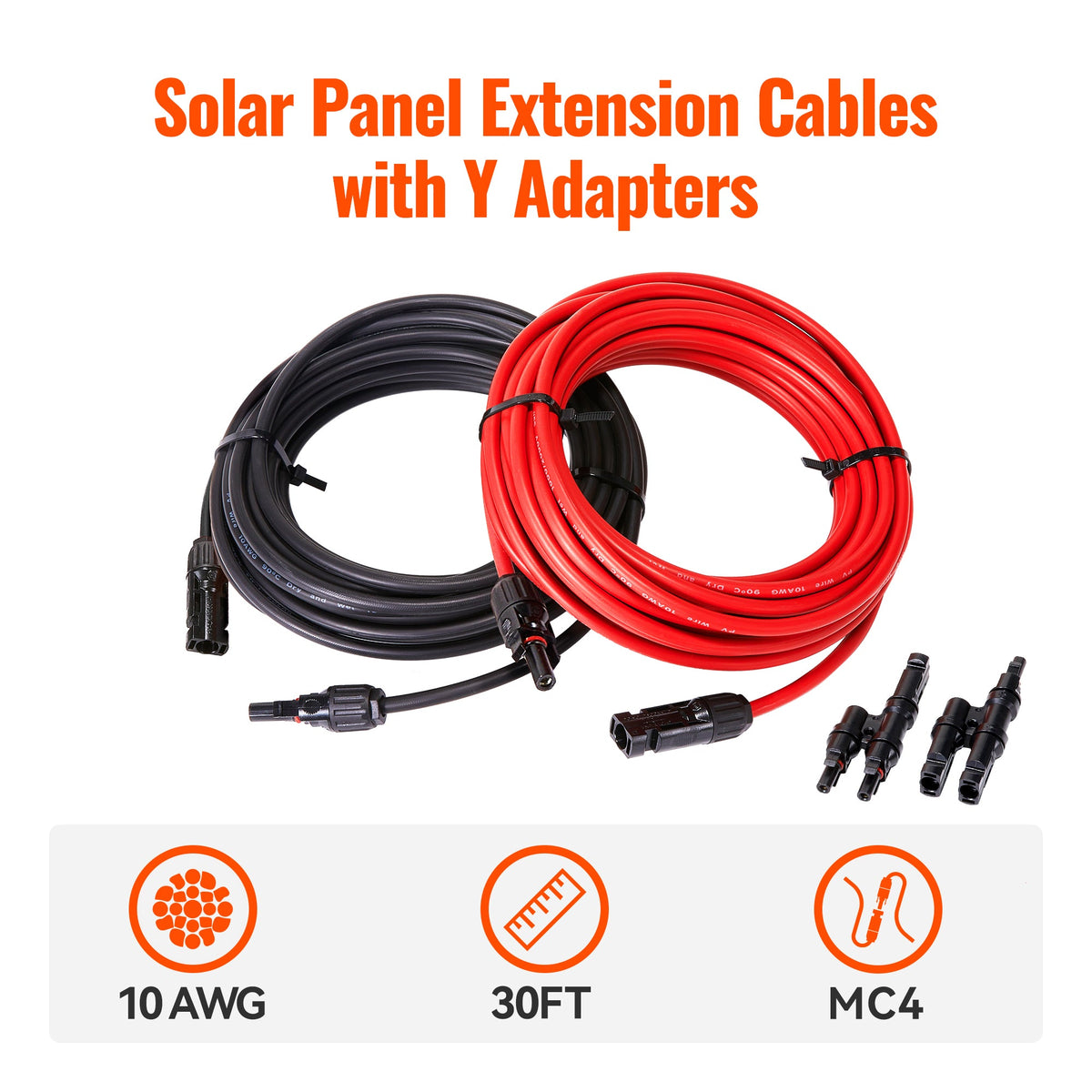

10 AWG Solar Extension Cable with Parallel Connectors
10 AWG cable for the panel to panel in parallel run.
SKU:RS-30102T2
Regular price
$79.99 USD
10 AWG, 30 ft, 50 ft.
Tinned Copper.
Includes red and black 10 AWG extension cables with connectors on both ends.
For the panel to panel in parallel run.
Need help choosing the right kit?
Talk to a Solar Expert:
1-332-291-6885
Quantity
Quantity
Guaranteed Safe Checkout
Deliver to
Get it between
Product Information
10 AWG Cable for Panel to Panel in Parallel
Extends your solar wiring while connecting two solar panels in parallel. Available in 30 ft, 50 ft.
Pick a length that reaches with a little slack, not metres of coiled spare: extra length adds resistance and voltage drop. At 10 AWG this pair suits the currents listed in the specifications, so size up if your inverter or array is near the limit.
Rated to 1000V DC. Operating range -40°F to +194°F.
| Specification | Value |
|---|---|
| Wire Gauge | 10 AWG |
| Cable Set | Red & Black Pair + Y-Branch Parallel Connectors |
| Available Lengths | 30 ft, 50 ft |
| Rated Voltage | 1000V DC |
| Rated Current | 30A |
| Protection Rating | IP67 |
| Flame Rating | UL94 V-0 |
| Operating Temperature | -40°F to +194°F |
| Conductor Material | Tinned Copper |
| Insulation Material | PPO / PC EXL9330 |
| Service Life | 25 Years |
| RS-30102T2 | 9 × 8 × 4 in |
| RS-50102T2 | 9 × 9 × 5 in |
| RS-30102T2 | 5 lb |
| RS-50102T2 | 7 lb |
- 1 x 10 AWG Solar Extension Cable with Parallel Connectors
- Includes red and black 10 AWG extension cables with connectors on both ends.

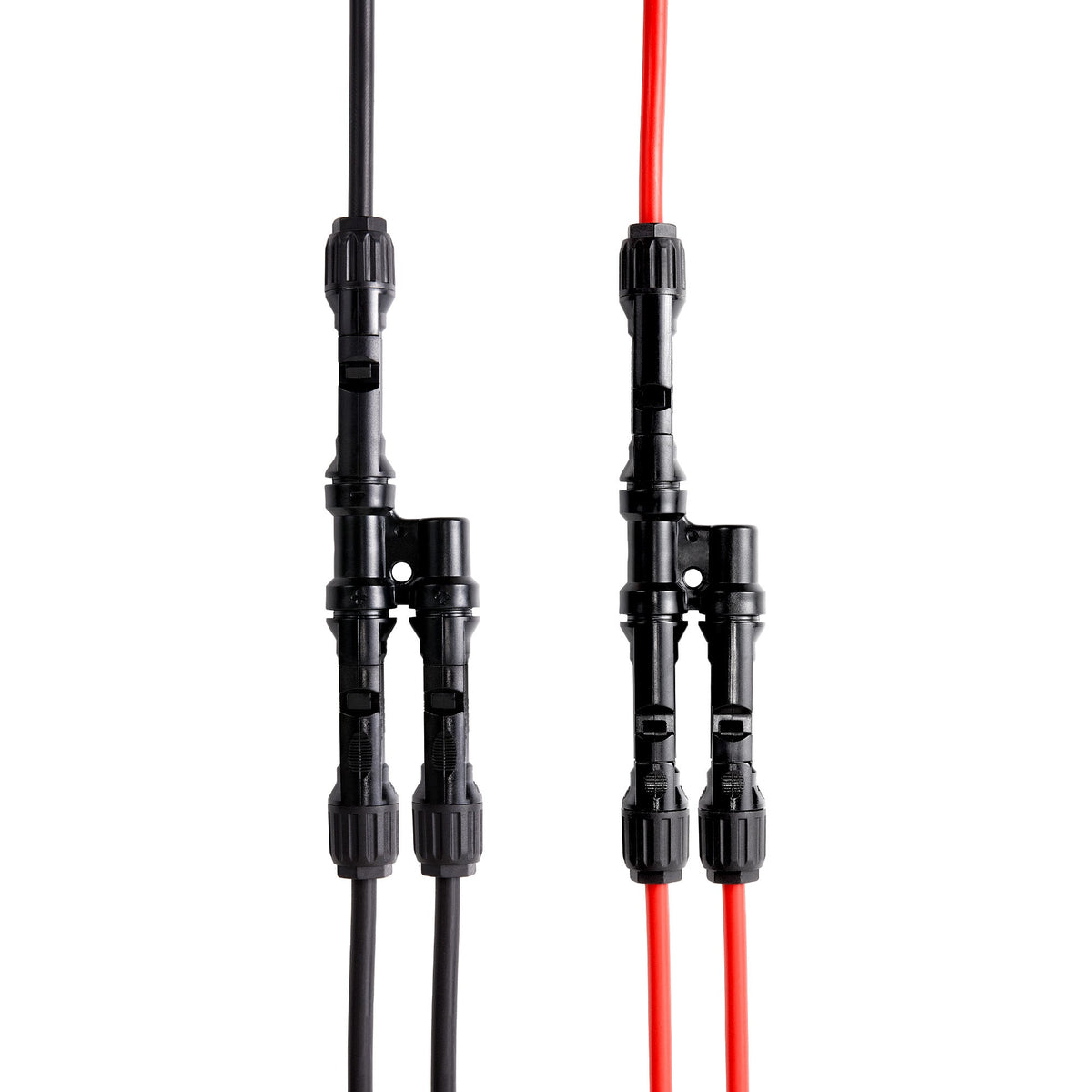

- 2-to-1 Parallel Connectors: Includes one pair of Y-branch connectors for easy parallel wiring.
- User manual
Free Shipping
On all orders
30-Day Returns
Hassle-free returns
25 Year Warranty
On panels & more
Secure Payments
100% protected
Frequently Asked Questions
Which length should I choose?
Measure the run and add a little slack for routing, then pick the next size up. Avoid buying far longer than you need — surplus cable adds resistance and voltage drop.
Which gauge do I need?
Gauge follows current and distance: the higher the current or the longer the run, the thicker the cable. This set is 10 AWG. If you are between sizes, go thicker. Call us on 1-332-291-6885 if you want it checked.
Is it ready to use out of the box?
Yes — the terminations are already fitted, so it is ready to bolt or plug in. No crimping tools needed.
