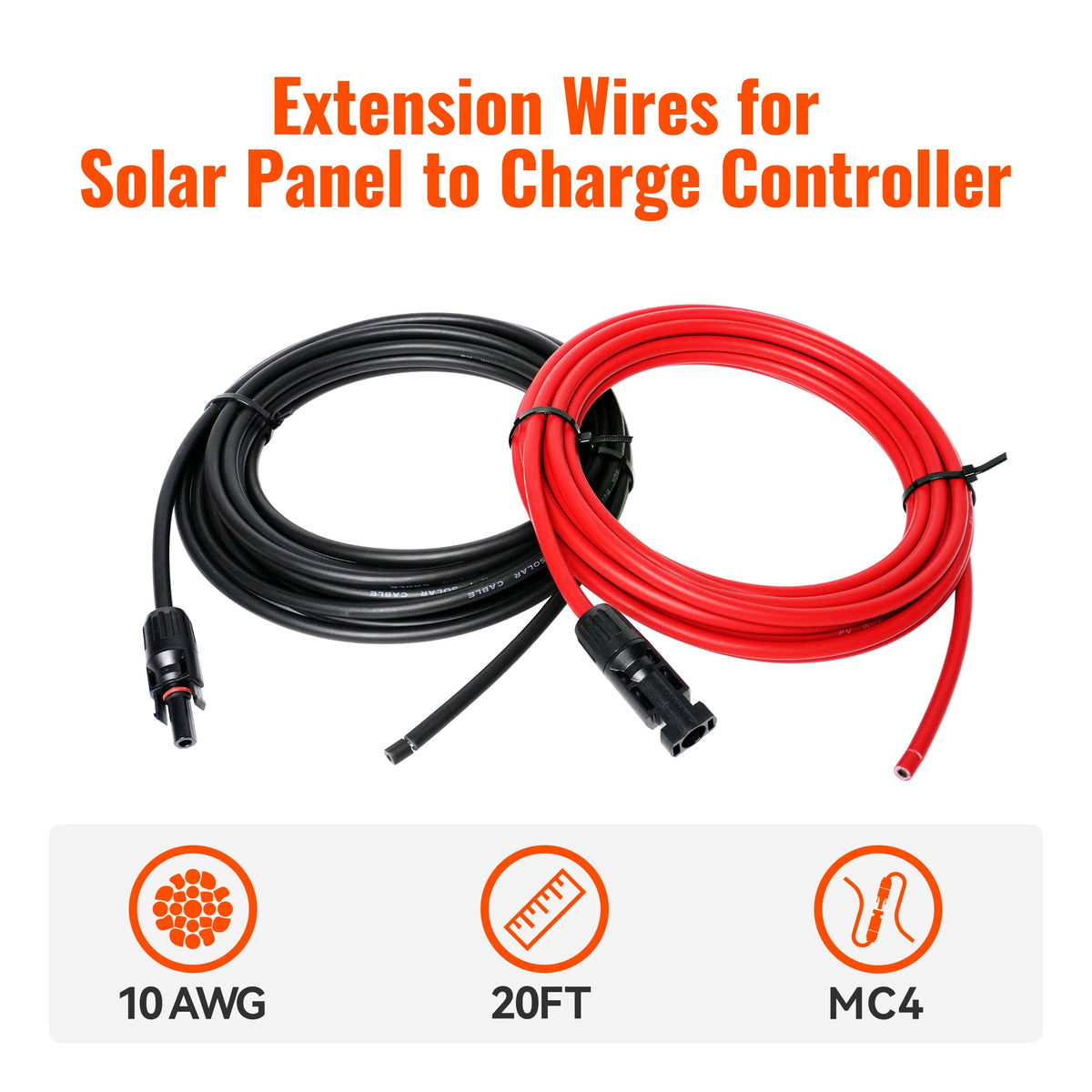

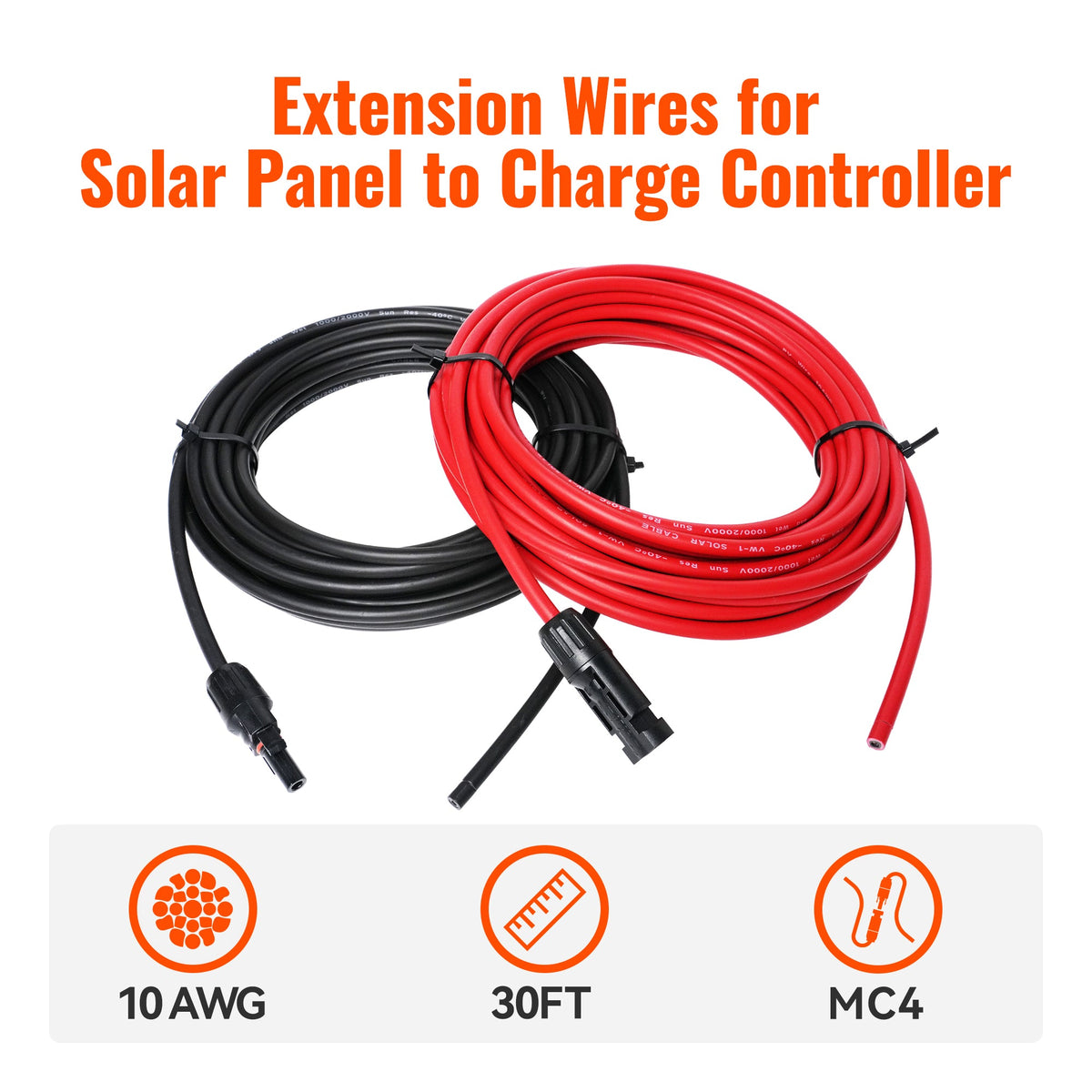

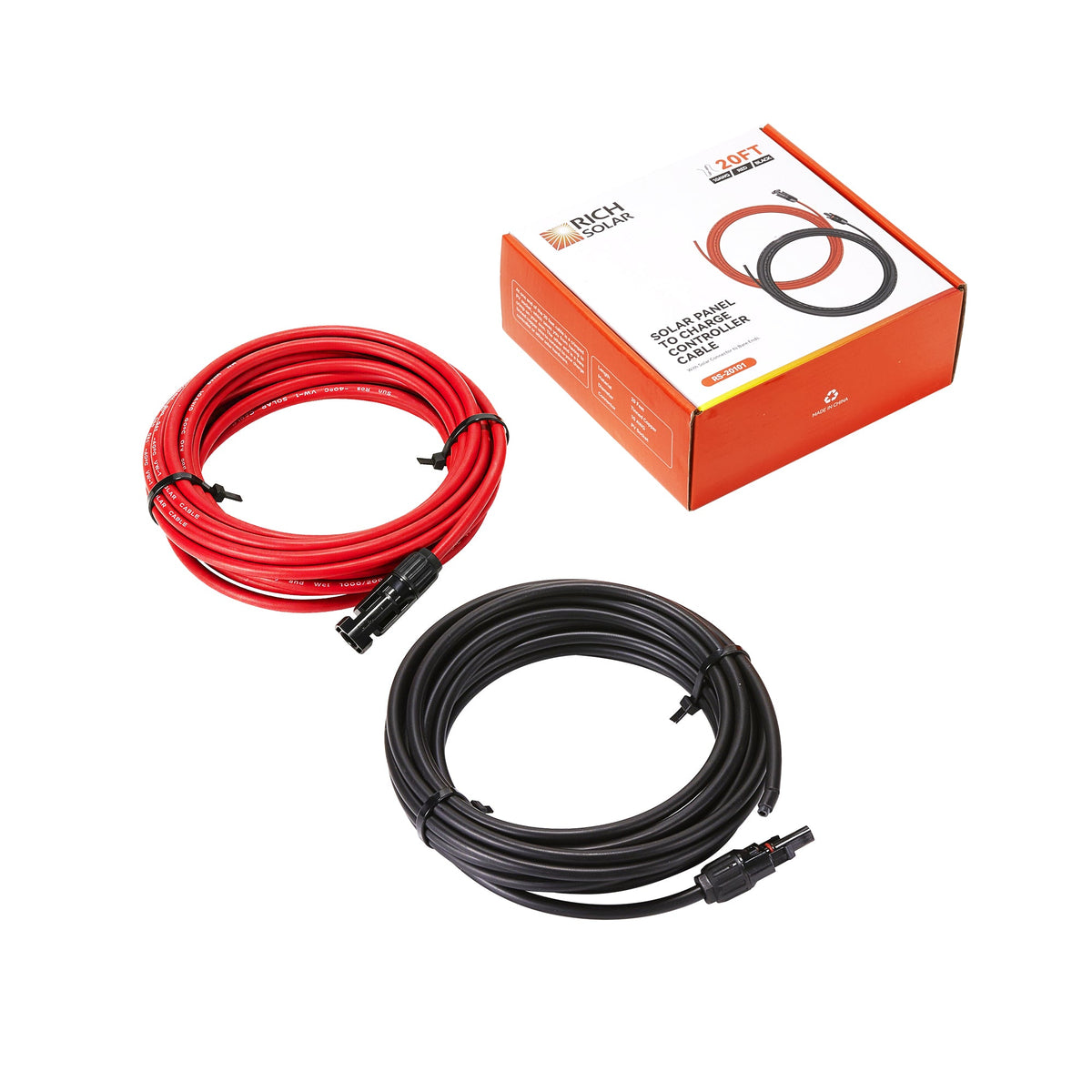

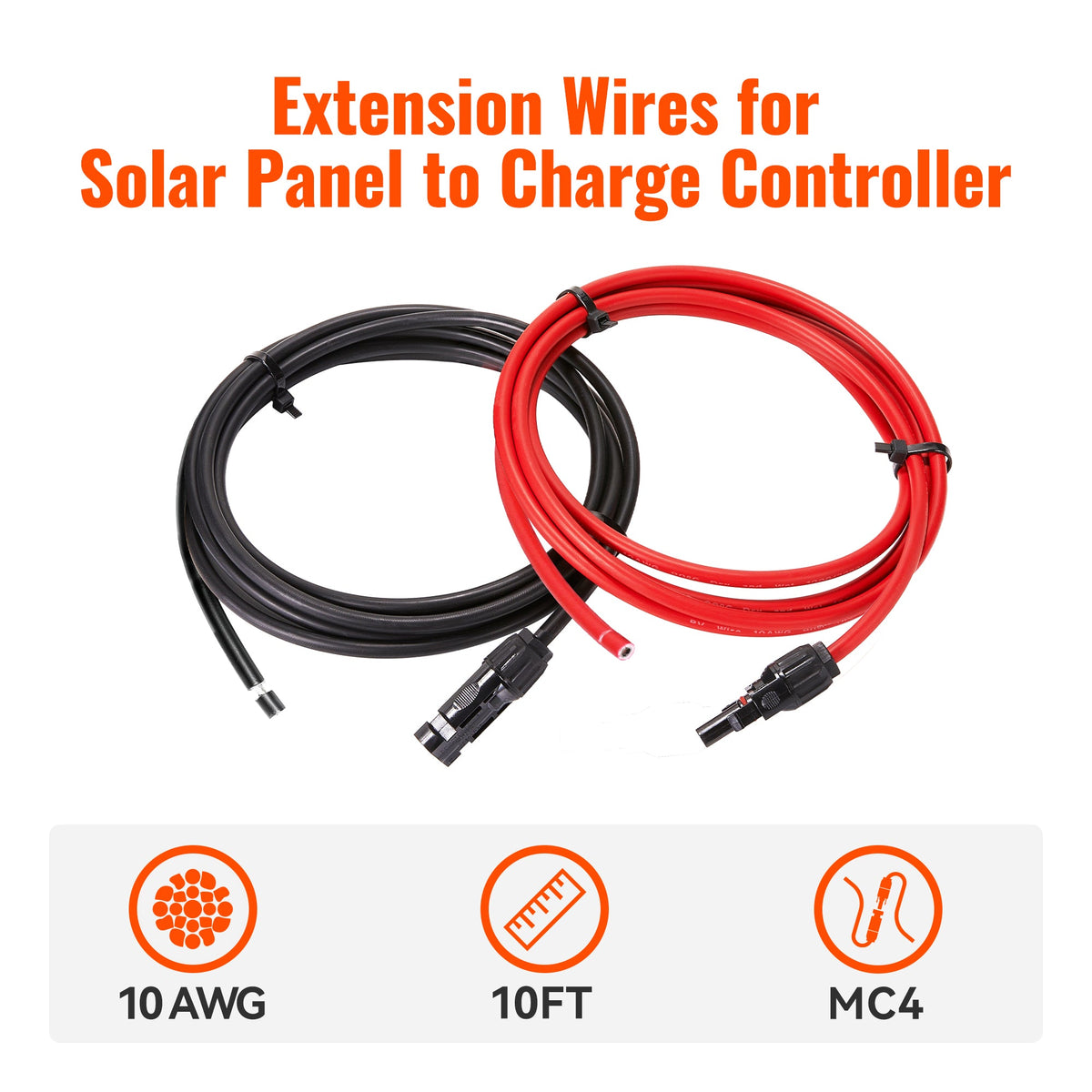

10 AWG Solar Panel to Charge Controller Cable
10 AWG cable for the panel to charge controller run.
SKU:RS-10101
Regular price
$35.99 USD
10 AWG, 10 ft, 20 ft, 30 ft.
Tinned Copper.
Solar connectors on one end for quick panel connection.
For the panel to charge controller run.
Need help choosing the right kit?
Talk to a Solar Expert:
1-332-291-6885
Quantity
Quantity
Guaranteed Safe Checkout
Deliver to
Get it between
Product Information
10 AWG Cable for Panel to Charge Controller

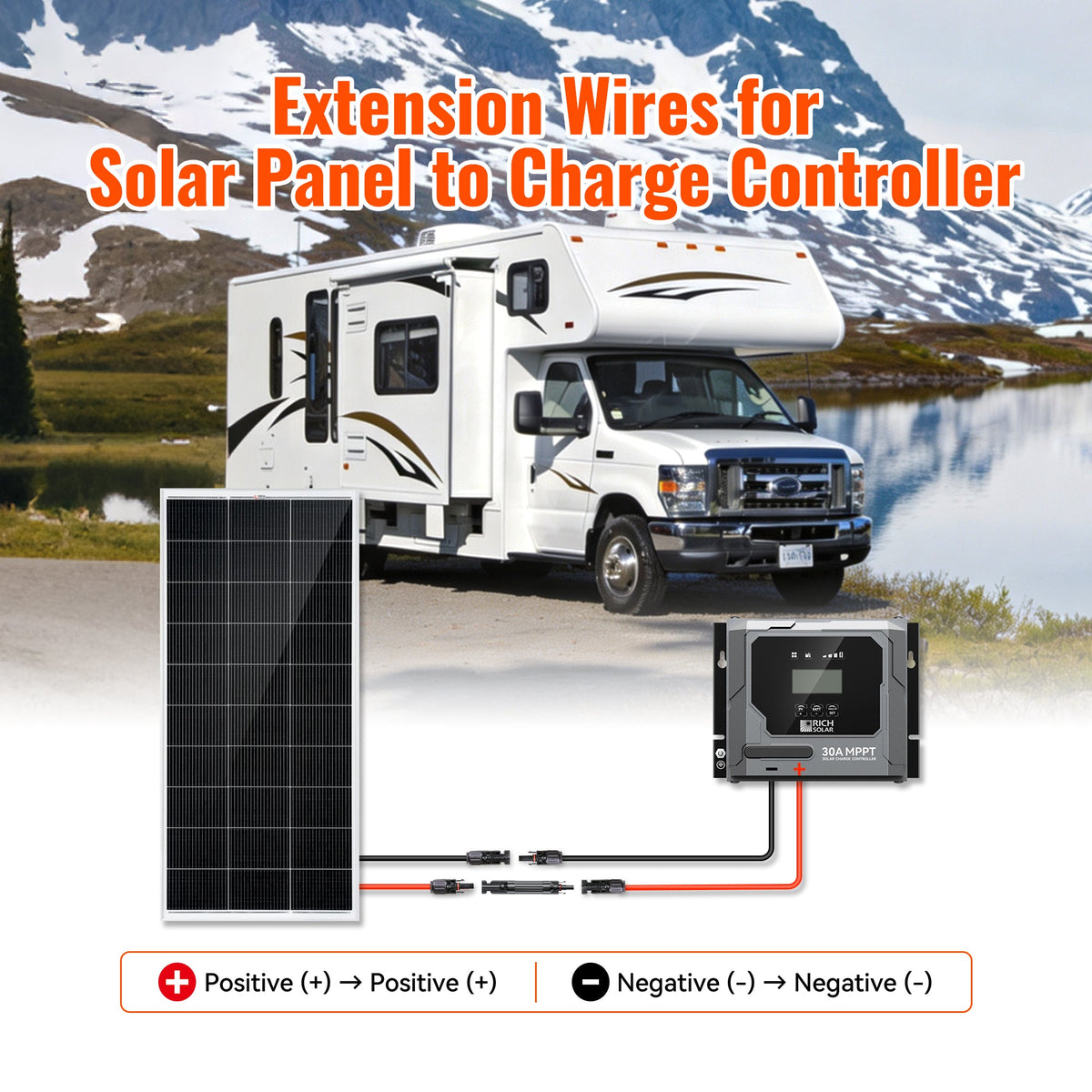

Connects your solar panel directly to the charge controller. Available in 10 ft, 20 ft, 30 ft.
Pick a length that reaches with a little slack, not metres of coiled spare: extra length adds resistance and voltage drop. At 10 AWG this pair suits the currents listed in the specifications, so size up if your inverter or array is near the limit.
Rated to 1000V DC. Operating range -40°F to +194°F.
| Specification | Value |
|---|---|
| Wire Gauge | 10 AWG |
| Cable Set | Red & Black Pair |
| Available Lengths | 10 ft, 20 ft, 30 ft |
| Rated Voltage | 1000V DC |
| Rated Current | 30A |
| Protection Rating | IP67 |
| Flame Rating | UL94 V-0 |
| Operating Temperature | -40°F to +194°F |
| Conductor Material | Tinned Copper |
| Insulation Material | PPO / PC EXL9330 |
| Service Life | 25 Years |
| RS-10101 | 9 × 8 × 2 in |
| RS-20101 | 8 × 8 × 3 in |
| RS-30101 | 9 × 8 × 4 in |
| RS-10101 | 2 lb |
| RS-20101 | 3 lb |
| RS-30101 | 4 lb |
- 1 x 10 AWG Solar Panel to Charge Controller Cable
- Mounting or connection hardware as listed in the specifications
- User manual
Free Shipping
On all orders
30-Day Returns
Hassle-free returns
25 Year Warranty
On panels & more
Secure Payments
100% protected
Frequently Asked Questions
Which length should I choose?
Measure the run and add a little slack for routing, then pick the next size up. Avoid buying far longer than you need — surplus cable adds resistance and voltage drop.
Which gauge do I need?
Gauge follows current and distance: the higher the current or the longer the run, the thicker the cable. This set is 10 AWG. If you are between sizes, go thicker. Call us on 1-332-291-6885 if you want it checked.
Is it ready to use out of the box?
Yes — the terminations are already fitted, so it is ready to bolt or plug in. No crimping tools needed.
