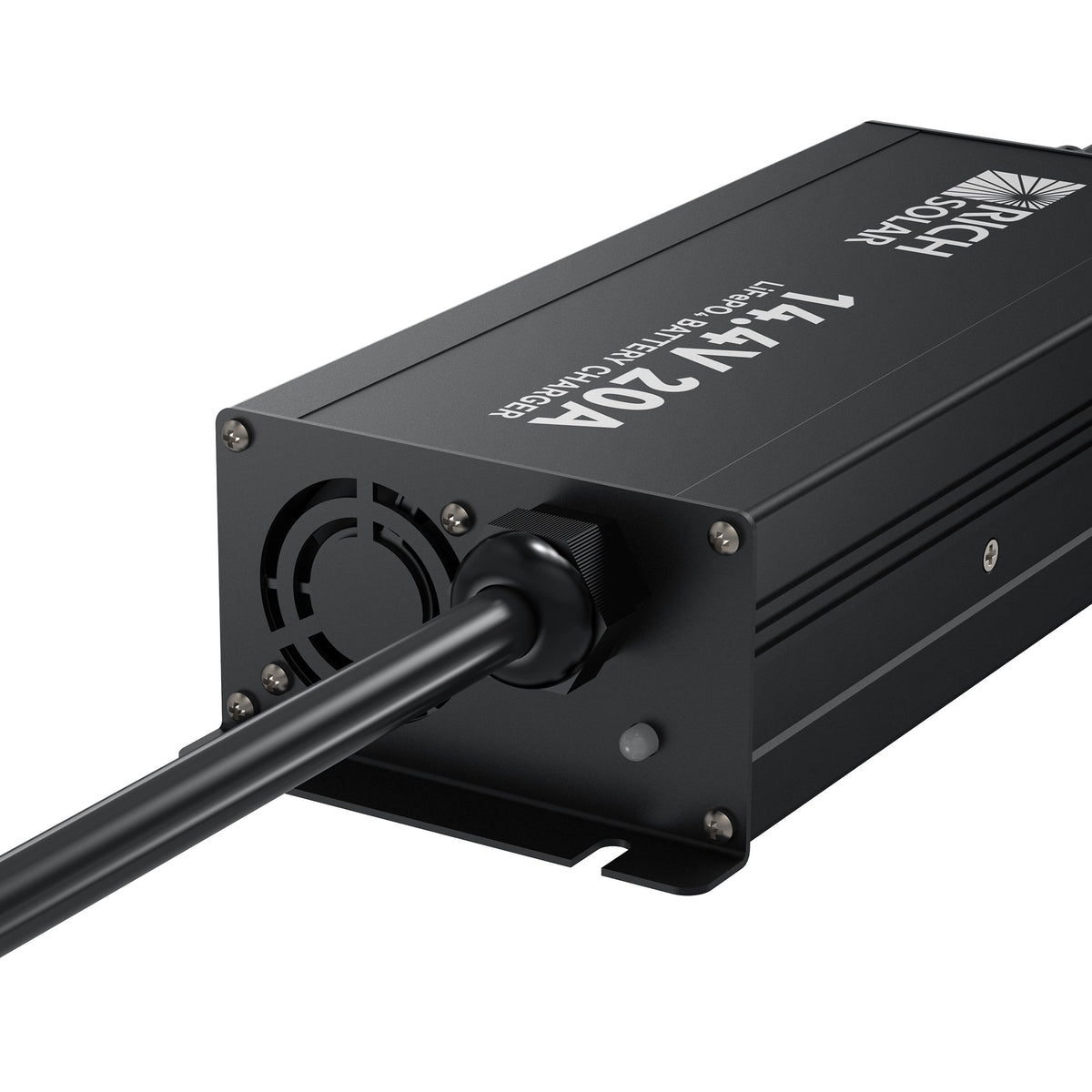

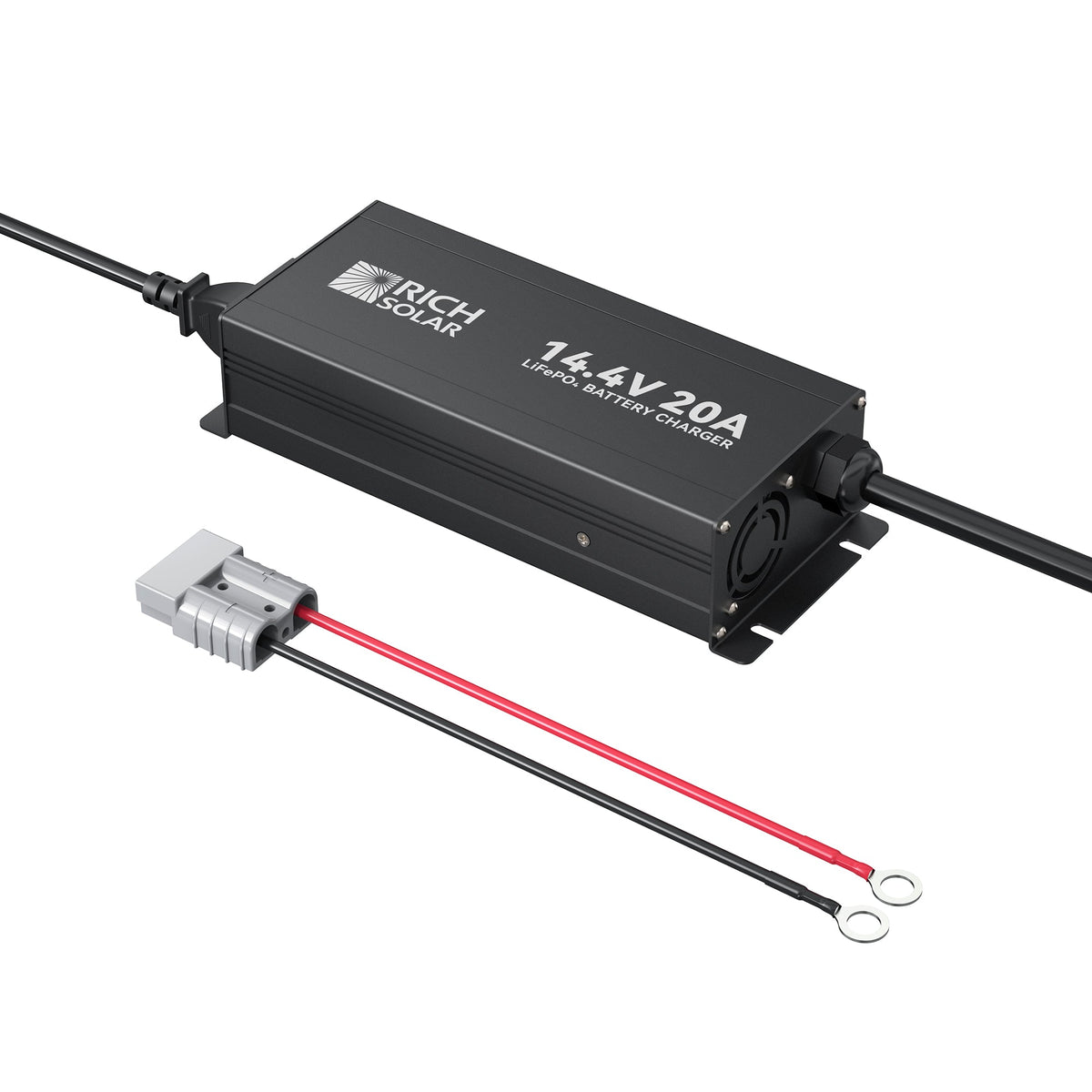

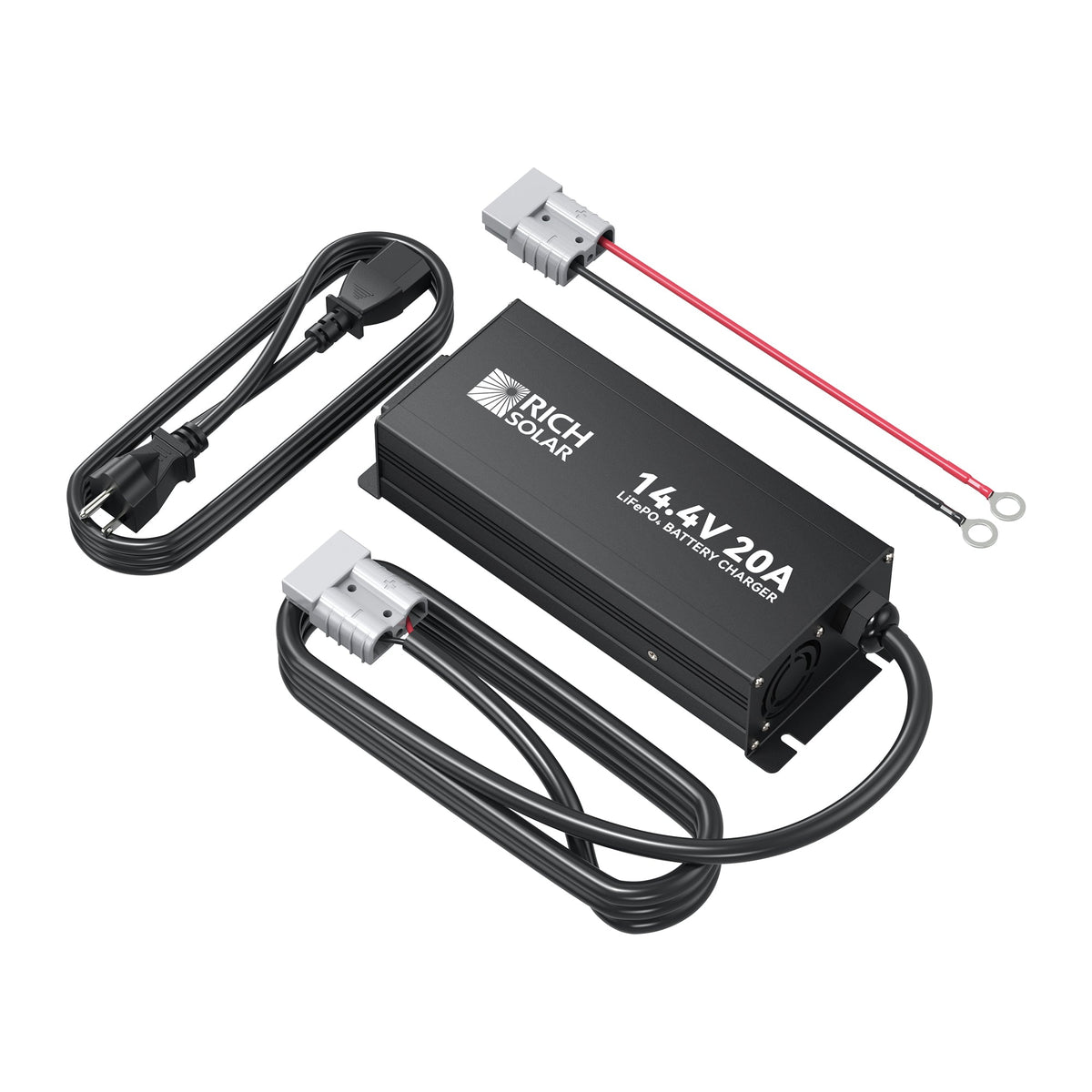

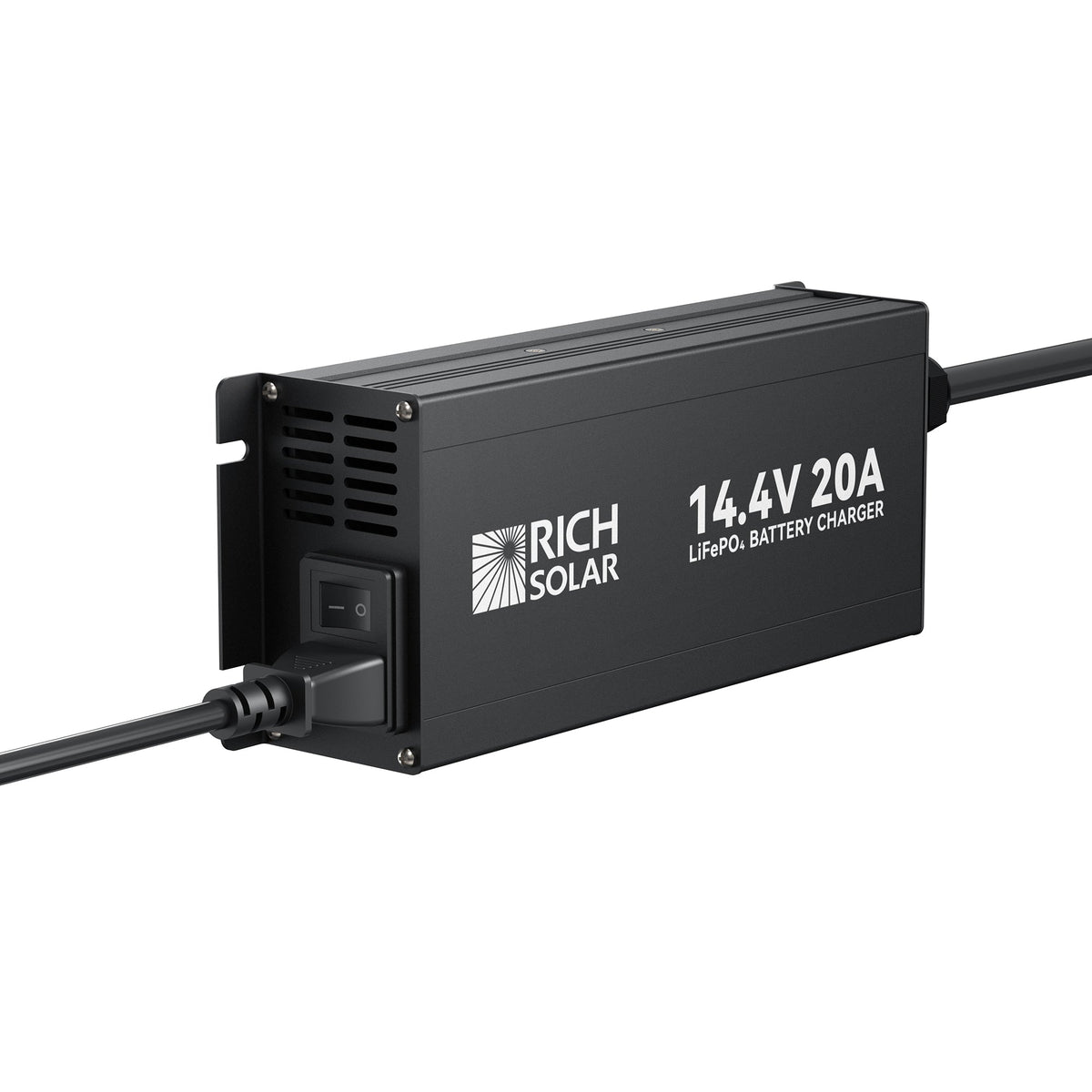

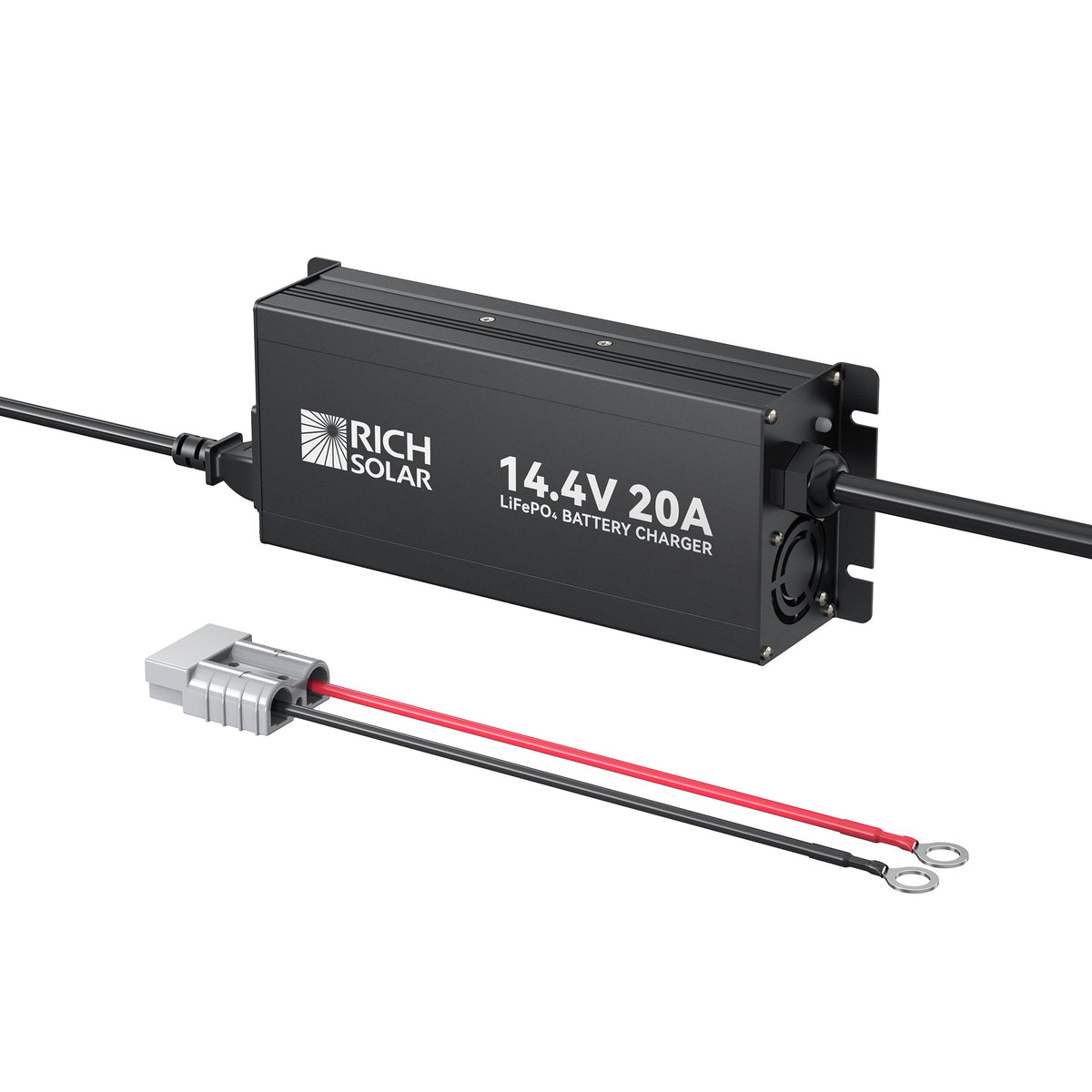

12V(14.4V) 20A | 100-240VAC | 12V LiFePO4 Battery Charger
12V(14.4V) 20A
SKU:UGS-BC12V20
Regular price
$139.99 USD
20A Fast Charging.
Three-Stage Smart Charging.
Automatic BMS Activation.
100–240V AC Input.
Need help choosing the right kit?
Talk to a Solar Expert:
1-332-291-6885
Quantity
Quantity
Guaranteed Safe Checkout
Deliver to
Get it between
Product Information
Features
- 20A Fast Charging: Delivers up to 20A charging current for 12V LiFePO₄ batteries.
- Three-Stage Smart Charging: Automatically optimizes charging with Pre-Charge, Constant Current, and Constant Voltage stages.
- Automatic BMS Activation: Safely wakes up BMS-protected lithium batteries.
- 100–240V AC Input: Supports worldwide AC input for convenient charging at home or on the road.
- IP65 Weather-Resistant Design: Built for reliable indoor and outdoor operation.
- Comprehensive Protection: Includes over-temperature, reverse polarity, short-circuit, and over-voltage protection.
- LED Status Indicators: Clearly display charging status and operating conditions.
- Multiple Connection Options: Includes M10 ring terminals and a 50A Anderson connector for quick battery connection.
Specifications
AC Input
-
Input Voltage: 100–240V AC
-
Input Frequency: 47–63Hz
- Maximum Input Current: 4A
DC Output
-
Output Voltage: 14.4V ± 0.2V DC
-
Output Current: 20A
- Battery Compatibility: 12V LiFePO₄ Batteries
Charging
-
Charging Method: Three-Stage Charging
-
Charging Stages: Pre-Charge / Constant Current / Constant Voltage
- BMS Activation: Automatic
General
-
Protection Rating: IP65
-
Operating Temperature: -4°F to 104°F
-
Storage Temperature: -40°F to 158°F
-
Battery Connection: M10 Ring Terminals & 50A Anderson Connector
-

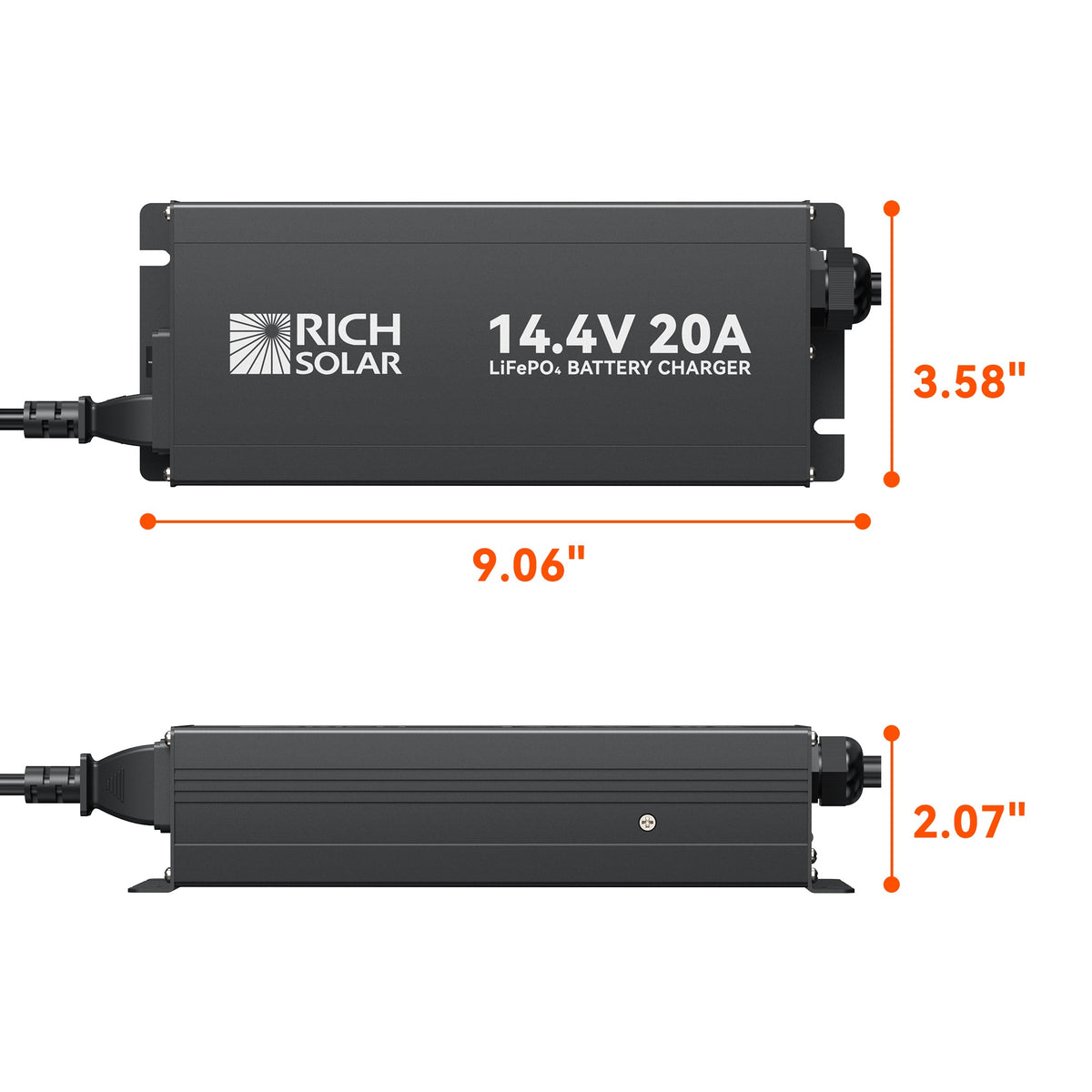

Dimensions: 9.06 × 3.58 × 2.07 in
- Net Weight: 3.75 lb
| Specification | Value |
|---|---|
| Input Voltage | 100–240V AC |
| Input Frequency | 47–63Hz |
| Maximum Input Current | 4A |
| Output Voltage | 14.4V ± 0.2V DC |
| Output Current | 20A |
| Battery Compatibility | 12V LiFePO₄ Batteries |
| Charging Method | Three-Stage Charging |
| Charging Stages | Pre-Charge / Constant Current / Constant Voltage |
| BMS Activation | Automatic |
| Protection Rating | IP65 |
| Operating Temperature | -4°F to 104°F |
| Storage Temperature | -40°F to 158°F |
| Battery Connection | M10 Ring Terminals & 50A Anderson Connector |
| Dimensions | 9.06 × 3.58 × 2.07 in |
| Net Weight | 3.75 lb |

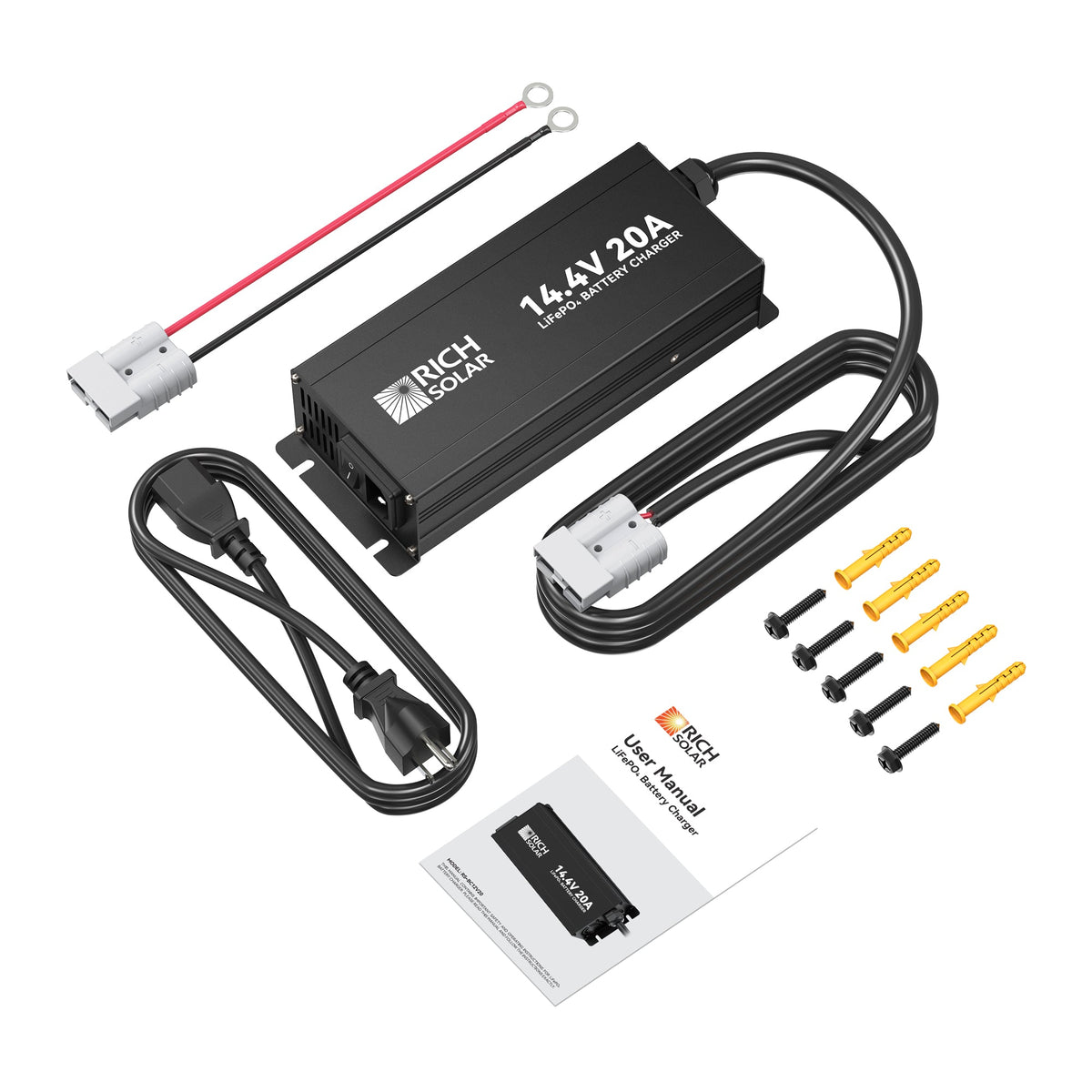

- 1 x 12V(14.4V) 20A
- Fittings and hardware as listed in the specifications
- User manual
Free Shipping
On all orders
30-Day Returns
Hassle-free returns
25 Year Warranty
On panels & more
Secure Payments
100% protected
Frequently Asked Questions
What is this used for?
Delivers up to 20A charging current for 12V LiFePO₄ batteries.
Will it fit my system?
Check the specifications against your own equipment — ratings, connector type and voltage all need to match. We can confirm compatibility on 1-332-291-6885.
Is anything else needed to install it?
The item ships with the fittings listed in the specifications. You may need basic tools and cable suited to your own run.
