160 Watt Flexible Solar Kit with 20A MPPT Controller BACKORDER
160W kit.
SKU:UGS-K1602
Regular price
$709.99 USD
160W Flexible Solar Panel — about 0.6kWh a day.
20A MPPT Charge Controller.
20A MPPT Charge Controller.
Cables, fuses, brackets and connectors in the box.
Need help choosing the right kit?
Talk to a Solar Expert:
1-332-291-6885
Quantity
Quantity
Guaranteed Safe Checkout
Deliver to
Get it between
Product Information
Features
- 160W Flexible Solar Panel: Includes one 160W CIGS flexible solar panel, producing approximately 0.6kWh of energy per day under 4 peak sun hours.
- 12V Solar Panel: Built with a 12V nominal flexible solar panel, ideal for charging compatible battery systems.
- 20A MPPT Charge Controller: Maximizes solar harvest with up to 99% MPPT tracking efficiency and 98% peak conversion efficiency.
- Flexible Solar Charging Kit: Includes a flexible solar panel, MPPT charge controller, and pre-assembled installation cables for fast, tool-free installation.
- Versatile Applications: Ideal for RVs, vans, boats, curved rooftops, and other portable off-grid solar systems.

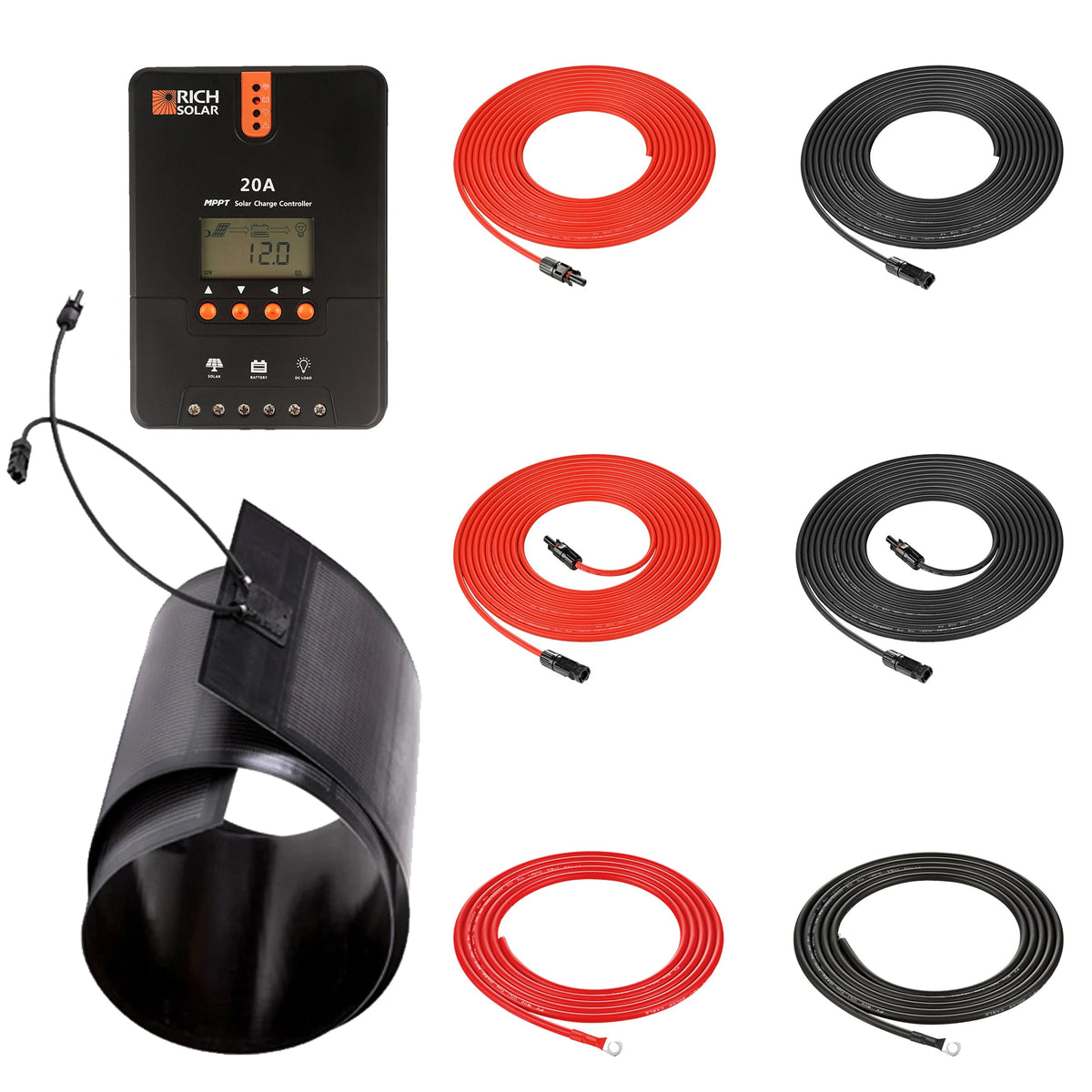

Kit Includes
- 1 × 160W CIGS Flexible Solar Panel
- 1 × 20A MPPT Solar Charge Controller
- 1 × 20 ft 10 AWG Solar Extension Cable (Red), Pre-Assembled Female MC4 Connector (Panel to Controller)
- 1 × 20 ft 10 AWG Solar Extension Cable (Black), Pre-Assembled Male MC4 Connector (Panel to Controller)
- 1 × 20 ft 10 AWG Solar Extension Cable (Red), Pre-Assembled Male & Female MC4 Connectors
- 1 × 20 ft 10 AWG Solar Extension Cable (Black), Pre-Assembled Male & Female MC4 Connectors
- 1 × 10 ft 10 AWG Battery Cable (Red), Pre-Assembled Battery Lug (Controller to Battery)
- 1 × 10 ft 10 AWG Battery Cable (Black), Pre-Assembled Battery Lug (Controller to Battery)
Specifications
- Maximum Power (Pmax): 160W
- Maximum Power Voltage (Vmp): 18.9V
- Maximum Power Current (Imp): 8.40A
- Open Circuit Voltage (Voc): 23.4V
- Short Circuit Current (Isc): 9.60A
- Maximum System Voltage (Vmax): 1000VDC
- Weight: 7.1 lb
- Dimensions: 67.3 × 26.0 in
| Specification | Value |
|---|---|
| Solar array | 160W |
| Estimated daily production | ~0.6kWh at 4 peak sun hours |
| Battery | Not included |
| Inverter | Not included |
| Charge controller | 20A MPPT Charge Controller |
- 160 Watt Flexible Solar Kit with 20A MPPT Controller BACKORDER
- Cables, connectors and mounting hardware as listed in the specifications
This kit charges a battery bank rather than storing energy itself, so what it powers depends on the battery you pair it with. These are the figures the array itself delivers.
| Measure | Estimate |
|---|---|
| Solar array | 160W |
| Production, clear day | ~0.6–0.8kWh |
| Production, per month | ~20kWh |
| Typical 100Ah 12V battery | Recharged in roughly 1.9 day(s) of sun |
| Suits | RVs, vans, trailers, cabins and off-grid charging |
Free Shipping
On all orders
30-Day Returns
Hassle-free returns
25 Year Warranty
On panels & more
Secure Payments
100% protected
Frequently Asked Questions
What can this kit run?
This kit charges a battery rather than storing energy itself. The 160W array makes about 0.6kWh on a clear day, so what it runs depends on the battery and inverter you pair with it.
Do I need anything else?
A battery, and an inverter if you want 120V AC. The panel, controller, cables, fuses and brackets are included. We can recommend a matching battery on 1-332-291-6885.
Can I expand it later?
Yes. You can add panels within the charge controller's input limit. Keep added panels the same model where possible — mismatched panels in one string pull the whole string down to the weakest one.
