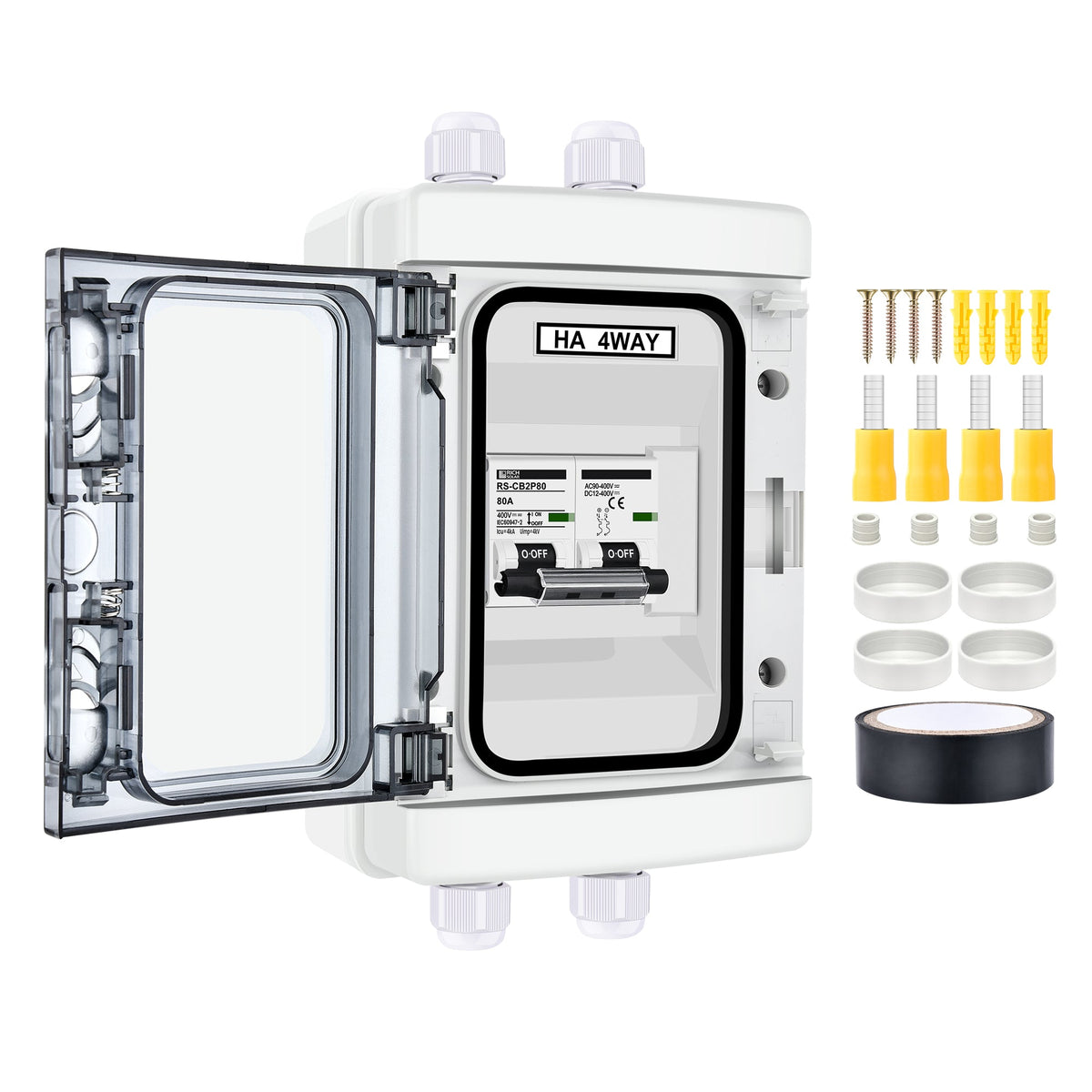

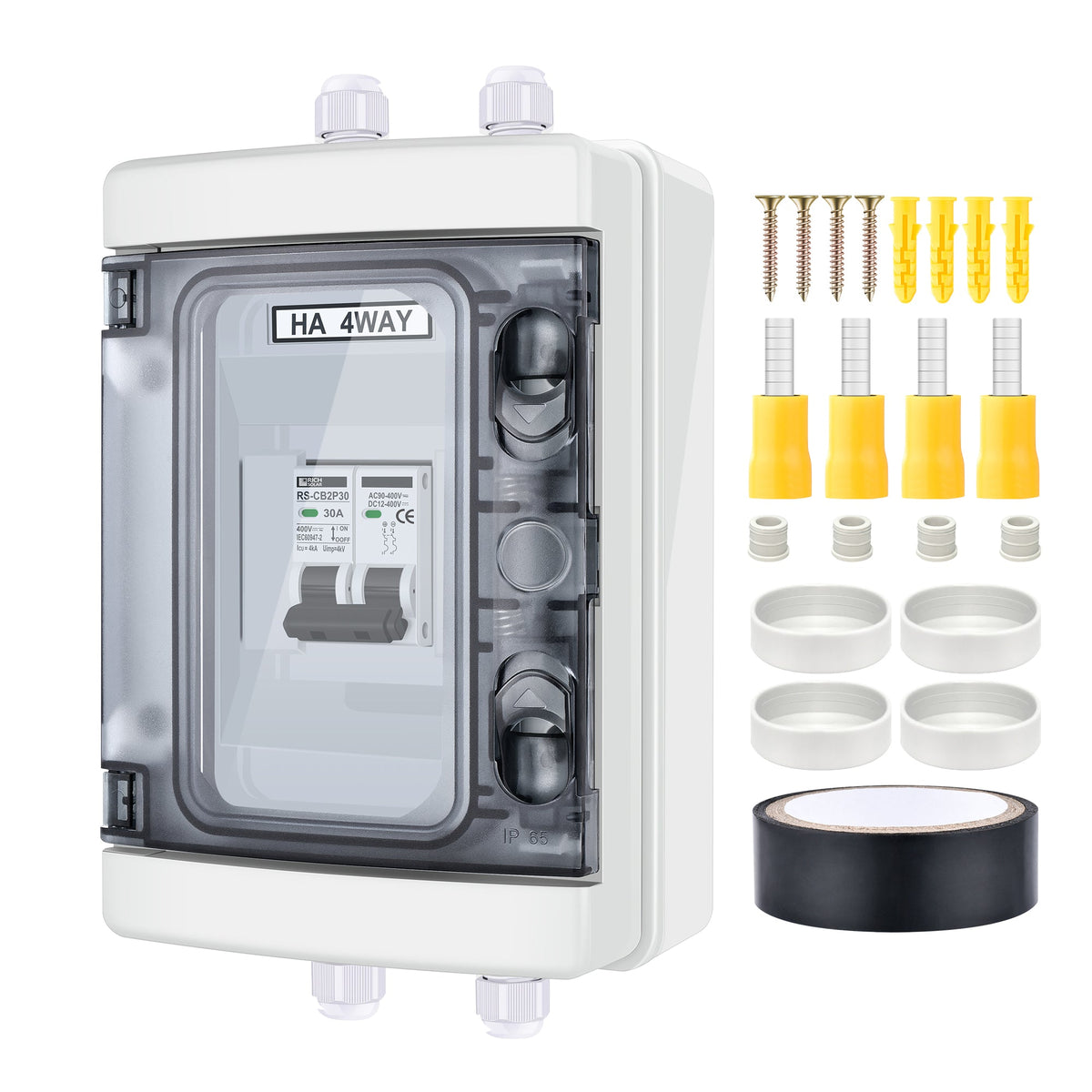

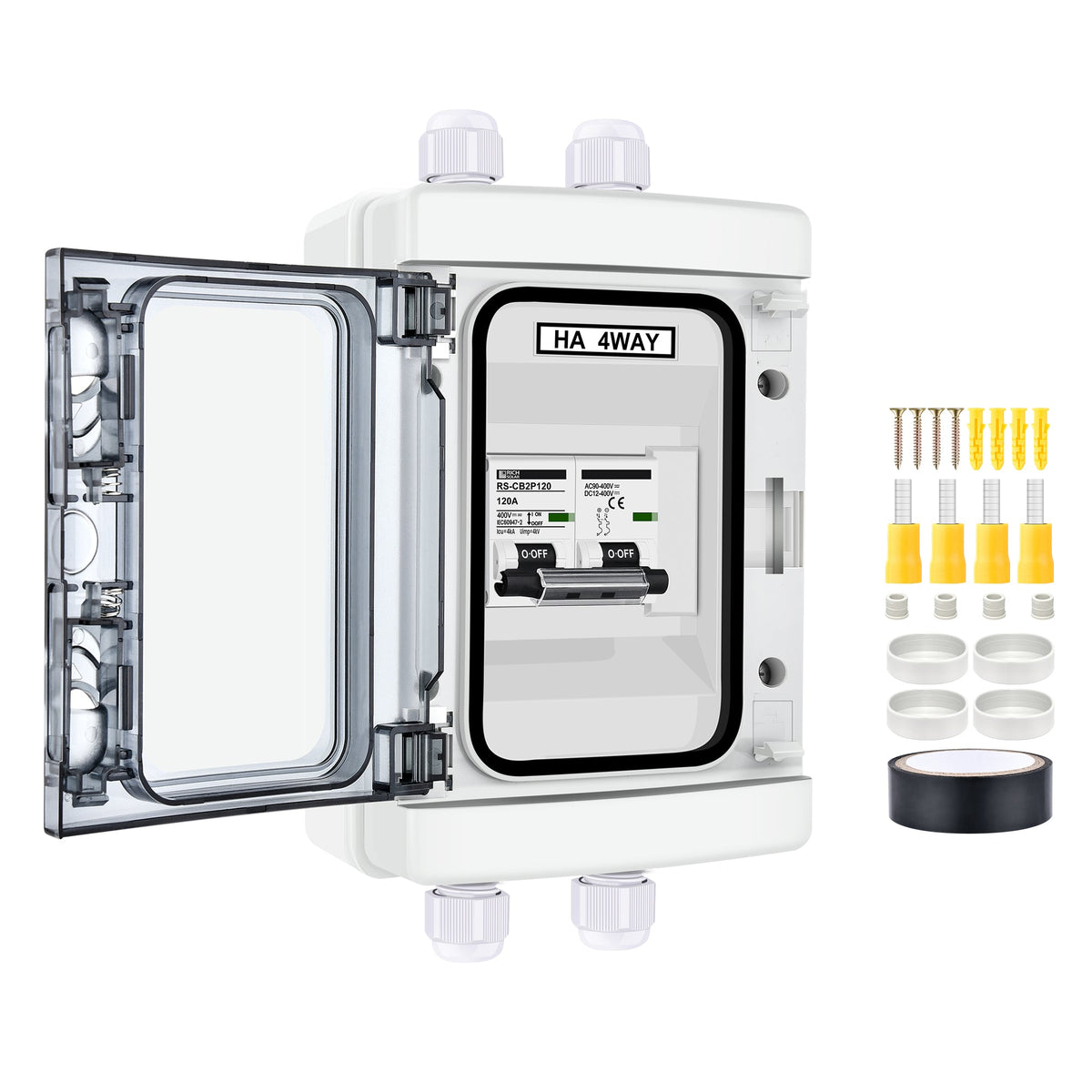

2-Pole Outdoor Solar Breaker Box with Isolator Switch
30A, 40A, 60A, 80A, 120A, 150A, 200A, 250A · AC 90–400V; DC 12–400V — protect and disconnect a PV array.
SKU:RS-CB2P30
Regular price
$39.99 USD
AC 90–400V; DC 12–400V, 30A, 40A, 60A, 80A, 120A, 150A, 200A, 250A.
Provides reliable protection for AC and DC circuits with a 4,000A breaking capacity.
Weatherproof: IP65 Exterior / IP20 Interior.
Supports AC 90–400V and DC 12–400V systems.
Need help choosing the right kit?
Talk to a Solar Expert:
1-332-291-6885
Quantity
Quantity
Guaranteed Safe Checkout
Deliver to
Get it between
Product Information
2-Pole Outdoor Solar Breaker Box with Isolator Switch to protect and disconnect a PV array in Solar, RV and Marine Systems
This switch sits between your solar array and the charge controller or inverter, giving you one place to cut power before you work on the system. It is rated to AC 90–400V; DC 12–400V, 30A, 40A, 60A, 80A, 120A, 150A, 200A, 250A.
Size it above the maximum current of the circuit it protects, not below. This product comes in 30A, 40A, 60A, 80A, 120A so you can match it to your wiring. If you are unsure which rating you need, call us on 1-332-291-6885.
Protects against water, dust, and harsh environments.
| Specification | Value |
|---|---|
| Number of Poles | 2P |
| Current Ratings | 30A, 40A, 60A, 80A, 120A, 150A, 200A, 250A |
| Rated Voltage | AC 90–400V; DC 12–400V |
| Rated Frequency | 50/60Hz |
| Breaking Capacity | 4,000A |
| Endurance | ≥4,000 Operations (30A–60A); ≥20,000 Operations (80A–250A) |
| Protection Rating | IP65 Exterior / IP20 Interior |
| Operating Temperature | 23°F to 104°F (-5°C to 40°C) |
| Enclosure Material | Industrial-Grade PC/ABS |
| Mounting | Wall Mount with Built-in DIN Rail |
| Package Dimensions | 9 × 6 × 5 in |
| Gross Weight | 2 lb |
- 1 x 2-Pole Outdoor Solar Breaker Box with Isolator Switch
- Mounting or connection hardware as listed in the specifications
- User manual
Free Shipping
On all orders
30-Day Returns
Hassle-free returns
25 Year Warranty
On panels & more
Secure Payments
100% protected
Frequently Asked Questions
What size breaker or switch do I need?
Pick a rating above the maximum current of the circuit, with headroom. Sizing depends on your array, inverter and cable gauge — call us on 1-332-291-6885 and we will size it with you.
Can I use this on both AC and DC circuits?
Check the rated voltage row in the specifications: AC 90–400V; DC 12–400V. DC and AC ratings are different, and a DC-only device must not be used on an AC circuit.
Can it be installed outdoors?
Yes — it is rated IP65 Exterior / IP20 Interior. Mount it so water drains away from the enclosure and keep glands facing down.
