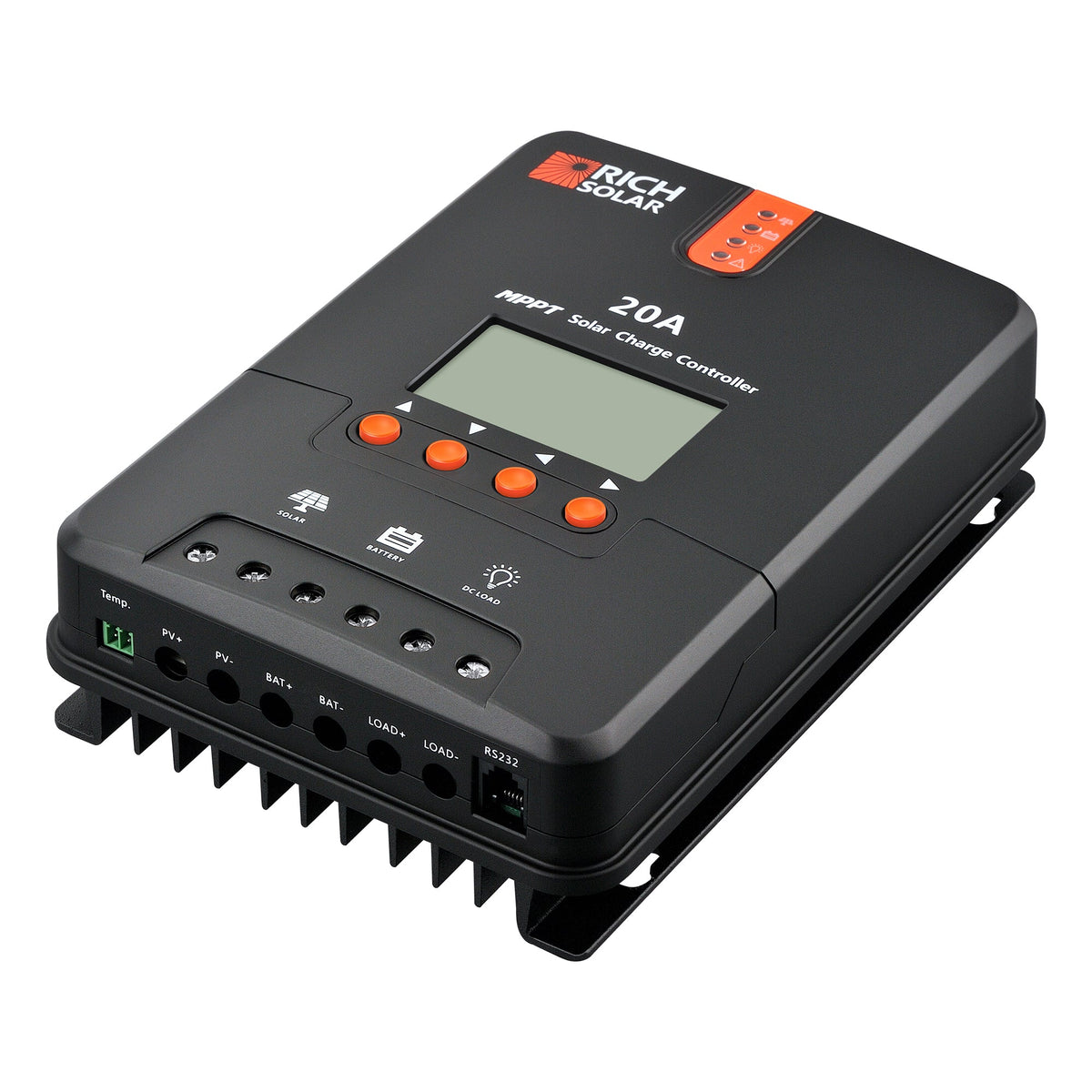

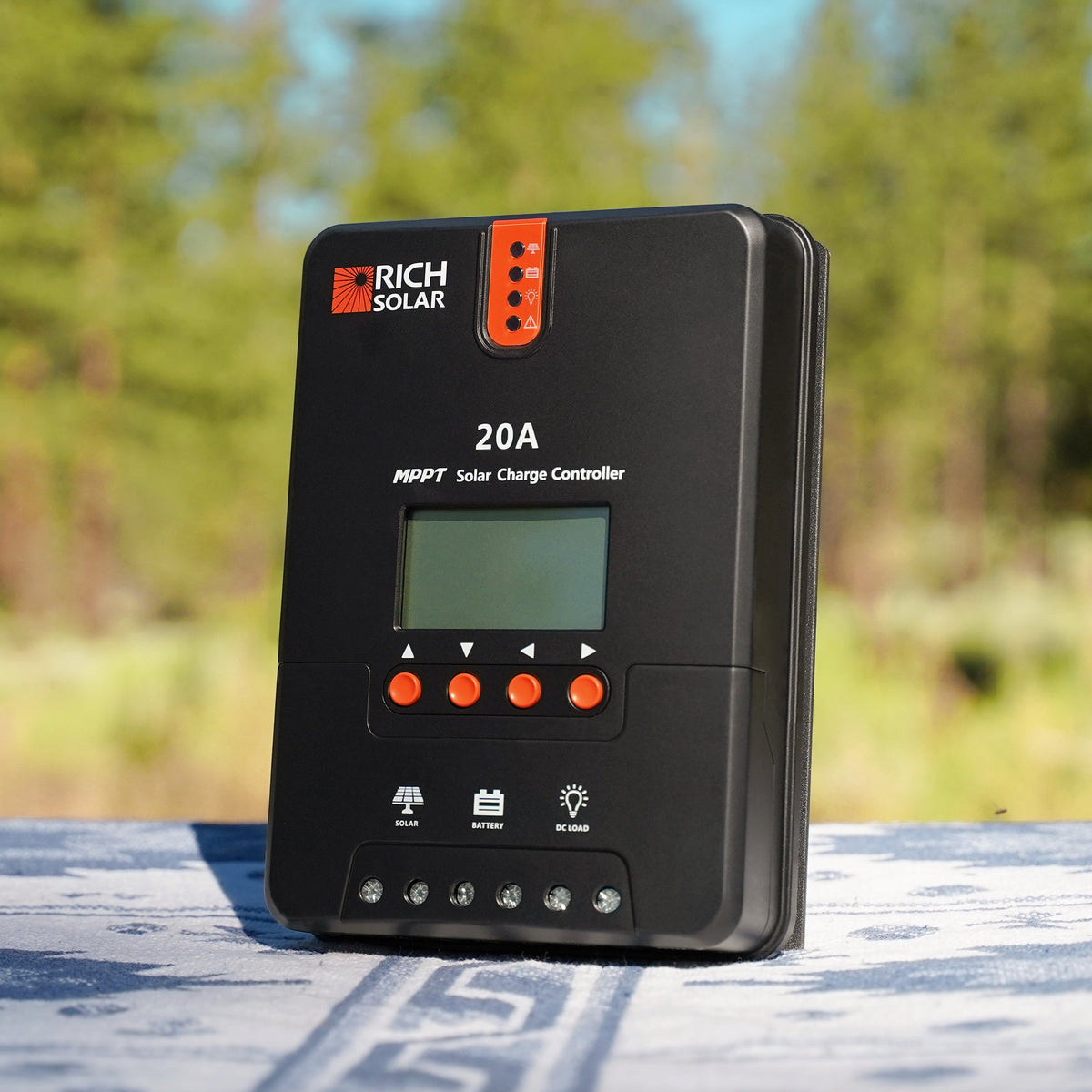

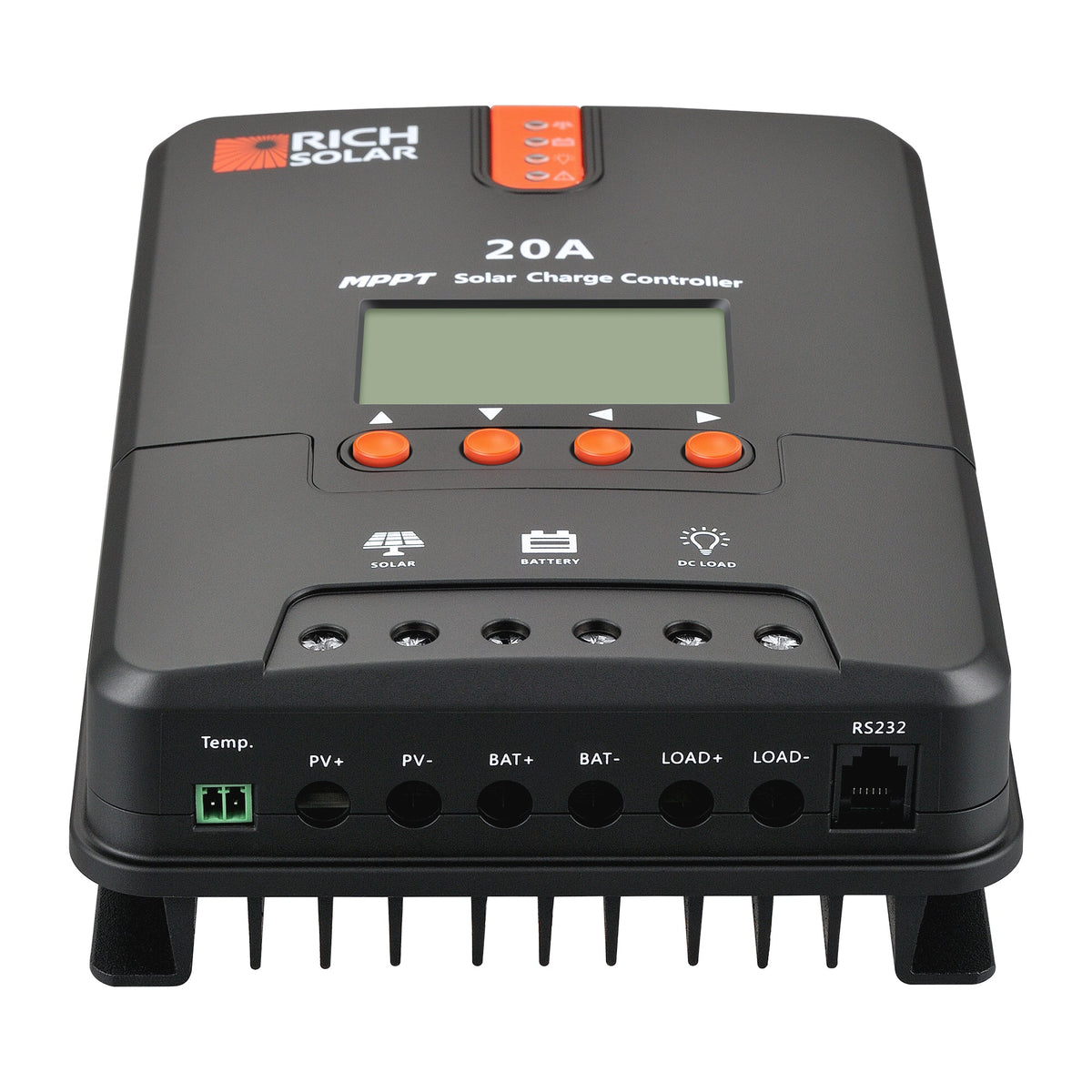

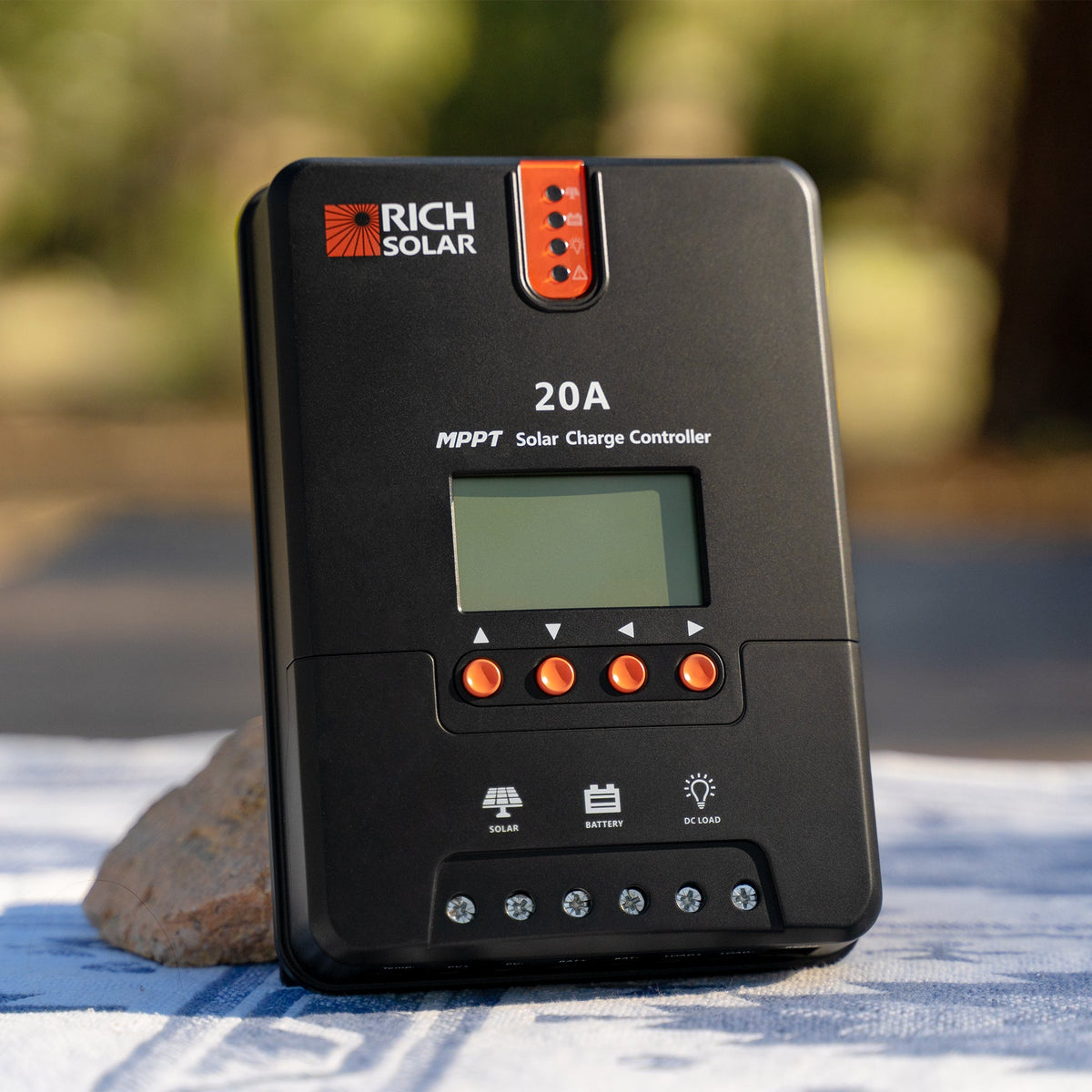

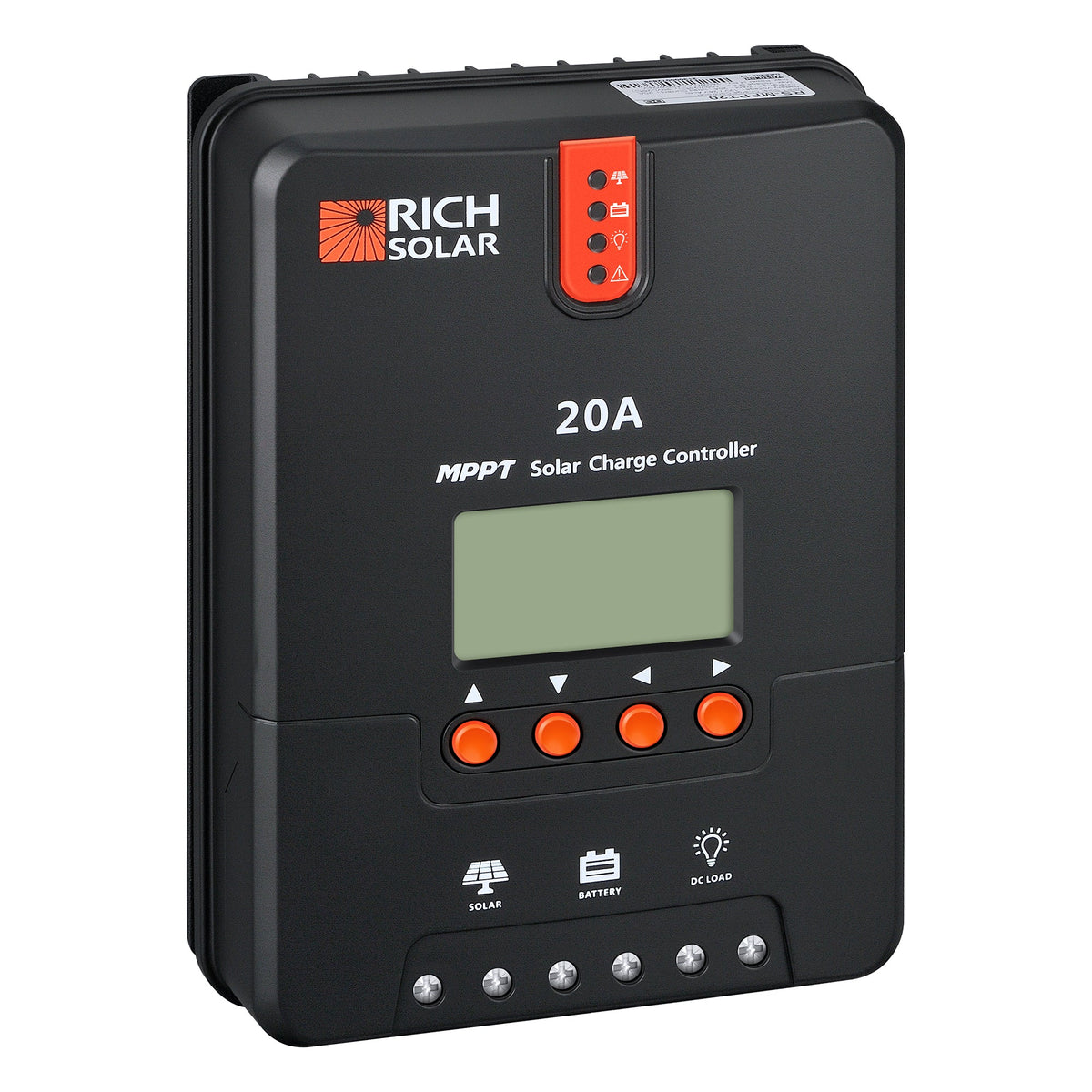

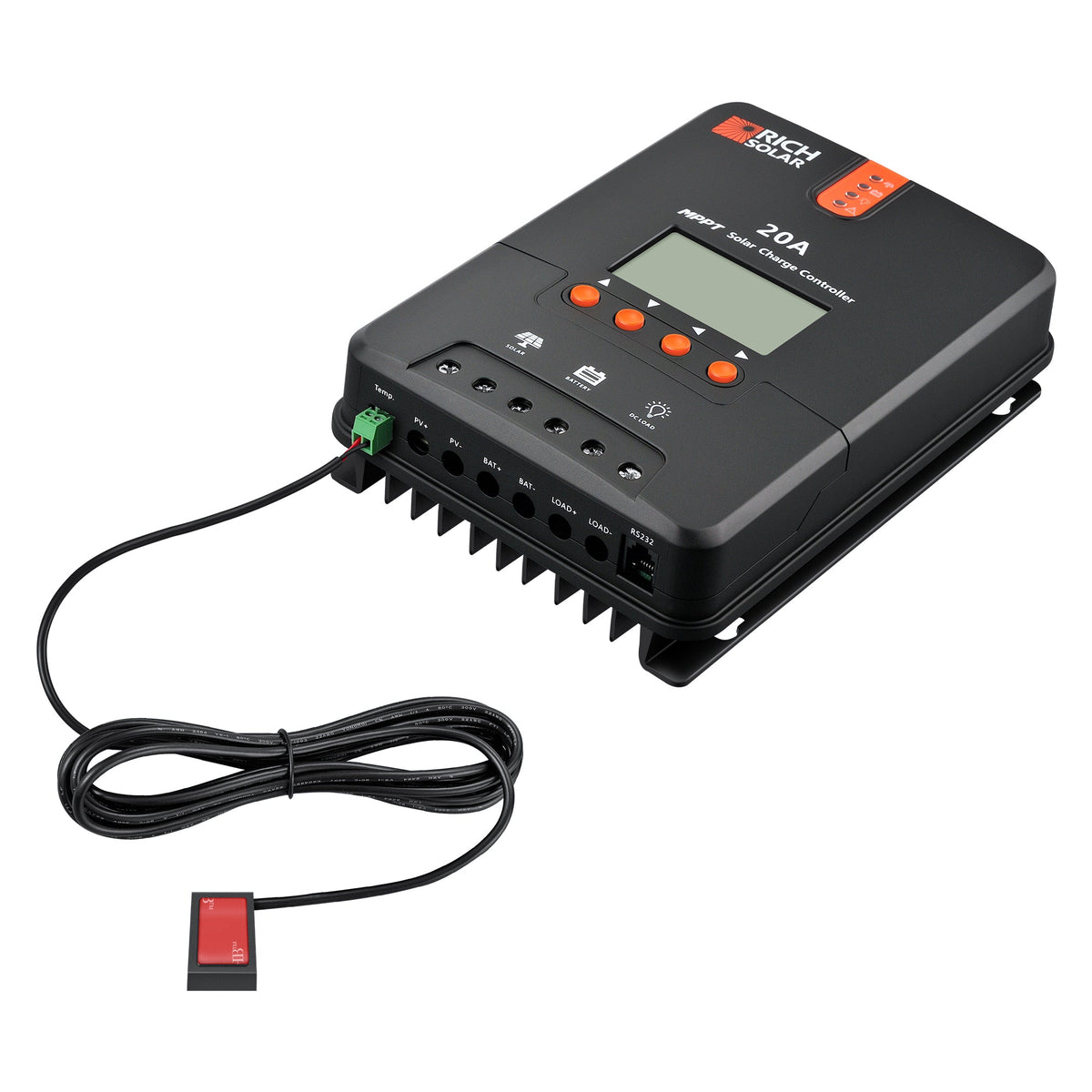

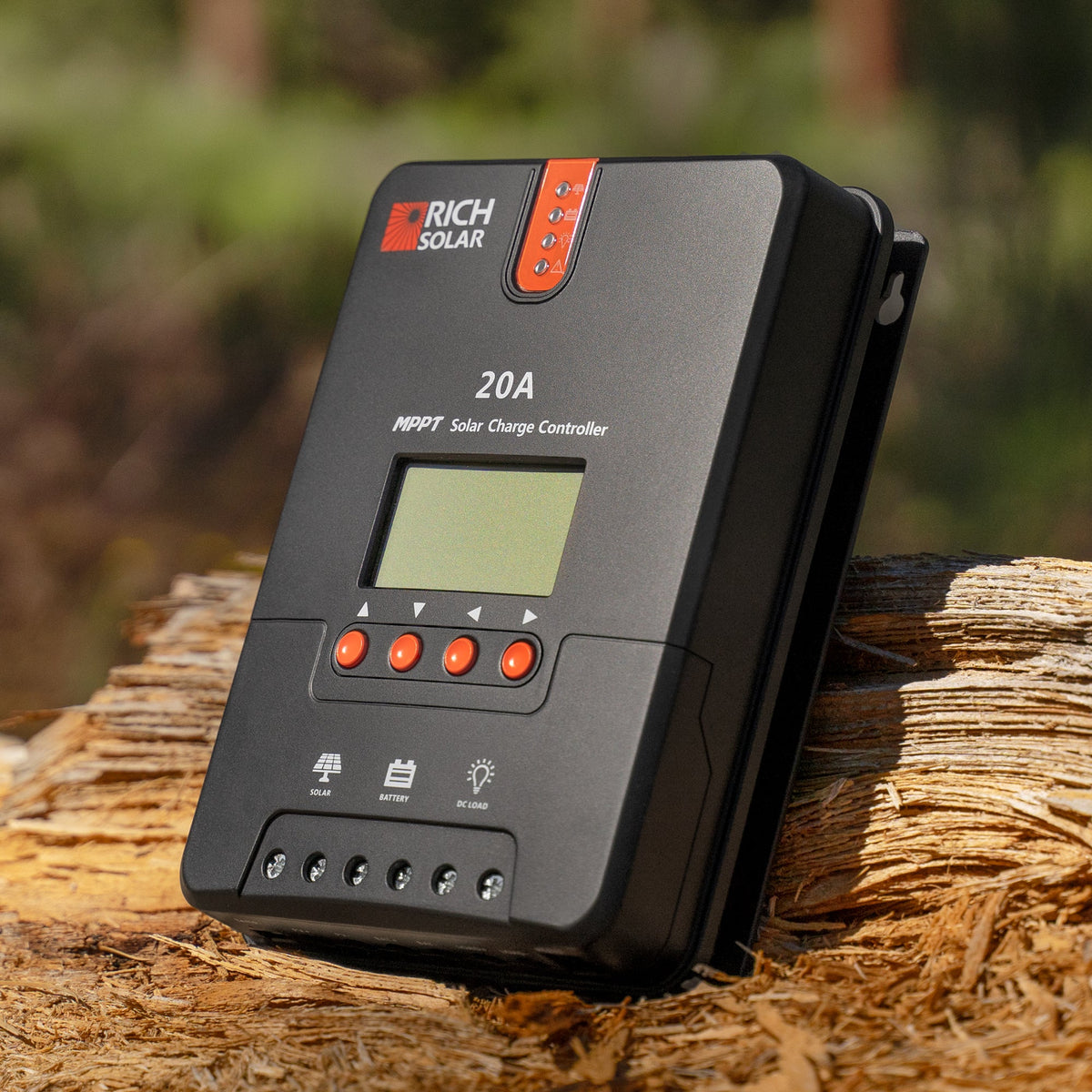

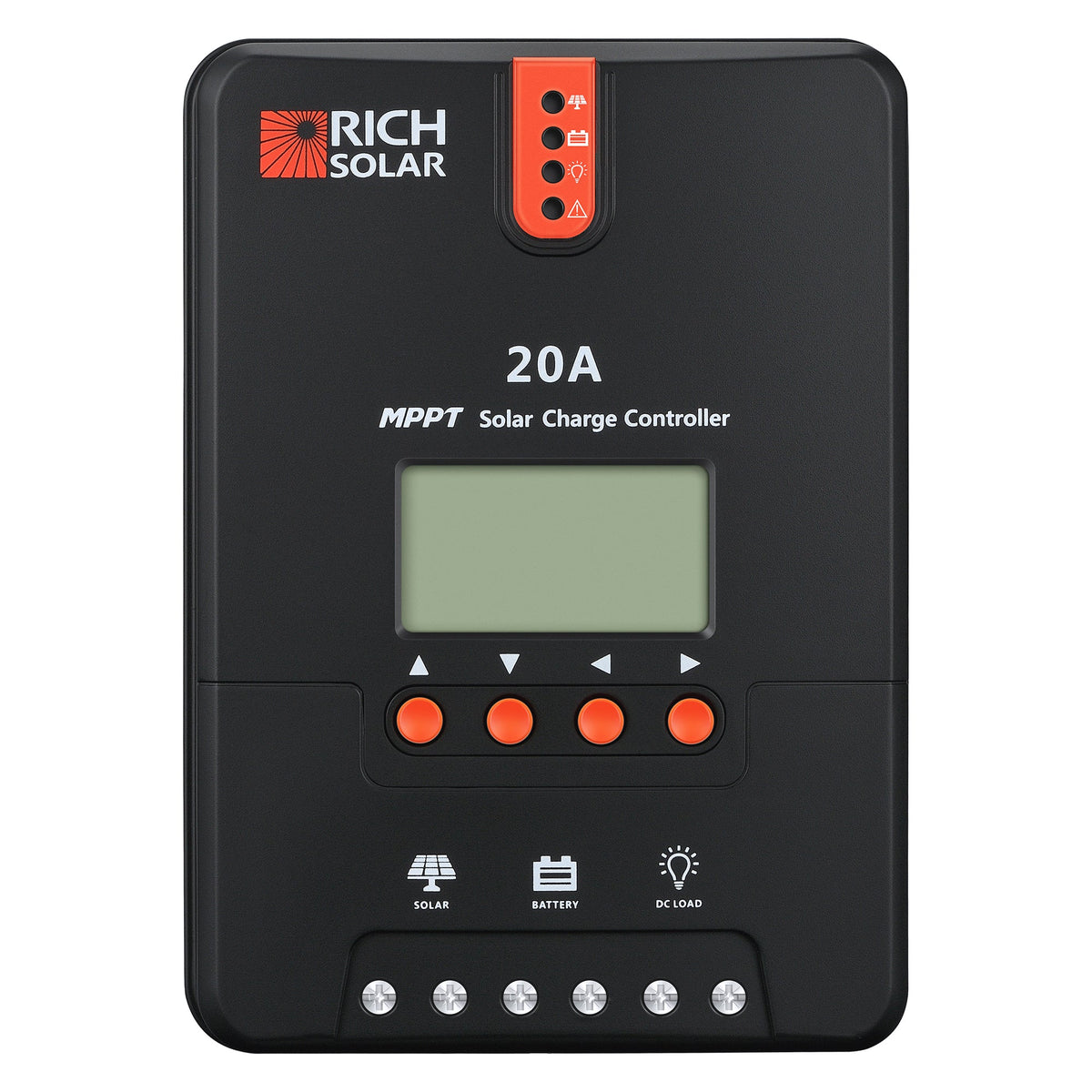

20A MPPT Solar Charge Controller 12V/24V
20A MPPT controller for small off-grid and rv arrays.
SKU:RS-MPPT20
Regular price
$89.99 USD
20A MPPT charge controller.
12V/24V Auto battery systems.
See specifications for array limits.
Multi-stage charging.
Need help choosing the right kit?
Talk to a Solar Expert:
1-332-291-6885
Quantity
Quantity
Guaranteed Safe Checkout
Deliver to
Get it between
Product Information
20A MPPT Solar Charge Controller for Small Off-Grid and RV Arrays
An MPPT controller tracks the array's maximum power point and converts the surplus voltage into charging current, so it harvests more than a PWM unit from the same panels — most noticeably in cold or low light, and whenever panel voltage sits well above battery voltage.
Size the array to the limits in the specifications table.

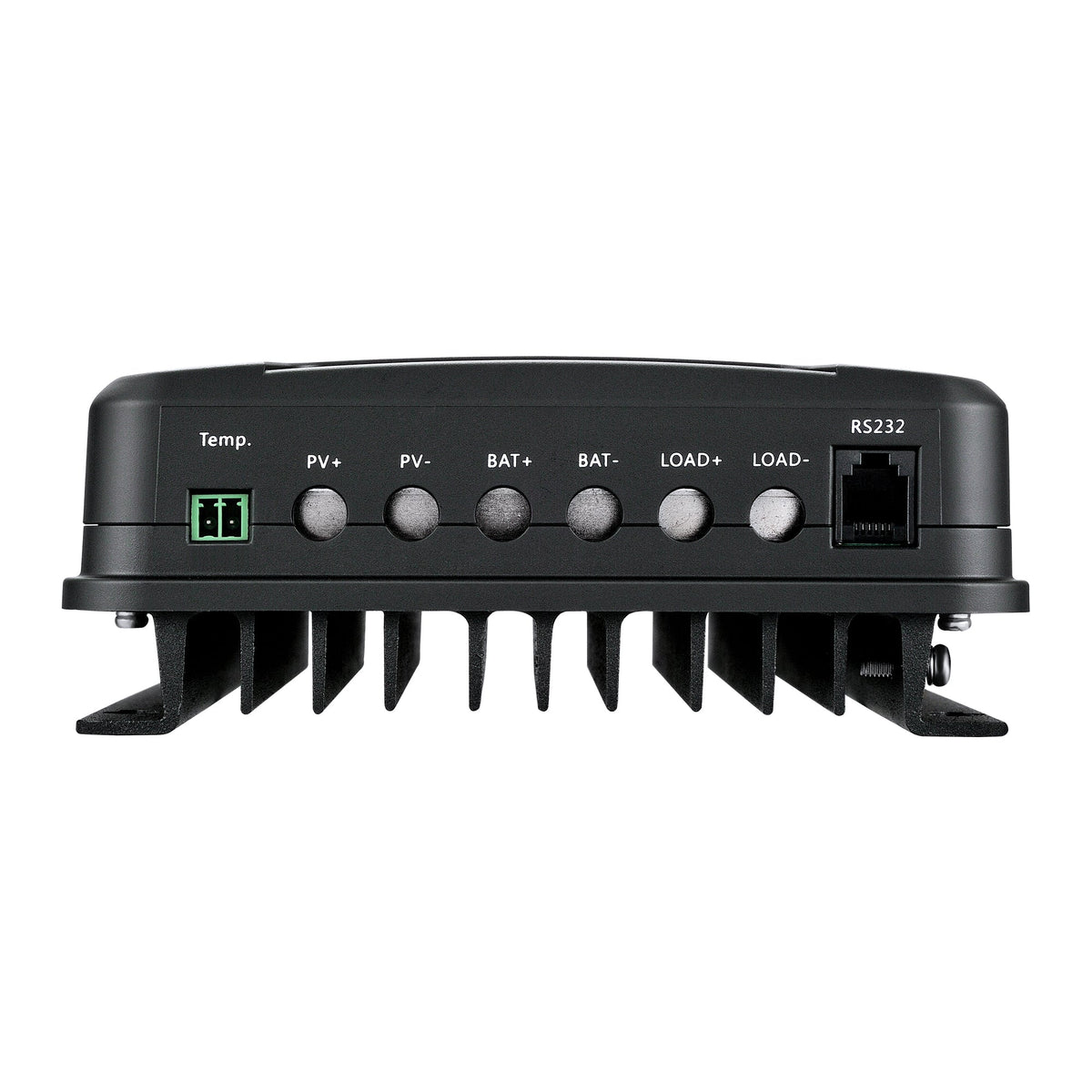

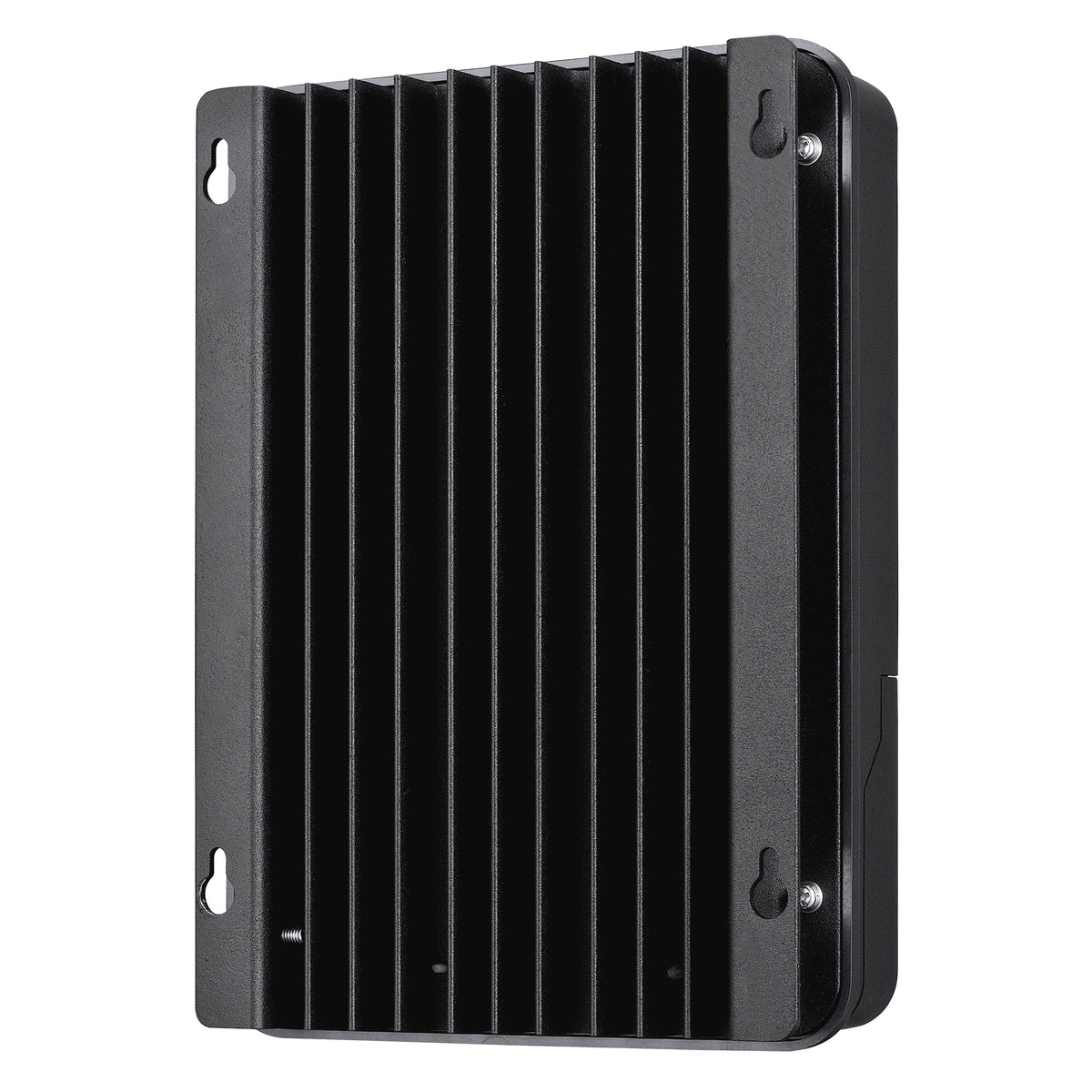

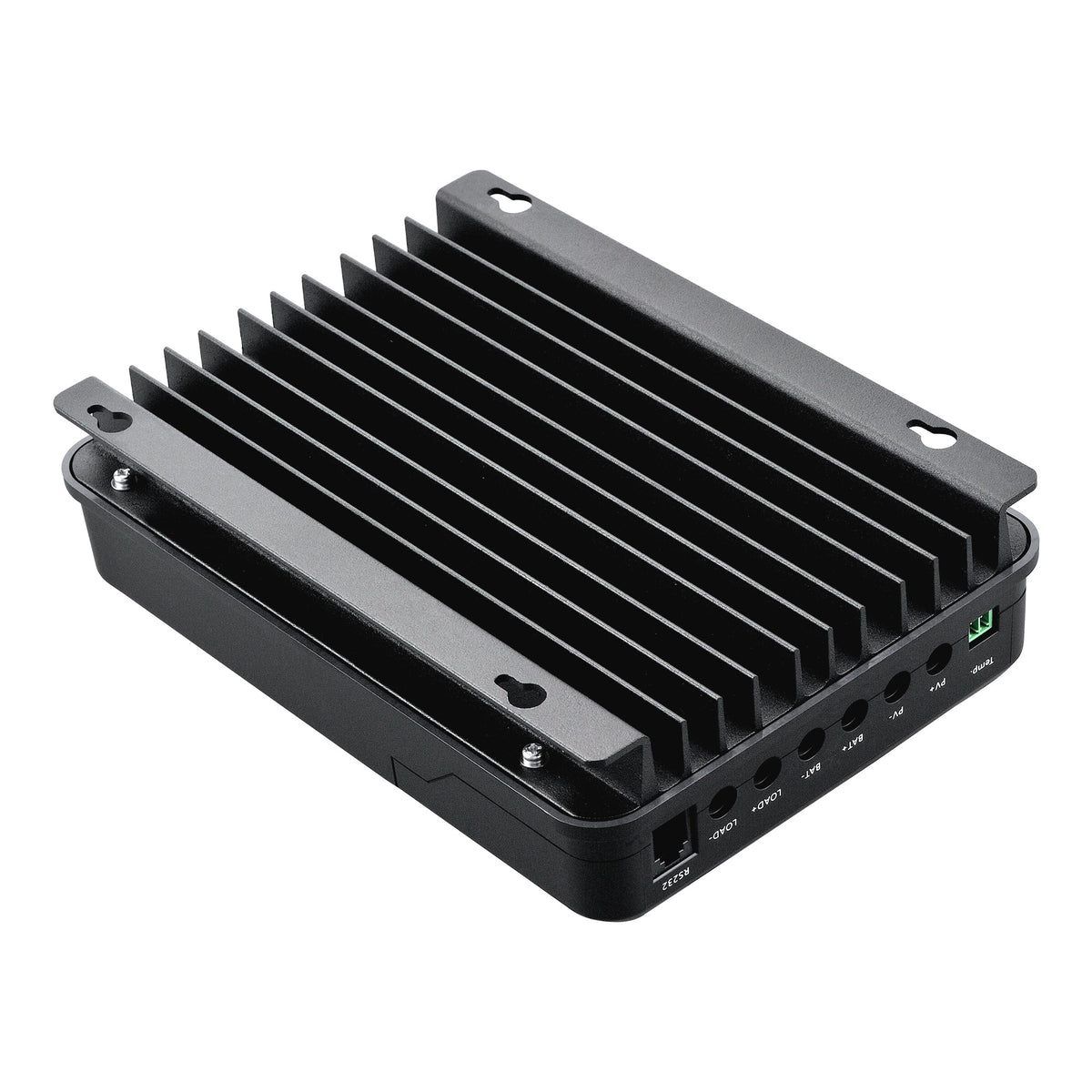

Mount it close to the battery on a vertical surface with airflow around the heatsink, and wire battery first, then panels.
| Specification | Value |
|---|---|
| Nominal System Voltage | 12V/24V Auto |
| Rated Battery Current | 20A |
| Rated Load Current | 20A |
| Max. PV Input Short Current | 25A |
| Max. Battery Voltage | 32V |
| Max Solar Input Voltage | 100 VDC |
| Discharge Circuit Voltage Drop | ≤0.15 V |
| Max. Photovoltaic System Input Power | 260W/12V, 520W/24V |
| Conversion Efficiency | ≤98% |
| MPPT Tracking Efficiency | >99% |
| Operating Temperature | -35℃ to +45℃ |
| Protection Degree | IP32 |
| Dimensions | 8.27 x 5.94 x 2.34 in |
| Net Weight | 3.08 lb |
- 1 x 20A MPPT Solar Charge Controller 12V/24V
- Mounting or connection hardware as listed in the specifications
- User manual
Free Shipping
On all orders
30-Day Returns
Hassle-free returns
25 Year Warranty
On panels & more
Secure Payments
100% protected
Frequently Asked Questions
How many panels can I connect?
Check the maximum PV input power and voltage in the specifications, and keep the array within both.
MPPT or PWM — which do I need?
MPPT harvests more, especially when panel voltage is well above battery voltage or in cold and low light, and it is the better choice for larger or 24V arrays. PWM costs less and suits small systems where panel and battery voltage are closely matched. This unit is MPPT.
Which batteries does it charge?
Check the battery types listed in the specifications and set the matching profile before first charge.
