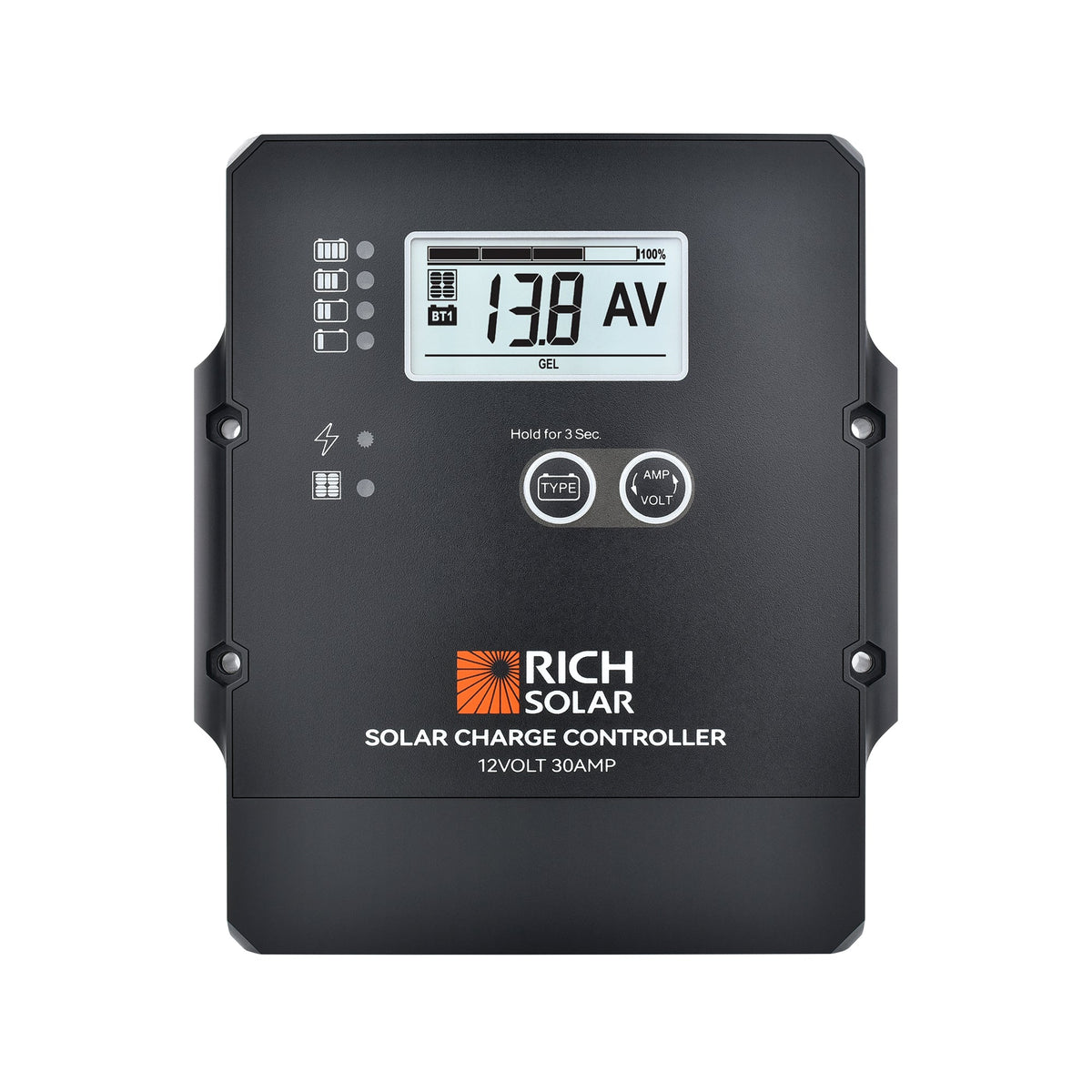

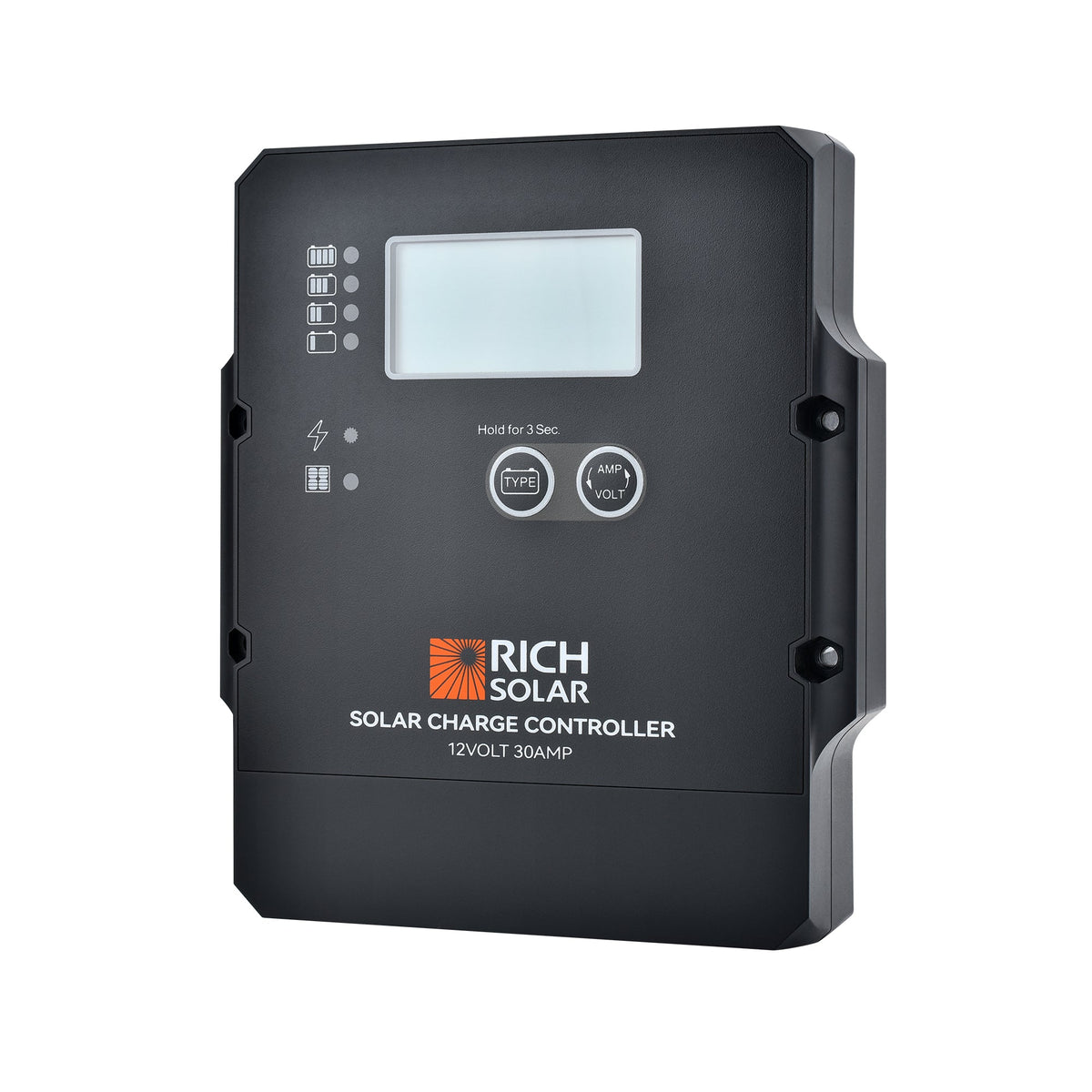

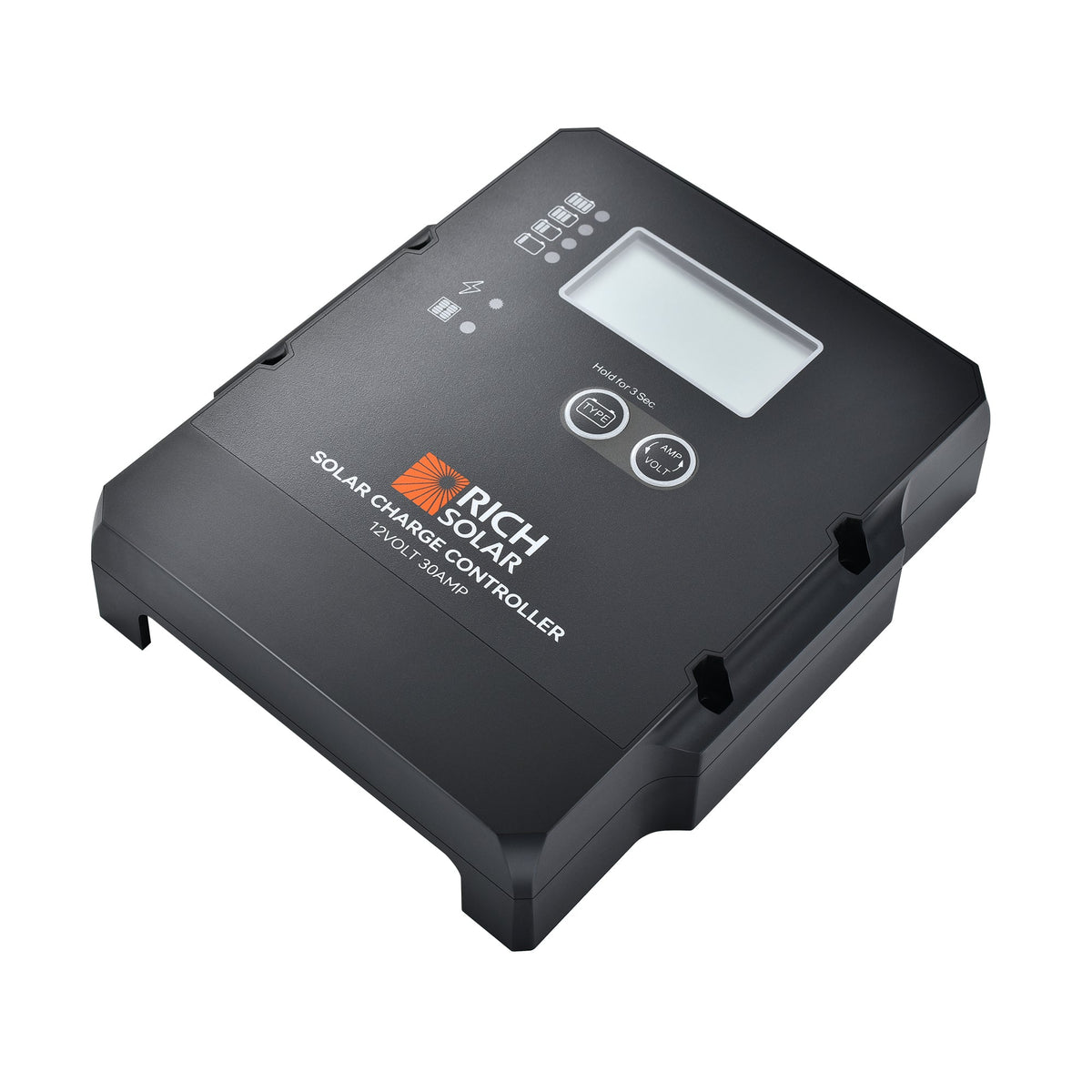

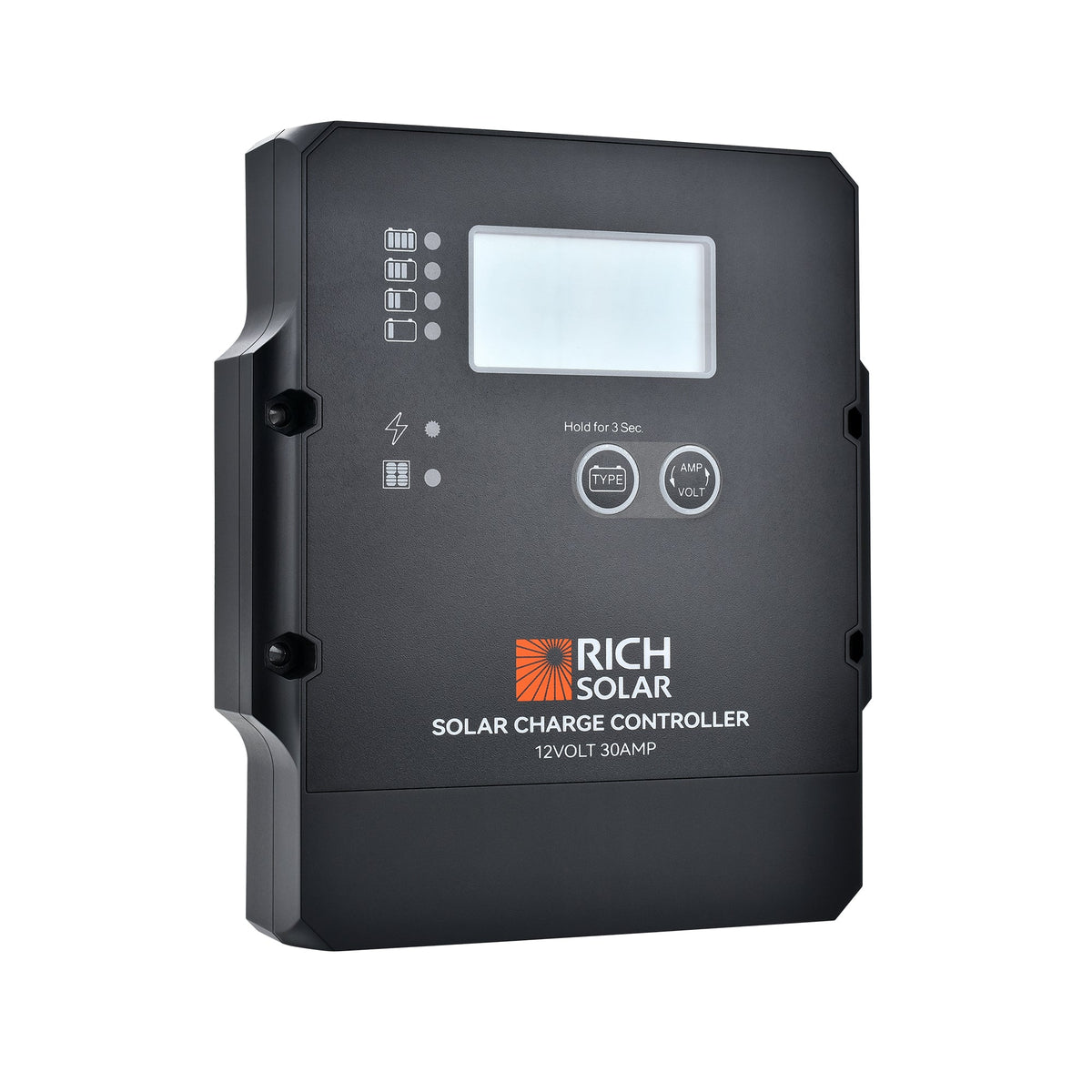

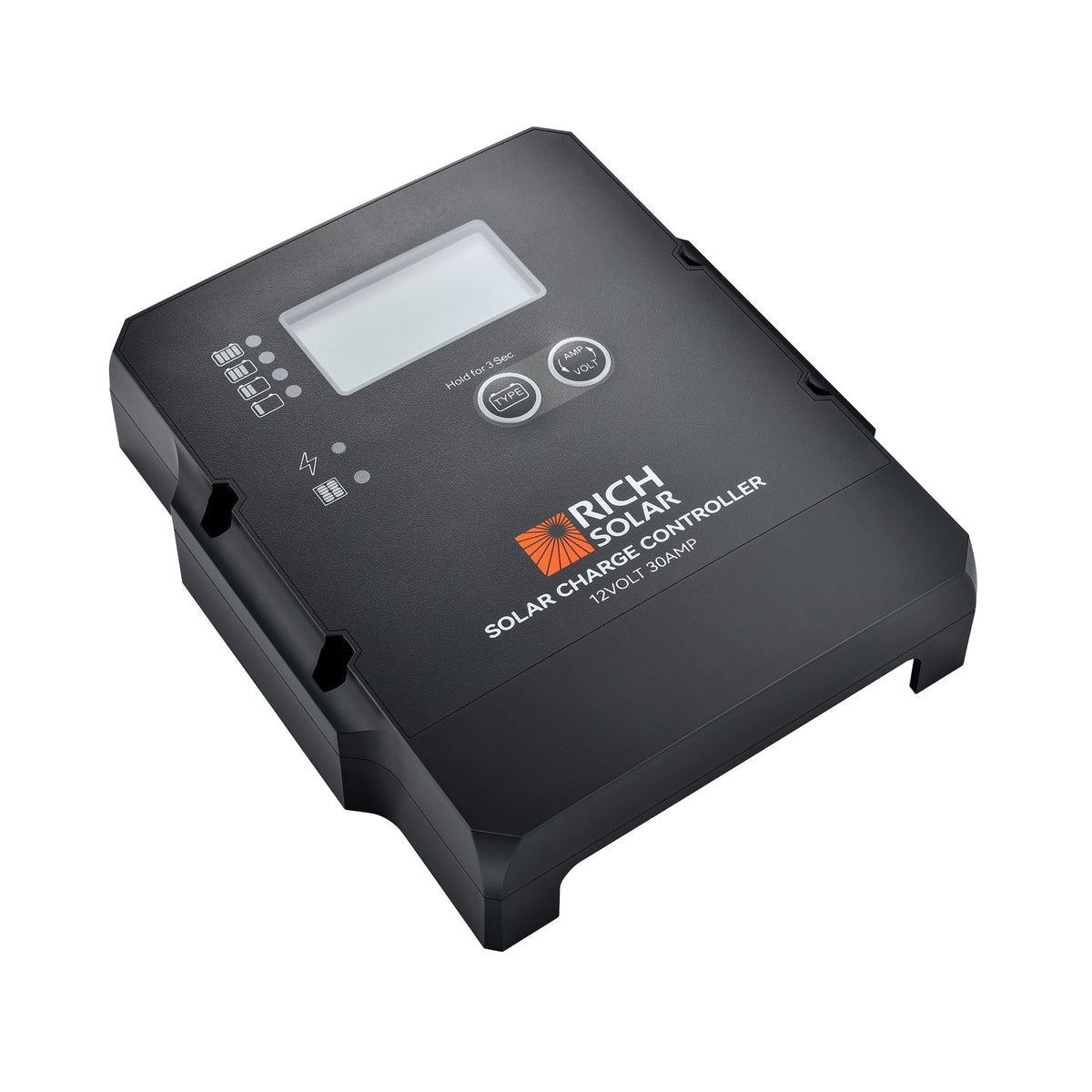

30A 12V PWM Solar Charge Controller
30A PWM controller for rvs, trailers and boats.
SKU:RS-PWM30F
Regular price
$89.99 USD
30A PWM charge controller.
Auto-detects your battery voltage.
Up to Max. 25 VDC PV input.
IP22 rated.
Need help choosing the right kit?
Talk to a Solar Expert:
1-332-291-6885
Quantity
Quantity
Guaranteed Safe Checkout
Deliver to
Get it between
Product Information
30A PWM Solar Charge Controller for RVs, Trailers and Boats
A PWM controller is the simple, economical choice when panel voltage is close to battery voltage — a 12V panel on a 12V battery, for instance. It costs less than MPPT and has less to go wrong, which is why it still suits small RV, boat and shed systems.
Panel open-circuit voltage must stay under Max. 25 VDC — check this in cold weather, when Voc rises above the rated figure.
Rated IP22. Mount it close to the battery on a vertical surface with airflow around the heatsink, and wire battery first, then panels.
| Specification | Value |
|---|---|
| Rated Solar Panel Amps | Max. 30 AMP |
| Normal Input Solar Cell Array Voltage | 15~22 VDC |
| Maximum Solar Cell Array Voltage (output has no load) | Max. 25 VDC |
| The Controller Lowest Operating Voltage at Solar or Battery Side | Min. 8 VDC |
| Standby Current Consumption at Night | Max. 5 mA |
| Maximum Voltage Drop - Solar Panel to Battery | Max. 0.25 VDC |
| Grounding | Positive Ground |
| Controller Material | Plastic, Standard ABS |

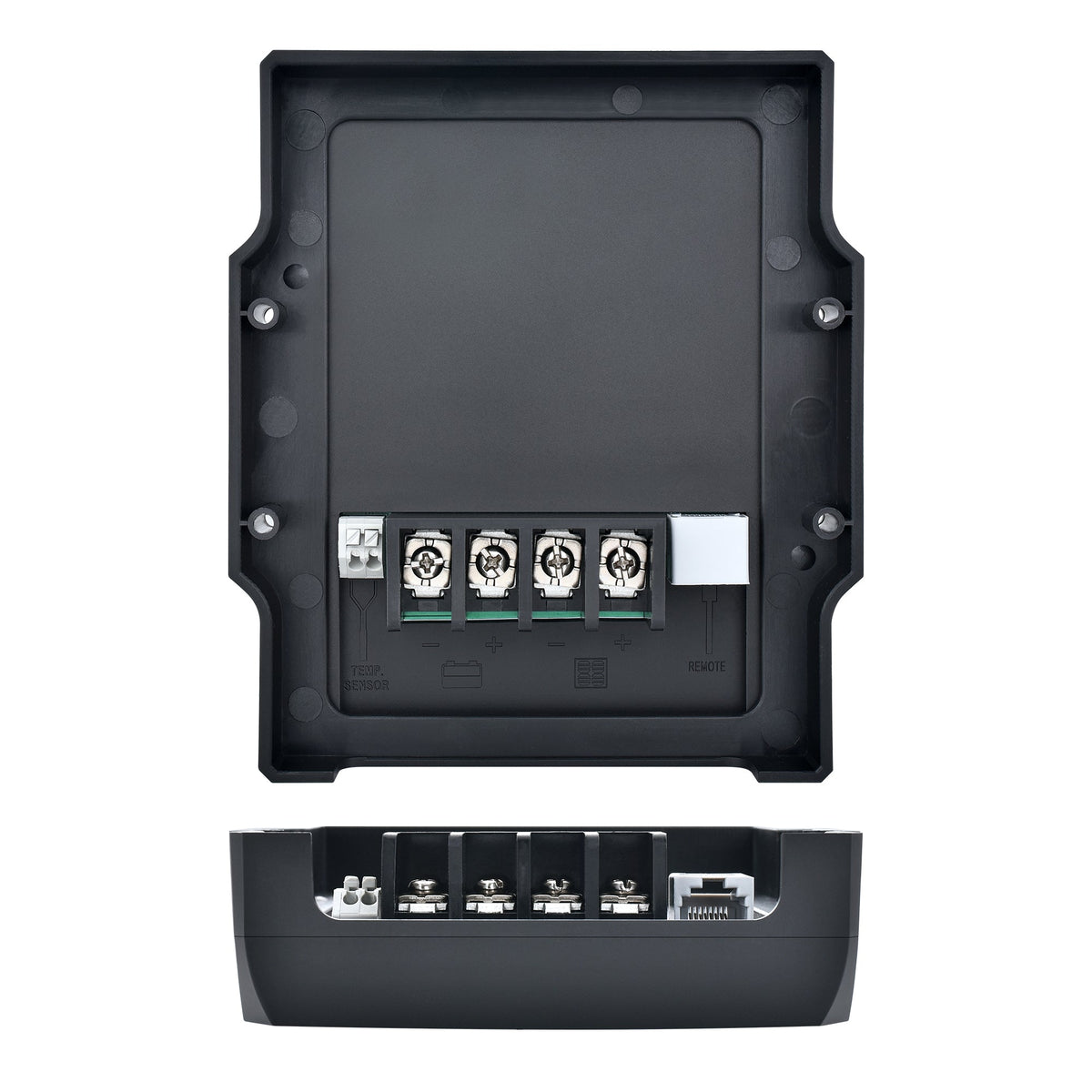

| Power Terminal Maximum Stranded Wire Size | #8 AWG stranded - 0.2in² |
| Power Terminal Torque | Up to 17 in-lb (1.92 N·m) |

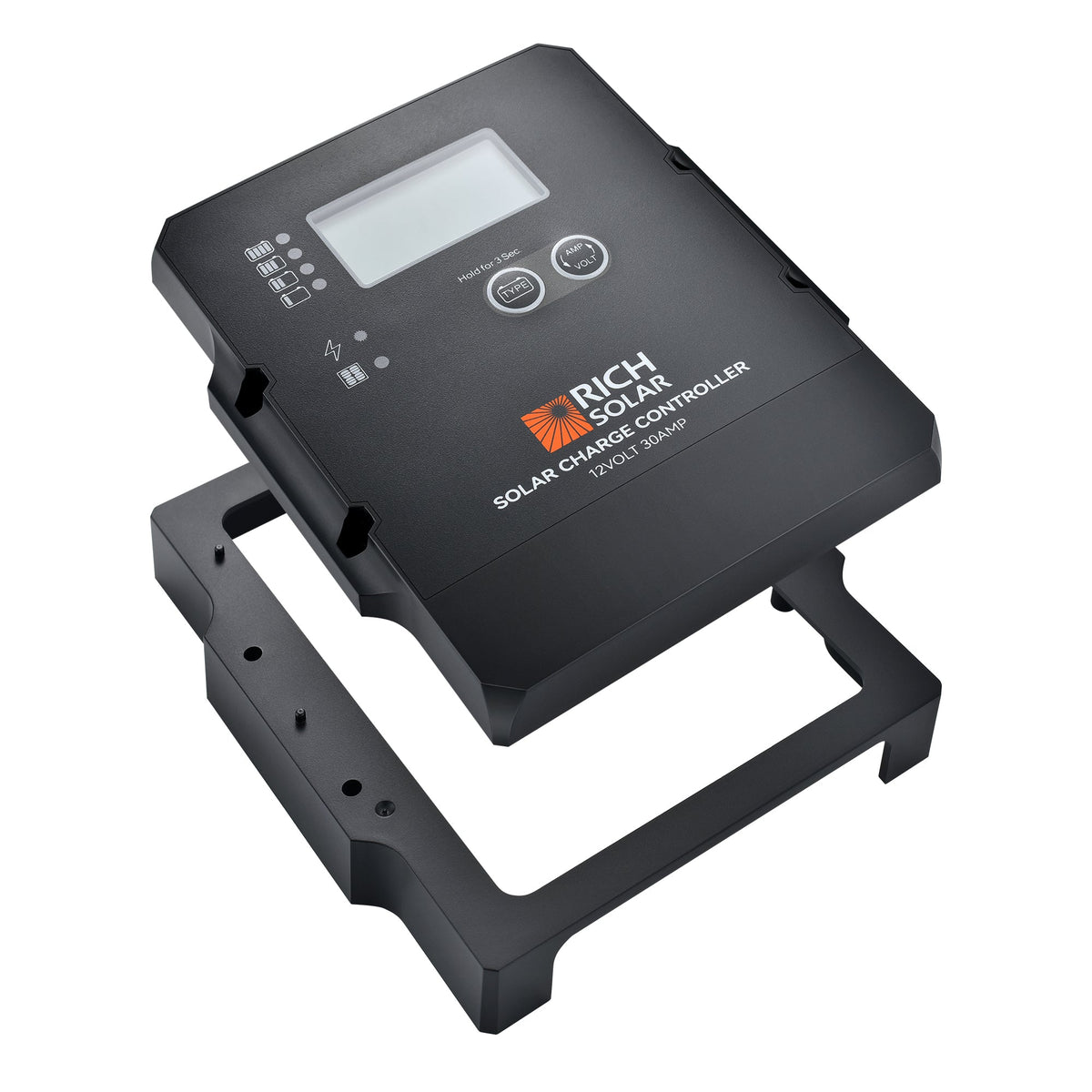

| Mounting | Vertical wall mounting |
| IP Grade | IP22 |
| Net Weight | Approx. 10.6oz / 300g |
| Package Dimensions | 8 × 7 × 3 in |
| Gross Weight | 1 lb |

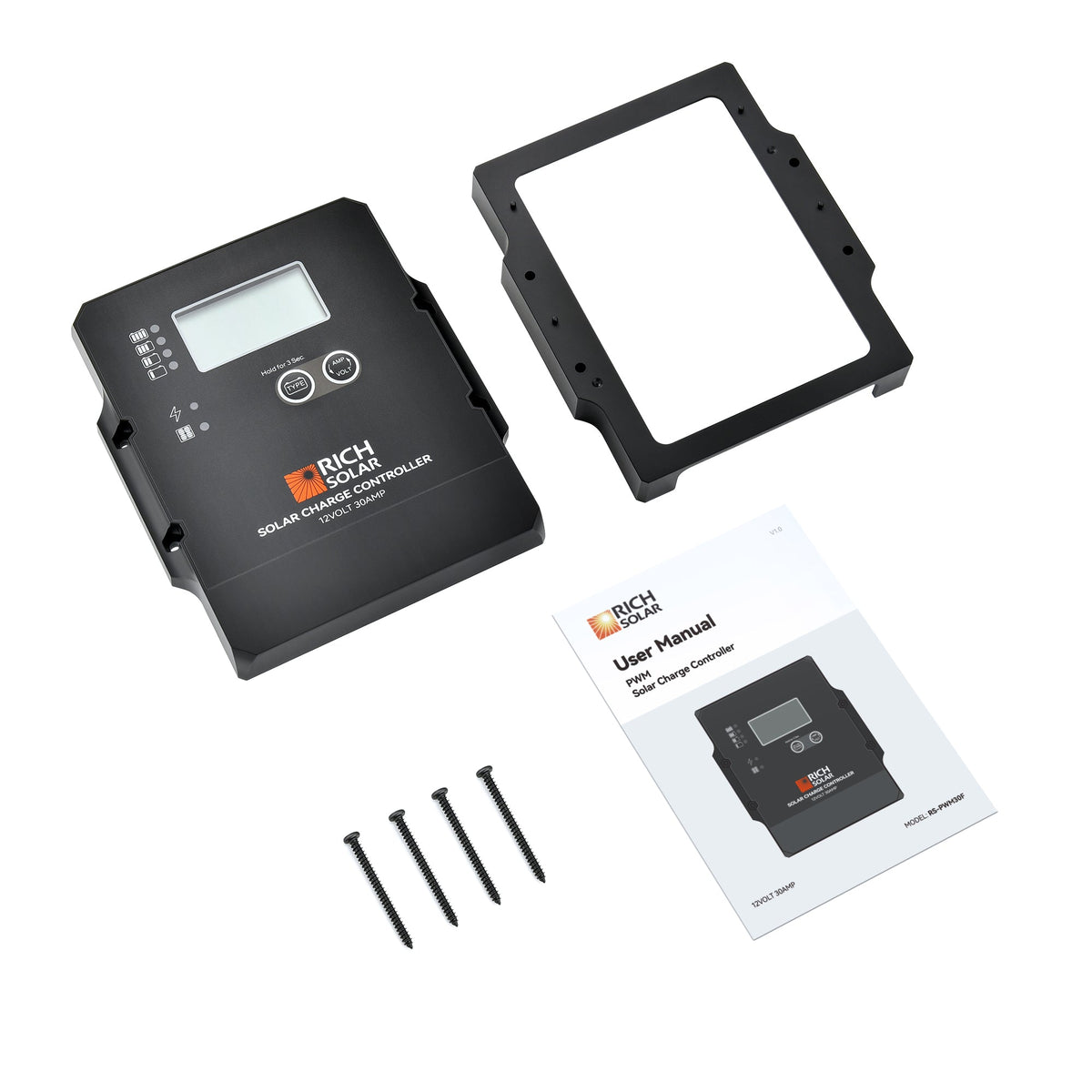

- 1 x 30A 12V PWM Solar Charge Controller
- Mounting or connection hardware as listed in the specifications
- User manual
Free Shipping
On all orders
30-Day Returns
Hassle-free returns
25 Year Warranty
On panels & more
Secure Payments
100% protected
Frequently Asked Questions
How many panels can I connect?
Check the maximum PV input power and voltage in the specifications, and keep the array within both.
MPPT or PWM — which do I need?
MPPT harvests more, especially when panel voltage is well above battery voltage or in cold and low light, and it is the better choice for larger or 24V arrays. PWM costs less and suits small systems where panel and battery voltage are closely matched. This unit is PWM.
Which batteries does it charge?
Check the battery types listed in the specifications and set the matching profile before first charge.
