4000W 48VDC-240VAC Solar Kit
4100W kit with 20.48kWh battery and 13,000W inverter.
SKU:UGS-CBK4000240
Regular price
$13,999.99 USD
4100W Solar Array — about 14.8kWh a day.
20.48kWh LiFePO4 battery included.
13,000W pure sine wave inverter.
Cables, fuses, brackets and connectors in the box.
Need help choosing the right kit?
Talk to a Solar Expert:
1-332-291-6885
Quantity
Quantity
Guaranteed Safe Checkout
Deliver to
Get it between
Product Information
Features
- 4100W Solar Array: Includes ten 410W monocrystalline solar panels, producing approximately 14.8kWh of energy per day under 4 peak sun hours.
- 20.48kWh LiFePO₄ Battery Bank: Includes four 51.2V 100Ah (5120Wh) ALPHA 5 PRO batteries for dependable energy storage and extended backup power.
- 13,000W Split-Phase Hybrid Inverter System: Includes two 6,500W hybrid inverters, delivering 13,000W continuous (26,000W surge) pure sine wave output with 120/240V split-phase AC output, dual 120A MPPT charge controllers, and support for solar, battery, utility, and generator inputs.
- Complete System Kit: Professionally matched components simplify system design and installation while ensuring reliable system performance.
- Versatile Applications: Ideal for homes, cabins, farms, workshops, remote properties, and whole-home backup power.

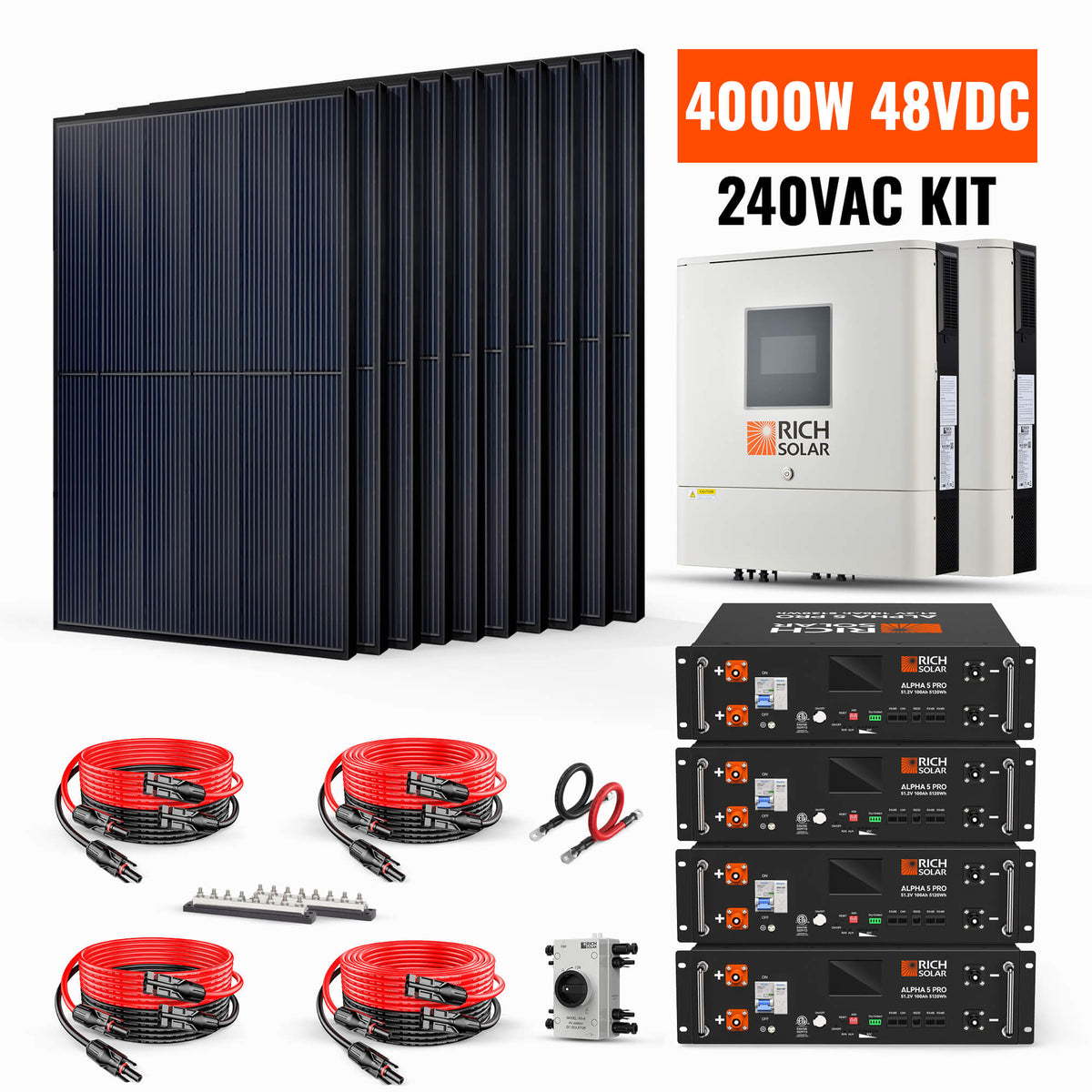

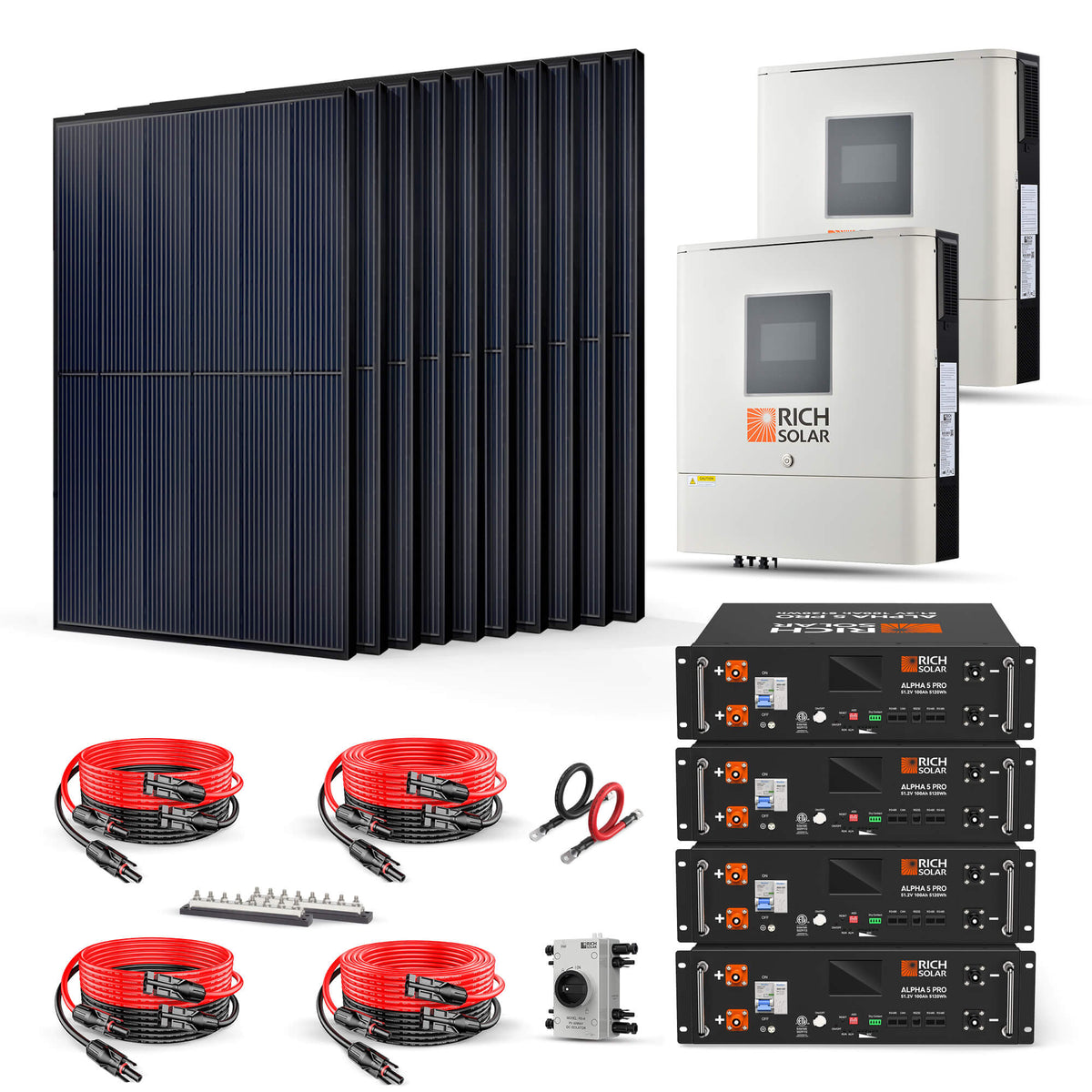

Kit Includes
- 2 x 6500W 48V Off-grid Solar Inverters (RS-H6548S)
- 10 x MEGA 410 24V 410W Solar Panels (RS-M410)
- 4 x ALPHA 5 PRO 51.2V 100Ah Server Rack Lithium Batteries (RS-B5121P)
- 2 x 600 AMP Busbars
- 2 x 10 AWG 30 ft Extension Cables (RS-30102)
- 2 x 10 AWG 10 ft Extension Cables (RS-10102)
- 1 x PV DC Quick Disconnect (RS-i4)
- 1 x 4/0 AWG 5 ft Battery Cables (RS-4/0A5F3)
| Specification | Value |
|---|---|
| Solar array | 4100W |
| Estimated daily production | ~14.8kWh at 4 peak sun hours |
| Battery | 20.48kWh LiFePO4 |
| Inverter | 13,000W pure sine wave |
| Components supplied | 8 matched items — see What's Included |
- 2 x 6500W 48V Off-grid Solar Inverters
- 10 x MEGA 410 24V 410W Solar Panels
- 4 x ALPHA 5 PRO 51.2V 100Ah Server Rack Lithium Batteries
- 2 x 600 AMP Busbars
- 2 x 10 AWG 30 ft Extension Cables
- 2 x 10 AWG 10 ft Extension Cables
- 1 x PV DC Quick Disconnect
- 1 x 4/0 AWG 5 ft Battery Cables
Estimated runtime from a full battery, after inverter losses. Real results vary with appliance efficiency and temperature; solar recharges the bank each day.
| Appliance (approx. draw) | 20.48kWh bank |
|---|---|
| LED lighting (60W) | ~307 hours |
| Wi-Fi router + 2 cameras (30W) | ~25.6 days |
| 12V fridge (~600Wh per day) | ~30.7 days |
| Laptop + phone charging (100W) | ~184 hours |
| Microwave (1,000W) | ~1106 minutes |
| Portable air conditioner (1,500W) | ~12.3 hours |
Free Shipping
On all orders
30-Day Returns
Hassle-free returns
25 Year Warranty
On panels & more
Secure Payments
100% protected
Frequently Asked Questions
What can this kit run?
The battery stores 20.48kWh, around 18.43kWh usable after inverter losses, and the array puts back about 14.8kWh on a clear day. That covers lighting, a fridge, Wi-Fi, device charging and larger loads like a microwave or power tools. See the What It Powers tab.
Do I need anything else?
No — the panels, battery, inverter, controller, cables, fuses and brackets are all in the box. You will need basic tools and fixings suited to your roof or mounting surface.
Can I expand it later?
Yes. You can add panels within the charge controller's input limit and add batteries in parallel for longer runtime. Keep added panels the same model where possible — mismatched panels in one string pull the whole string down to the weakest one.
