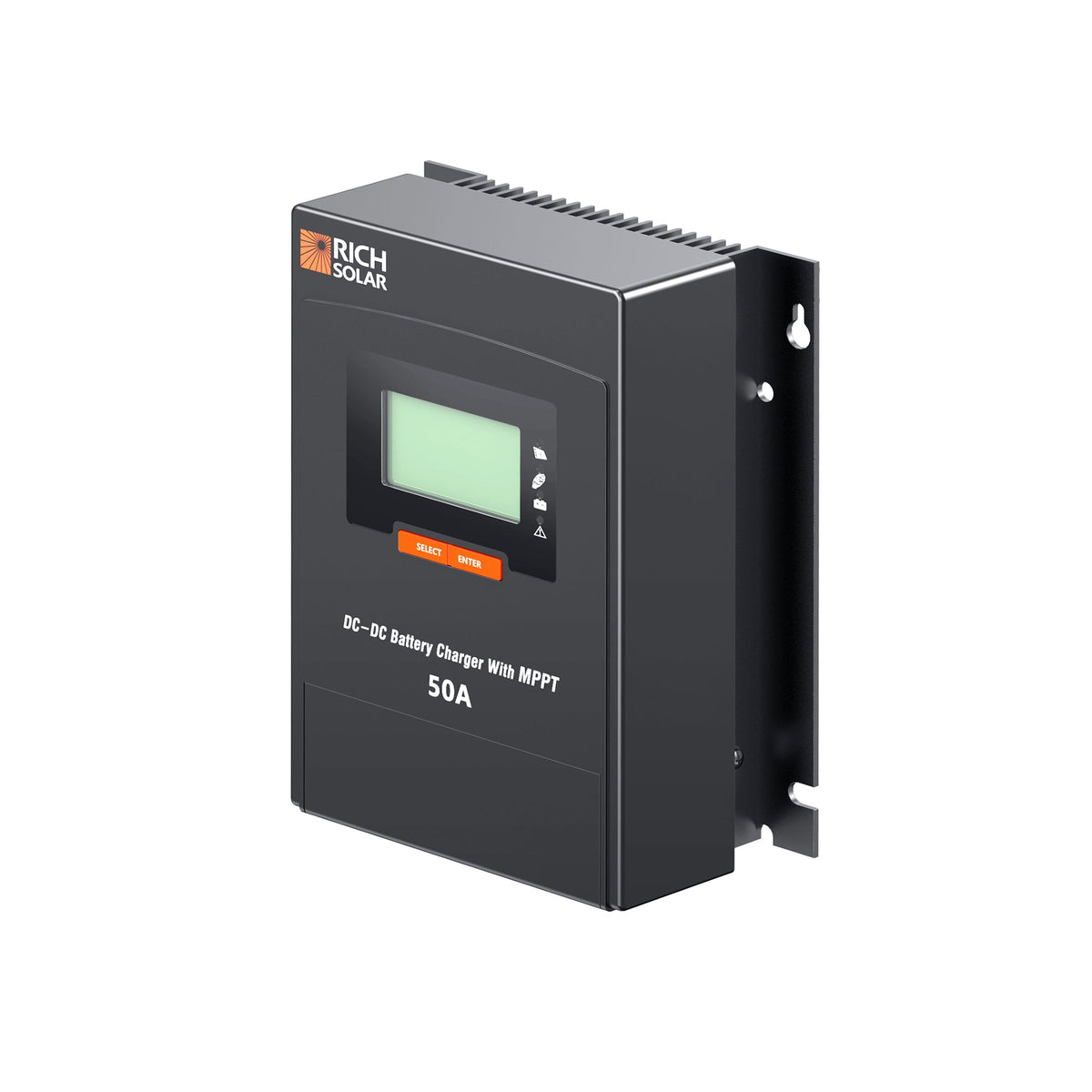

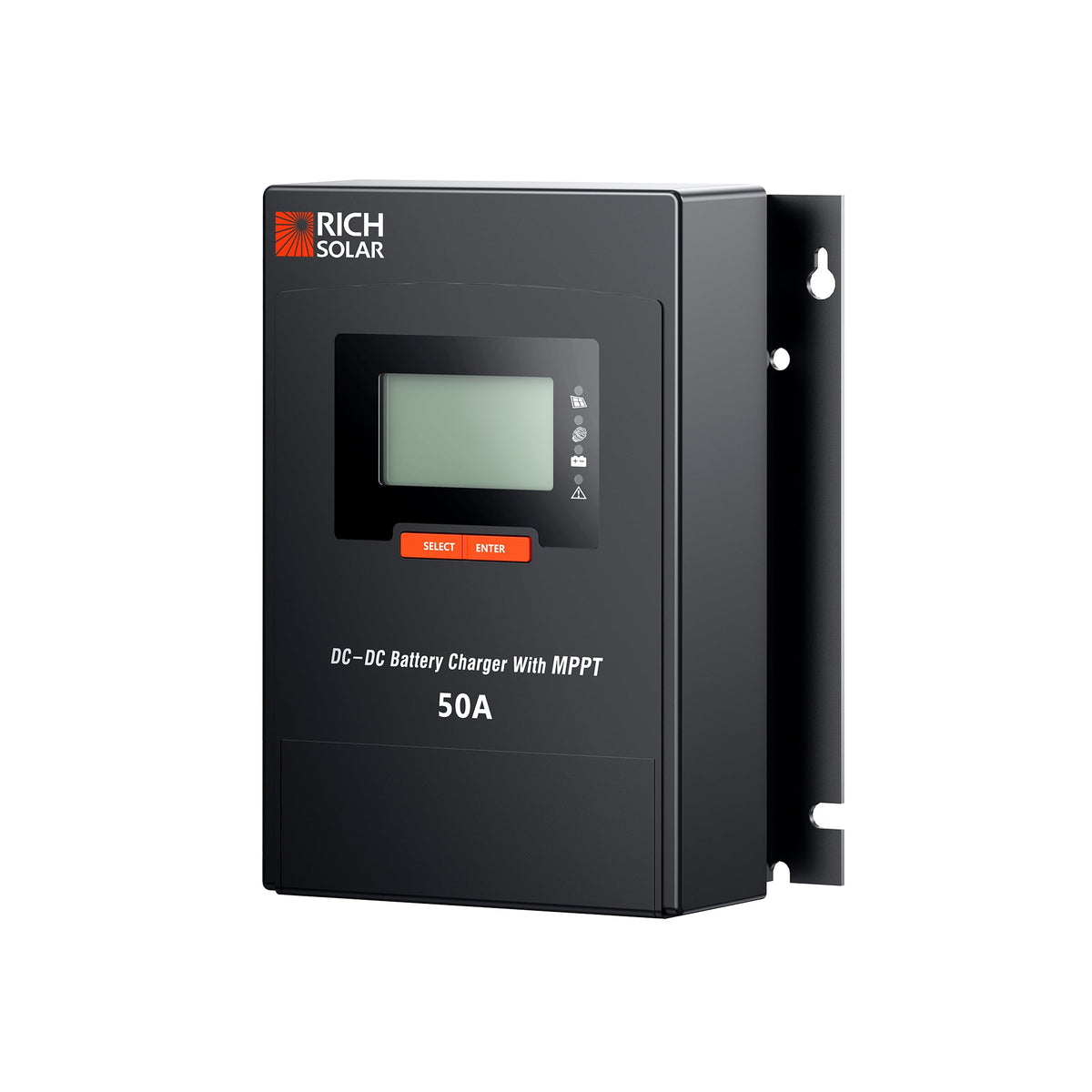

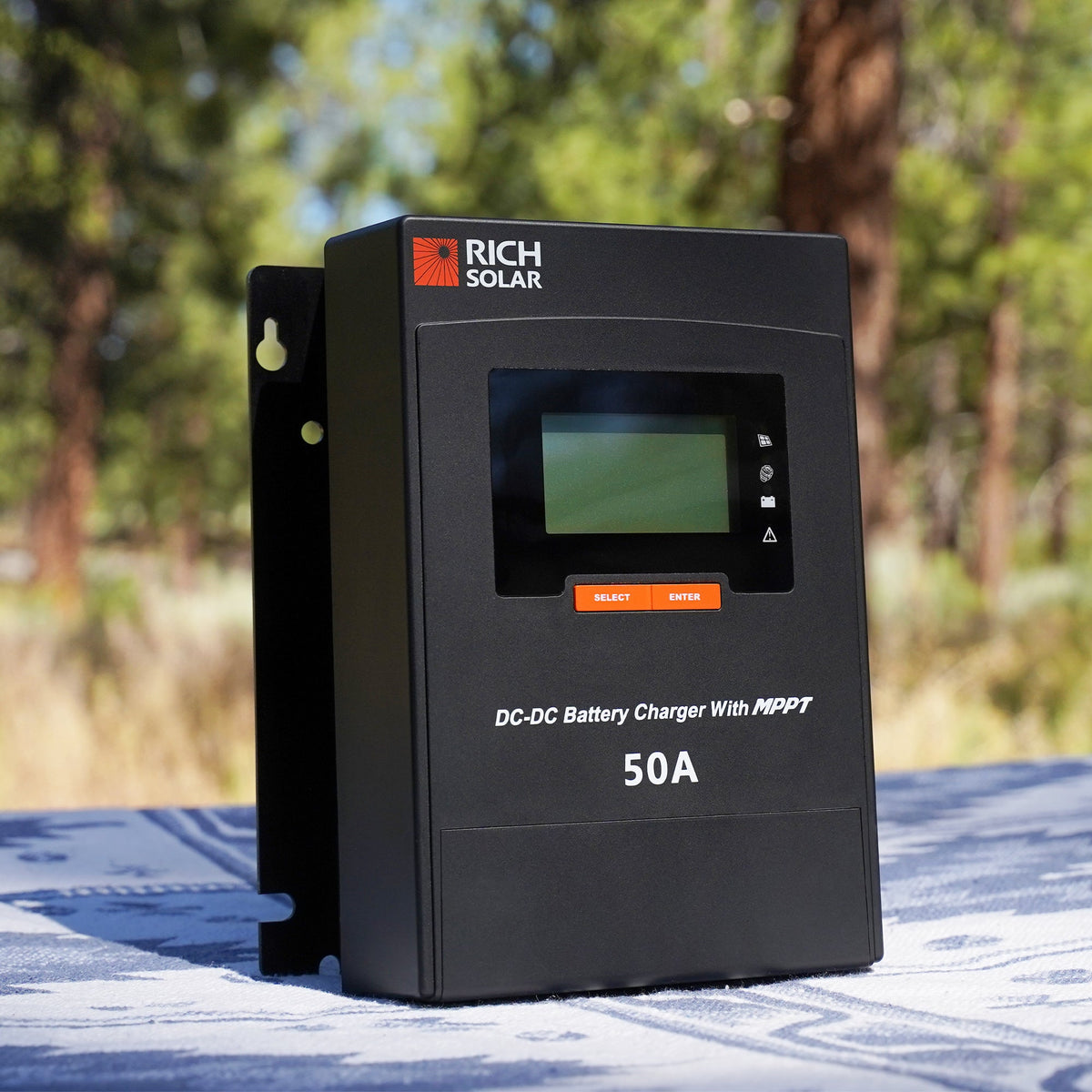

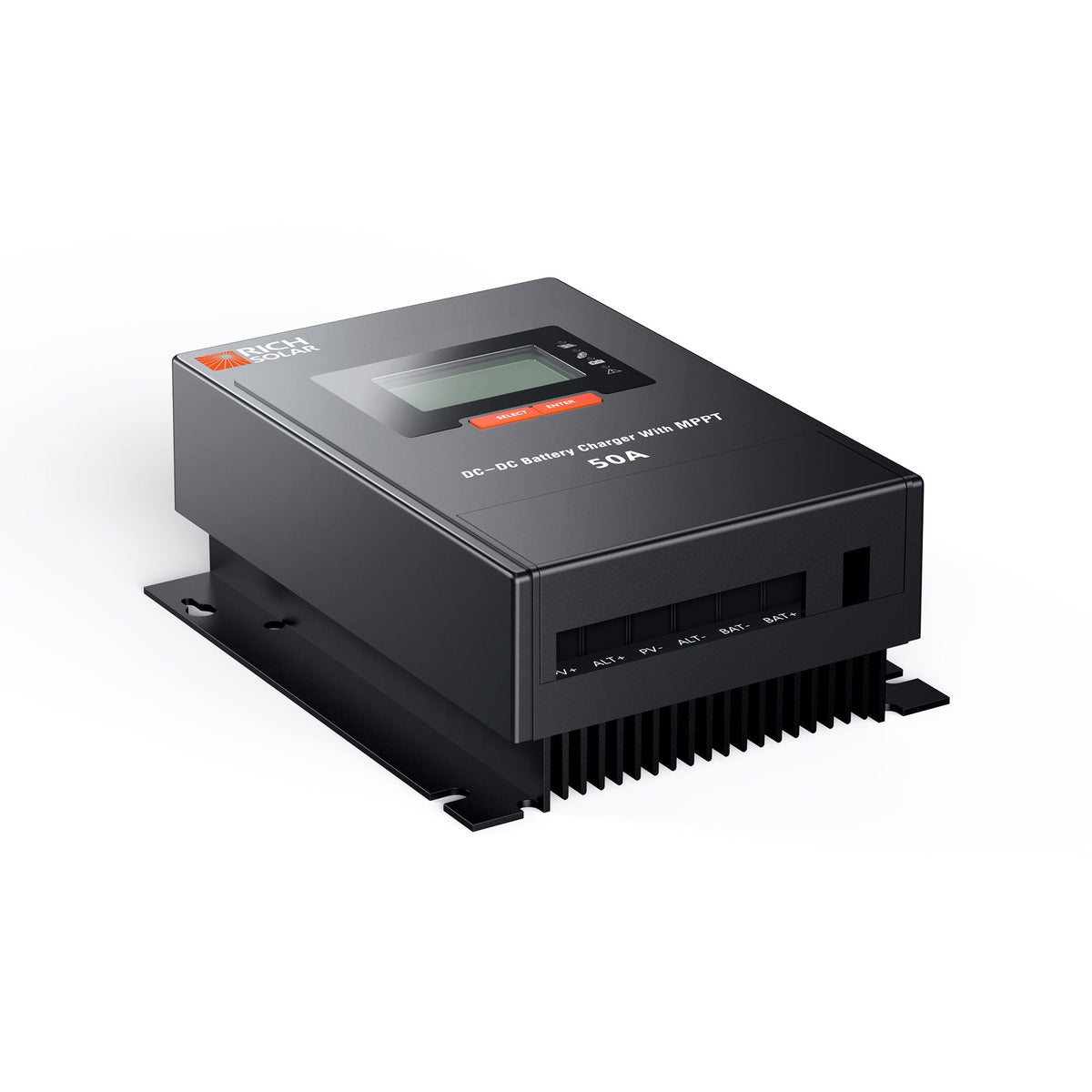

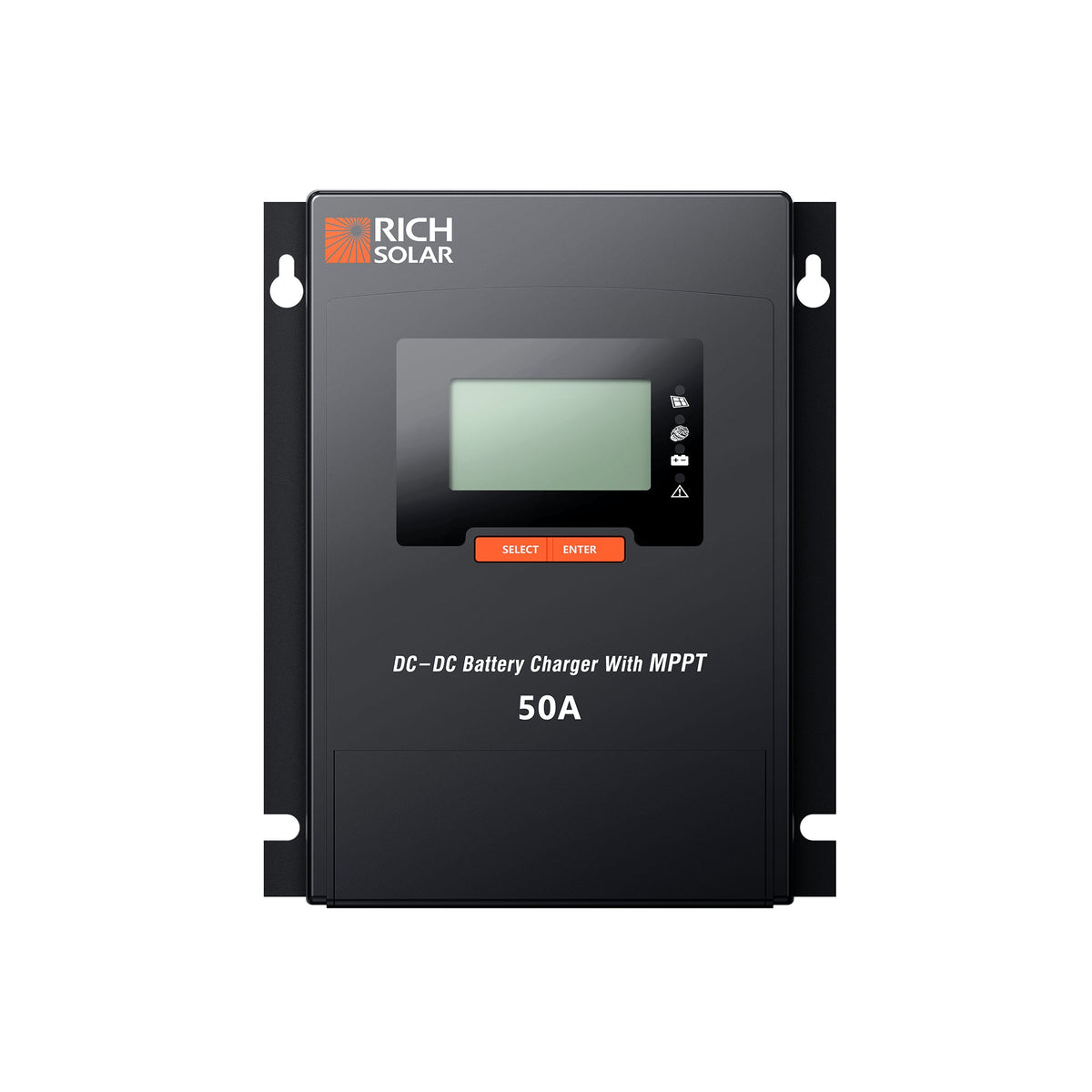

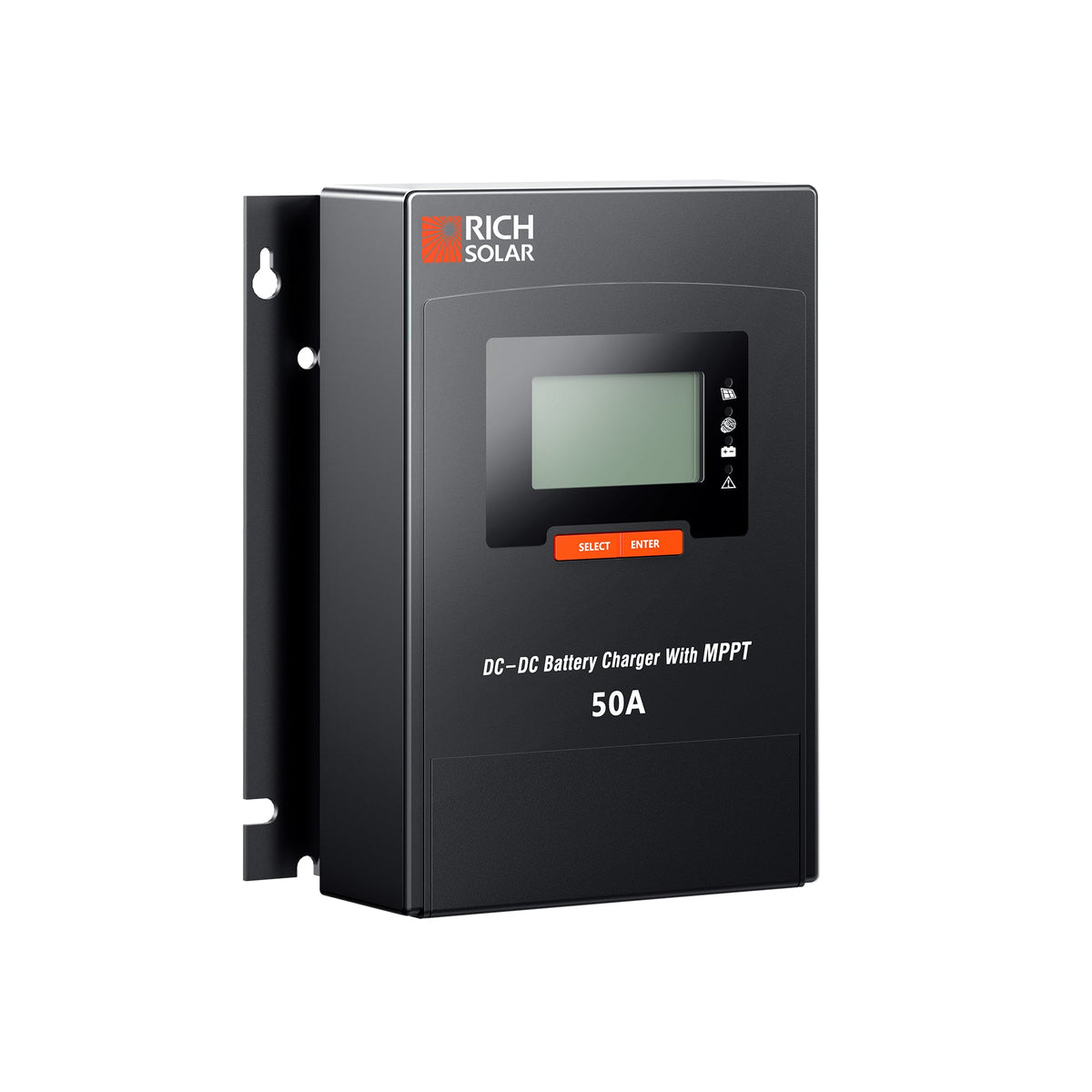

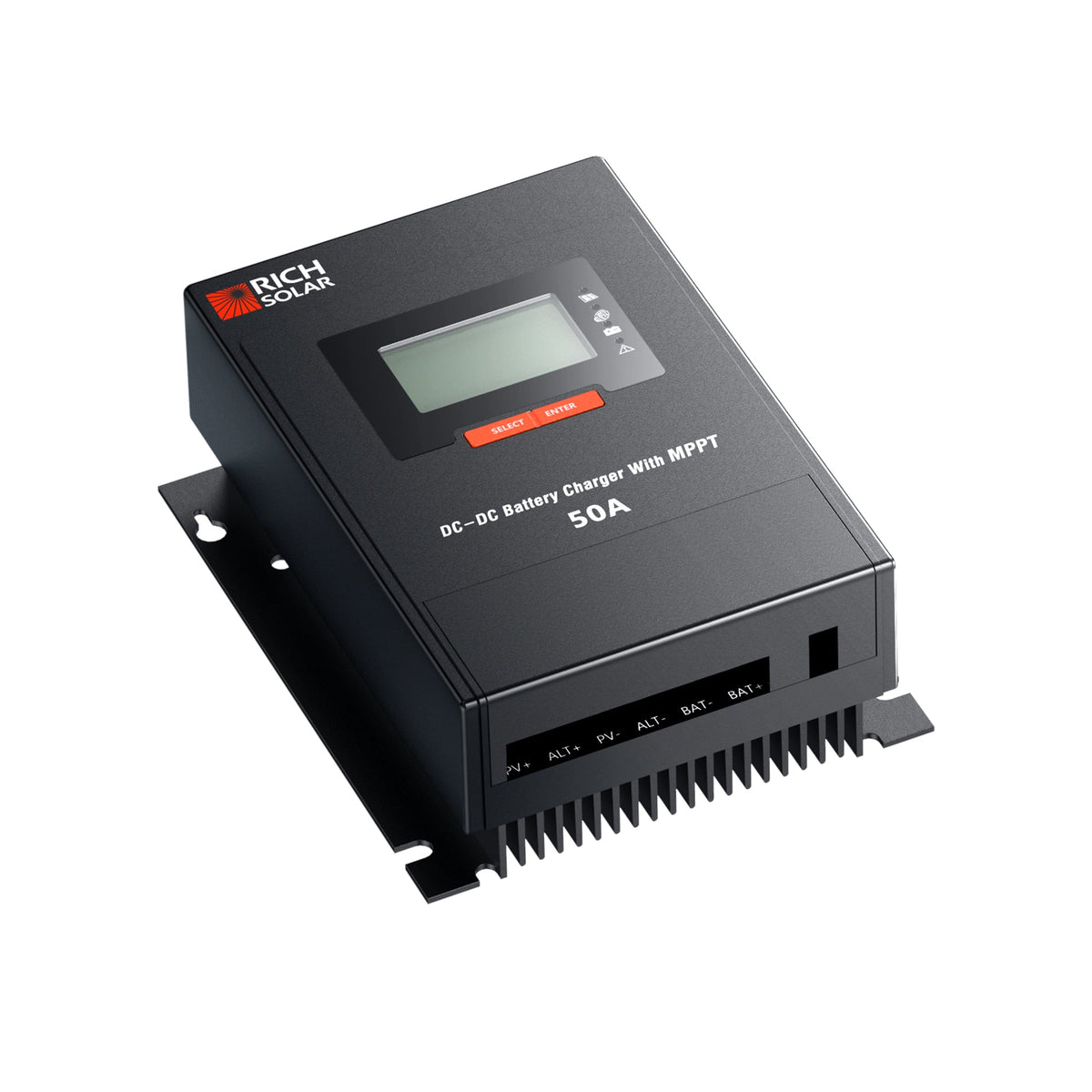

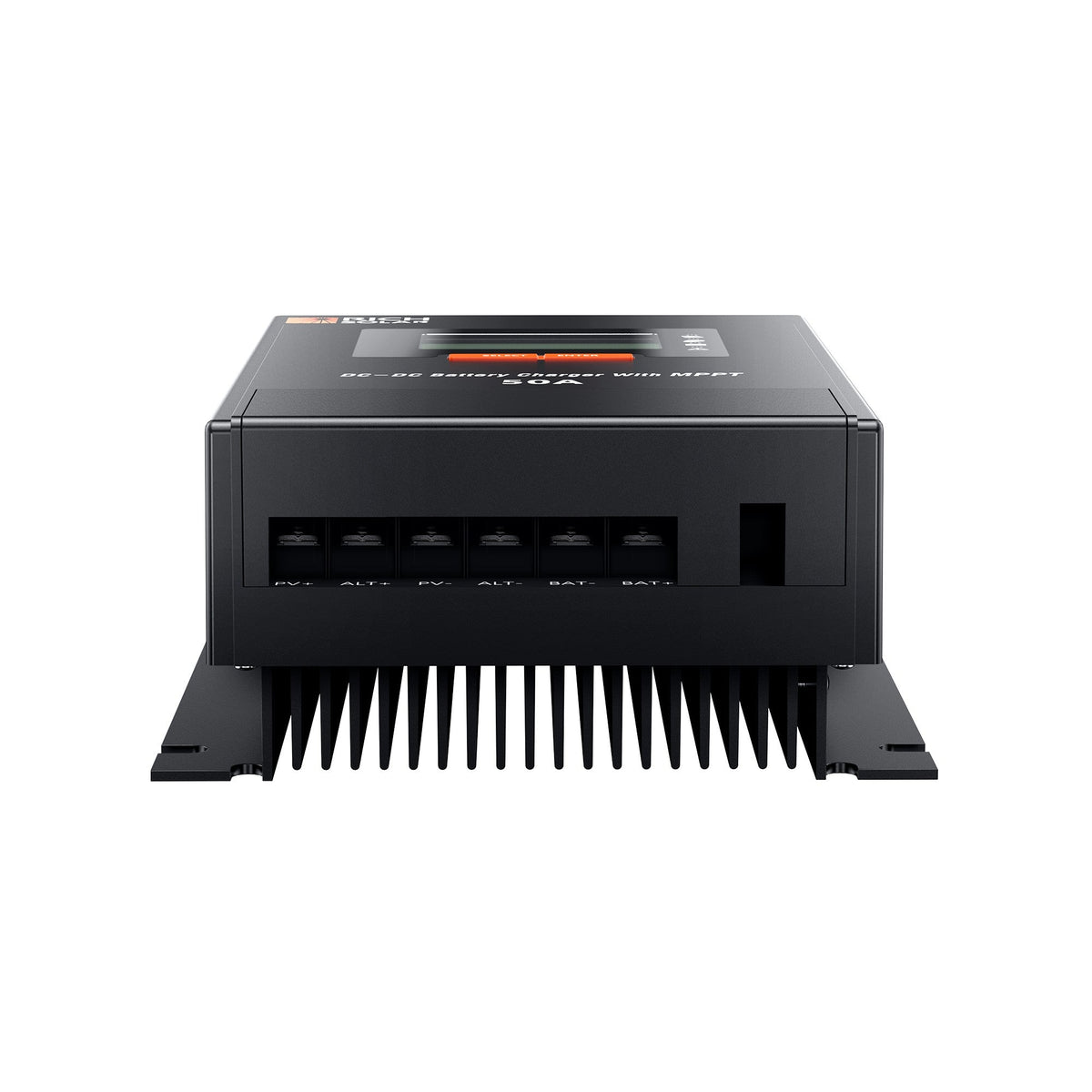

50A MPPT DC-DC Solar & Alternator Charger
50A MPPT controller for vans, overlanders and boats.
SKU:RS-MPPT50DC
Regular price
$249.99 USD
50A MPPT charge controller.
12V (9–16V range) battery systems.
See specifications for array limits.
IP32 rated.
Need help choosing the right kit?
Talk to a Solar Expert:
1-332-291-6885
Quantity
Quantity
Guaranteed Safe Checkout
Deliver to
Get it between
Product Information
50A MPPT Solar Charge Controller for Vans, Overlanders and Boats
An MPPT controller tracks the array's maximum power point and converts the surplus voltage into charging current, so it harvests more than a PWM unit from the same panels — most noticeably in cold or low light, and whenever panel voltage sits well above battery voltage.
Size the array to the limits in the specifications table.
Rated IP32. Mount it close to the battery on a vertical surface with airflow around the heatsink, and wire battery first, then panels.
| Specification | Value |
|---|---|
| Max. Solar Input | 55V DC / 50A / 800W (recommended) |
| MPPT Voltage Range | 17–36V DC |
| Alternator Input | 12/24V, 65A max |
| Battery System Voltage | 12V (9–16V range) |
| Rated Charging Current | 50A |
| Efficiency | MPPT: > 99%; Conversion: up to 96% |
| Communication | Bluetooth, TTL, RS485, CAN (RV-C protocol) |
| Protections | Overcharge/current/temperature, reverse polarity |
| Operating Temperature | -31°F to +149°F |
| Dimensions | 8.70 × 6.92 × 3.64 in |
| Weight | 5.16 lb |
| IP Rating | IP32 |
| Package Dimensions | 11 × 9 × 6 in |
| Gross Weight | 7 lb |
- 1 x 50A MPPT DC-DC Solar & Alternator Charger
- Mounting or connection hardware as listed in the specifications
- User manual
Free Shipping
On all orders
30-Day Returns
Hassle-free returns
25 Year Warranty
On panels & more
Secure Payments
100% protected
Frequently Asked Questions
How many panels can I connect?
Check the maximum PV input power and voltage in the specifications, and keep the array within both.
MPPT or PWM — which do I need?
MPPT harvests more, especially when panel voltage is well above battery voltage or in cold and low light, and it is the better choice for larger or 24V arrays. PWM costs less and suits small systems where panel and battery voltage are closely matched. This unit is MPPT.
Which batteries does it charge?
Check the battery types listed in the specifications and set the matching profile before first charge.
