8000W 48V-120/240VAC Solar Kit
8200W kit with 40.96kWh battery and 13,000W inverter.
SKU:UGS-CBK8000
Regular price
$21,999.99 USD
8200W Solar Array — about 29.5kWh a day.
40.96kWh LiFePO4 battery included.
13,000W pure sine wave inverter.
Cables, fuses, brackets and connectors in the box.
Need help choosing the right kit?
Talk to a Solar Expert:
1-332-291-6885
Quantity
Quantity
Guaranteed Safe Checkout
Deliver to
Get it between
Product Information
Features
- 8200W Solar Array: Includes twenty 410W monocrystalline solar panels, producing approximately 29.5kWh of energy per day under 4 peak sun hours.
- 40.96kWh LiFePO₄ Battery Bank: Includes eight 51.2V 100Ah (5120Wh) ALPHA 5 PRO batteries for dependable energy storage and extended backup power.
- 13,000W Split-Phase Hybrid Inverter System: Includes two 6,500W hybrid inverters, delivering 13,000W continuous (26,000W surge) pure sine wave output with 120/240V split-phase AC output, dual 120A MPPT charge controllers, and support for solar, battery, utility, and generator inputs.
- Complete System Kit: Professionally matched components simplify system design and installation while ensuring reliable system performance.
- Versatile Applications: Ideal for homes, cabins, farms, workshops, commercial buildings, and whole-home backup power.

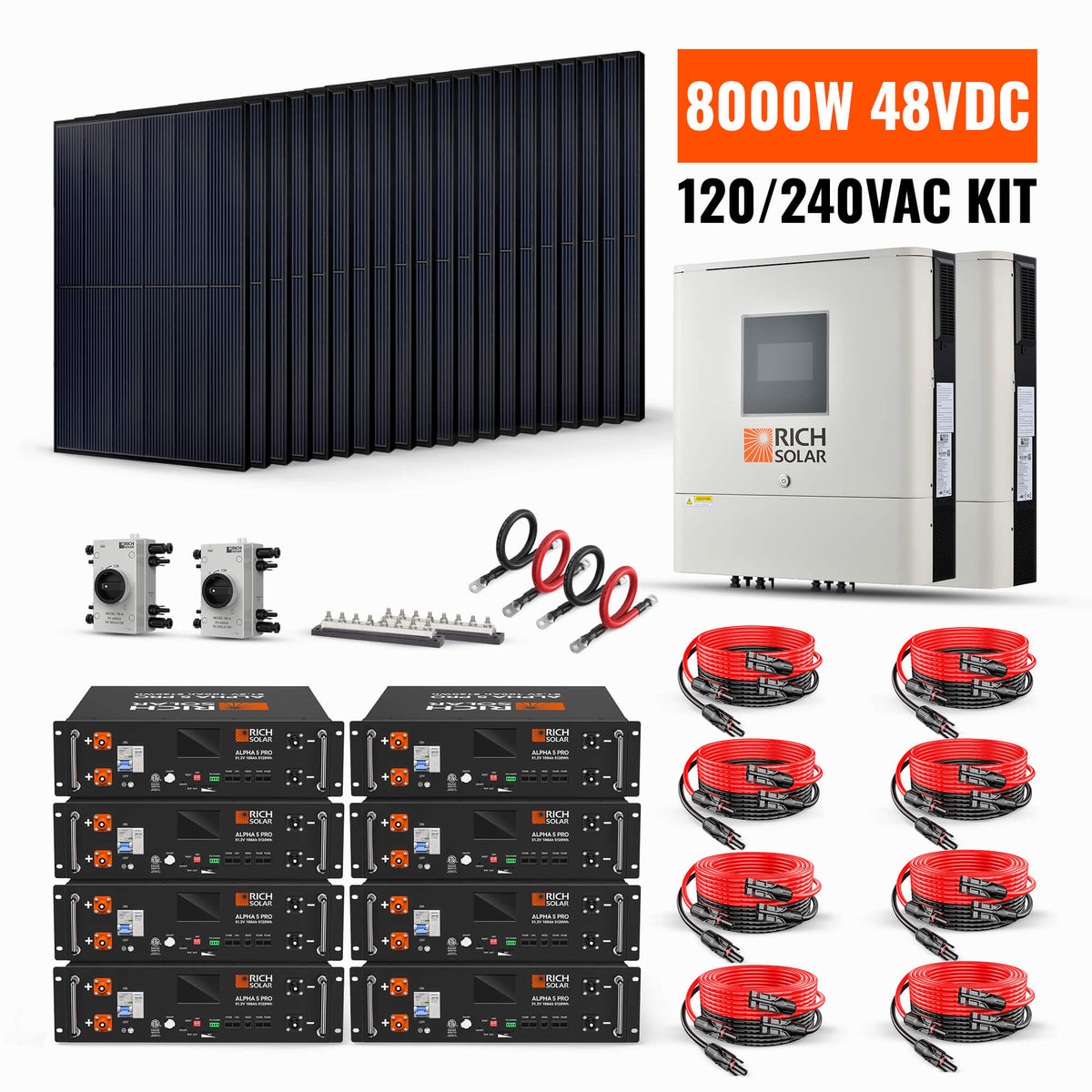

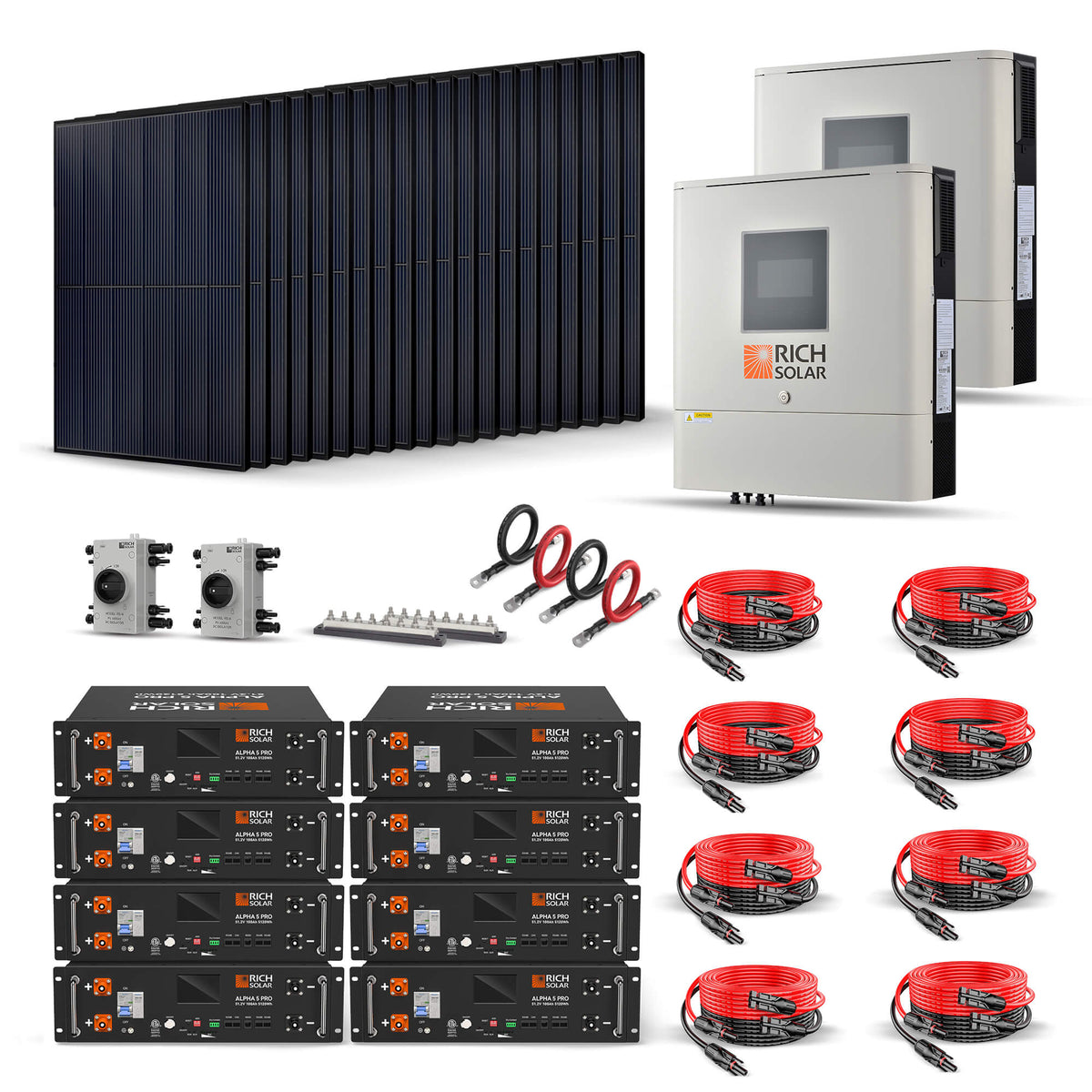

Kit Includes
- 2 x 6500W 48V Off-grid Solar Inverters (RS-H6548S)
- 20 x MEGA 410 24V 410W Solar Panels (RS-M410)
- 8 x ALPHA 5 PRO 51.2V 100Ah Server Rack Lithium Batteries(RS-B5121P)
- 2 x 600 AMP Busbars
- 4 x 10 AWG 30 ft Extension Cables (RS-30102)
- 4 x 10 AWG 10 ft Extension Cables (RS-10102)
- 2 x PV DC Quick Disconnect Switches (RS-i4)
- 2 x 4/0 AWG 5 ft Battery Cables (RS-4/0A5F3)
| Specification | Value |
|---|---|
| Solar array | 8200W |
| Estimated daily production | ~29.5kWh at 4 peak sun hours |
| System voltage | 48V |
| Battery | 40.96kWh LiFePO4 |
| Inverter | 13,000W pure sine wave |
| Components supplied | 8 matched items — see What's Included |
- 2 x 6500W 48V Off-grid Solar Inverters
- 20 x MEGA 410 24V 410W Solar Panels
- 8 x ALPHA 5 PRO 51.2V 100Ah Server Rack Lithium Batteries
- 2 x 600 AMP Busbars
- 4 x 10 AWG 30 ft Extension Cables
- 4 x 10 AWG 10 ft Extension Cables
- 2 x PV DC Quick Disconnect Switches
- 2 x 4/0 AWG 5 ft Battery Cables
Estimated runtime from a full battery, after inverter losses. Real results vary with appliance efficiency and temperature; solar recharges the bank each day.
| Appliance (approx. draw) | 40.96kWh bank |
|---|---|
| LED lighting (60W) | ~614 hours |
| Wi-Fi router + 2 cameras (30W) | ~51.2 days |
| 12V fridge (~600Wh per day) | ~61.4 days |
| Laptop + phone charging (100W) | ~369 hours |
| Microwave (1,000W) | ~2212 minutes |
| Portable air conditioner (1,500W) | ~24.6 hours |
Free Shipping
On all orders
30-Day Returns
Hassle-free returns
25 Year Warranty
On panels & more
Secure Payments
100% protected
Frequently Asked Questions
What can this kit run?
The battery stores 40.96kWh, around 36.86kWh usable after inverter losses, and the array puts back about 29.5kWh on a clear day. That covers lighting, a fridge, Wi-Fi, device charging and larger loads like a microwave or power tools. See the What It Powers tab.
Do I need anything else?
No — the panels, battery, inverter, controller, cables, fuses and brackets are all in the box. You will need basic tools and fixings suited to your roof or mounting surface.
Can I expand it later?
Yes. You can add panels within the charge controller's input limit and add batteries in parallel for longer runtime. Keep added panels the same model where possible — mismatched panels in one string pull the whole string down to the weakest one.
