All-in-One Energy Storage System – 6,500W with 5.12kWh Battery
SKU:RS-A10
Product Information

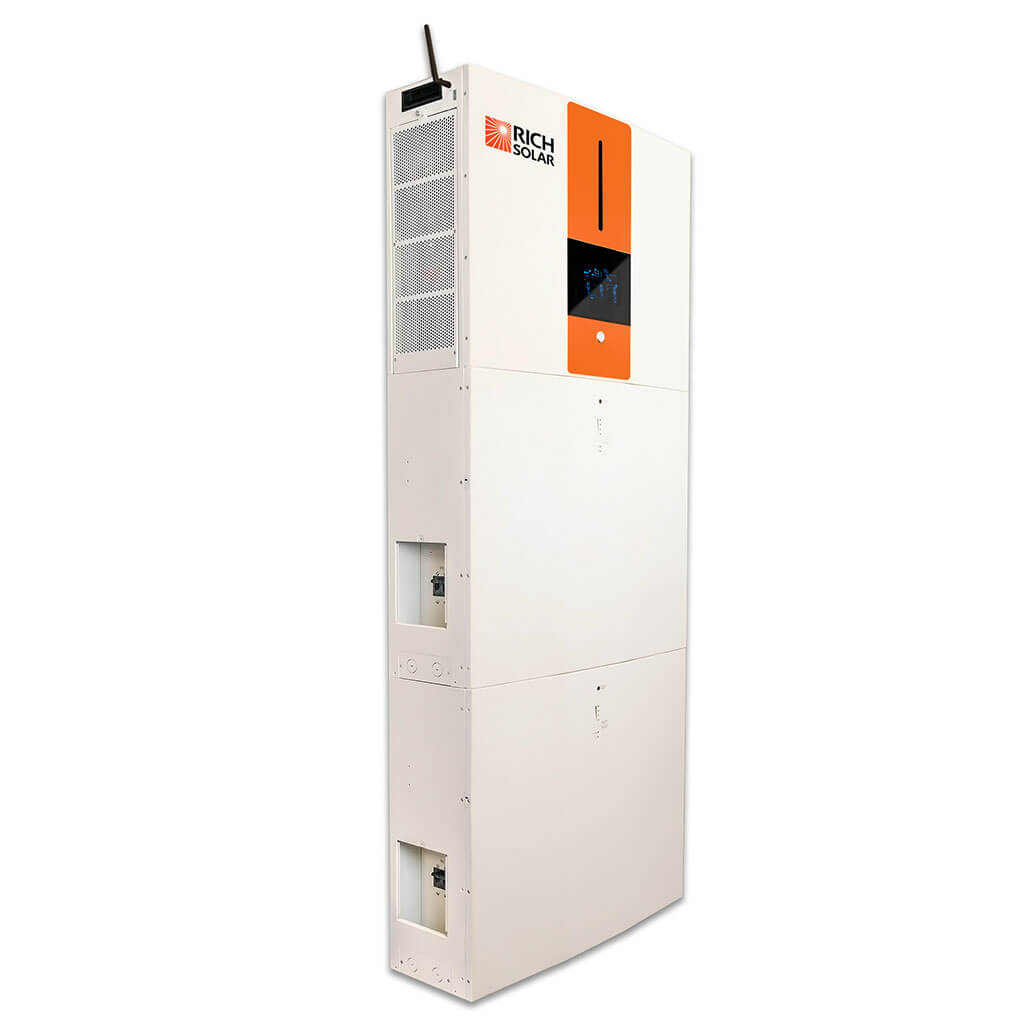

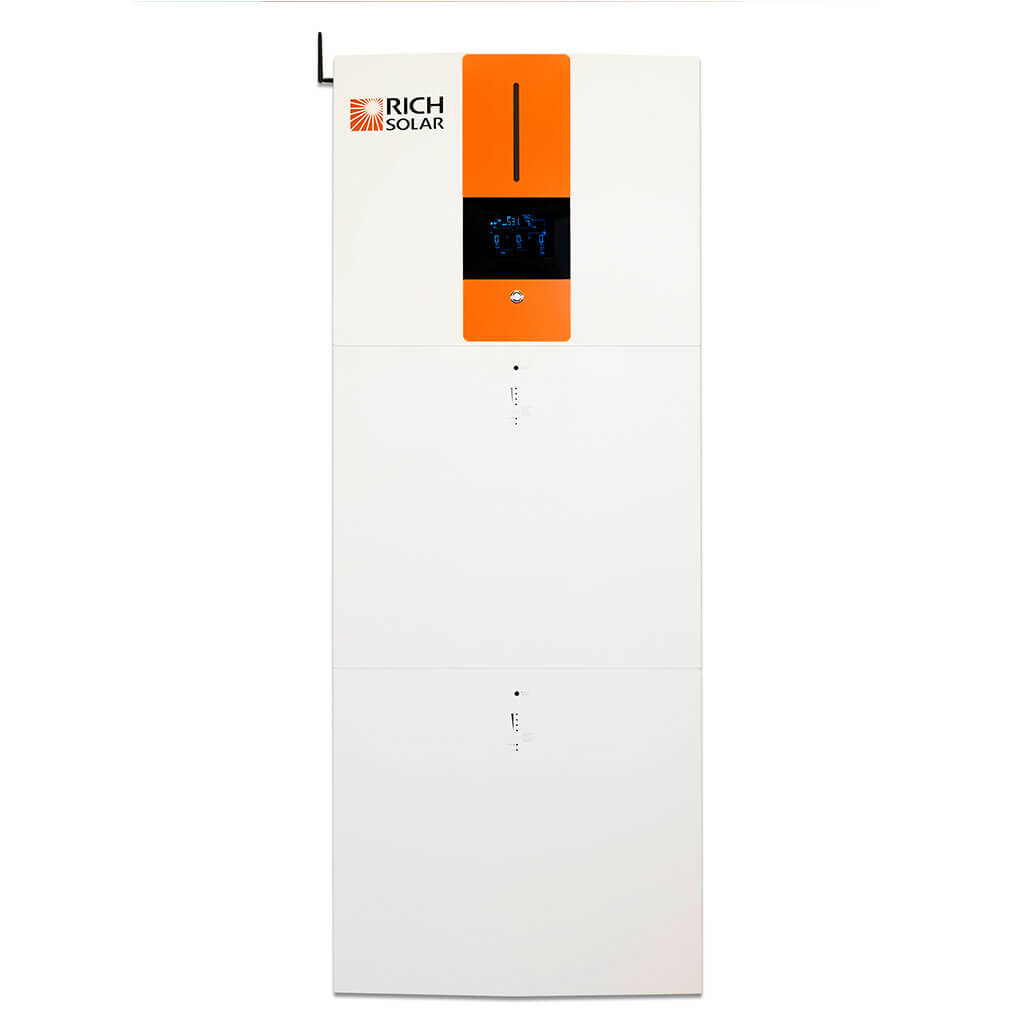

All-in-One Energy Storage System with 5.12kWh Battery
Everything a solar system needs except the panels, in a single cabinet: a 6500W inverter, a 5.12kWh LiFePO4 battery and an MPPT charge controller, already wired together and tested as one unit.
The appeal is what you skip. There is no inverter-to-battery compatibility to check, no busbar to size, no communication cable to configure — and a much shorter install. For a small home, a cabin or a workshop, that usually outweighs the flexibility you give up by not choosing each component yourself.

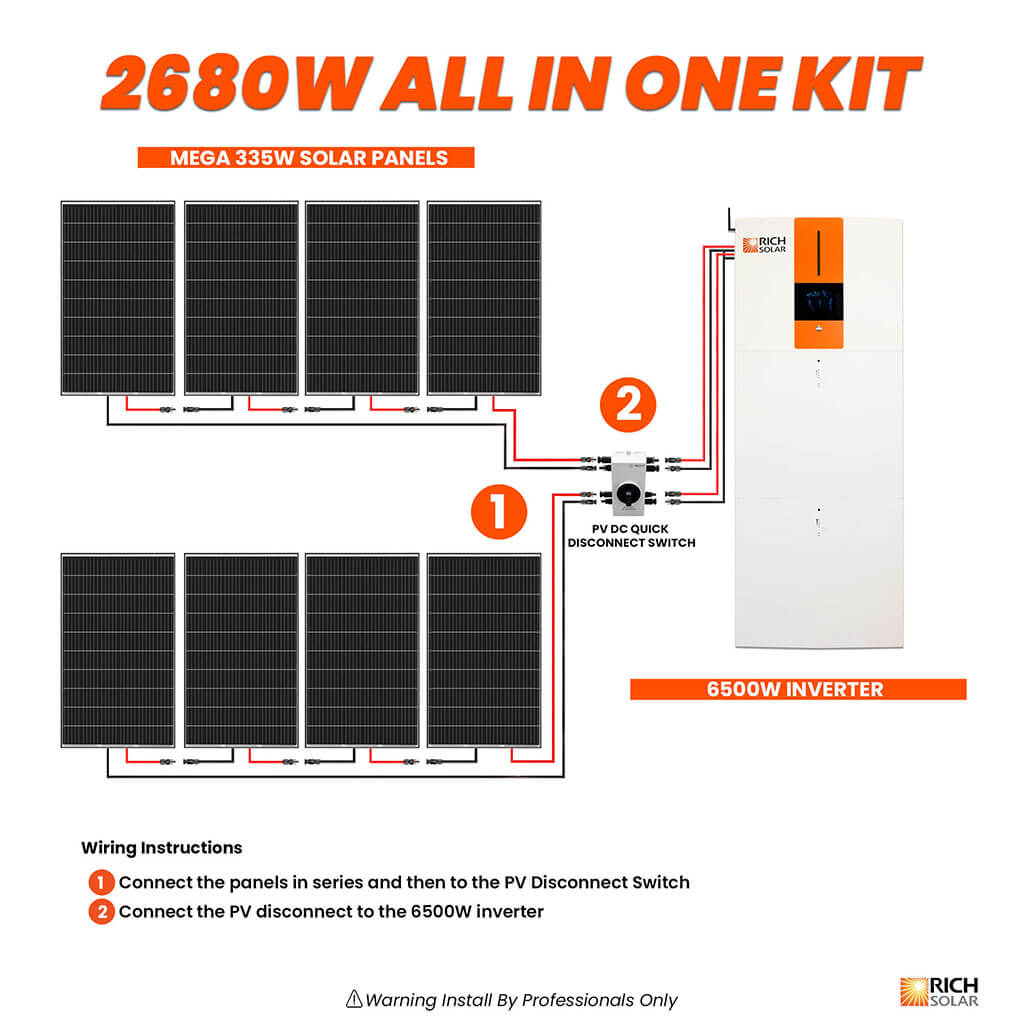

Connect up to 8000W of panels, with an MPPT range of 90 ~ 230 VDC. It runs off-grid and accepts AC input for charging from the grid or a generator when solar falls short.
| Specification | Value |
|---|---|
| Model | RS-A10 |
| Maximum PV Input Power | 8000W |
| Rated Output Power | 6500W |
| Maximum Charging Power | 6500W |
| MPPT Range @ Operating Voltage | 90 ~ 230 VDC |
| Maximum PV Array Open Circuit Voltage | 250 VDC |
| Maximum Solar Charge Current | 120A |
| Number of MPP Trackers / Maximum Input Current | 2 / 2 x 18A |
| Maximum AC Input Current | 60A |
| Nominal Output Voltage | 120 VAC |
| Maximum Conversion Efficiency (DC/AC) | 93% |
| Nominal DC Voltage | 48 VDC |
| Maximum Charging Current | 120A |
| Dimension | 8.4" × 24.4" × 19.7" |
| Net Weight | 99 lb |
| Capacity | 5120Wh |
| Nominal Voltage | 51.2VDC |
| Full Charge Voltage (FC) | 56V |
| Full Discharge Voltage (FD) | 42V |
| Typical Capacity | 100Ah |
| Max Continuous Discharging Current | 120A |
| Max Discharging Current | 192A at 1 min |

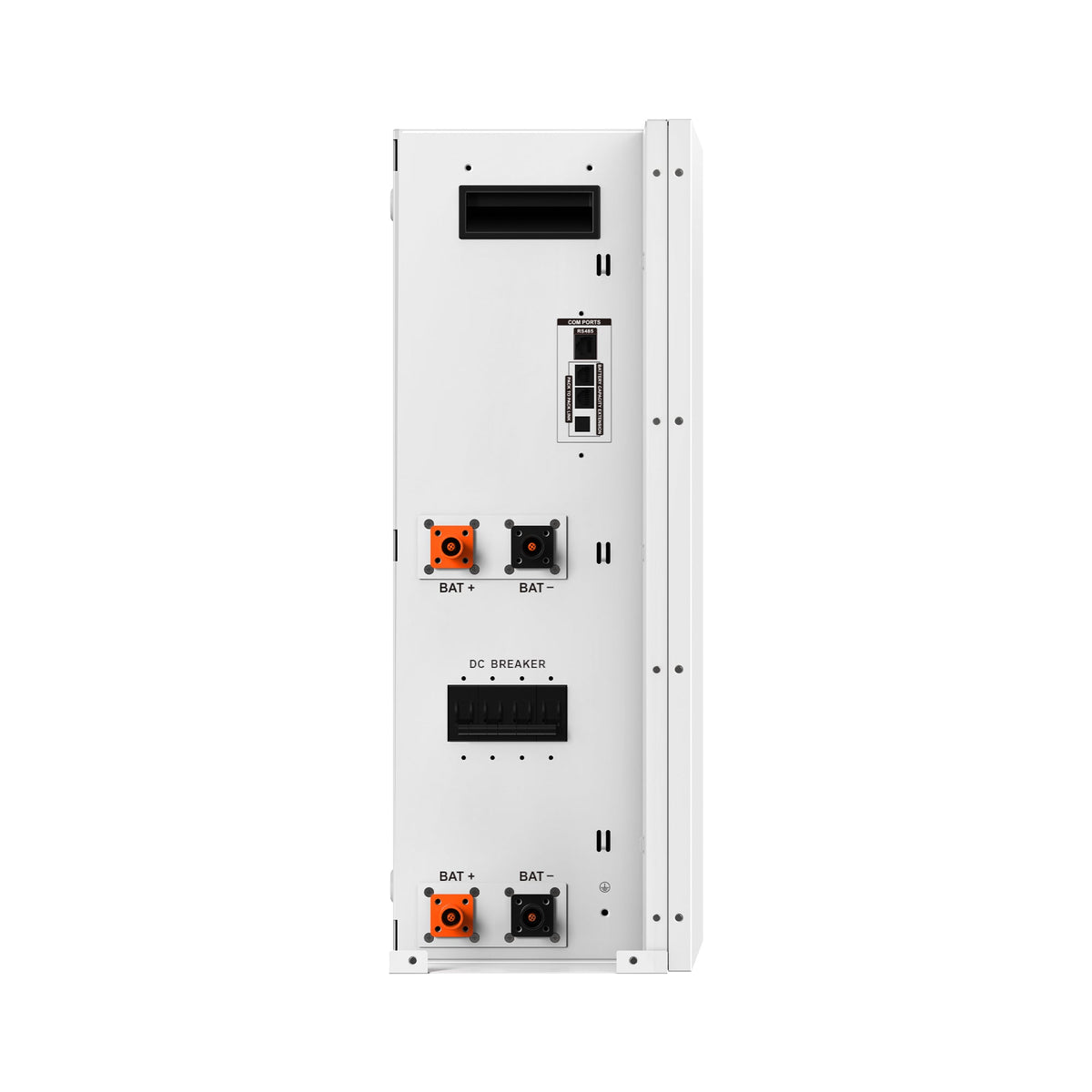

| Protection | BMS, Breaker |
| Float Charge Voltage | 52.5V |
| Charge Current | 20A (0.2C) |
| Maximum Charge Current | 50A (0.5C) |
| Standard Charge Method | 0.2C CC (Constant current) charge to FC, CV (Constant voltage FC) charge till charge current declines to <0.05C |
| Inner Resistance | ≤20mΩ |
| System Dimensions | 19.7 × 26 × 49.2 in |
| Net Weight | 287 lb |
| Compliance Safety | IEC 62619, EN 61000-6-3, EN 61000-6-1, UKCA, UN38.3, UL 1741, CSA C22.2 No.107.1-16, FCC PART 15B |
- 1 x All-in-One Energy Storage System
- The All-in-One Energy Storage System is a powerful and efficient solar energy system designed to provide clean and reliable electricity. This innovative system integrates all the components required for solar power generation into a single, compact unit, including an inverter, batteries, and a charge controller.
- User manual
Estimated runtime from a full charge, after inverter losses. Real results vary with appliance efficiency, temperature and how deeply you discharge the bank.
| Appliance (approx. draw) | 5.12kWh |
|---|---|
| LED lighting (60W) | ~77 hours |
| Wi-Fi router + 2 cameras (30W) | ~6.4 days |
| 12V fridge (~600Wh per day) | ~7.7 days |
| Laptop + phone charging (100W) | ~46 hours |
| Microwave (1,000W) | ~276 minutes |
| Portable air conditioner (1,500W) | ~3.1 hours |
