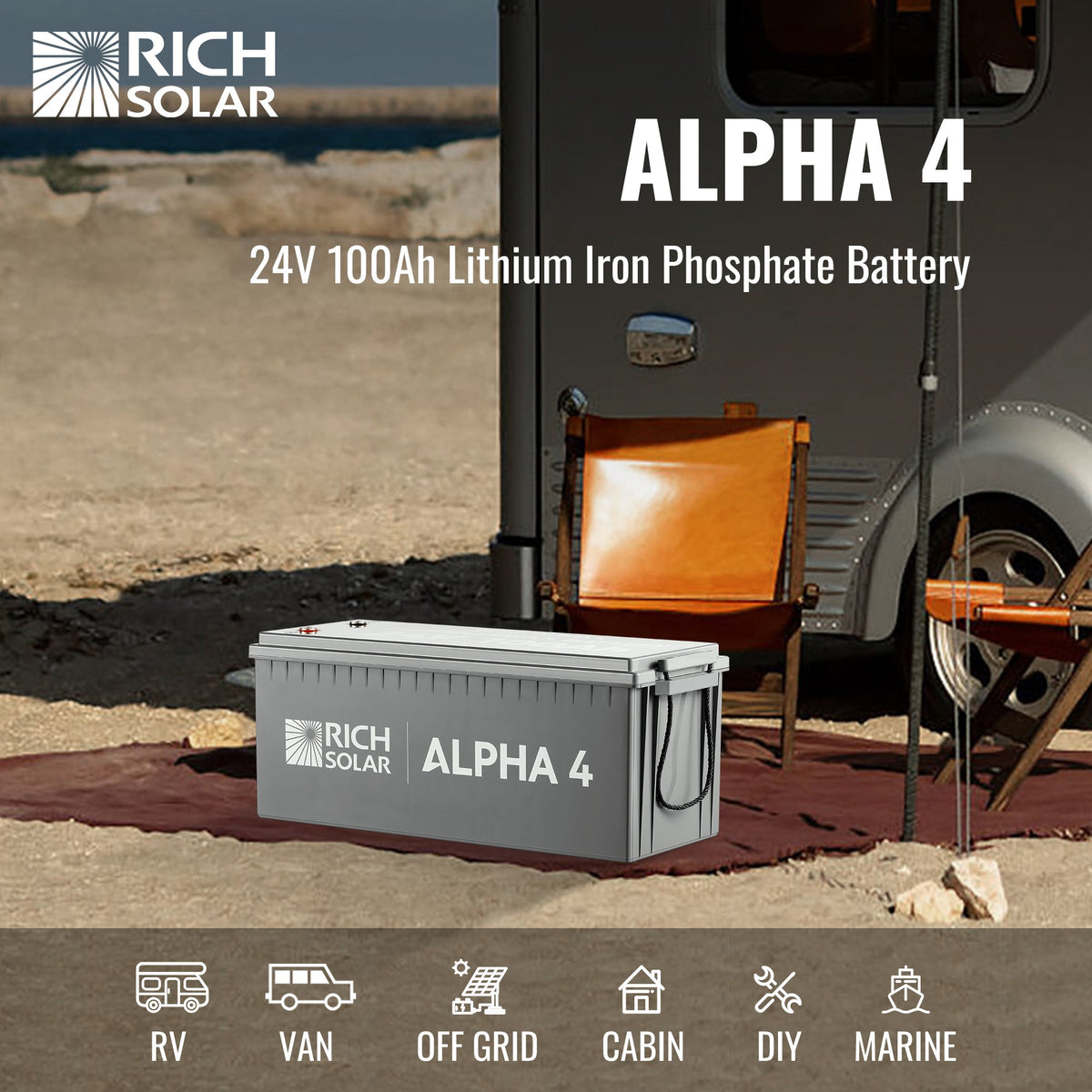

ALPHA 4 – 24V 100Ah LiFePO4 Battery
SKU:RS-B241S
Product Information
24V 100Ah LiFePO4 Battery for Off-Grid, RV and Marine Systems
2.56kWh of lithium iron phosphate storage in a single case. LiFePO₄ cells hold a flat voltage through most of the discharge, so lights do not dim and inverters do not cut out early the way they do on lead-acid.

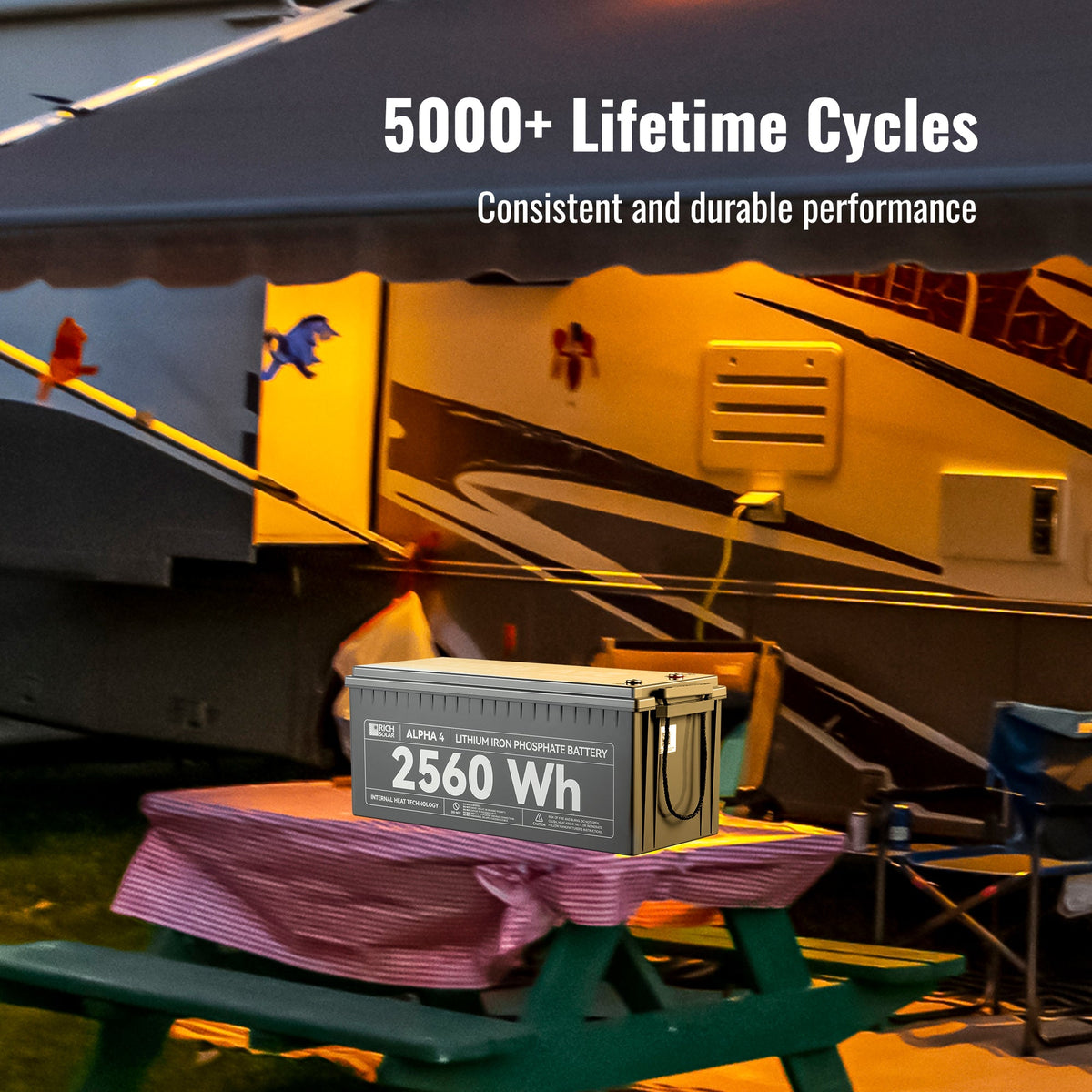

Rated for 5000+ cycles, LiFePO4 can be discharged far deeper than lead-acid without damage, so more of the rated capacity is actually usable — and there is no watering, venting or equalising to keep up with. Up to 4 units (4P) in parallel.

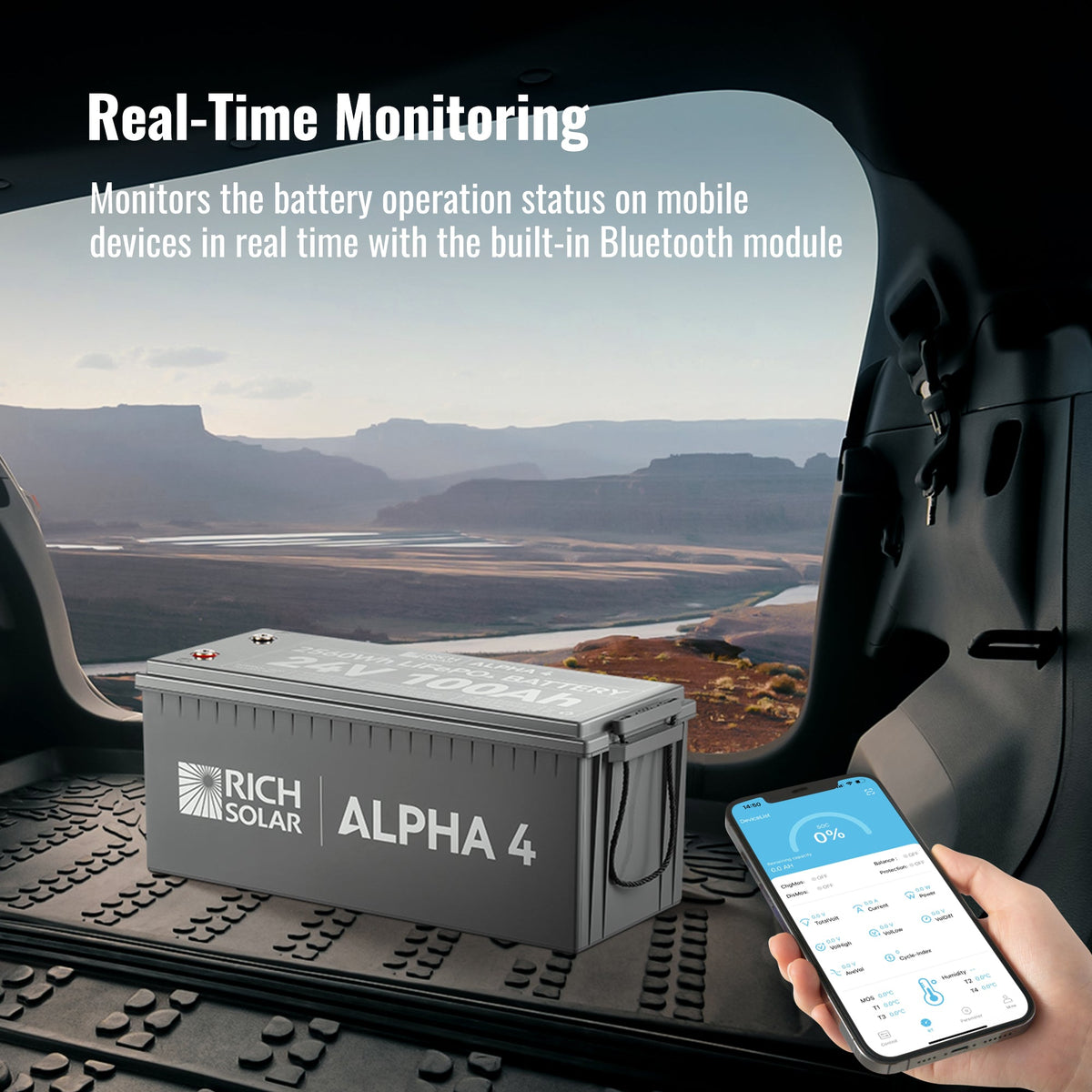

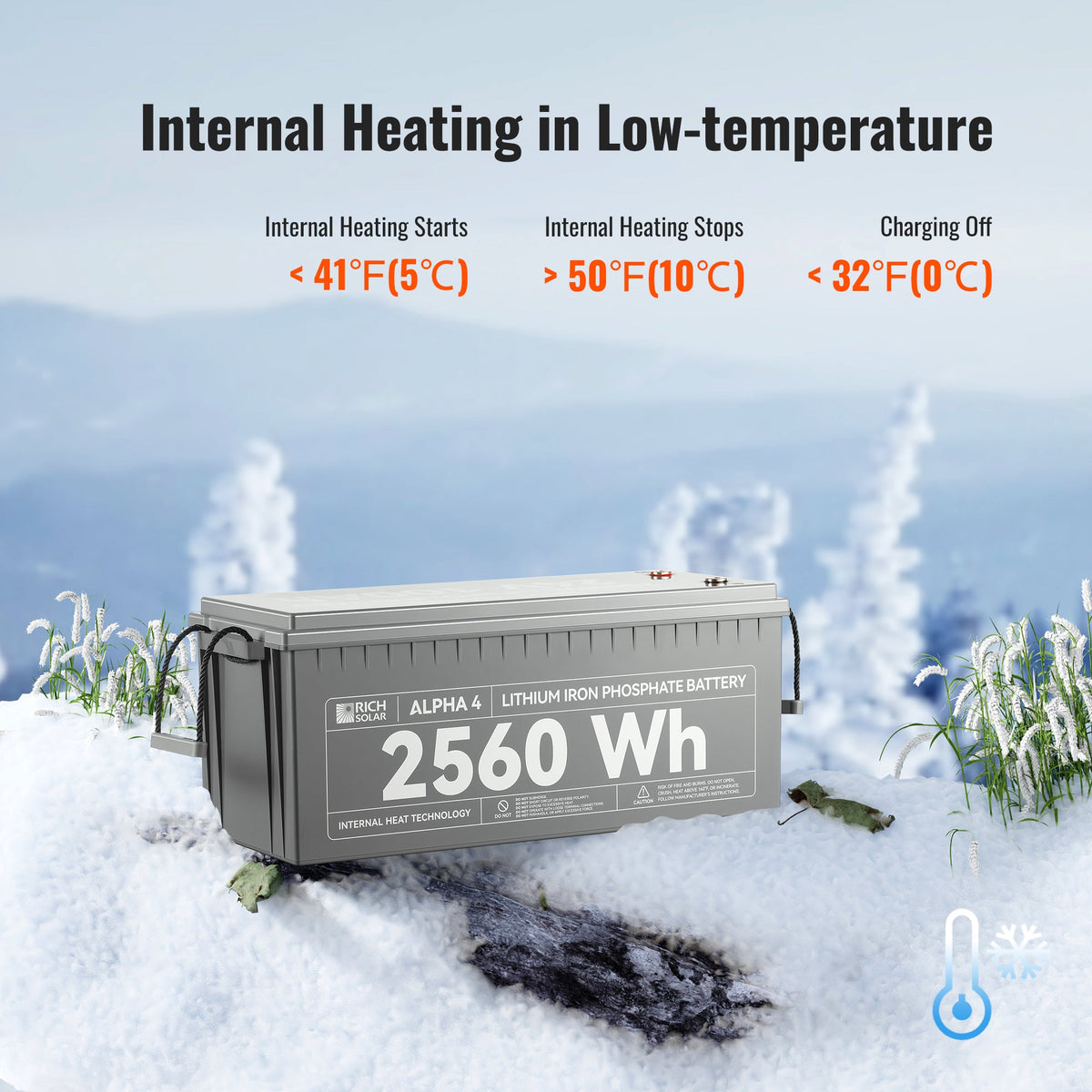

A built-in heater lets it charge below freezing, which ordinary lithium cannot do safely. Bluetooth shows state of charge, current and cell health on your phone. Backed by a 5-year warranty.
| Specification | Value |
|---|---|
| Nominal Voltage | 25.6V |
| Rated Capacity | 100Ah |
| Nominal Energy | 2560Wh |
| Cell Chemistry | LiFePO₄ |
| Cycle Life | 5000+ |
| Charging Voltage | 28.8V |
| Max. Charge Current | 100A |
| Max. Discharge Current | 100A |
| Parallel Expansion | Up to 4 units (4P) |
| Bluetooth | Yes |
| Internal Heating | Yes (200W) |
| IP Rating | IP65 |
| Warranty | 5 Years |
| Dimensions | 20.9 × 8.1 × 8.5 in |
| Net Weight | 48.5 lb |
| Certifications | UN 38.3, MSDS |
| Package Dimensions | 23 × 11 × 12 in |
| Gross Weight | 54 lb |
- 1 x ALPHA 4
- Mounting and connection hardware as listed in the specifications
- User manual
Estimated runtime from a full charge, after inverter losses. Real results vary with appliance efficiency, temperature and how deeply you discharge the bank.
| Appliance (approx. draw) | 2.56kWh |
|---|---|
| LED lighting (60W) | ~38 hours |
| Wi-Fi router + 2 cameras (30W) | ~3.2 days |
| 12V fridge (~600Wh per day) | ~3.8 days |
| Laptop + phone charging (100W) | ~23 hours |
| Microwave (1,000W) | ~138 minutes |
| Portable air conditioner (1,500W) | ~1.5 hours |
