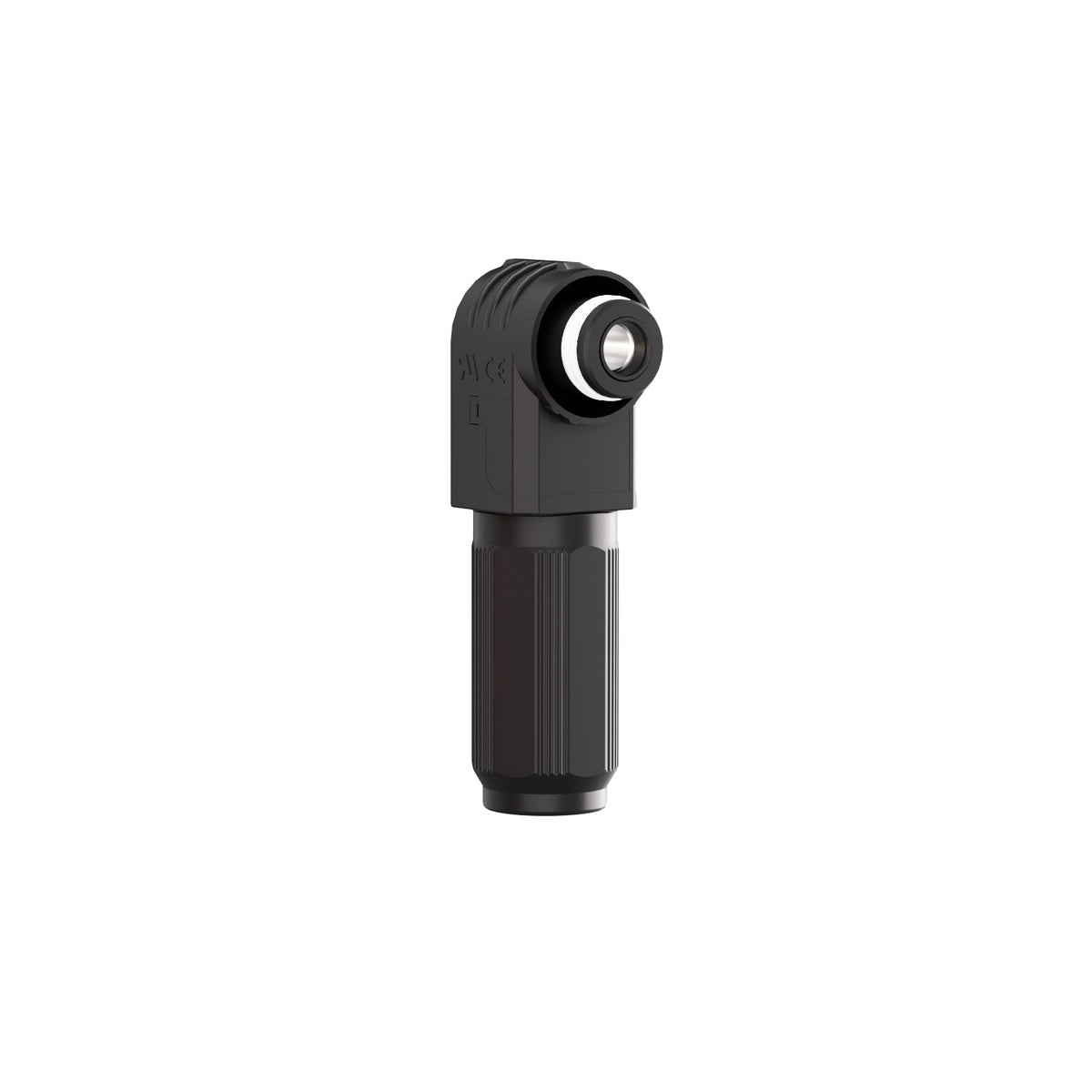

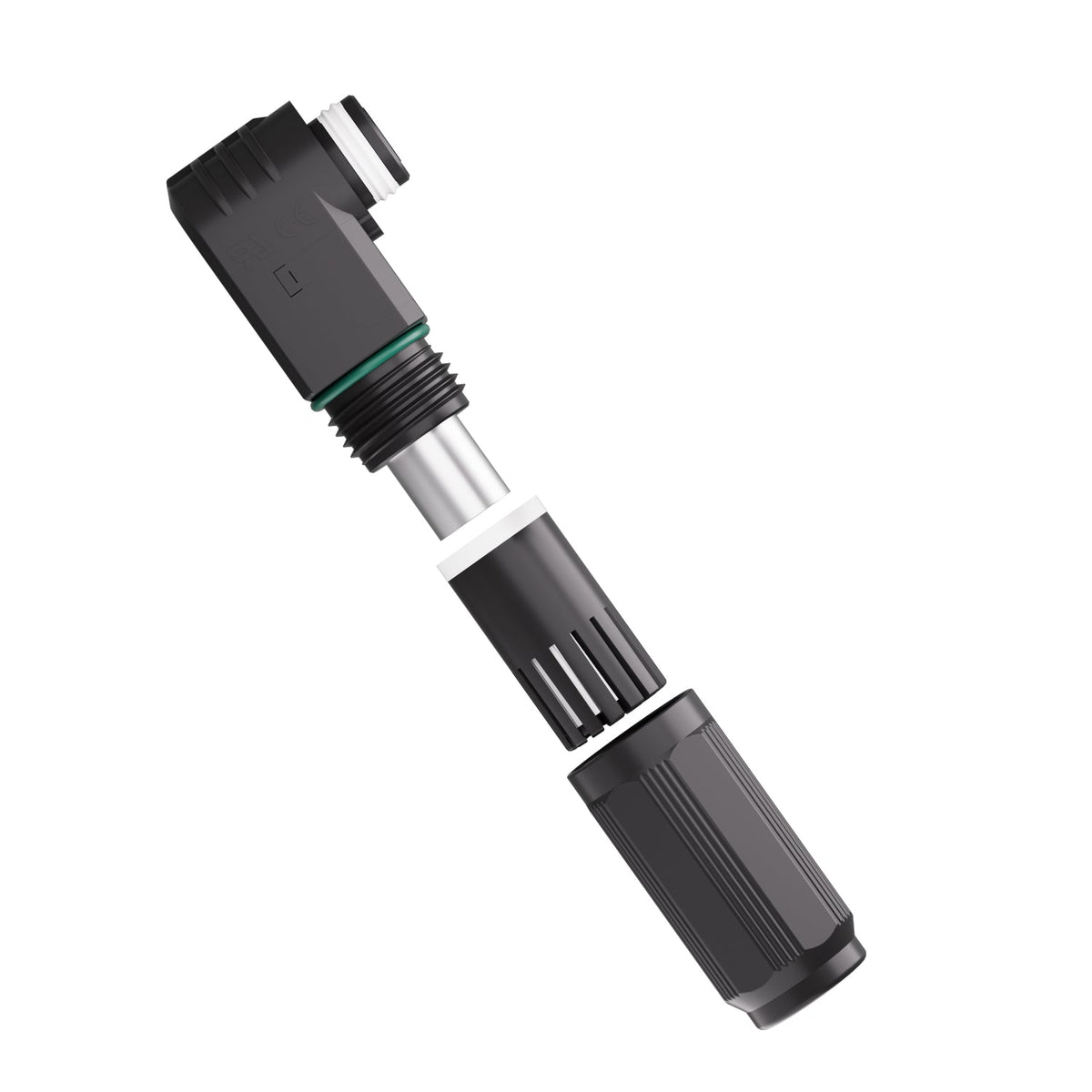

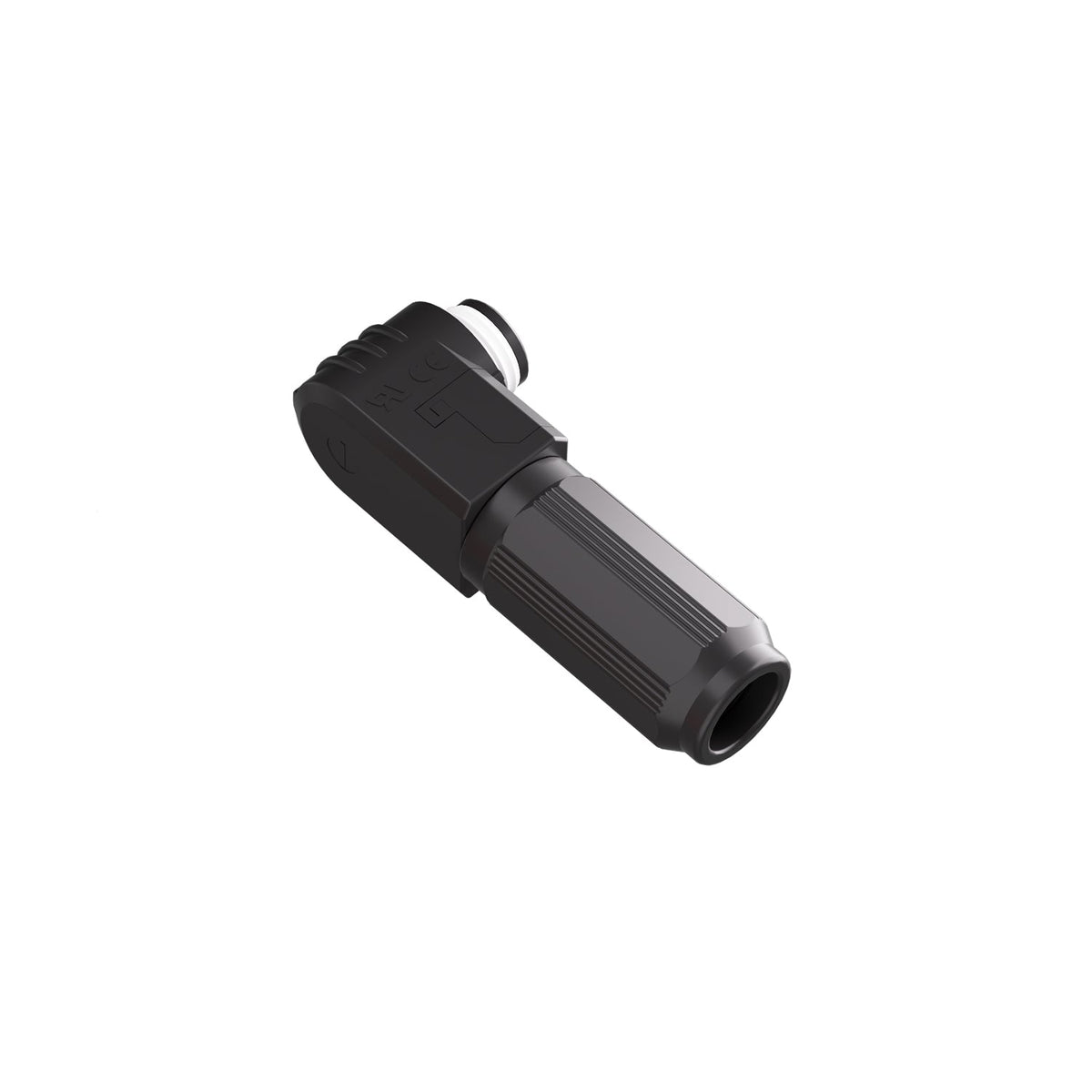

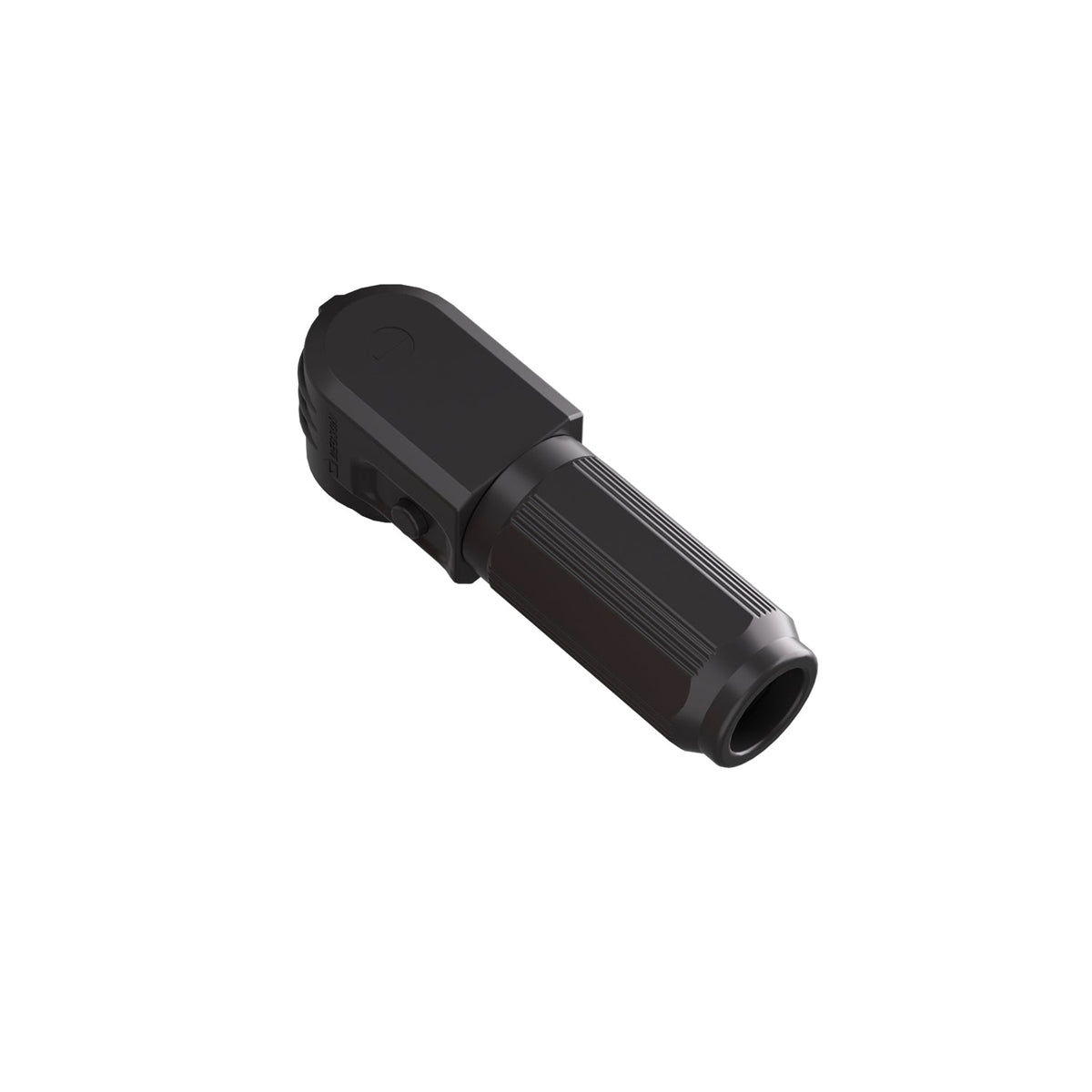

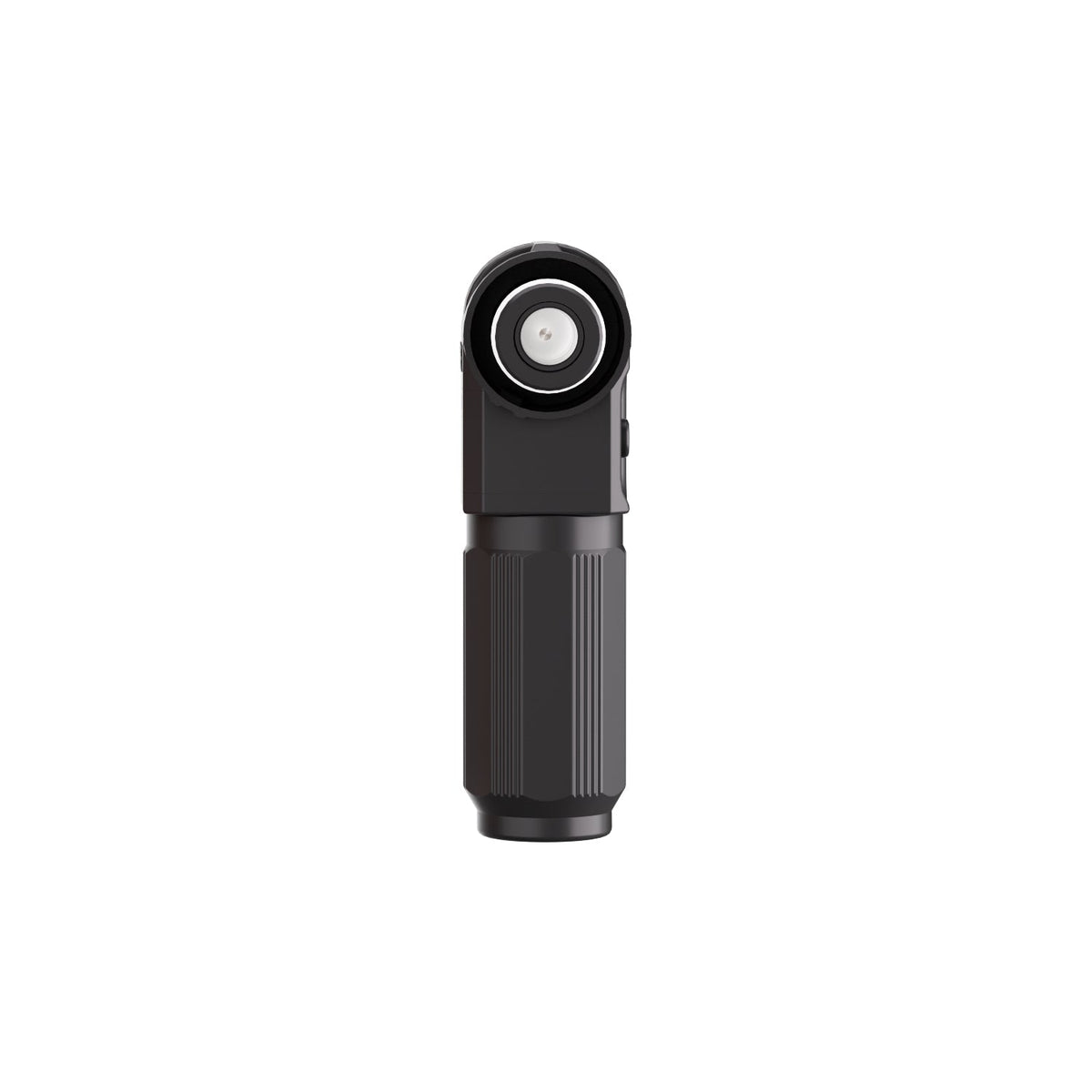

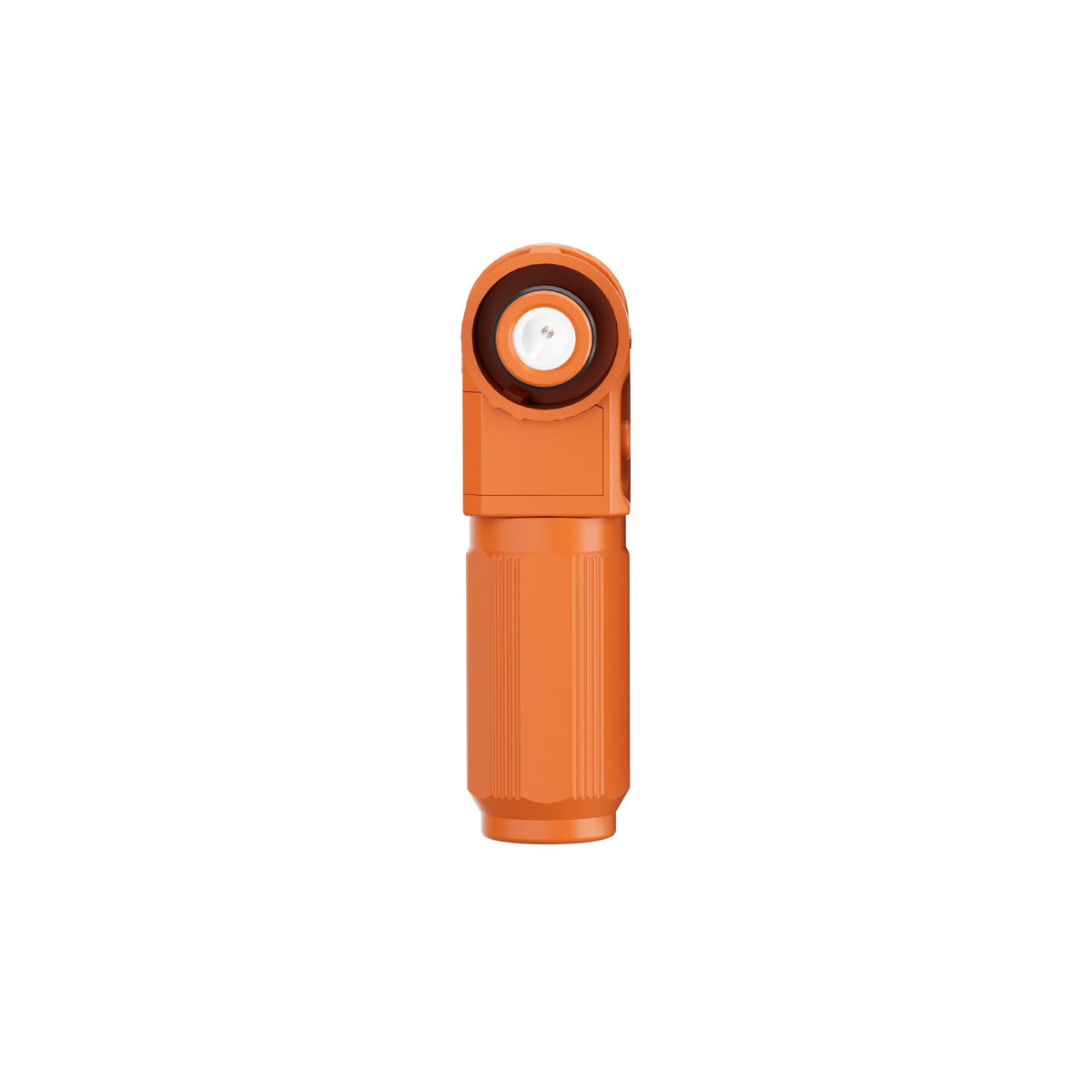

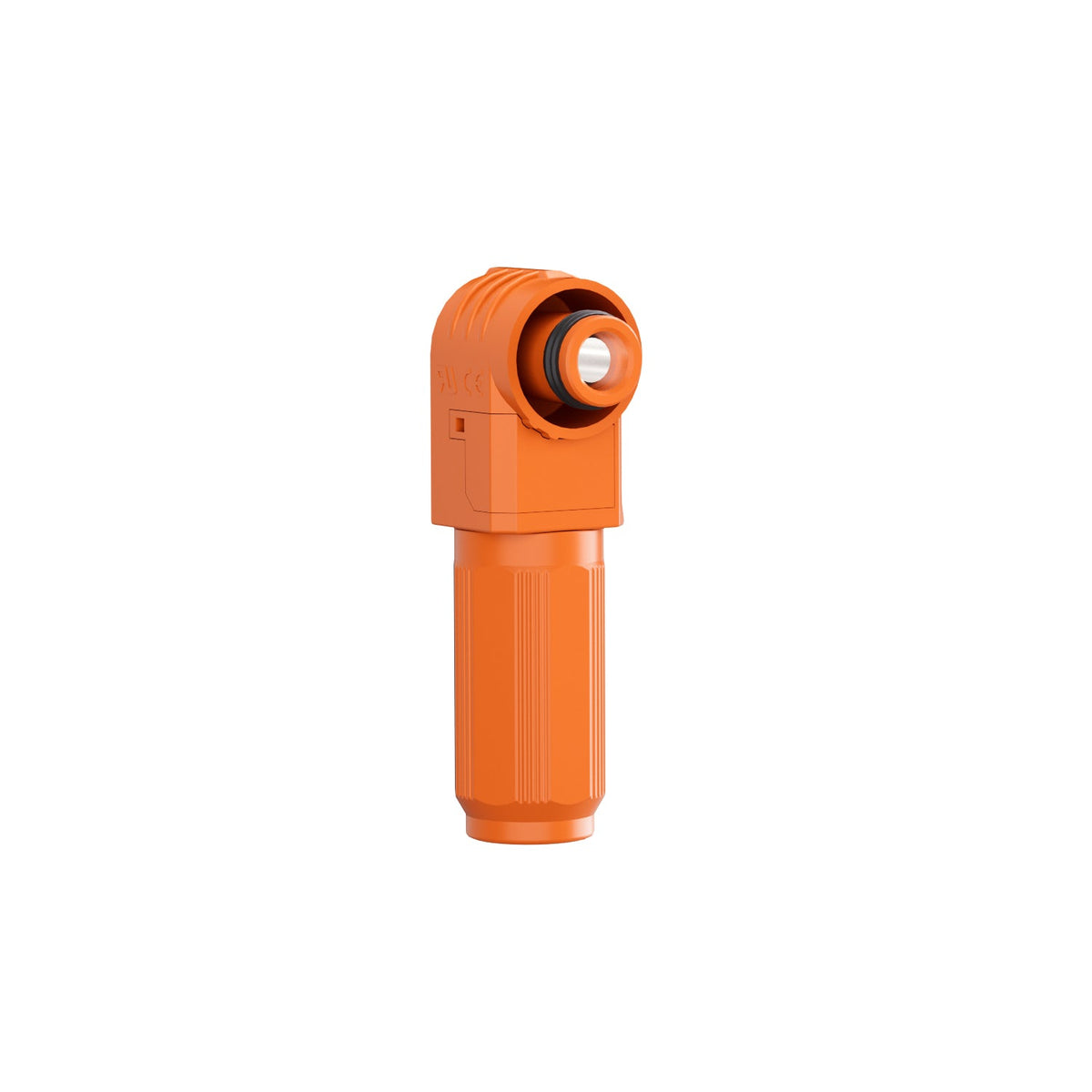

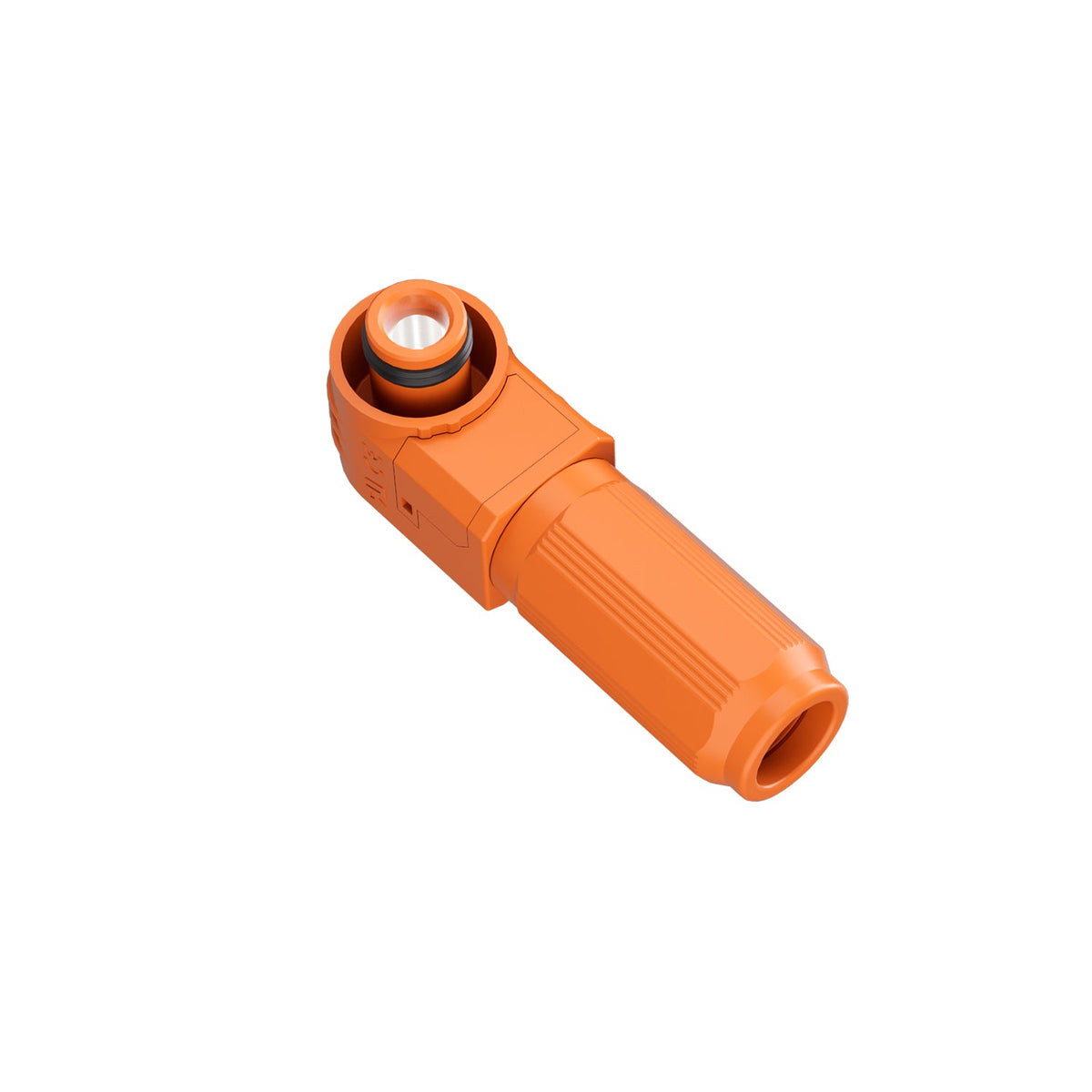

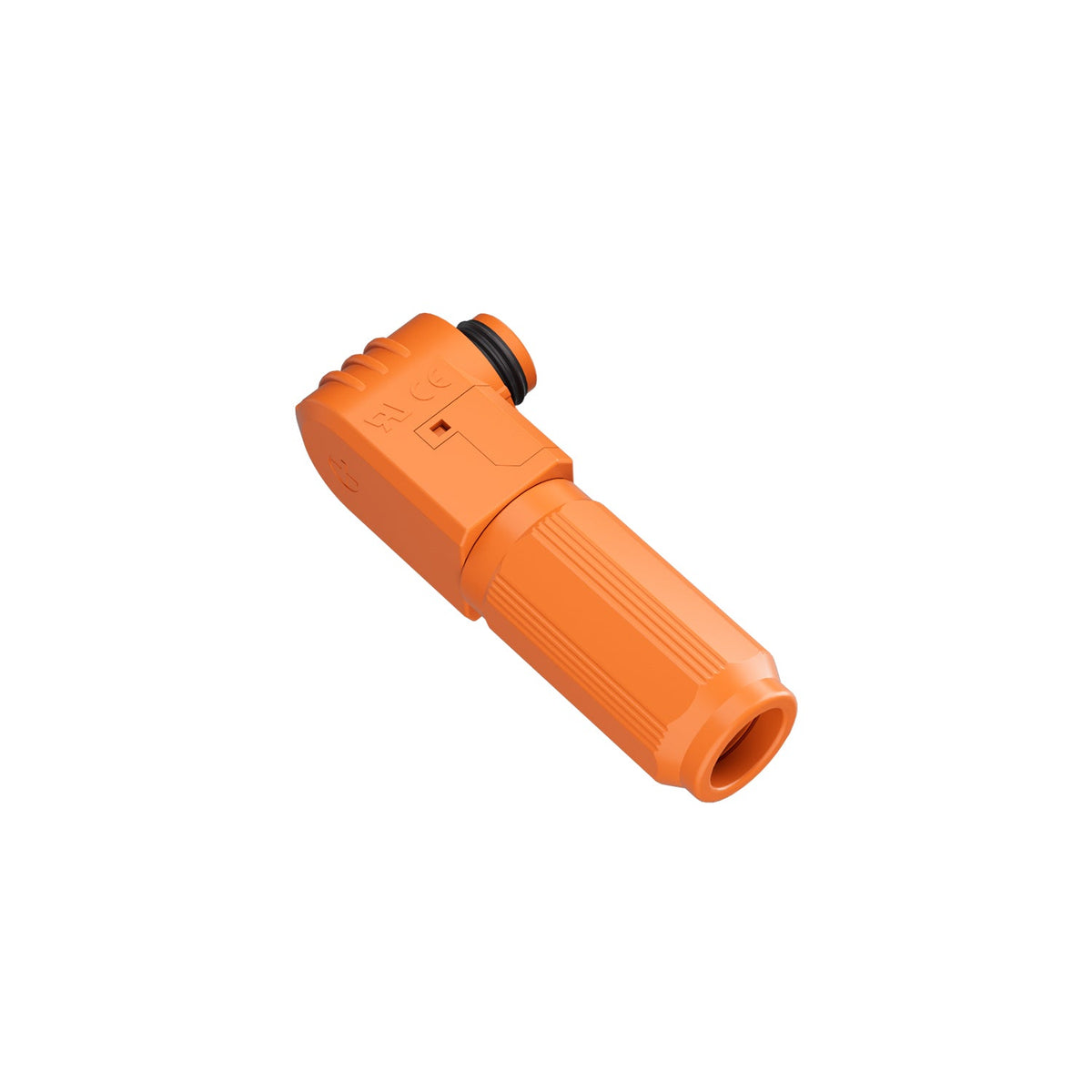

ALPHA 5 PRO Battery Connector Plug – 1500V

Best Seller

ALPHA 5 PRO Battery Connector Plug – 1500V

Pre-made cable for the custom battery cabling run.

SKU:RS-8001

$25.99 USD

Sale Sold out

Pre-made cable pair.

Provides efficient, durable, and oxidation-resistant performance.

Connectors fitted.

For the custom battery cabling run.

Need help choosing the right kit?

Talk to a Solar Expert: 1-332-291-6885

Polarity Positive Plug Negative Plug

Quantity

Guaranteed Safe Checkout

VISA

AMEX

DISCOVER

shop pay

Pay

View full details

Product Information

Cable for Custom Battery Cabling

Designed for custom cable connections to the ALPHA 5 PRO battery.

Pick a length that reaches with a little slack, not metres of coiled spare: extra length adds resistance and voltage drop. Match the gauge to the current your system draws, so size up if your inverter or array is near the limit.

Rated to 1500 V DC. Operating range -40°F to 257°F (-40°C to +125°C).

Specification	Value
Rated Voltage	1500 V DC
Rated Current	120 A
Contact Resistance	≤ 0.5 mΩ
Insulation Resistance	≥ 5000 MΩ (Dry)
Dielectric Withstand Voltage	6800 V/min

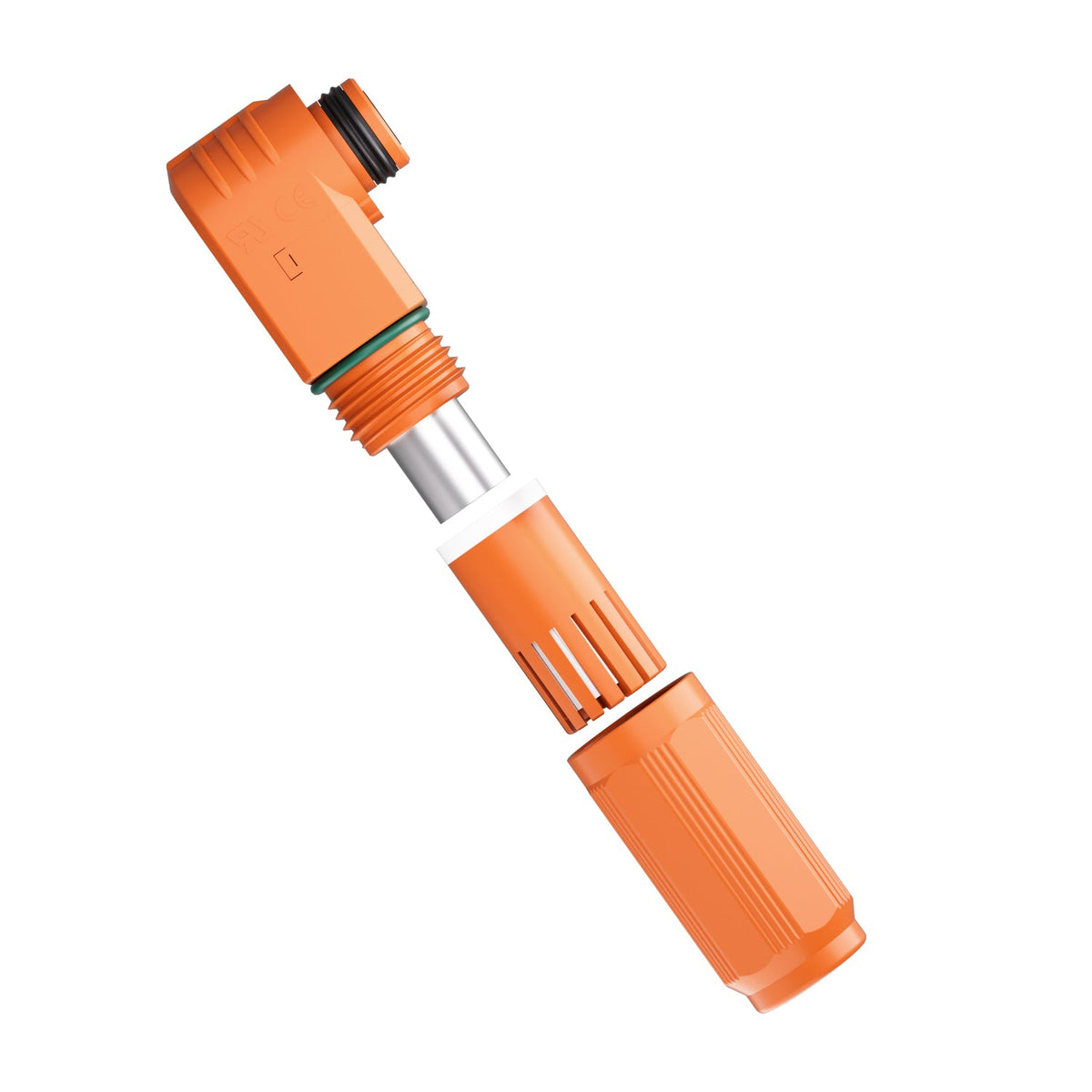

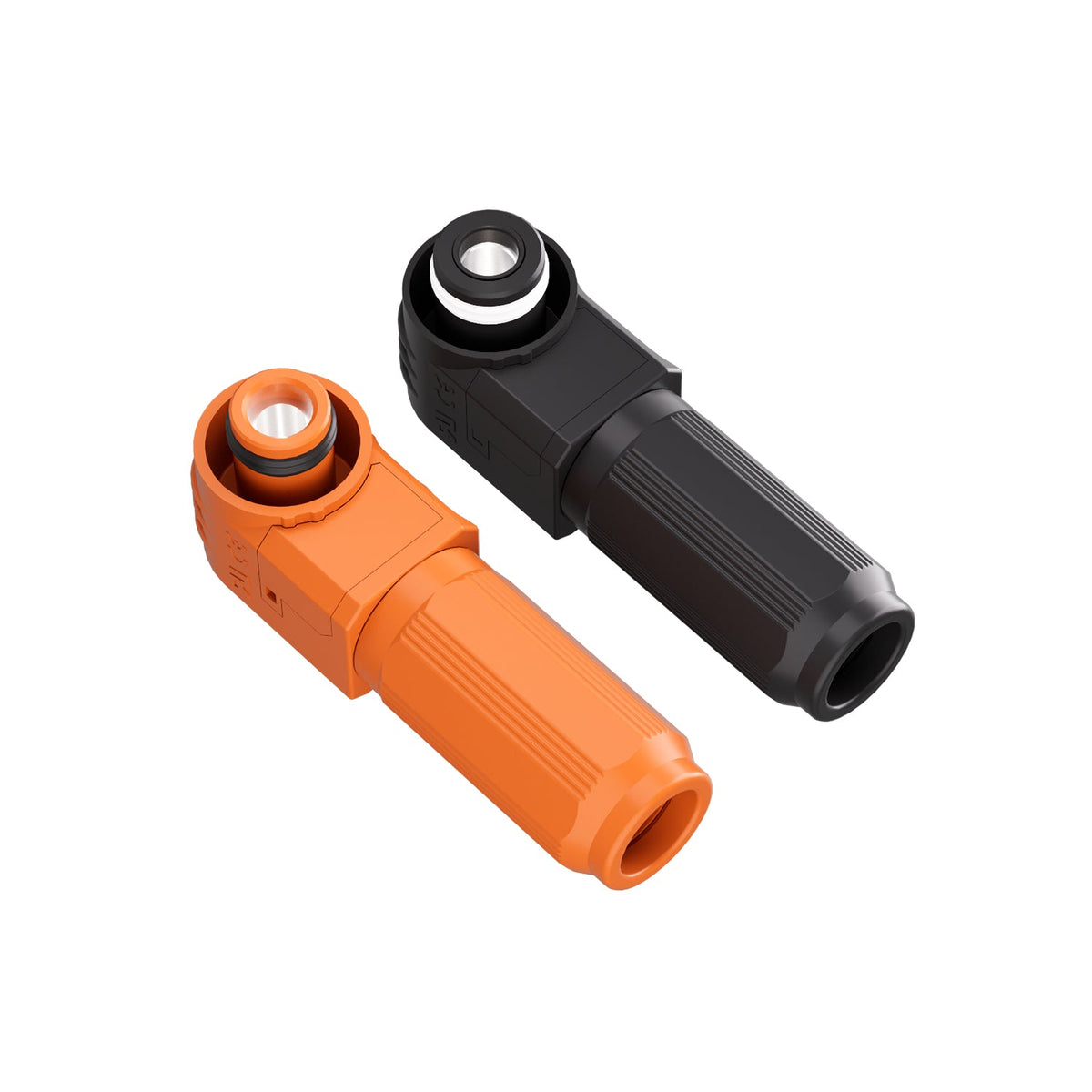

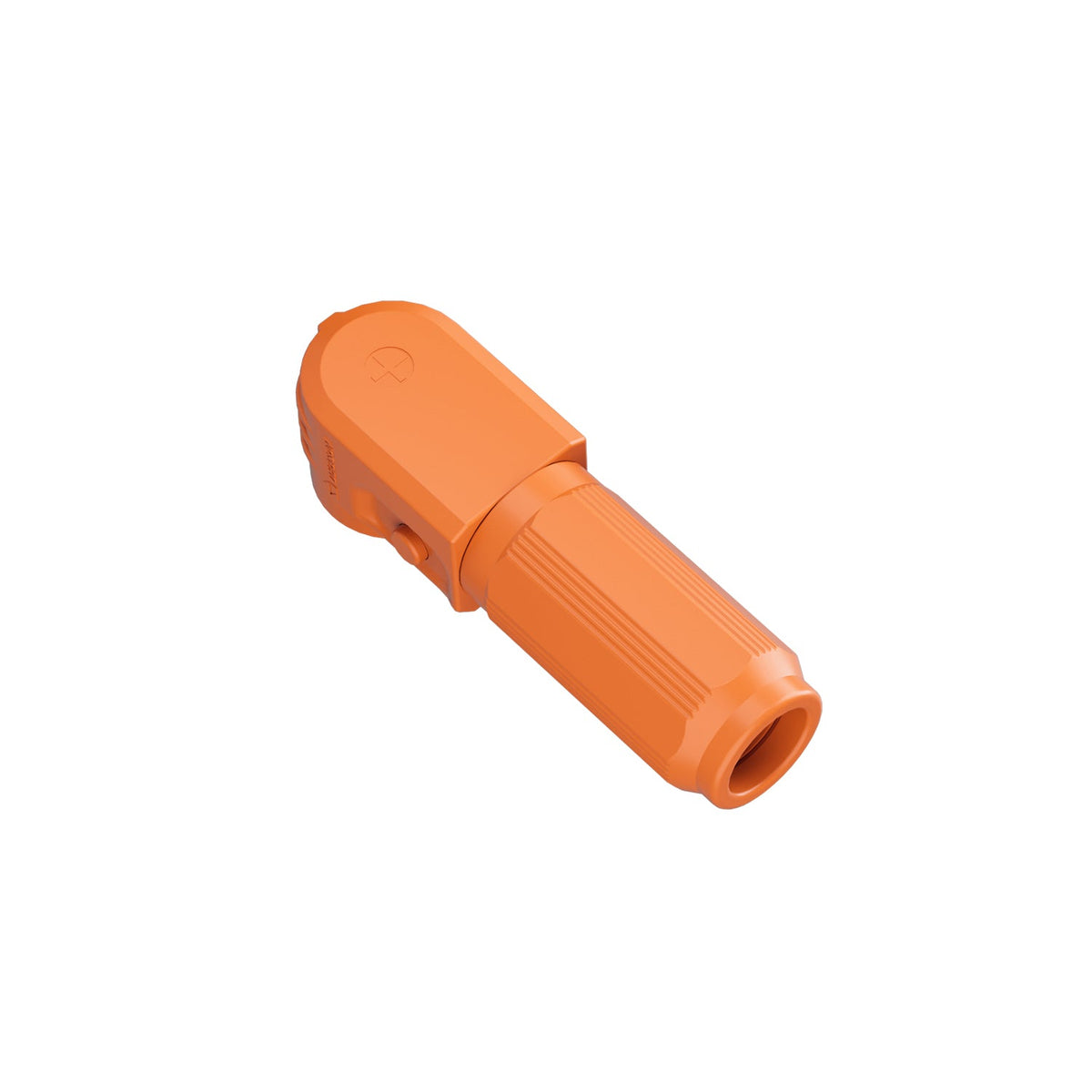

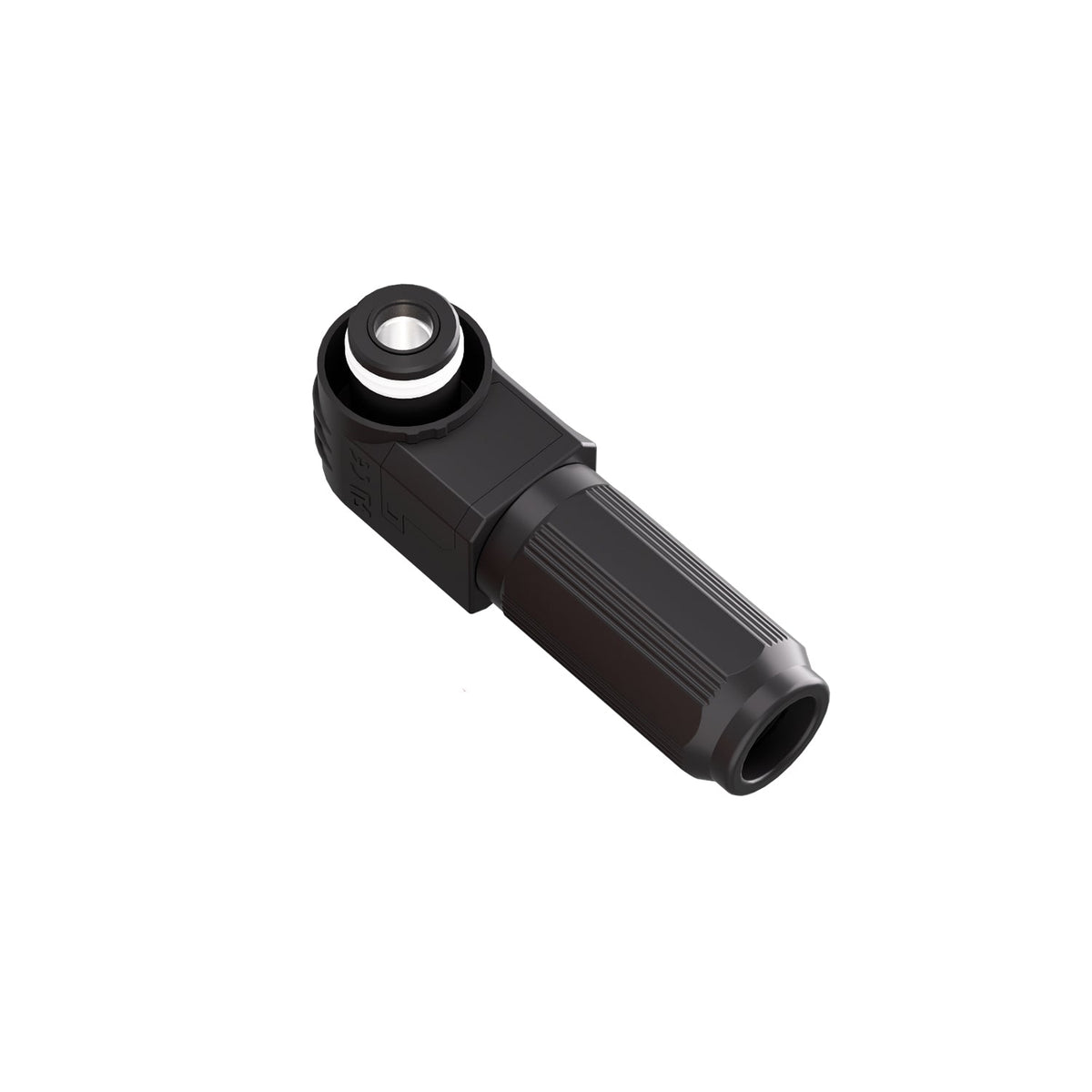

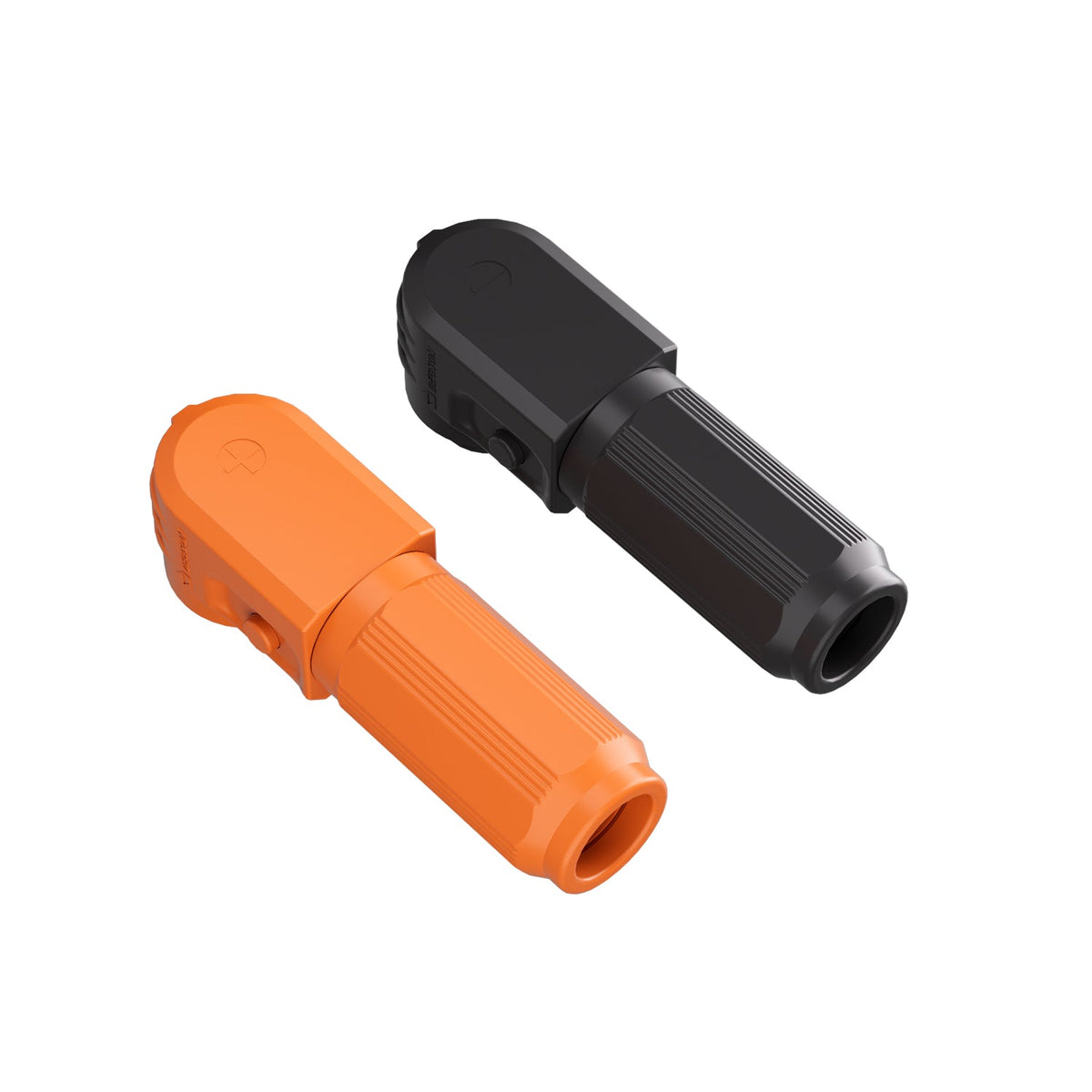

Polarity	Positive (Orange) / Negative (Black)
Locking Mechanism	Snap-Fit
Mounting Type	Wall Mount
Terminal Type	Crimp
Compatible Cable	4AWG / 25 mm²
Recommended Strip Length	13-14 mm
Mating Cycles	100 times
Insertion / Withdrawal Force	≤ 60 N / > 10 N
IP Rating	IP67 (Mated)
Operating Temperature	-40°F to 257°F (-40°C to +125°C)
Flammability	UL94 V-0
Dimensions	2.60 × 0.63 in (66 × 16 mm)
Net Weight	1.31 oz (37g)
Safety	UL, CE
Environmental	RoHS

1 x ALPHA 5 PRO Battery Connector Plug
Mounting or connection hardware as listed in the specifications
User manual

Protection: Fit a breaker or fuse rated for this cable and the circuit it feeds — browse
Inverter: Pair with an inverter whose current this gauge supports — browse

Not sure what pairs with this? Call our team on 1-332-291-6885.

Free Shipping

On all orders

30-Day Returns

Hassle-free returns

25 Year Warranty

On panels & more

Secure Payments

100% protected

Frequently Asked Questions

Which length should I choose?

Measure the run and add a little slack for routing, then pick the next size up. Avoid buying far longer than you need — surplus cable adds resistance and voltage drop.

Which gauge do I need?

Gauge follows current and distance: the higher the current or the longer the run, the thicker the cable. If you are between sizes, go thicker. Call us on 1-332-291-6885 if you want it checked.

Is it ready to use out of the box?

Yes — the terminations are already fitted, so it is ready to bolt or plug in. No crimping tools needed.
