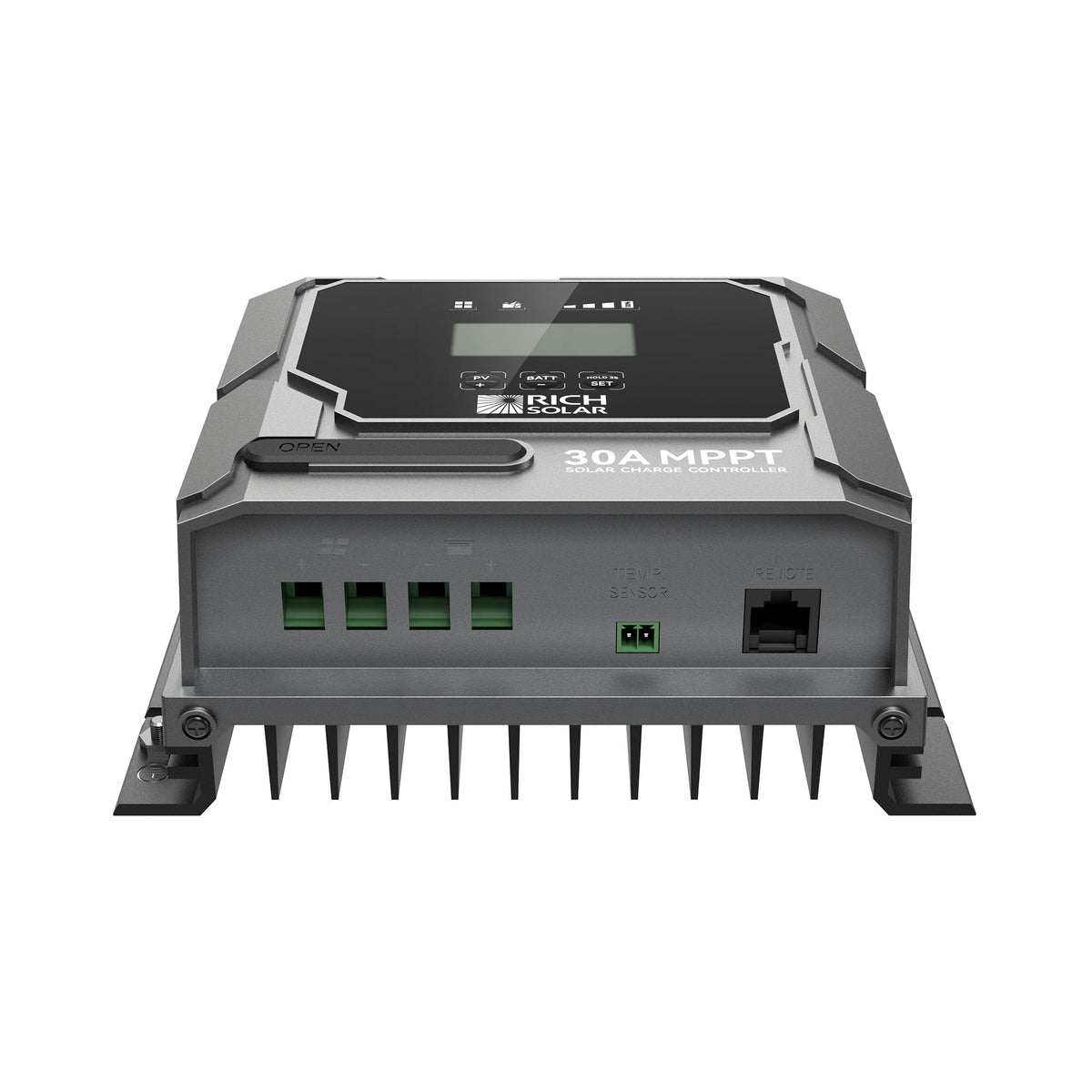

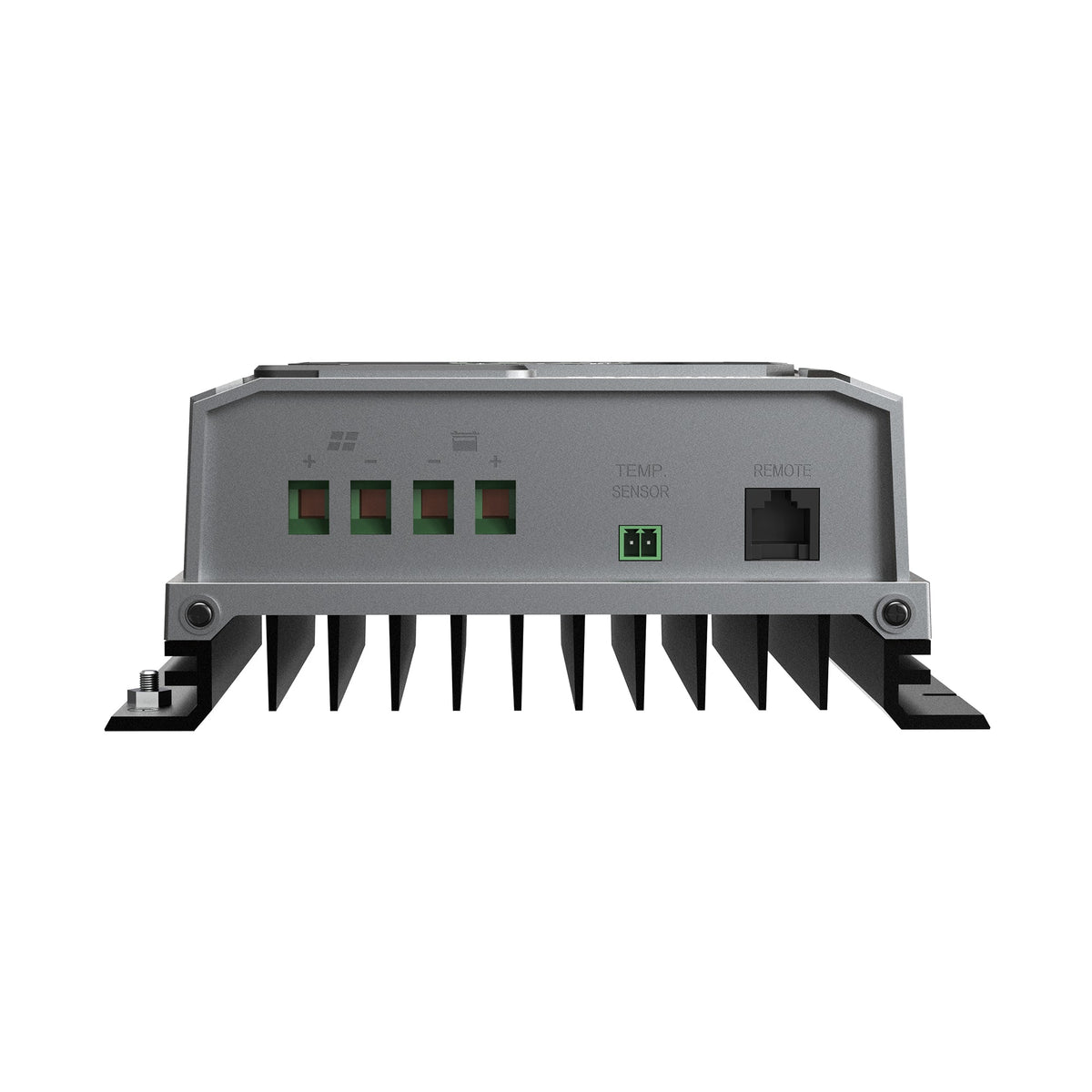

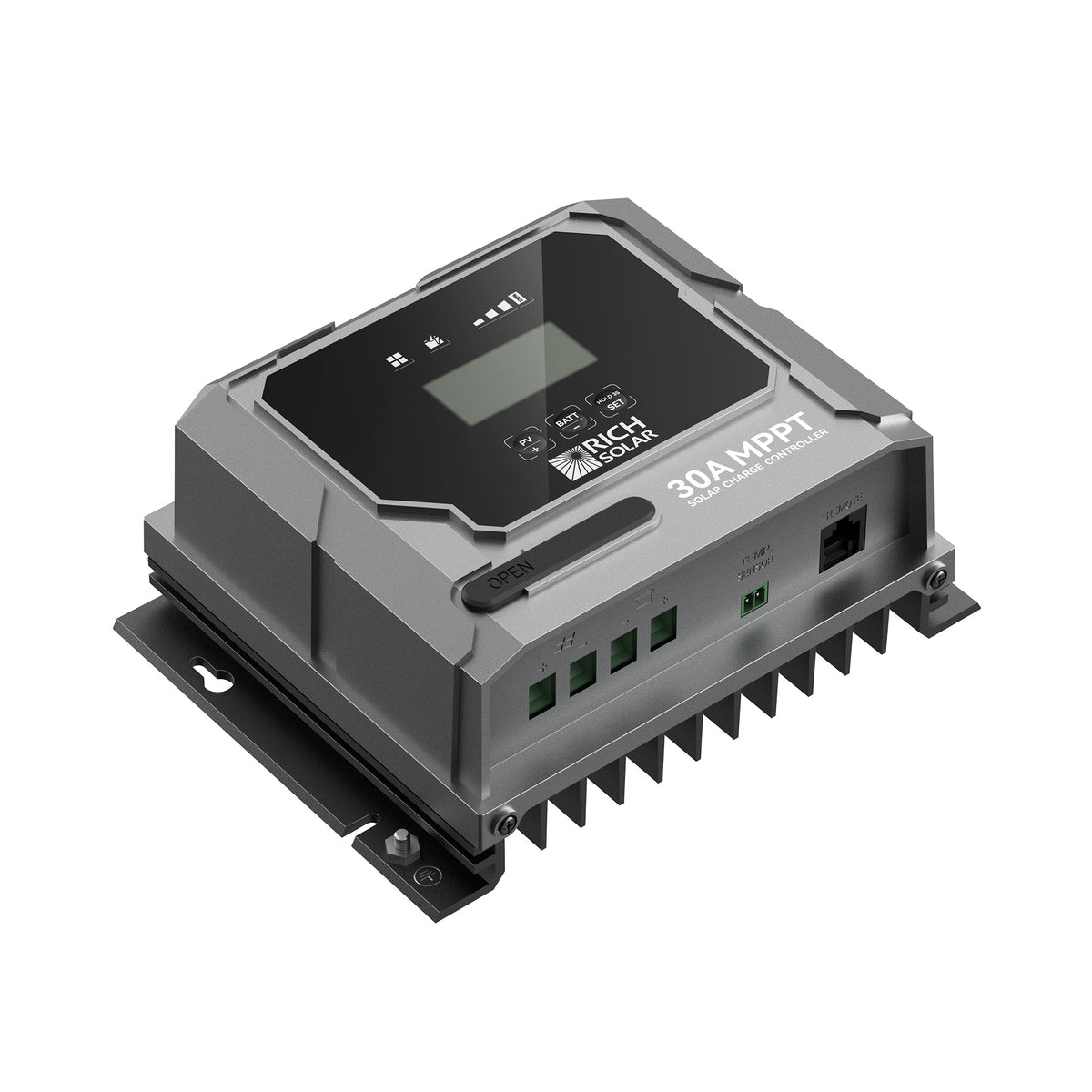

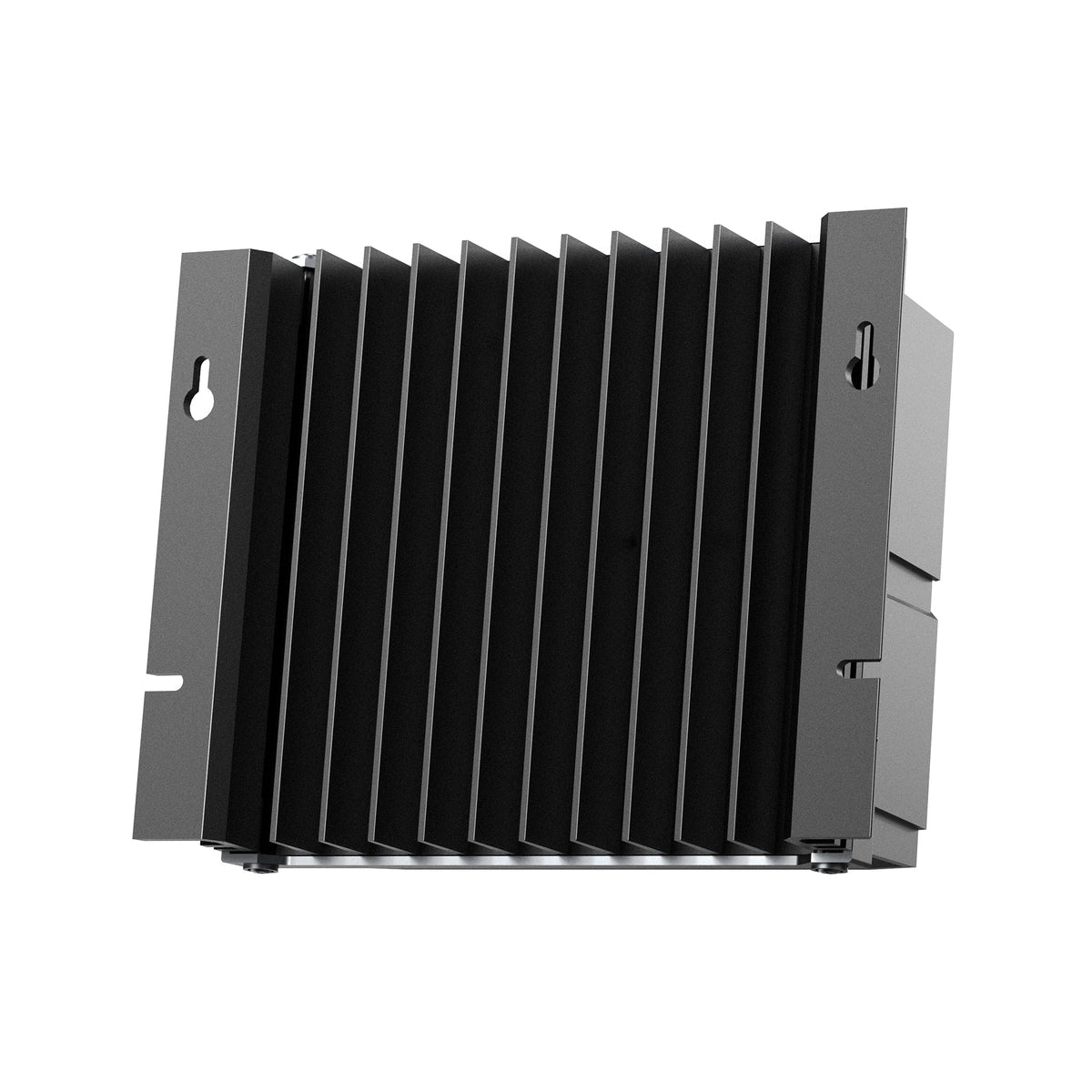

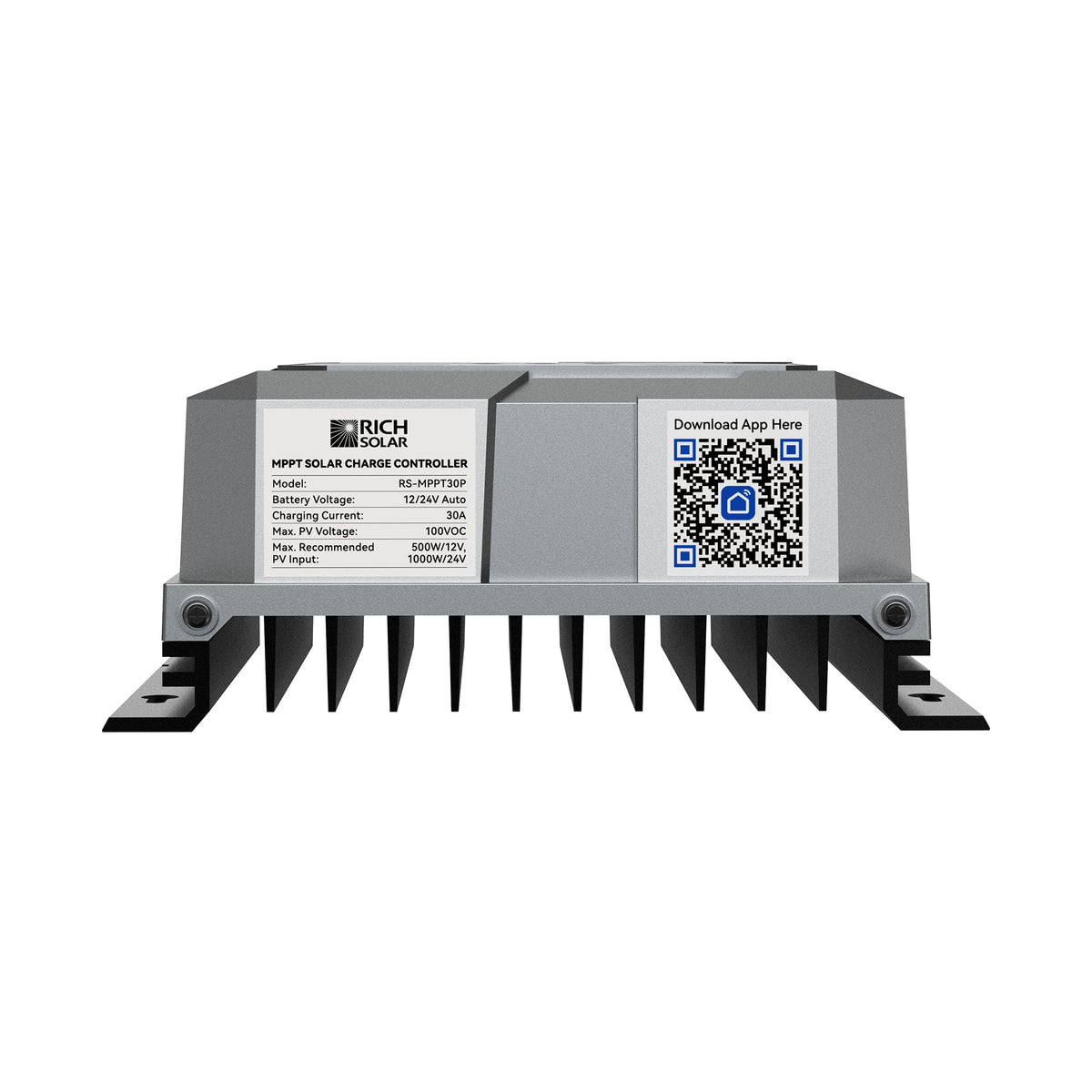

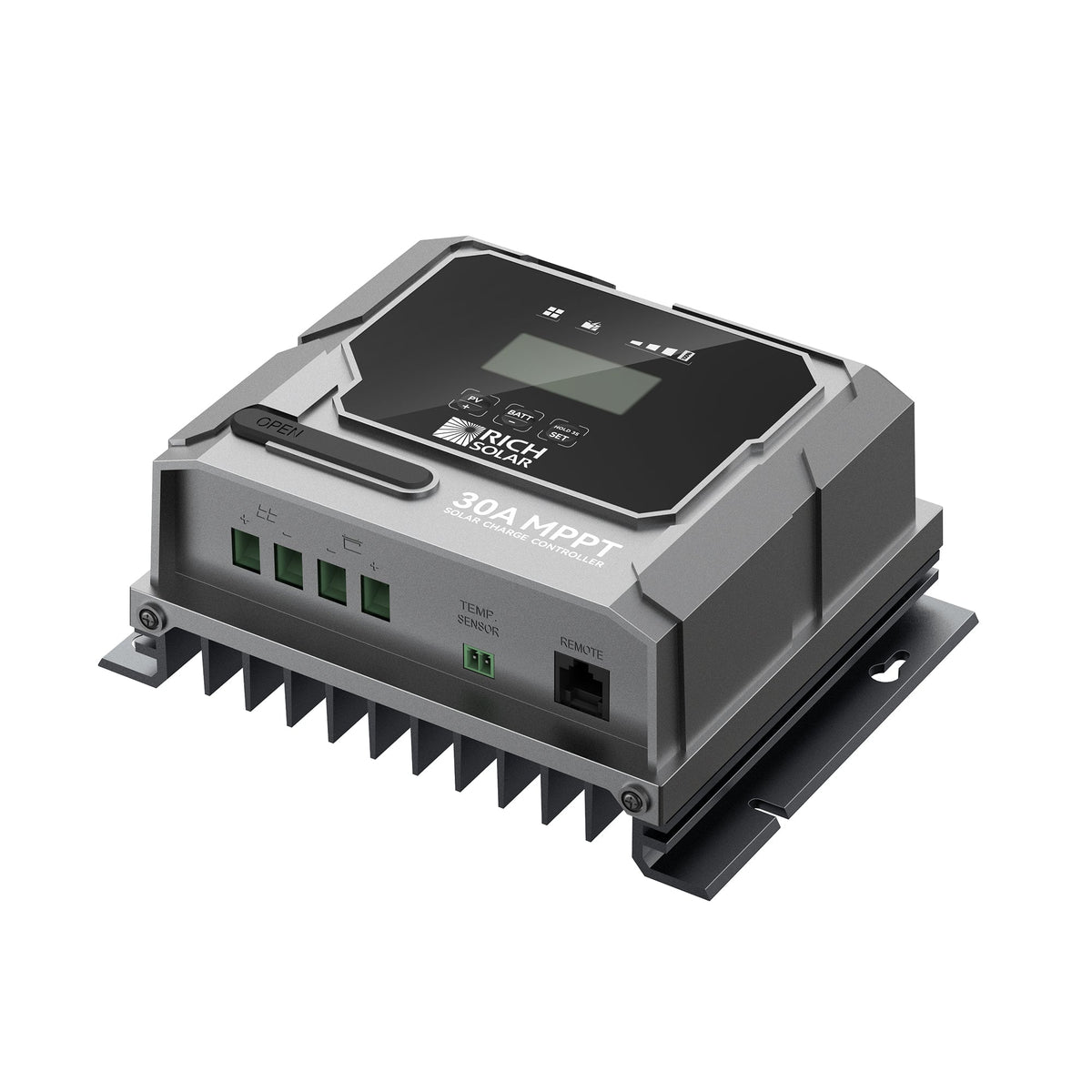

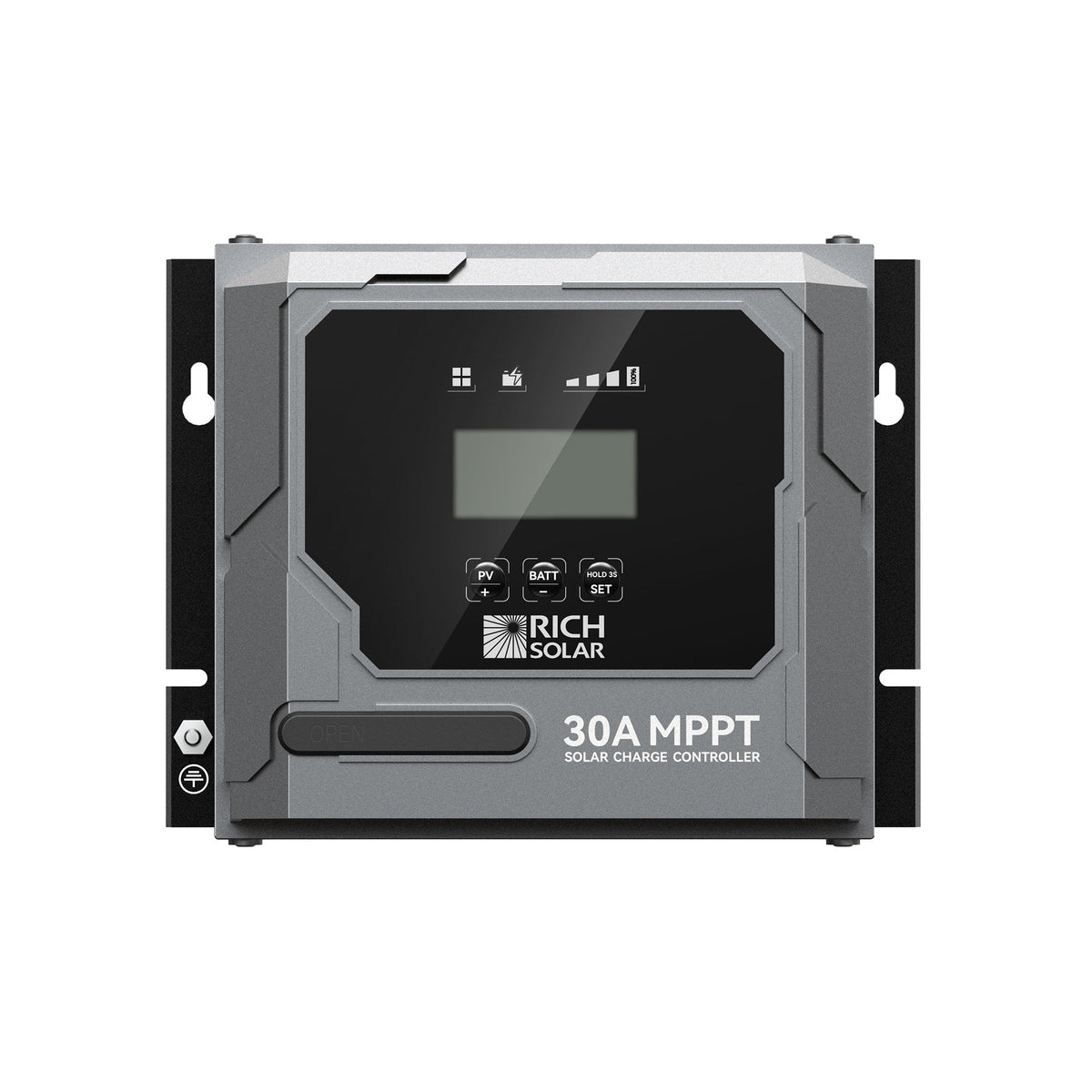

BRAVO 30 – 30A MPPT Solar Charge Controller 12V/24V
SKU:RS-MPPT30PB
Product Information
The BRAVO 30 is a 30-amp MPPT solar charge controller for RVs, trailers, campers, vans, boats and small off-grid systems. It detects 12V or 24V battery banks automatically and handles up to 500W of solar on 12V or 1000W on 24V.
Its MPPT tracking runs at up to 99.5% efficiency, with up to 98% charge conversion efficiency, so more of your panels' output reaches the battery in cloudy weather, cold mornings and partial shade. The 100V maximum PV input lets you wire panels in series, which keeps cable runs thinner and losses lower.
Monitor charging from your phone over built-in Bluetooth, or read solar input and battery status on the LCD screen. Charging profiles cover LiFePO4, LTO, LCO, AGM, Gel, Flooded, Calcium and Crystal batteries, with custom settings for anything else. An optional remote meter and battery temperature sensor are available.
The circuit board is conformal coated for damp and dusty installs, and electronic protection guards against over-voltage, reverse discharge and circuit faults. The BRAVO 30 is certified to UL 1741, FCC, CE and RoHS
| Specification | Value |
|---|---|
| Maximum Solar Input Current | 30A |
| Maximum Charging Current | 30A |
| Recommended Solar Power | 500W (12V) / 1000W (24V) |
| Nominal System Voltage | 12V/24V Auto-Detect |
| Solar Input Voltage Range | 8V-100V |
| MPPT Voltage Range | 15V-72V |
| Maximum Conversion Efficiency | 98% |
| Maximum MPPT Tracking Efficiency | 99.5% |
| Battery Compatibility | GEL, AGM, WET. CRYSTAL, CALCIUM, LiFePO., LTO, LCO, Custom |
| Connectivity | Built-in Bluetooth (Optional Remote Meter & Temperature Sensor) |
| Protection Rating | IP43 PCBA, IP22 Connection |
| Net Weight | 1.8 lb |
| Dimensions | 7.0 × 5.5 × 2.9 in |
| Package Dimensions | 10 × 7 × 5 in |
| Gross Weight | 4 lb |

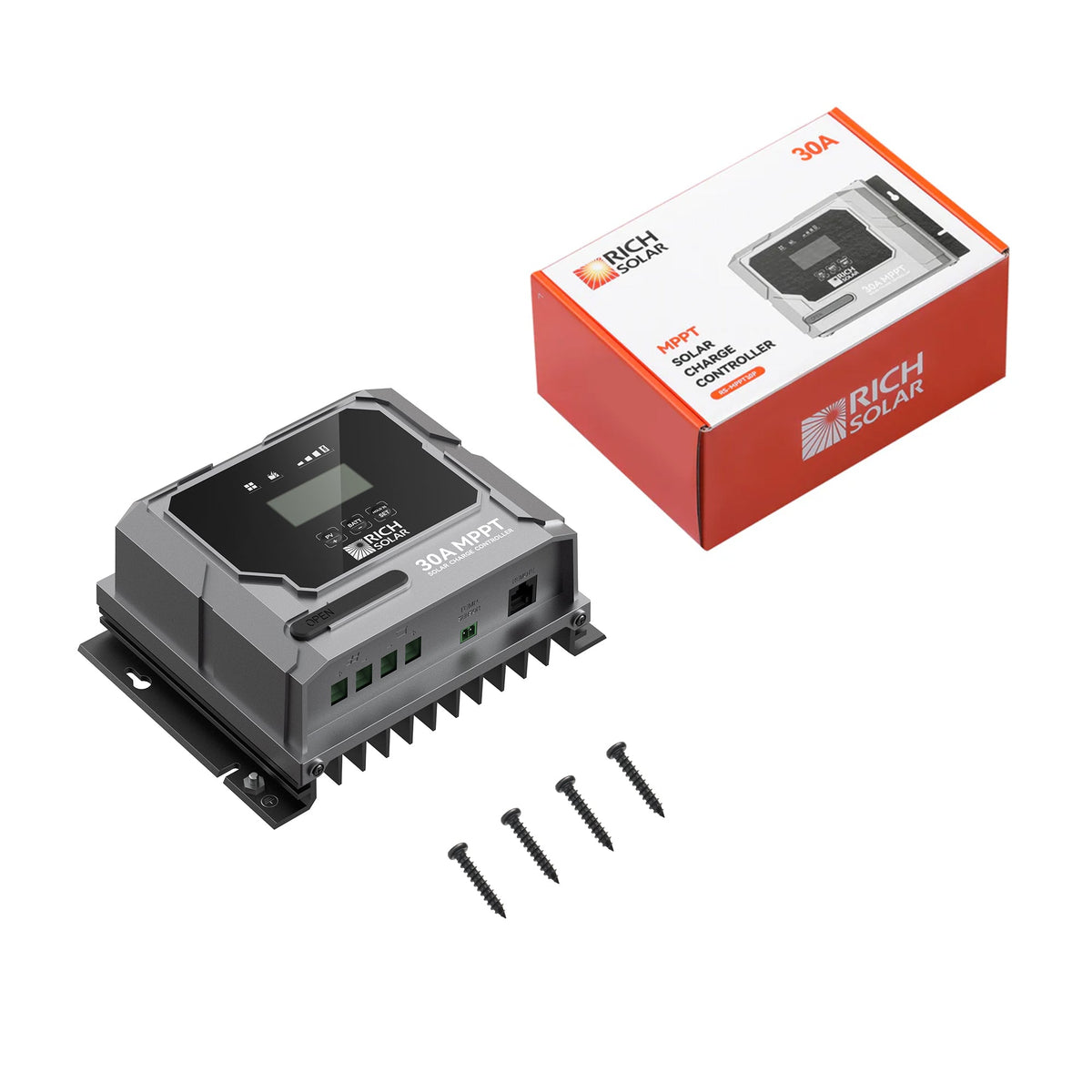

- 1 x BRAVO 30
- User manual
Features
-
Efficient solar charging99.5% MPPT tracking, 98% conversion, up to 1000W PV input.
-
System compatibility12V/24V auto-detect, 100V max open-circuit voltage, eight battery chemistries plus custom.
-
Smart monitoringBluetooth with the RICH SOLAR app, LCD display, optional remote meter and temperature sensor.
-
ReliabilityUL 1741, FCC, CE and RoHS certified, electronic protections, conformal-coated board.
