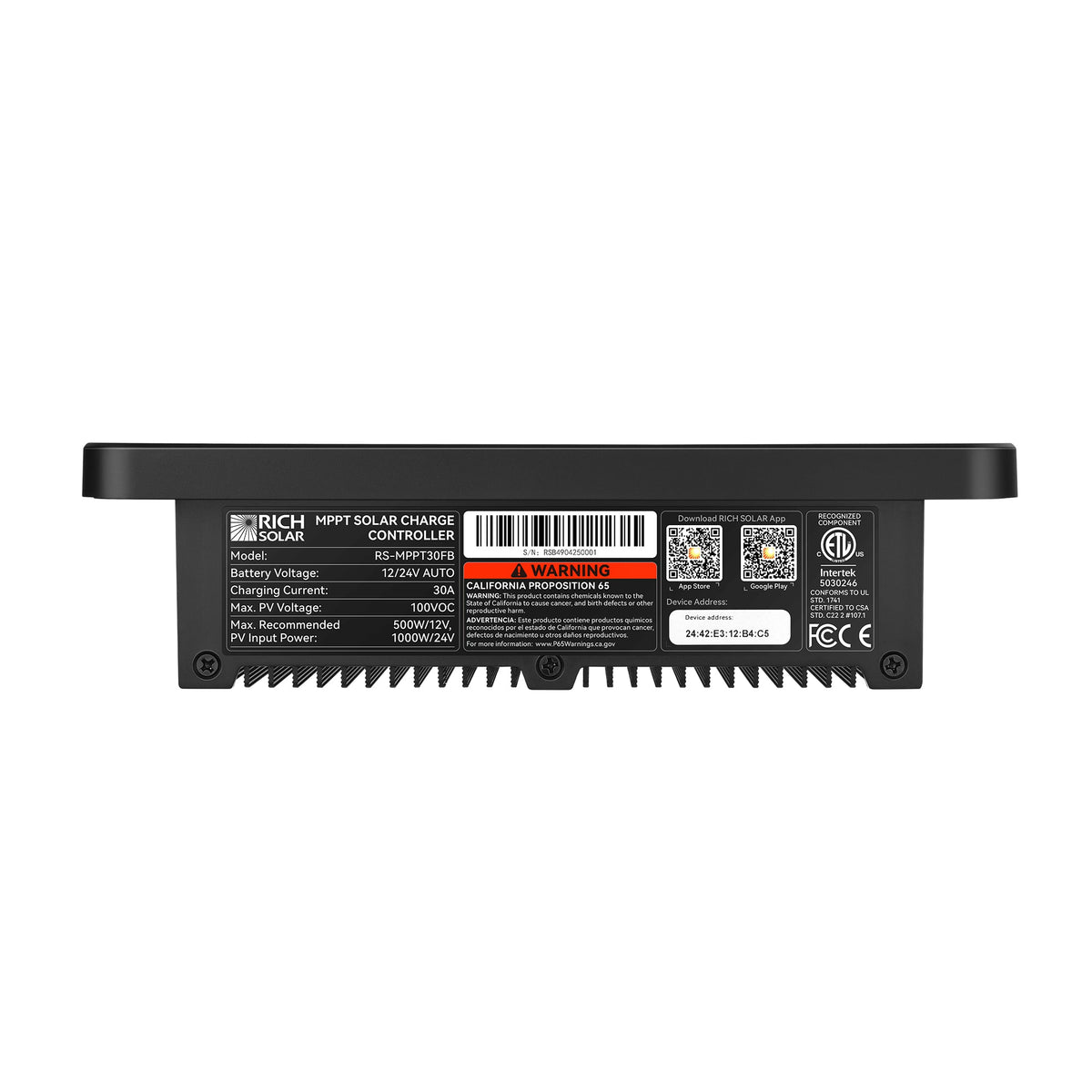

BRAVO PRO 30 – 30A MPPT Flush Mount Controller with Bluetooth
30A MPPT controller for flush-mount rv and van installs.
SKU:RS-MPPT30FB
Regular price
$199.99 USD
30A MPPT charge controller.
12V/24V Auto battery systems.
Handles 500W(12V)/1000W(24V) of panels.
Bluetooth monitoring · UL1741, CE, EMC, FCC, RoHS · IP43 rated.
Need help choosing the right kit?
Talk to a Solar Expert:
1-332-291-6885
Quantity
Quantity
Guaranteed Safe Checkout
Deliver to
Get it between
Product Information
30A MPPT Solar Charge Controller for Flush-Mount RV and Van Installs
An MPPT controller tracks the array's maximum power point and converts the surplus voltage into charging current, so it harvests more than a PWM unit from the same panels — most noticeably in cold or low light, and whenever panel voltage sits well above battery voltage.
Keep the array within 500W(12V)/1000W(24V).

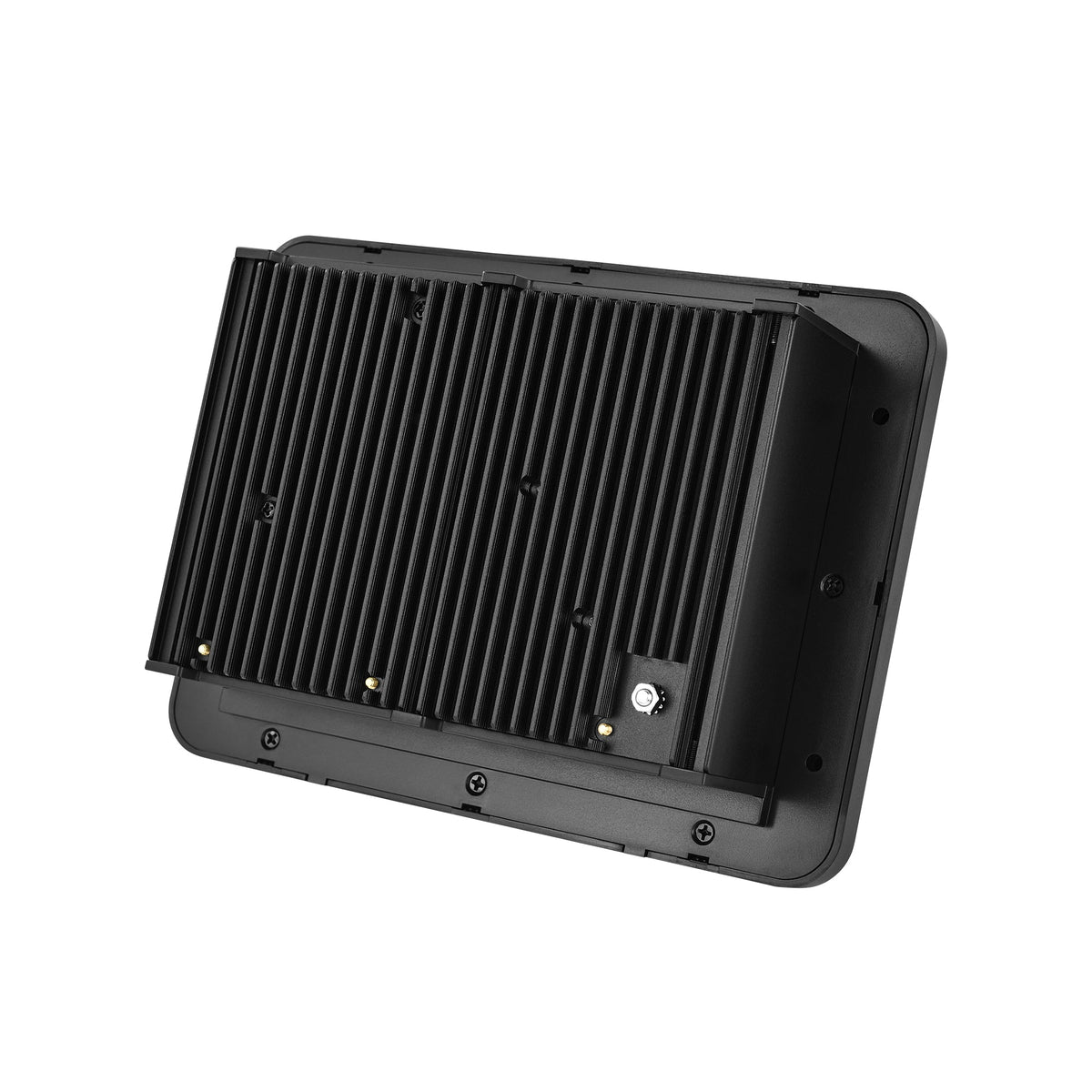

Rated IP43. UL1741, CE, EMC, FCC, RoHS. Mount it close to the battery on a vertical surface with airflow around the heatsink, and wire battery first, then panels.
| Specification | Value |
|---|---|
| System Nominal Voltage | 12V/24V Auto |
| Maximum Solar Input Current | 30A |
| Maximum Charging Current | 30A |
| Recommended Solar Input Power | 500W(12V)/1000W(24V) |
| Solar Input Voltage Range | 8-100V |
| Standby Current | 10mA |
| Charging Technology | MPPT |
| MPPT Voltage Tracking Range | 15-72VDC |
| MPPT Efficiency | 99.5% |
| Conversion Efficiency | 98% |
| Battery Compatibility | GEL / AGM / WET / LFP / LTO / LCO / Crystal / Calcium / Customizable Battery |
| IP Grade | IP43 |
| Operating Temperature | -13℉ ~ 122℉ |
| Bluetooth | Yes |
| Options | External Battery Temperature Sensor; External Digital Remote Display |
| Dimensions | 8.3 × 6.1 × 2.2 in |
| Weight | 1.8 lb |
| Certifications | UL1741, CE, EMC, FCC, RoHS |
| Package Dimensions | 10 × 8 × 4 in |
| Gross Weight | 3 lb |

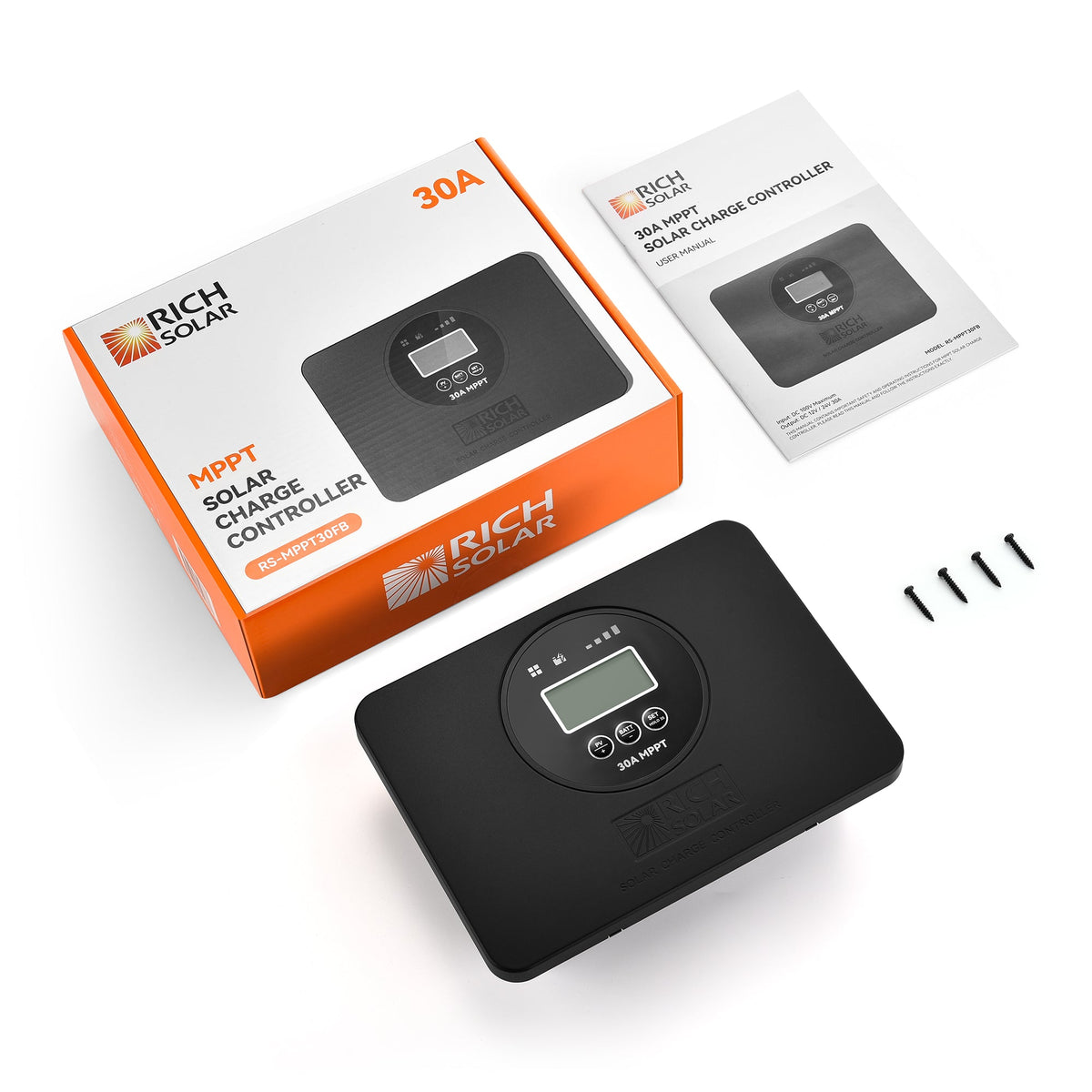

- 1 x BRAVO PRO 30
- Mounting or connection hardware as listed in the specifications
- User manual
Free Shipping
On all orders
30-Day Returns
Hassle-free returns
25 Year Warranty
On panels & more
Secure Payments
100% protected
Frequently Asked Questions
How many panels can I connect?
Keep the array within 500W(12V)/1000W(24V). Watts alone are not the whole story — the panels' combined open-circuit voltage must also stay under the controller's input limit.
MPPT or PWM — which do I need?
MPPT harvests more, especially when panel voltage is well above battery voltage or in cold and low light, and it is the better choice for larger or 24V arrays. PWM costs less and suits small systems where panel and battery voltage are closely matched. This unit is MPPT.
Which batteries does it charge?
Check the battery types listed in the specifications and set the matching profile before first charge.
