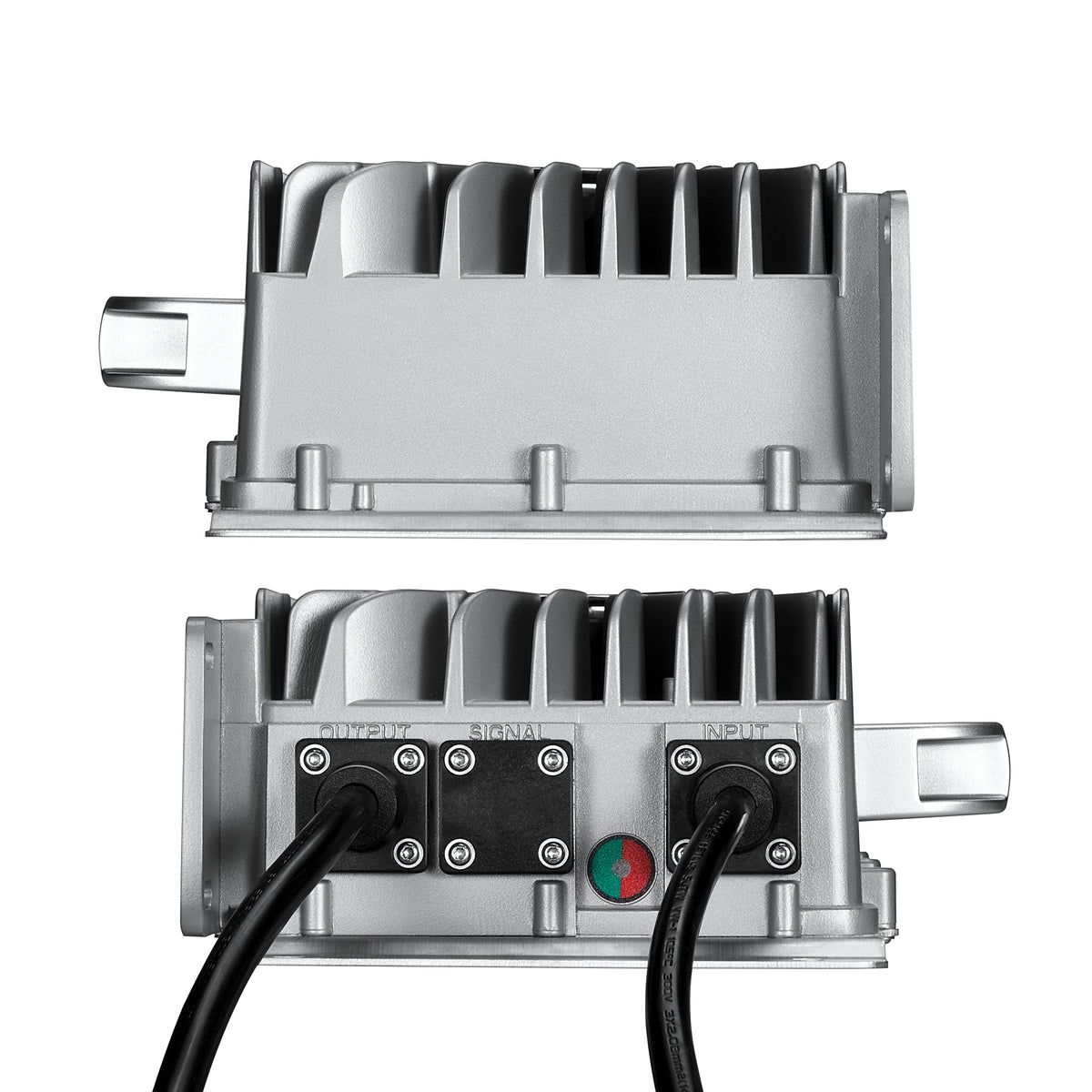

48V (57.6V) Waterproof LiFePO4 Charger | 20A / 25A, 100-240V AC, 8-in-1 Protection, Fan-Cooled
48V (57.6V) Waterproof LiFePO4 Charger
SKU:UGS-BC48C20
Regular price
$279.99 USD
Fast Charging Performance.
88–93% Peak Efficiency.
100–240V AC Input.
8-in-1 Safety Protection.
Need help choosing the right kit?
Talk to a Solar Expert:
1-332-291-6885
Quantity
Quantity
Guaranteed Safe Checkout
Deliver to
Get it between
Product Information
Features
- Fast Charging Performance: Delivers up to 20A or 25A charging current for 48V (57.6V) LiFePO₄ batteries.
- 88–93% Peak Efficiency: Maximizes charging efficiency while reducing energy loss.
- 100–240V AC Input: Supports worldwide AC input for convenient charging.
- 8-in-1 Safety Protection: Includes overvoltage, overcurrent, short circuit, reverse polarity, over-temperature, undervoltage, automatic shutoff, and battery activation.

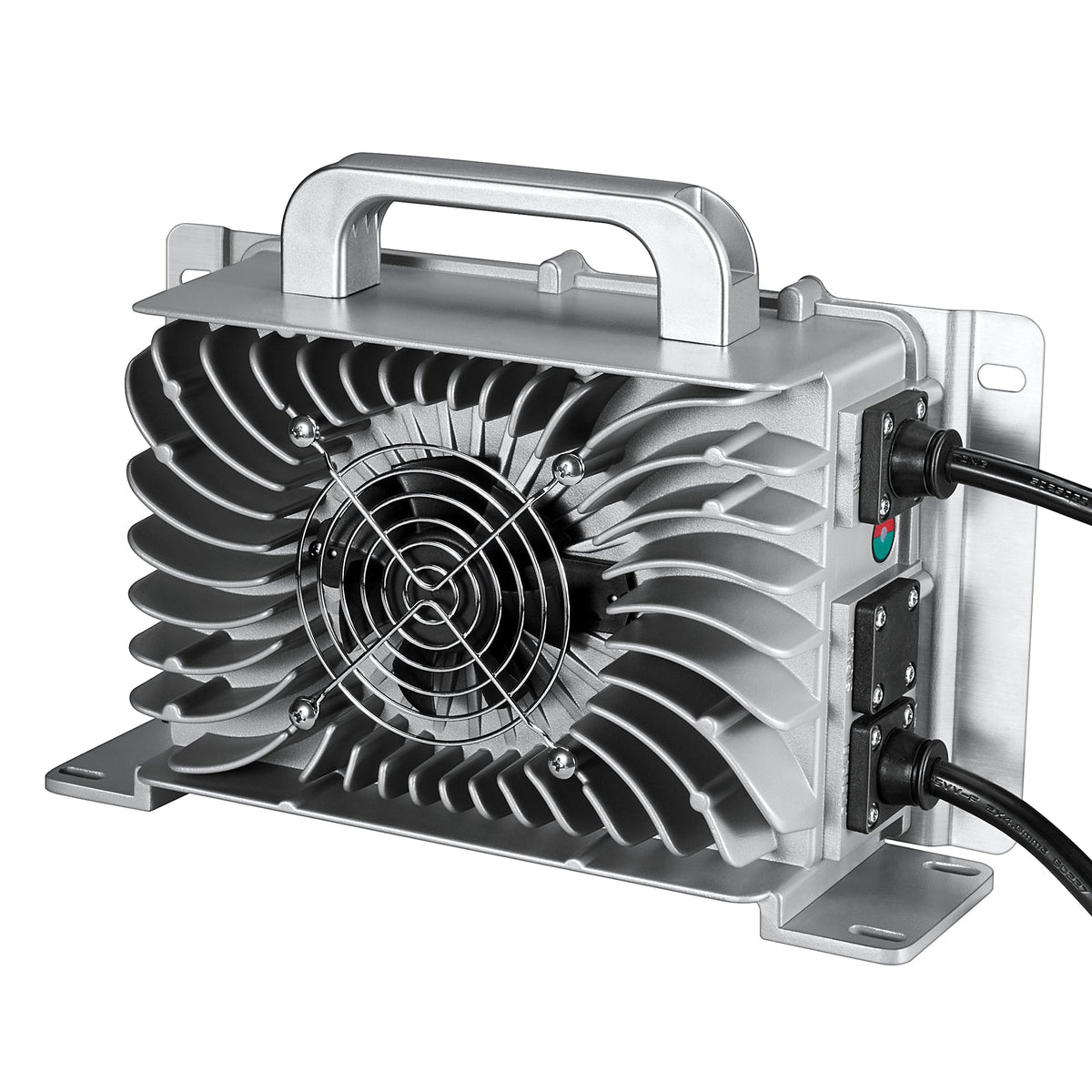

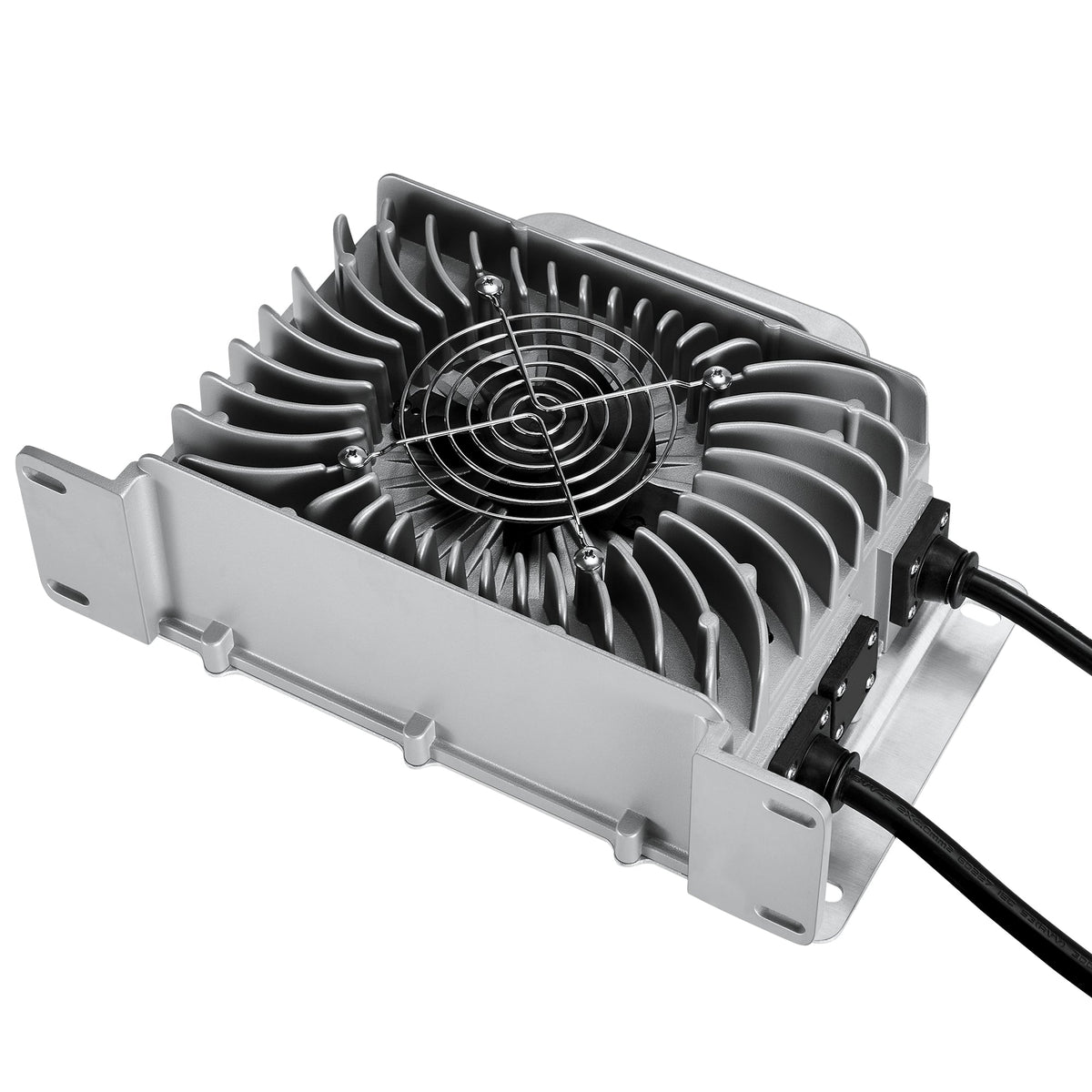

- IP67 Waterproof Housing: Die-cast aluminum enclosure resists water, dust, and impacts for demanding environments.

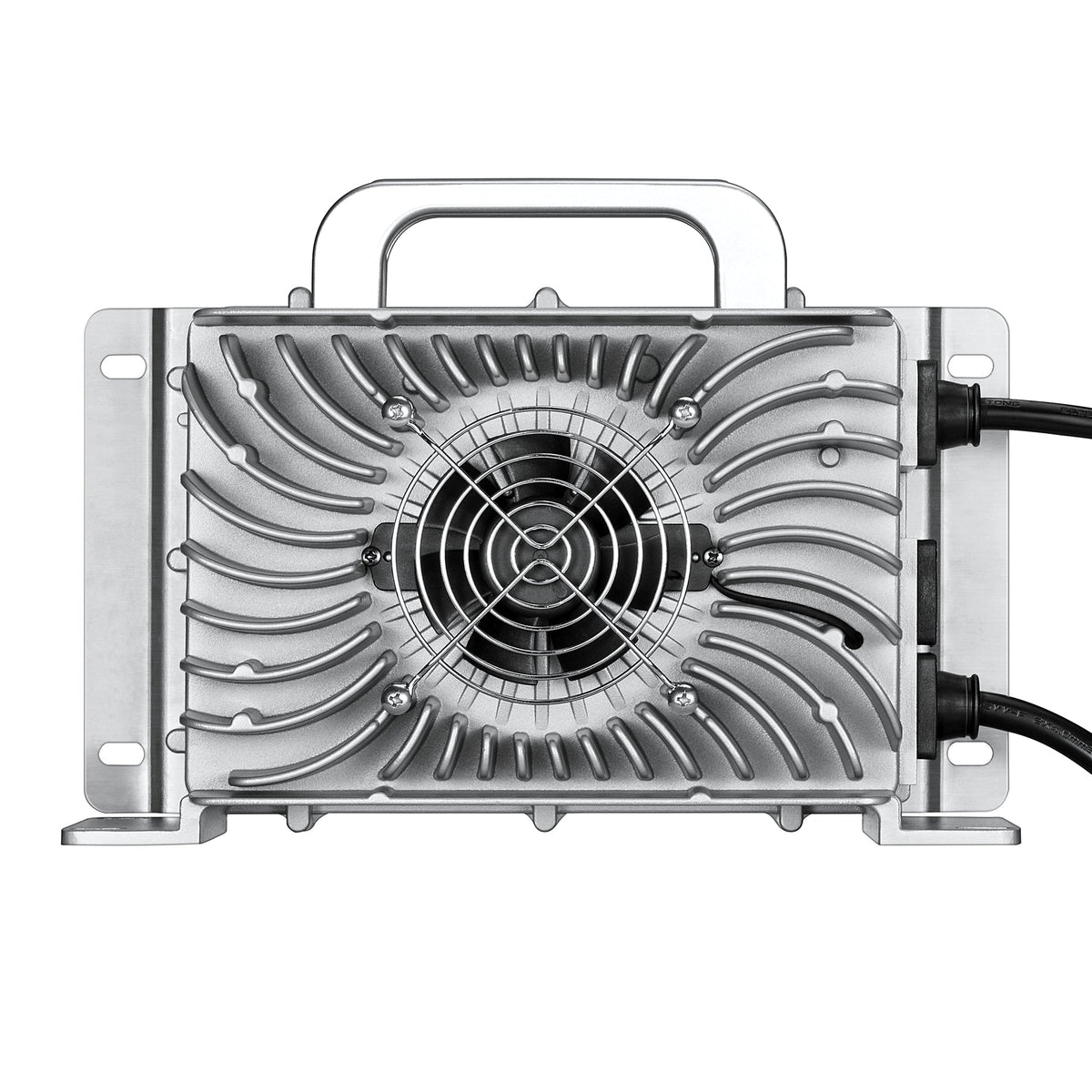

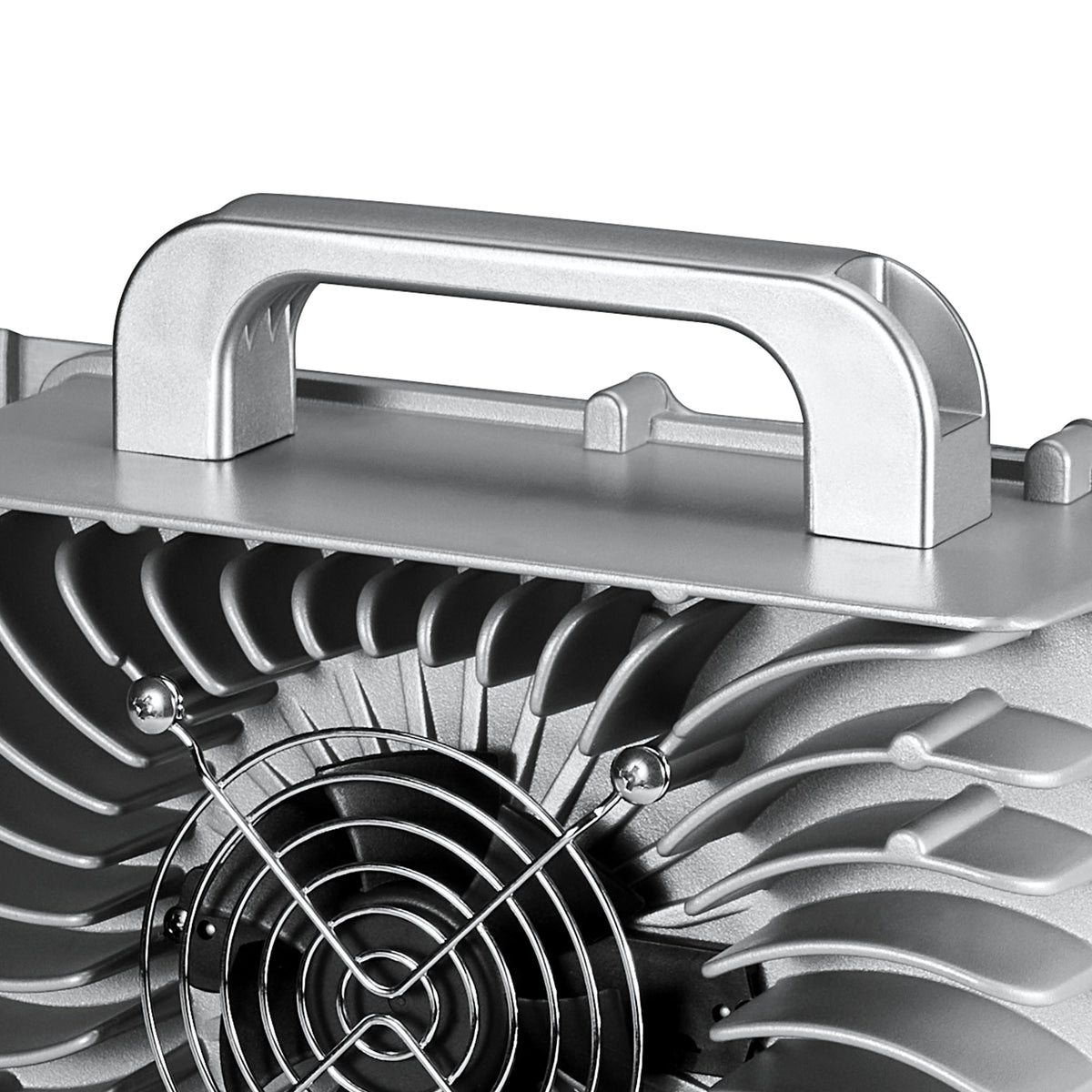

- Active Cooling Fan: Provides efficient heat dissipation for reliable high-current charging.
- Two-Color LED Indicator: Displays standby, charging, fully charged, and fault status.
- FCC, CE & RoHS Certified: Meets recognized safety and environmental standards.

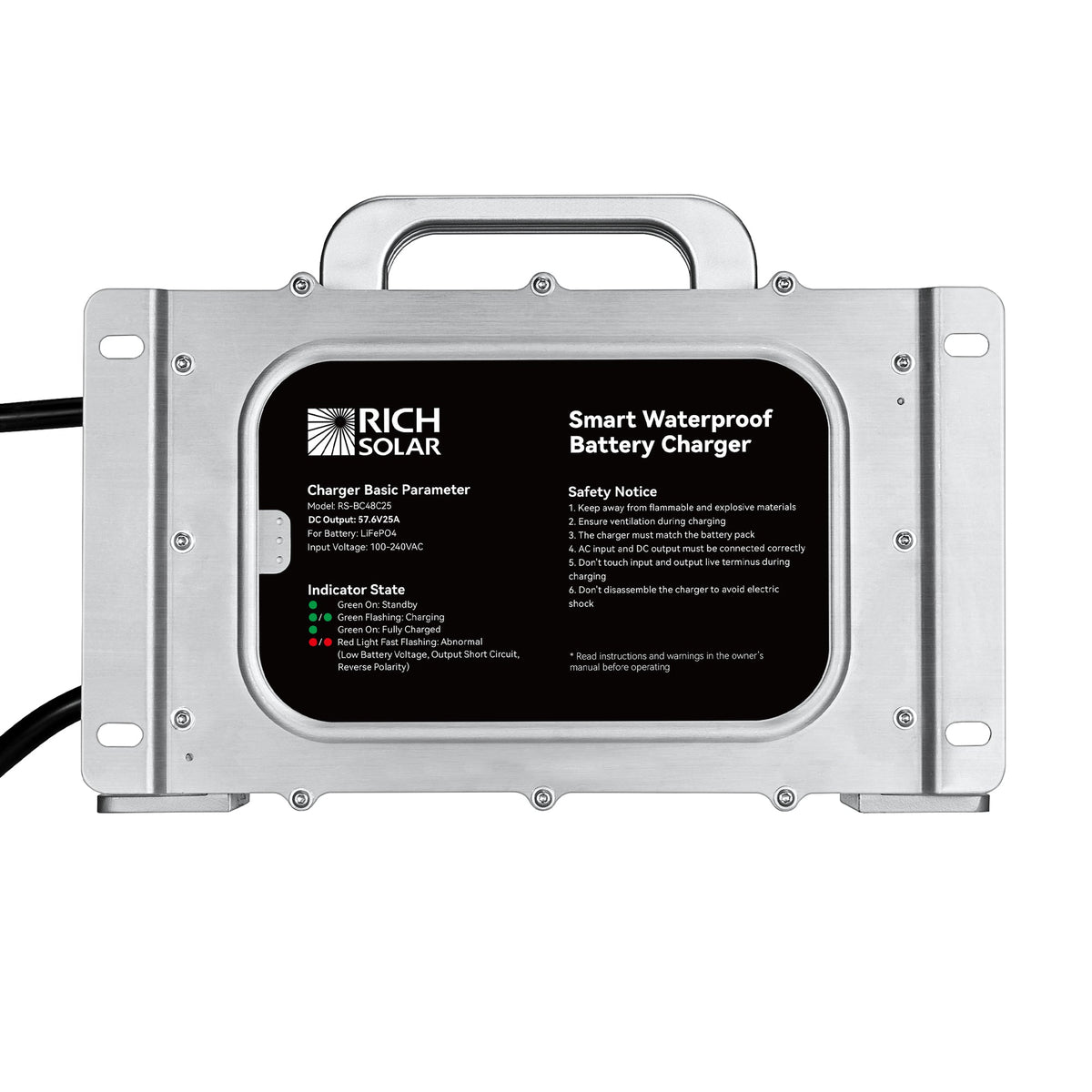

LED Indicator
- Green (Always On): Standby / No Load
- Green (Flashing): Battery is Charging
- Green (Always On): Battery Fully Charged
- Red (Flashing): Charger Fault or Under Protection
How to Connect
- Ensure the charger is switched OFF.

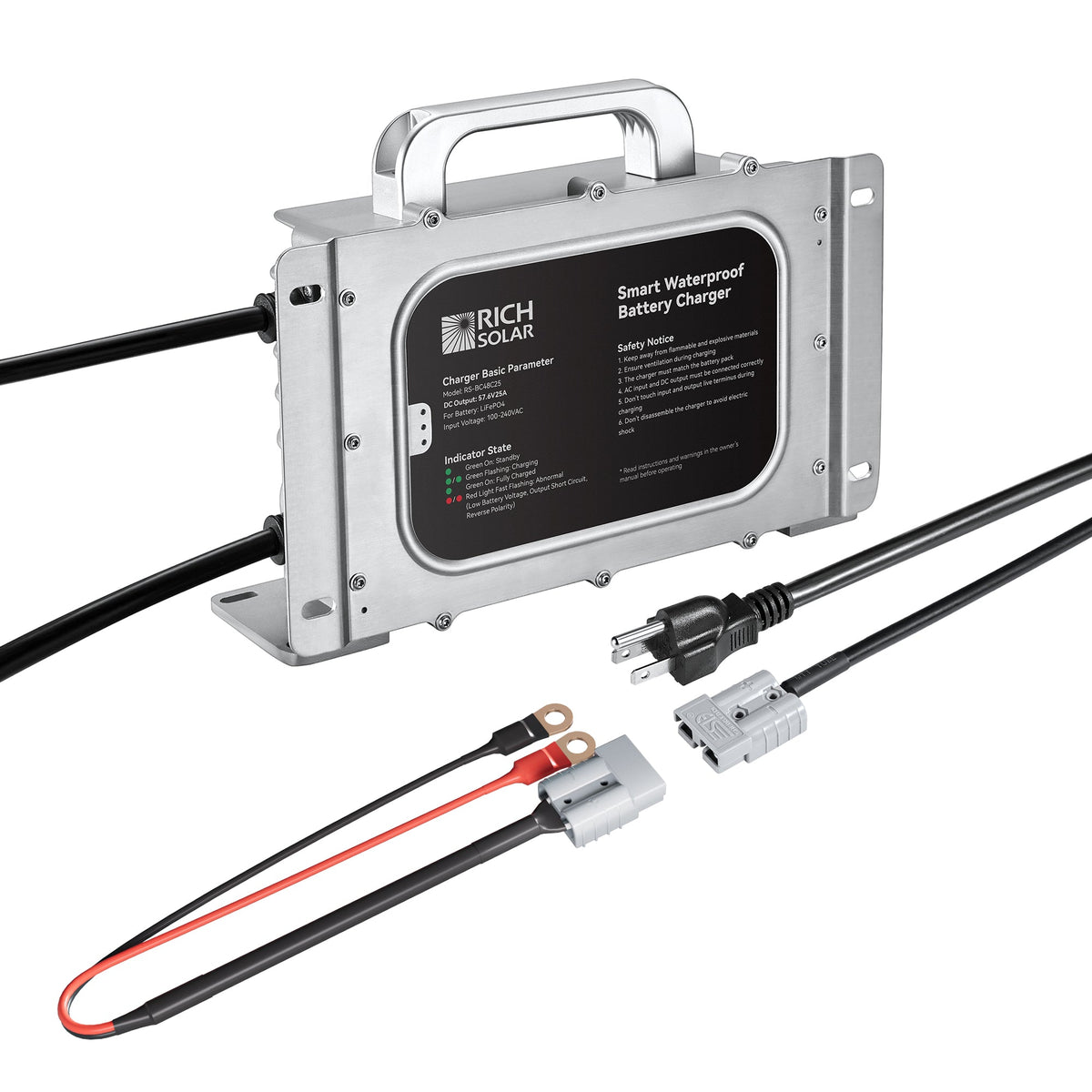

- Connect the DC output cable to the battery (+ to +, − to −) and secure the Anderson connector.
- Turn the charger ON. The battery is charging when the LED indicator flashes green.
- Turn the charger OFF after charging is complete.
Specifications
AC Input
-
Input Voltage: 100–240V AC
- Input Frequency: 50/60Hz
DC Output
-
Output Voltage: 57.6V DC
-
Output Current: 20A or 25A (Model Dependent)
-
Battery Compatibility: 48V LiFePO₄ Batteries
- Peak Efficiency: 88–93%
General
-
Protection Rating: IP67
-
Enclosure Material: Die-Cast Aluminum
-
Cooling: Active Cooling Fan
-
Charging Indicator: Two-Color LED
-
Operating Temperature: -4°F to 104°F (-20°C to 40°C)
- Storage Temperature: -40°F to 158°F (-40°C to 70°C)
Certifications & Compliance
- Compliance: FCC, CE, and RoHS
| Specification | Value |
|---|---|
| Green (Always On) | Standby / No Load |
| Green (Flashing) | Battery is Charging |
| Green (Always On) | Battery Fully Charged |
| Red (Flashing) | Charger Fault or Under Protection |
| Input Voltage | 100–240V AC |
| Input Frequency | 50/60Hz |
| Output Voltage | 57.6V DC |
| Output Current | 20A or 25A (Model Dependent) |
| Battery Compatibility | 48V LiFePO₄ Batteries |
| Peak Efficiency | 88–93% |
| Protection Rating | IP67 |
| Enclosure Material | Die-Cast Aluminum |
| Cooling | Active Cooling Fan |
| Charging Indicator | Two-Color LED |
| Operating Temperature | -4°F to 104°F (-20°C to 40°C) |
| Storage Temperature | -40°F to 158°F (-40°C to 70°C) |
| Compliance | FCC, CE, and RoHS |

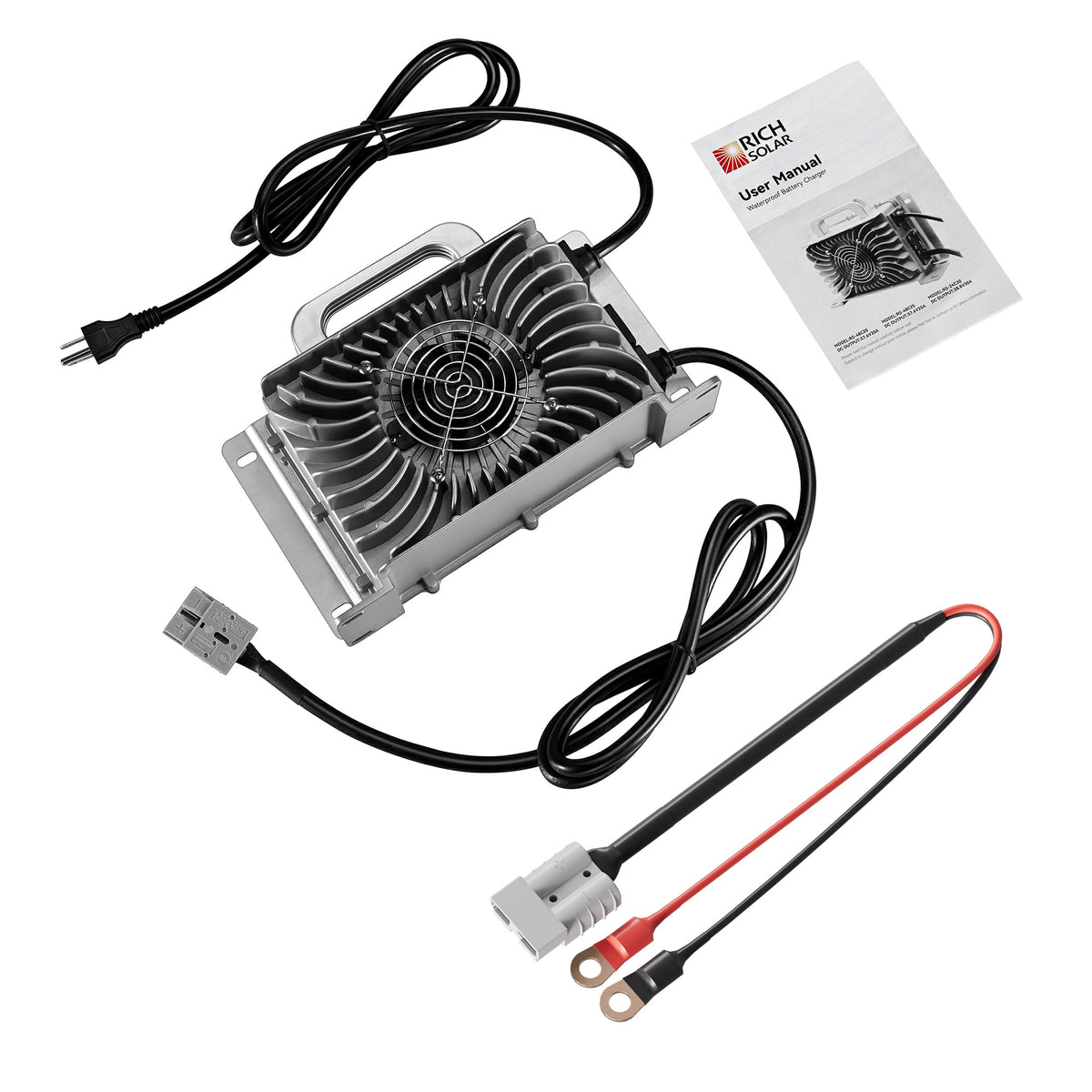

- 1 x 48V (57.6V) Waterproof LiFePO4 Charger
- Fittings and hardware as listed in the specifications
- User manual
Free Shipping
On all orders
30-Day Returns
Hassle-free returns
25 Year Warranty
On panels & more
Secure Payments
100% protected
Frequently Asked Questions
What is this used for?
Delivers up to 20A or 25A charging current for 48V (57.6V) LiFePO₄ batteries.
Will it fit my system?
Check the specifications against your own equipment — ratings, connector type and voltage all need to match. We can confirm compatibility on 1-332-291-6885.
Is anything else needed to install it?
The item ships with the fittings listed in the specifications. You may need basic tools and cable suited to your own run.
