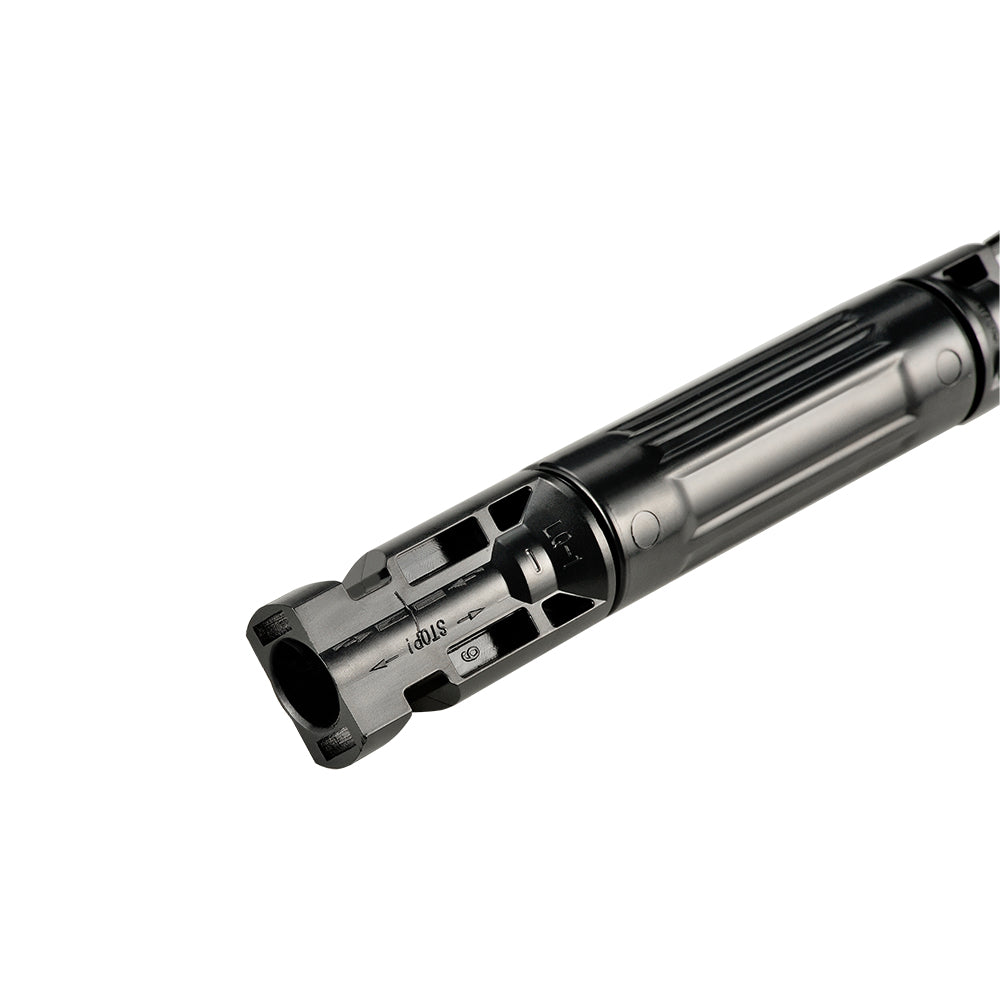

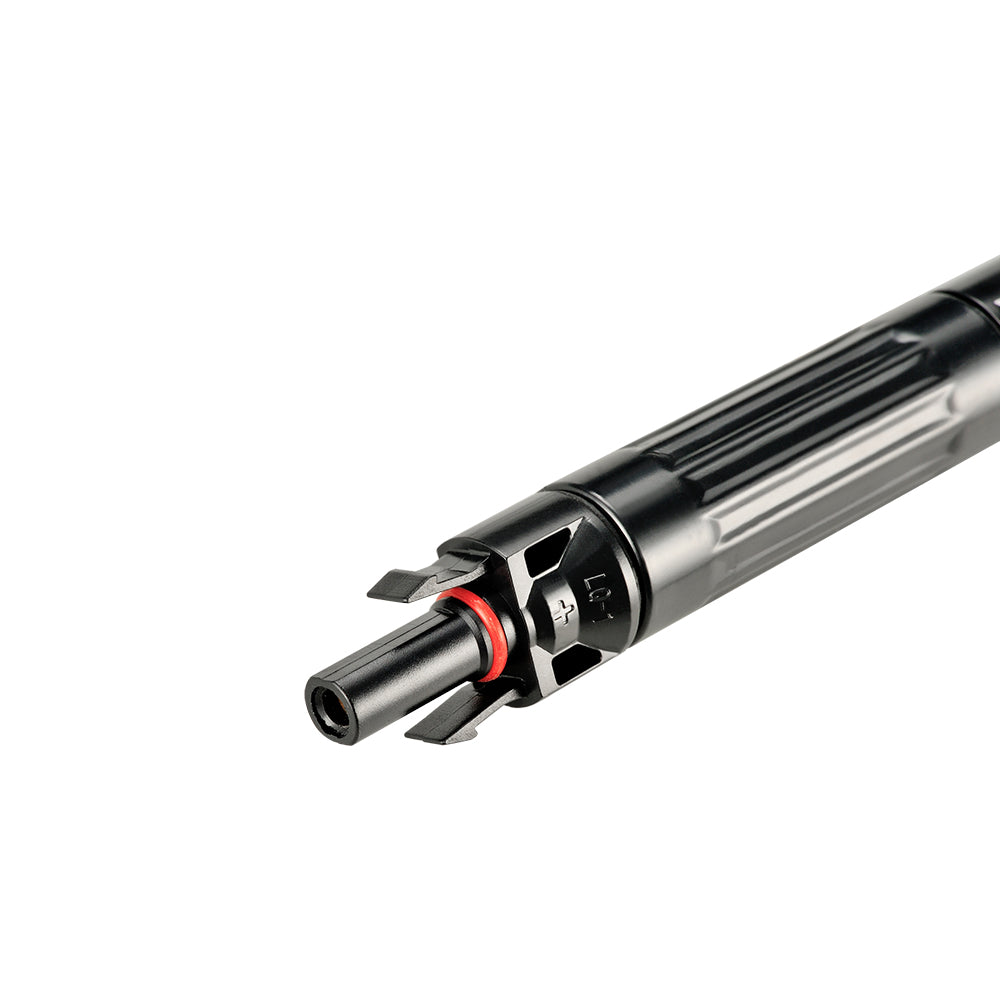

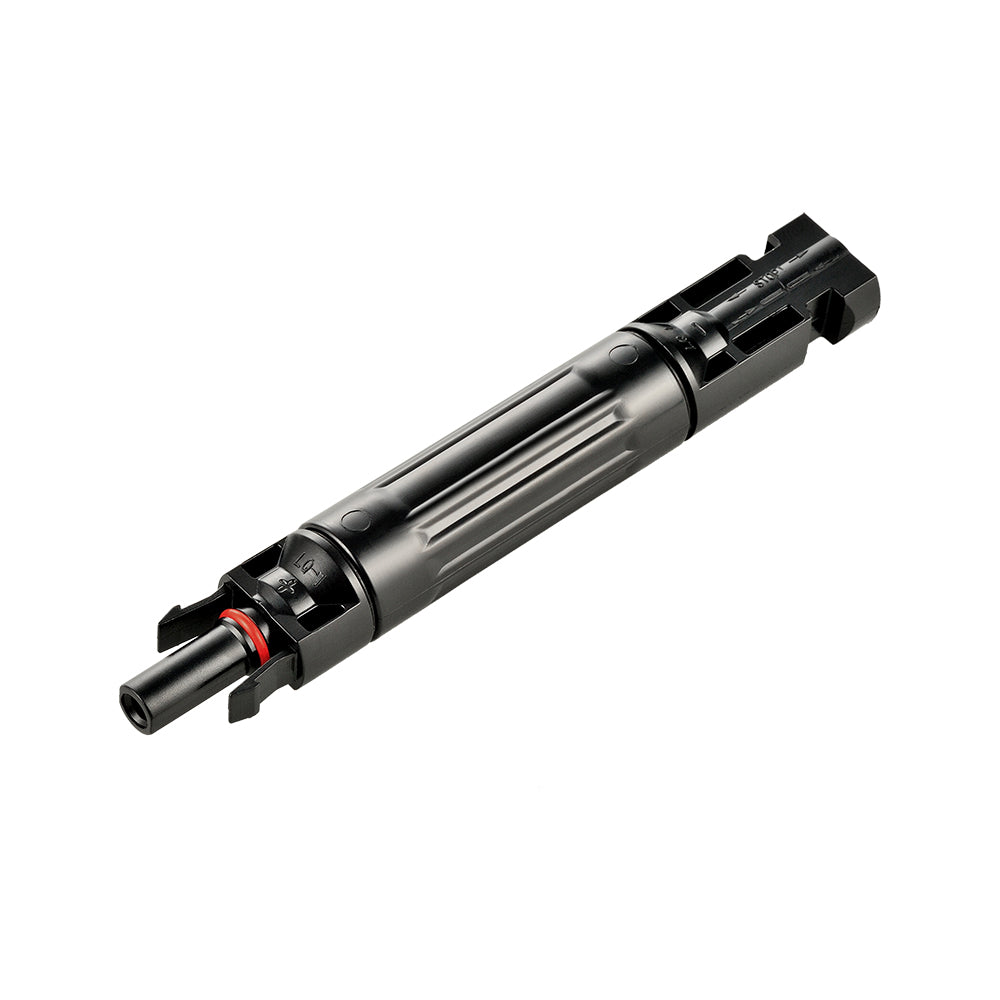

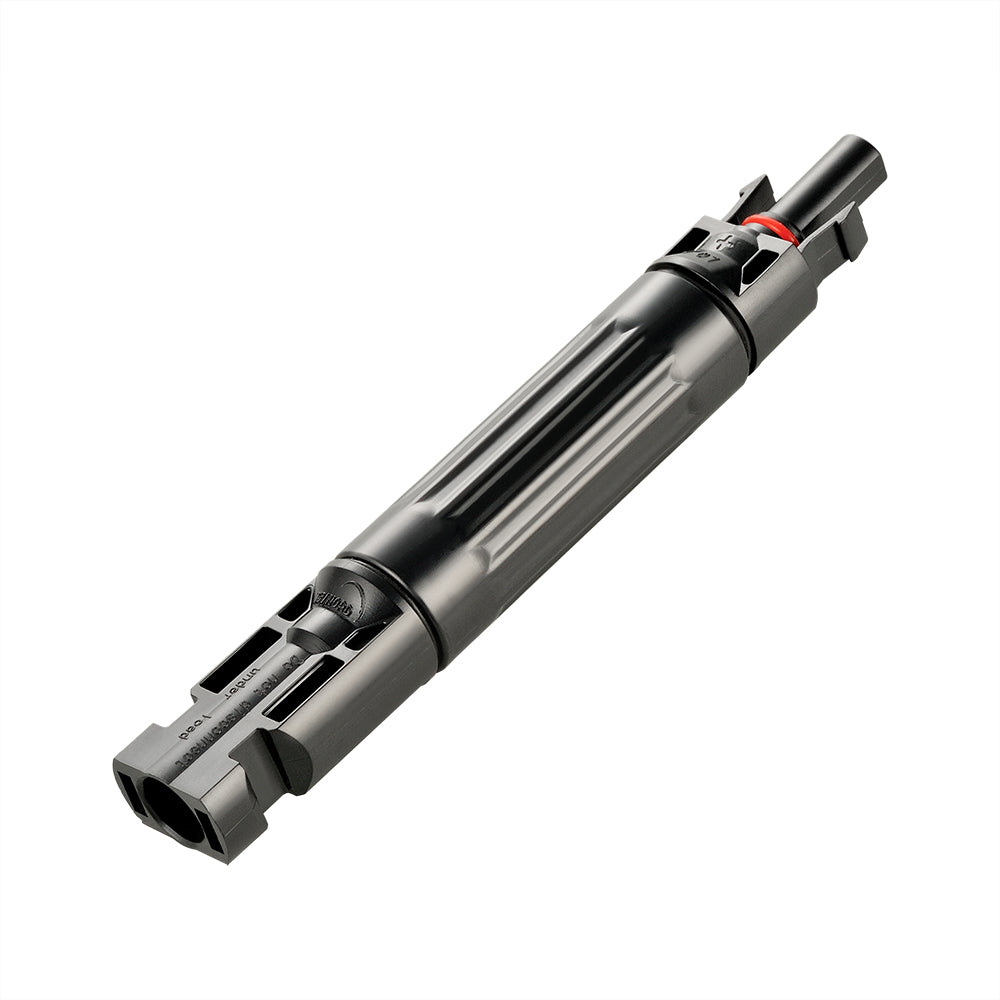

Inline Fuse Holder | Waterproof Replacement Inline Fuse Holder | Choose Amp: 10A, 15A, 20A, 30A
Inline Fuse Holder
SKU:UGS-SC10F
Regular price
$15.99 USD
Single-Circuit Protection.
Replaceable Fuse.
Waterproof Fuse Holder.
Solar Connector Ready.
Need help choosing the right kit?
Talk to a Solar Expert:
1-332-291-6885
Quantity
Quantity
Guaranteed Safe Checkout
Deliver to
Get it between
Product Information
Features
- Single-Circuit Protection: Protects solar circuits from overcurrent and short circuits.

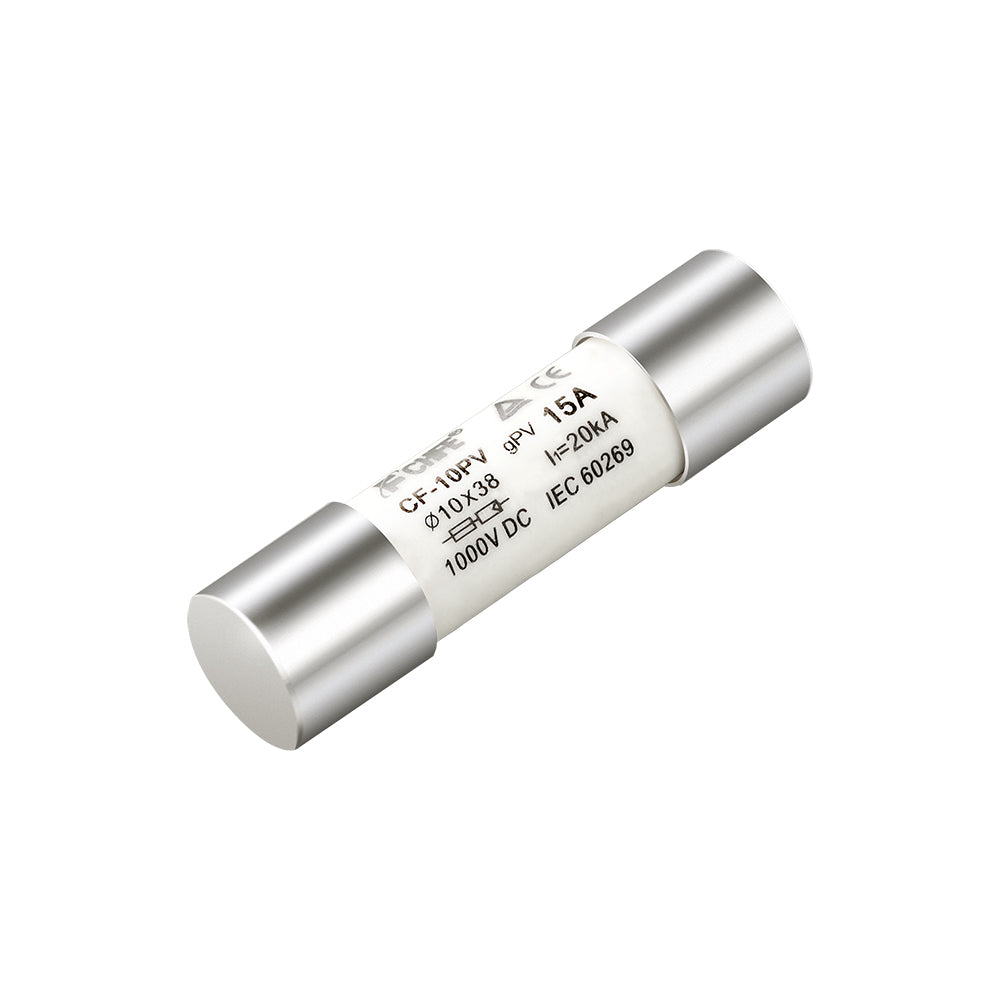

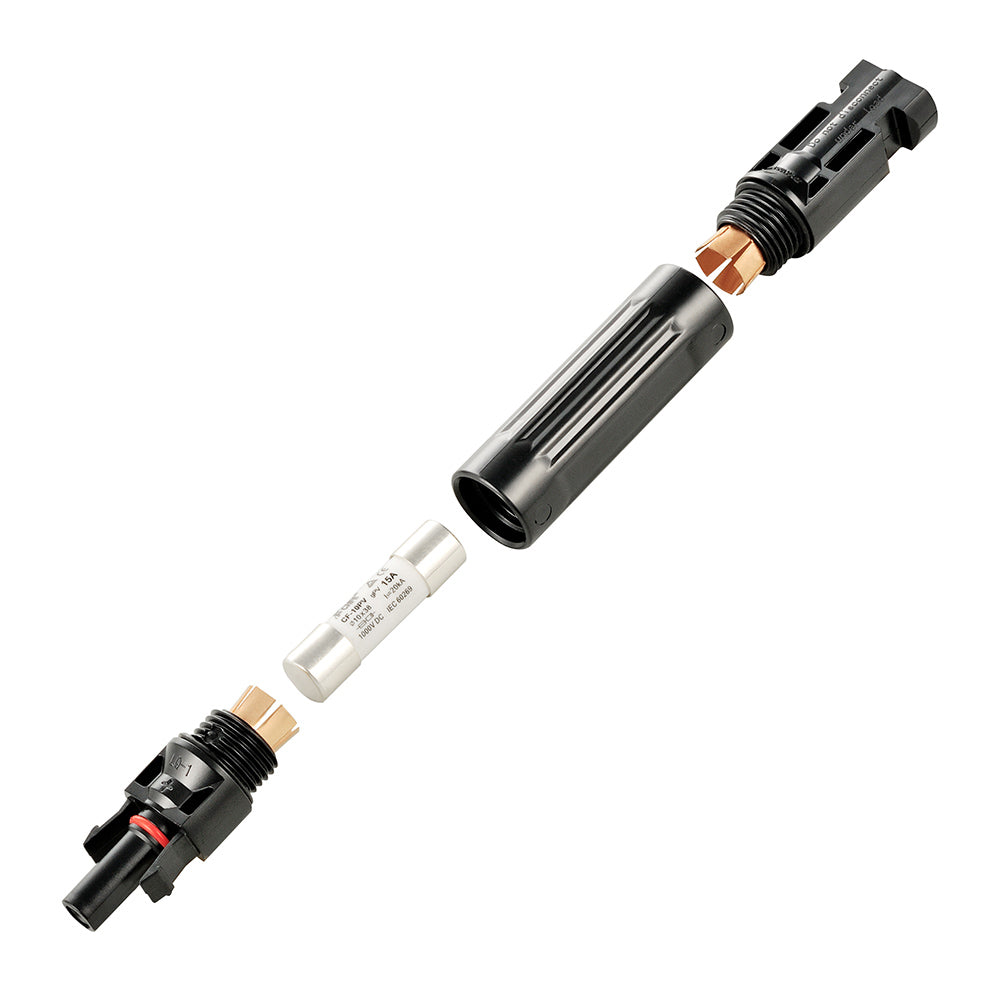

- Replaceable Fuse: Available with 10A, 15A, 20A, or 30A replaceable fuse options.
- Waterproof Fuse Holder: Sealed design provides reliable outdoor performance.
- Solar Connector Ready: Standard solar connectors enable direct connection to solar panels and extension cables.
- Plug-and-Play Installation: Installs quickly without cutting or splicing wires.
- Secure Locking Connectors: Auto-locking connectors provide a reliable connection.
Specifications
-
Rated Current: 10A, 15A, 20A, or 30A
-
Rated Voltage: 1000V DC
-
Protection Rating: IP2X, IP67
-
Flame Class: UL94 V-0
-
Safety Class: II
-
Overvoltage Category: CAT III
-
Connector Type: Solar Connector (MC4 Compatible)
-
Contact Material: Silver-Plated Copper
-
Insulation Material: PPO
-
Contact Resistance: 1mΩ
-
Insertion Force: ≤50N
-
Withdrawal Force: ≥50N
-
Test Voltage: 6000V AC (50Hz, 1 min)
-
Operating Temperature: -40°F to 257°F
-
Package Dimensions: 3 × 8 in
- Gross Weight: 1 lb
| Specification | Value |
|---|---|
| Rated Current | 10A, 15A, 20A, or 30A |
| Rated Voltage | 1000V DC |
| Protection Rating | IP2X, IP67 |
| Flame Class | UL94 V-0 |
| Safety Class | II |
| Overvoltage Category | CAT III |
| Connector Type | Solar Connector (MC4 Compatible) |
| Contact Material | Silver-Plated Copper |
| Insulation Material | PPO |
| Contact Resistance | 1mΩ |
| Insertion Force | ≤50N |
| Withdrawal Force | ≥50N |
| Test Voltage | 6000V AC (50Hz, 1 min) |
| Operating Temperature | -40°F to 257°F |
| Package Dimensions | 3 × 8 in |
| Gross Weight | 1 lb |
- 1 x Inline Fuse Holder
- Fittings and hardware as listed in the specifications
- User manual
Free Shipping
On all orders
30-Day Returns
Hassle-free returns
25 Year Warranty
On panels & more
Secure Payments
100% protected
Frequently Asked Questions
What is this used for?
Protects solar circuits from overcurrent and short circuits.
Will it fit my system?
Check the specifications against your own equipment — ratings, connector type and voltage all need to match. We can confirm compatibility on 1-332-291-6885.
Is anything else needed to install it?
The item ships with the fittings listed in the specifications. You may need basic tools and cable suited to your own run.
