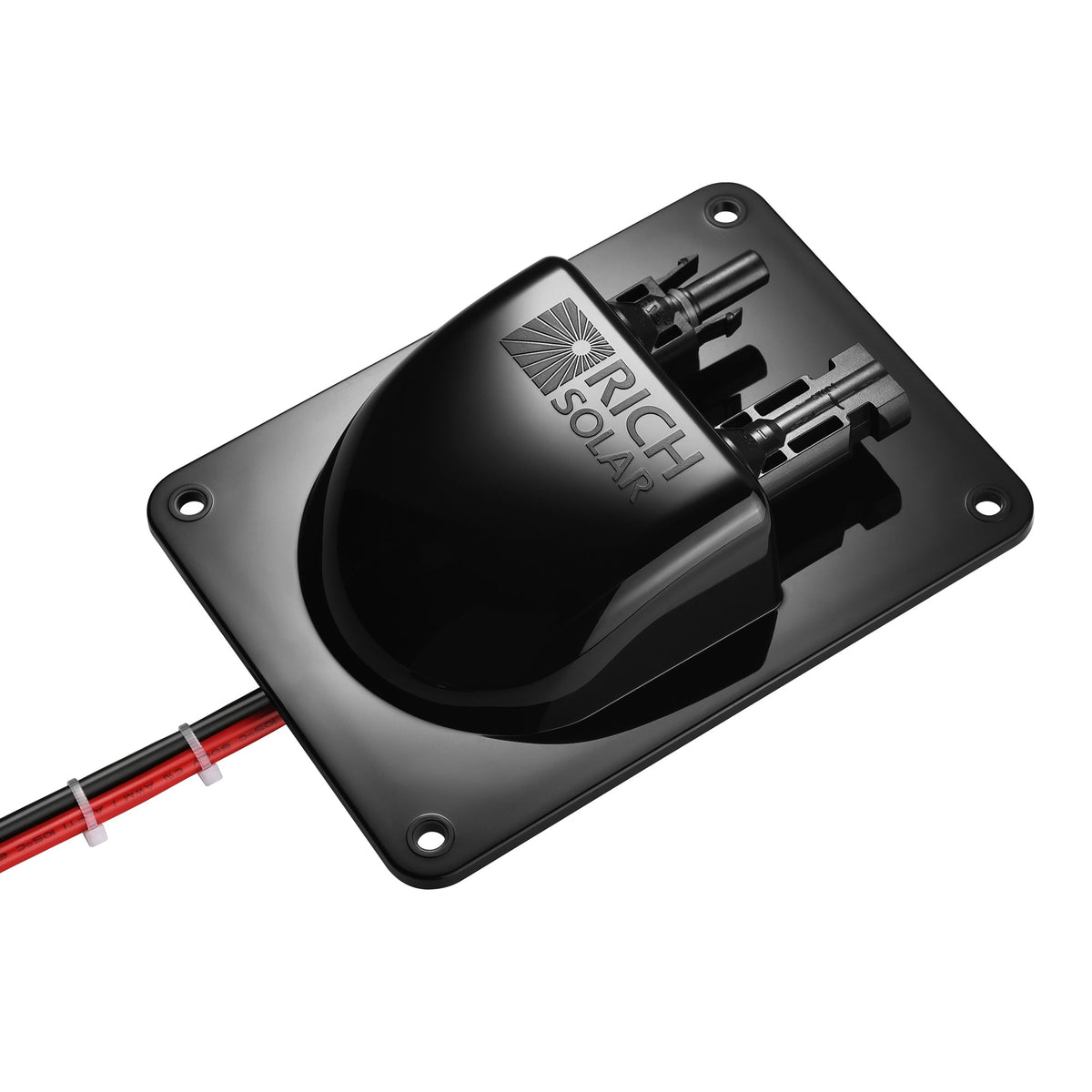

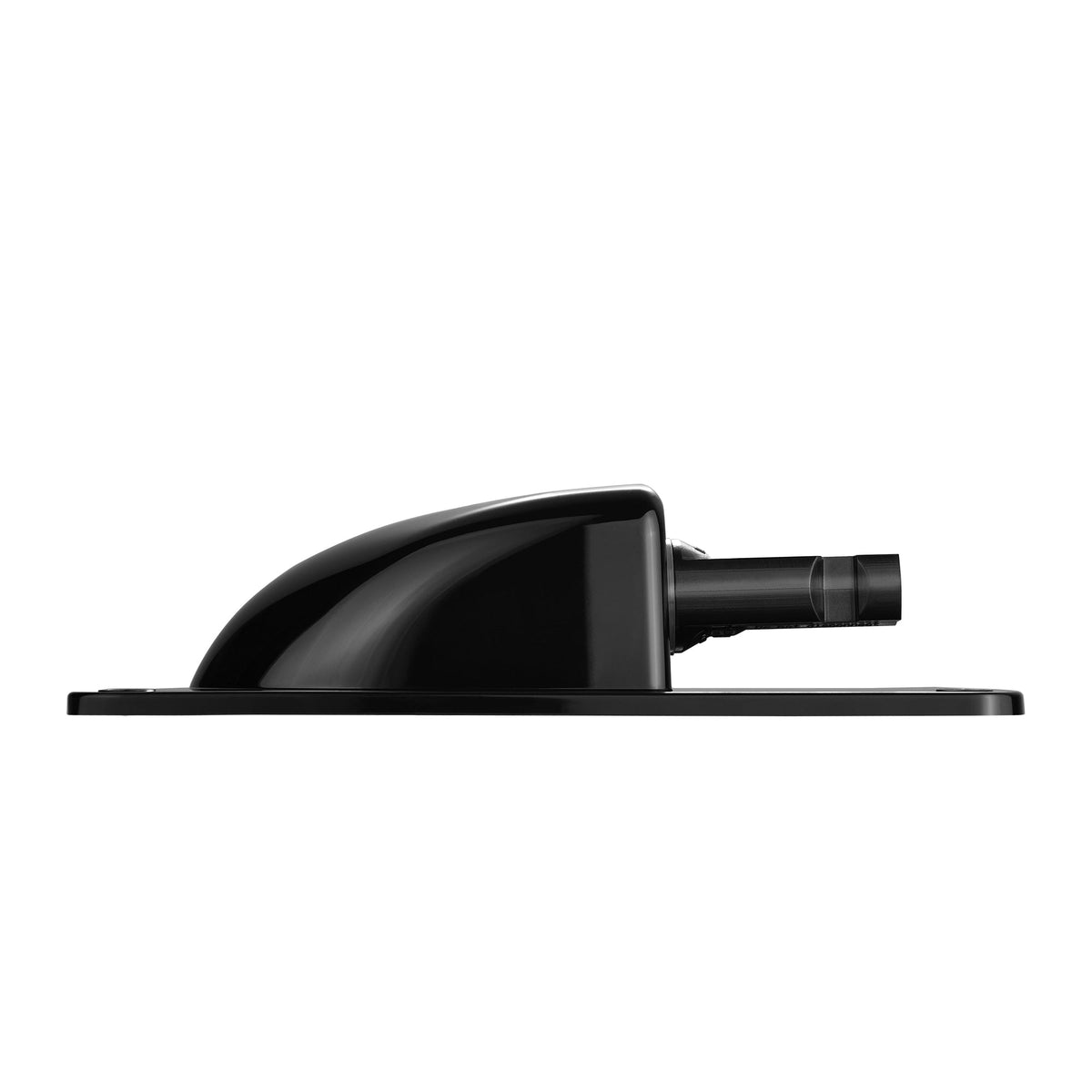

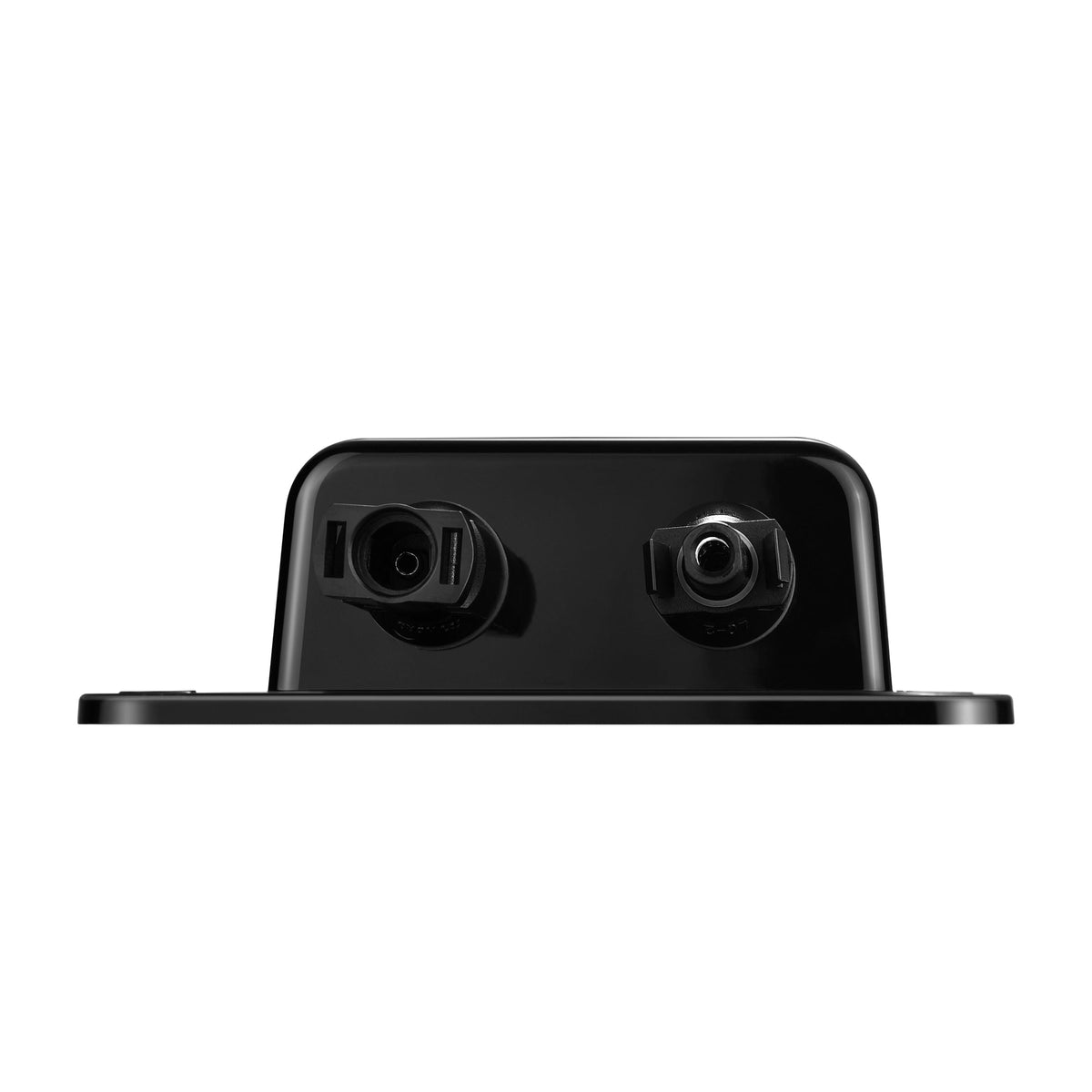

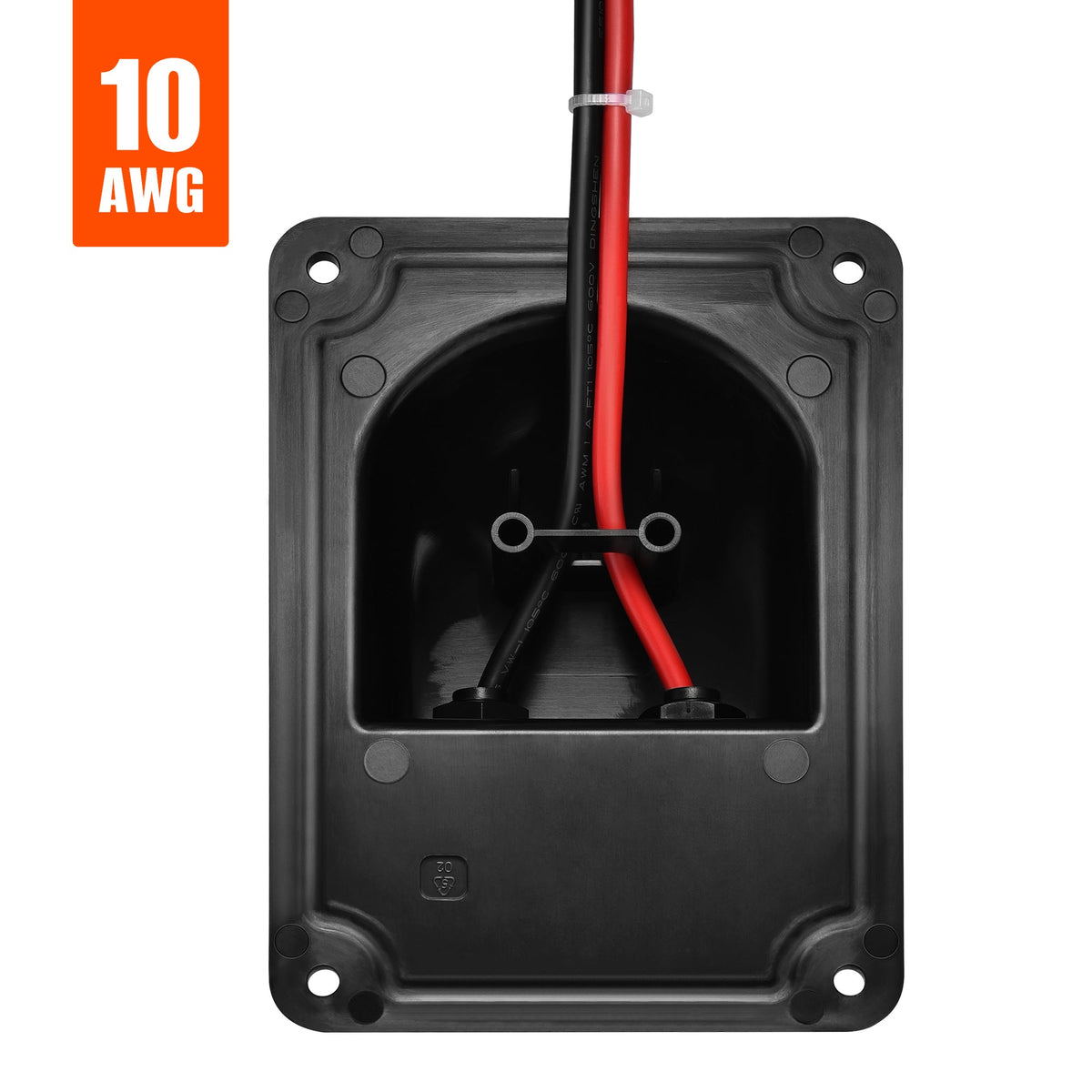

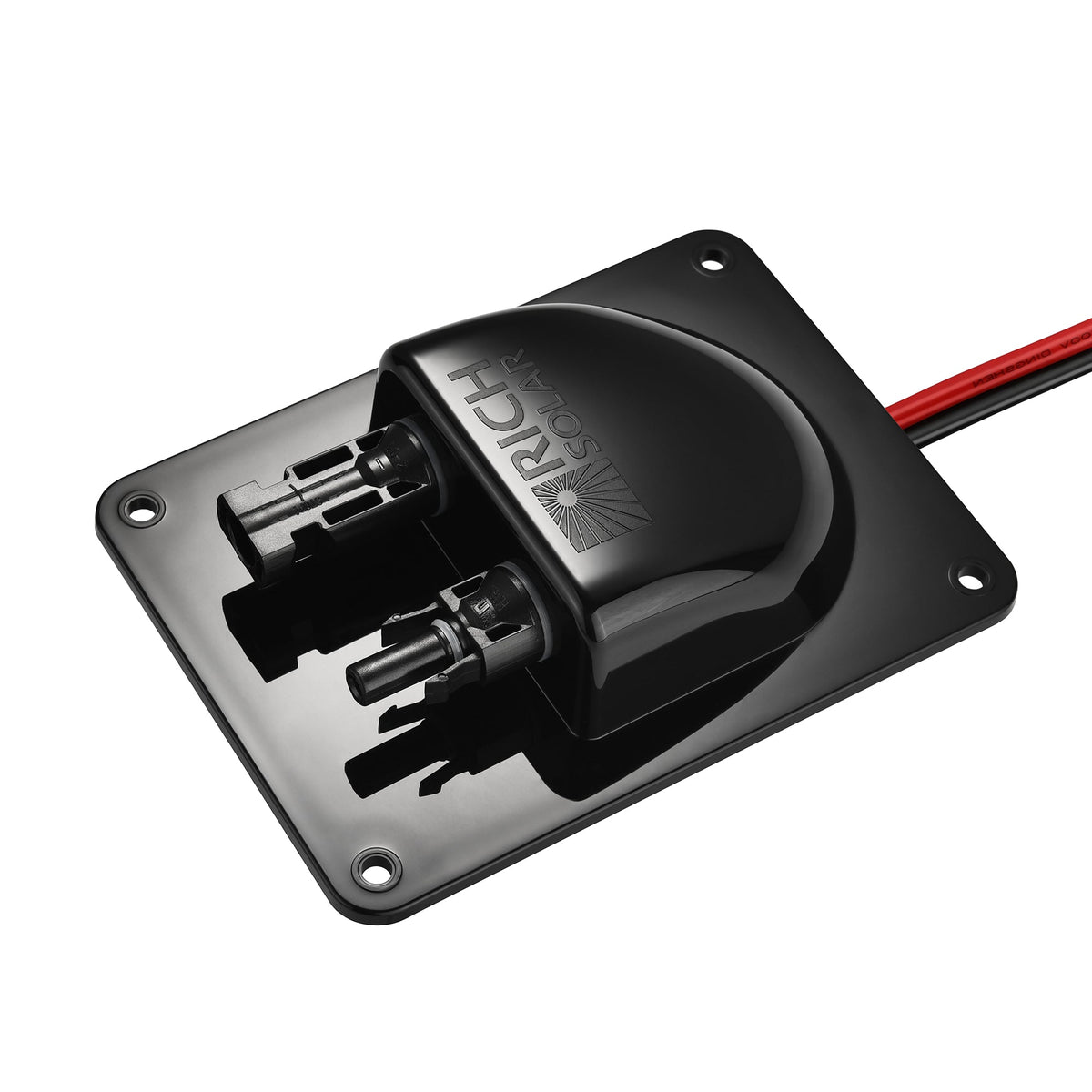

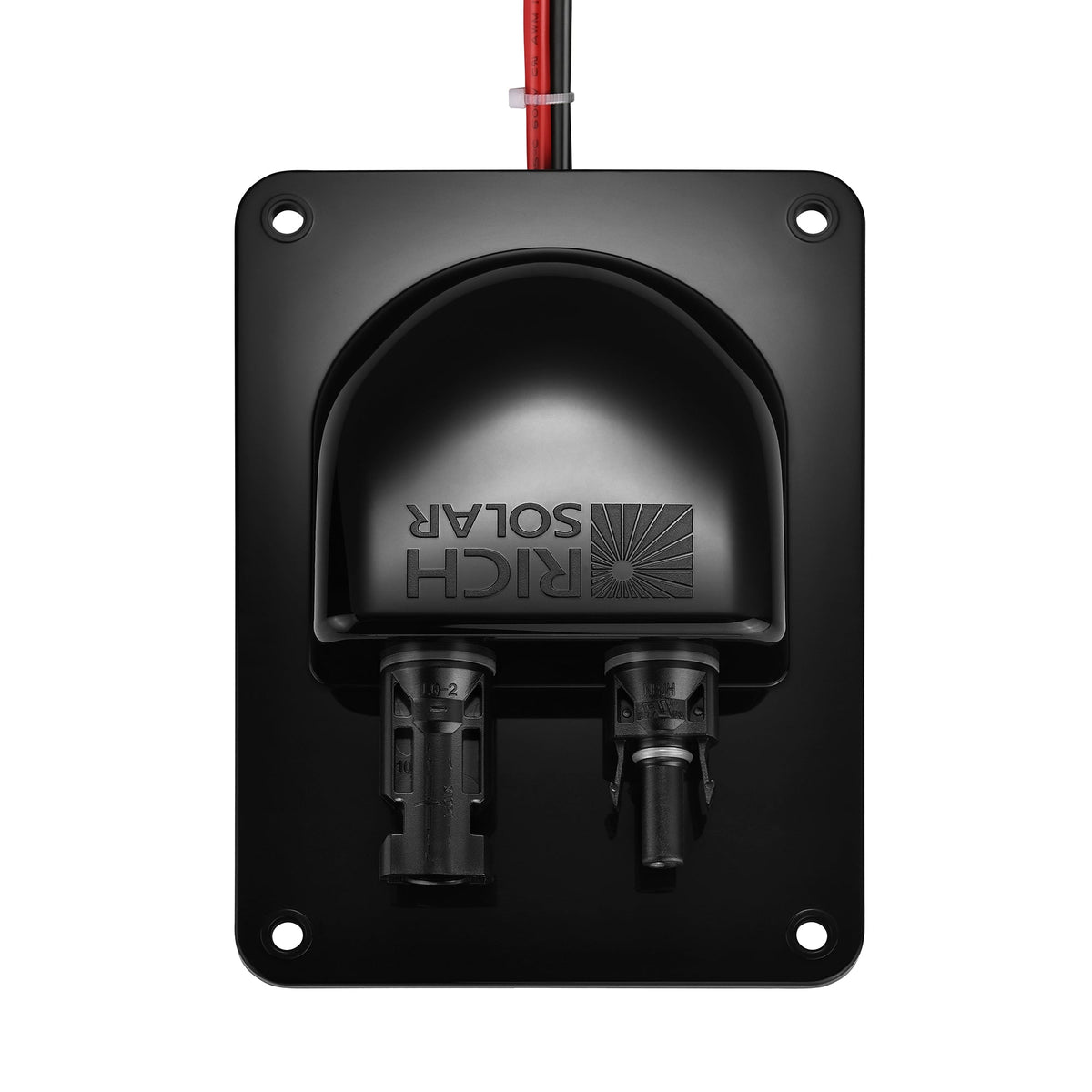

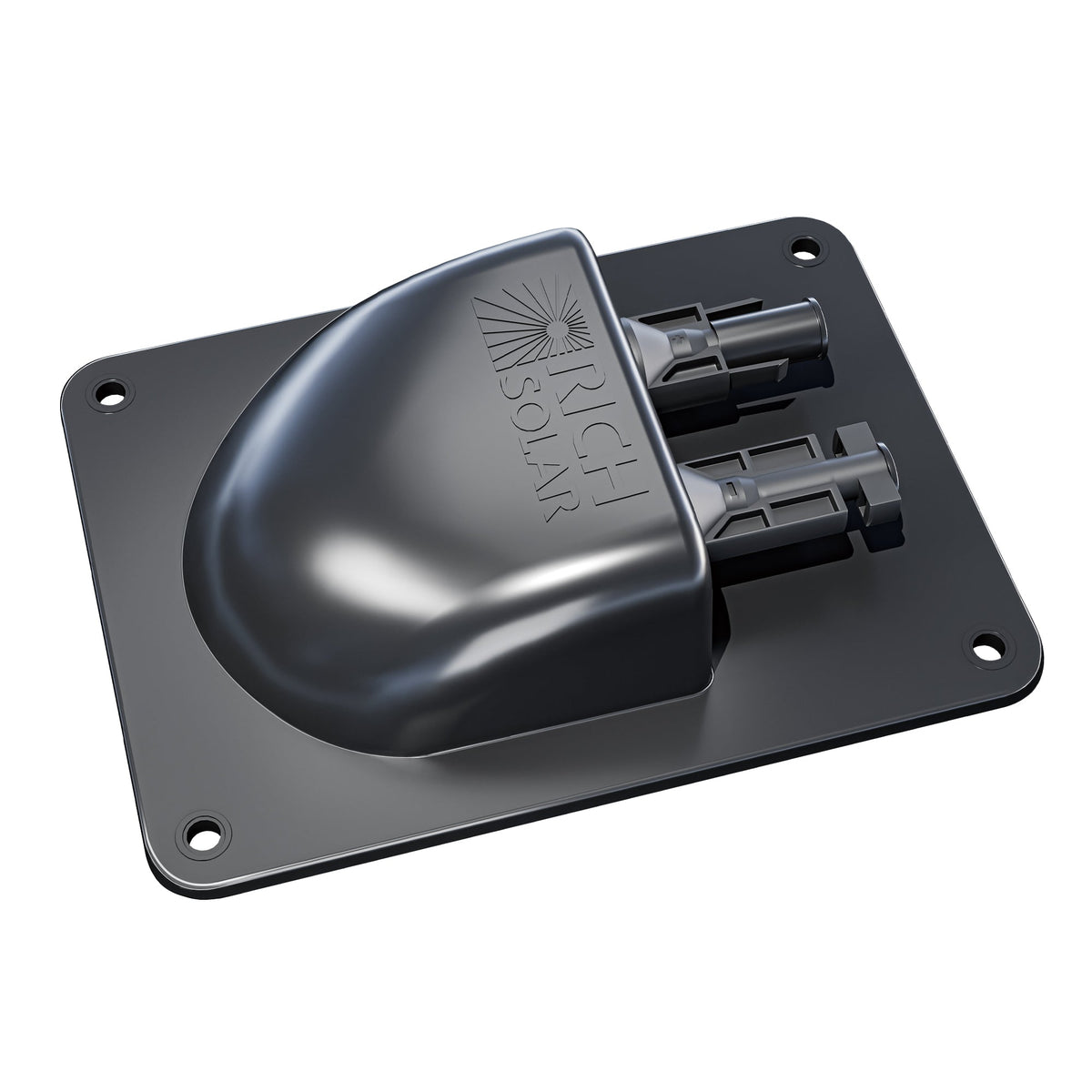

IP68 Cable Entry Plate with 1ft 10 AWG Leads
Cable entry plate for any array on rv, van and boat roofs.
SKU:RS-G04
Regular price
$25.99 USD
Cable entry plate for any array.
Fits rv, van and boat roofs.
Fixed, low-profile fitting.
Flame-Retardant Polypropylene (PP), Black.
Need help choosing the right kit?
Talk to a Solar Expert:
1-332-291-6885
Quantity
Quantity
Guaranteed Safe Checkout
Deliver to
Get it between
Product Information
Cable entry plate for Solar Panels on RV, Van and Boat Roofs
Includes 1 ft UL 1015 10AWG tin-plated copper wires with pre-installed solar connectors for faster installation. Designed for any array on rv, van and boat roofs.
A flat mount keeps the panel low to the surface, which suits vehicles and anywhere wind load matters more than squeezing out the last few percent of output.
Made from flame-retardant polypropylene (pp). Fixings are supplied; check the specifications for what is in the box.
| Specification | Value |
|---|---|
| Material | Flame-Retardant Polypropylene (PP) |
| Operating Temperature | -40°F to 185°F |
| Dimensions | 5.9 × 4.3 × 1.6 in |
| Weight | 0.29 lb |
| Color | Black |
| Package Dimensions | 7 × 5 × 2 in |
| Gross Weight | 1 lb |
| Maximum Current | 42A |
| Continuous Current | 30A |
| Maximum Voltage | 600V |
| Wire | UL 1015 10AWG, 1 ft |
| Conductor Material | Tin-Plated Copper |
| Wire Insulation | PVC (VW-1 Flame Rated) |
| Wire Temperature Rating | 5°F to 221°F |
| Material | PC Shell |
| Protection Rating | IP68 |
| Flame Class | UL94 V-0 |
| Certification | UL Listed |
- 1 x IP68 Cable Entry Plate with 1ft 10 AWG Leads
- Includes 1 ft UL 1015 10AWG tin-plated copper wires with pre-installed solar connectors for faster installation.
- Compact low-profile design installs easily with adhesive, sealant, or screws (not included).
- User manual
Free Shipping
On all orders
30-Day Returns
Hassle-free returns
25 Year Warranty
On panels & more
Secure Payments
100% protected
Frequently Asked Questions
Which panels does this fit?
It is sized for any array. Check your panel's frame dimensions and weight against the specifications before ordering.
Is the hardware included?
The mounting hardware listed in the specifications is supplied. You may still need fixings suited to your own roof, post or ground surface.
Will it survive wind and snow?
Fix it into something structural, not just sheeting, and follow the panel manufacturer's load ratings. On exposed sites, lower tilt angles reduce wind load.
