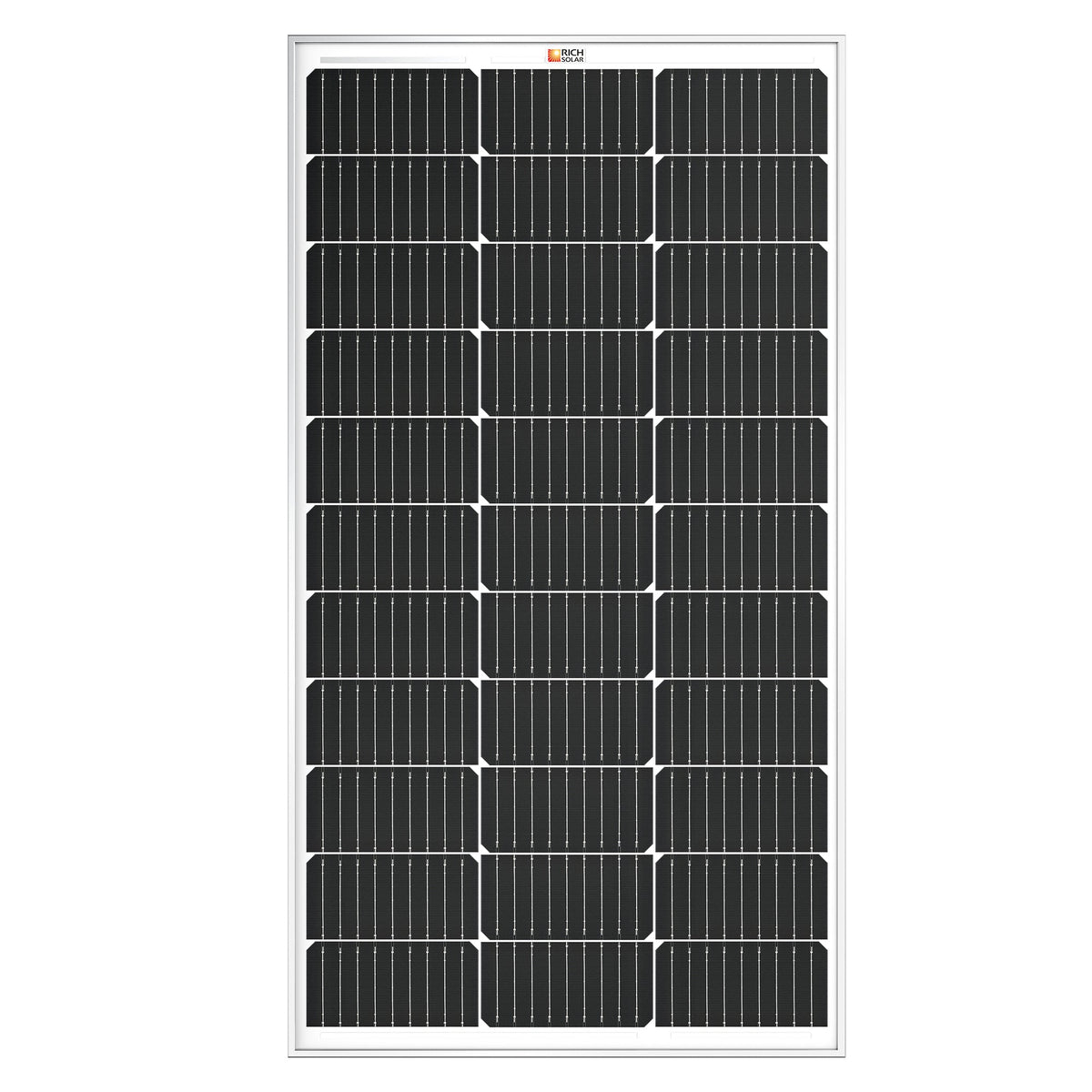

MEGA 100 – 100W 12V Solar Panel
100W 12V panel for vans, campers and boats.
SKU:RS-M100
Regular price
$119.99 USD

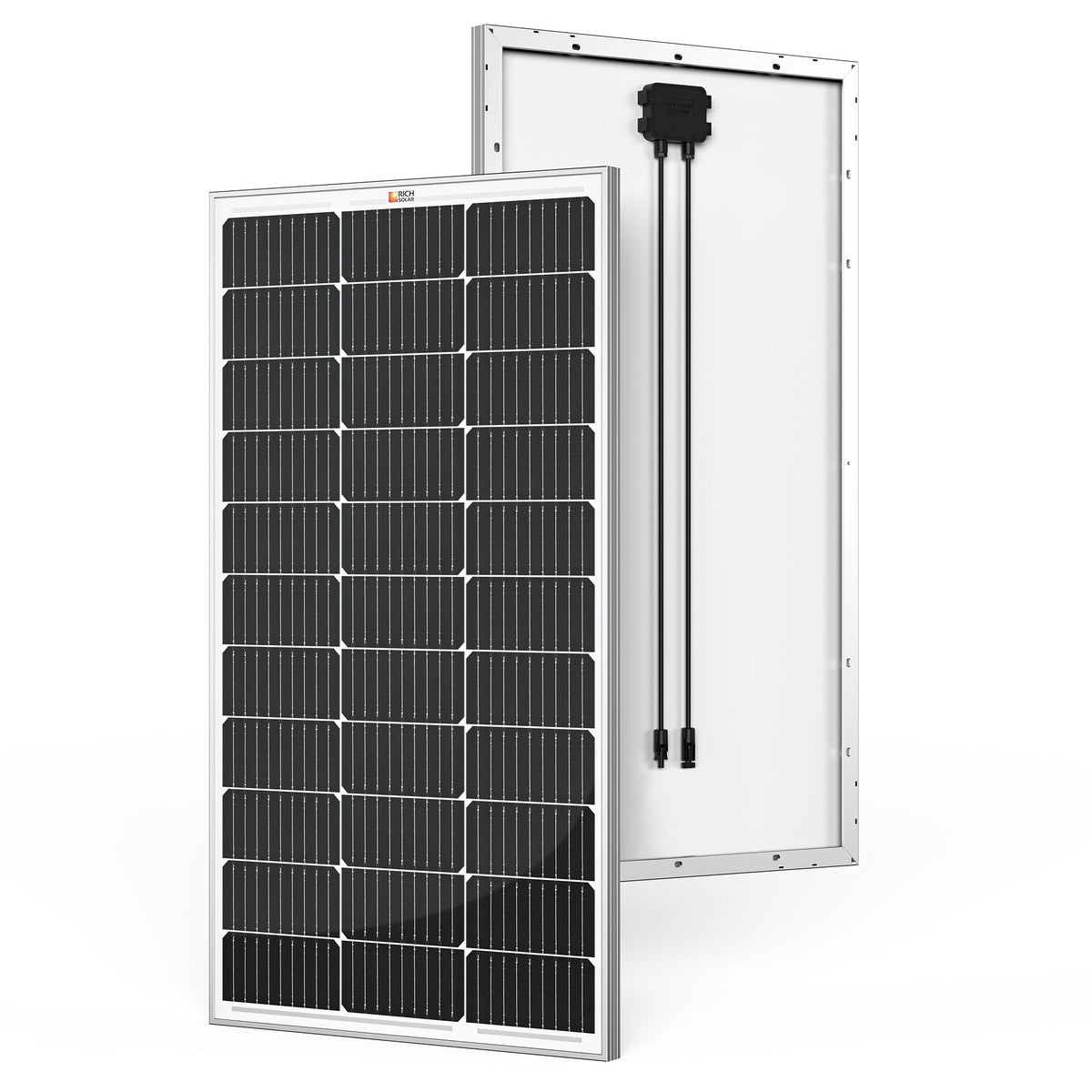

100W 12V monocrystalline solar panel.
9-busbar monocrystalline cells with up to 22.6% efficiency.
Sized for vans, campers and boats.
25-year output warranty.
Need help choosing the right kit?
Talk to a Solar Expert:
1-332-291-6885
Quantity
Quantity
Guaranteed Safe Checkout
Deliver to
Get it between
Product Information
100W 12V Solar Panel for Vans, Campers and Boats
The MEGA 100 produces roughly 400–500Wh on a clear day. That is enough to keep LED lights, a vent fan, Wi-Fi and phone charging going in vans, campers and boats.

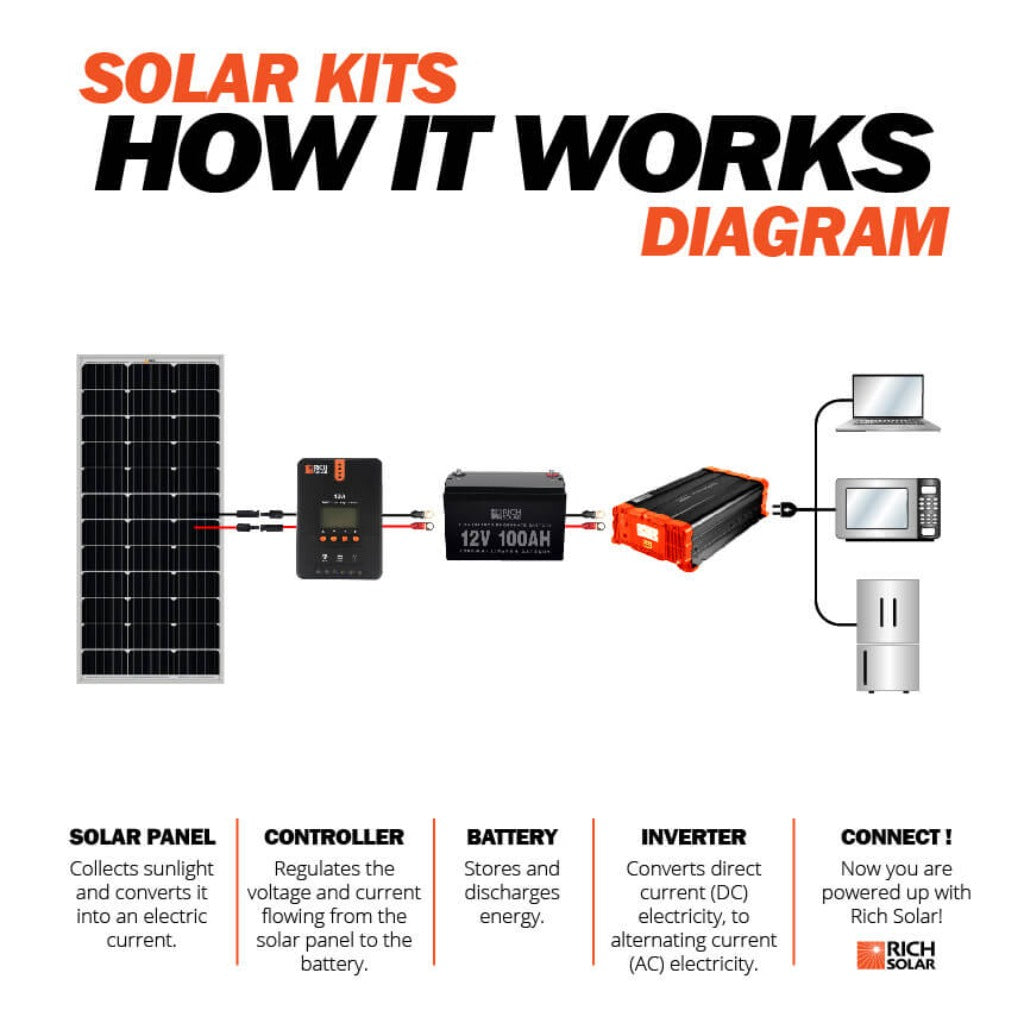

It wires straight to a 12V battery through a PWM or MPPT charge controller. Add a second or third panel in parallel as your power needs grow, or move to a 24V panel if you are building a larger bank.

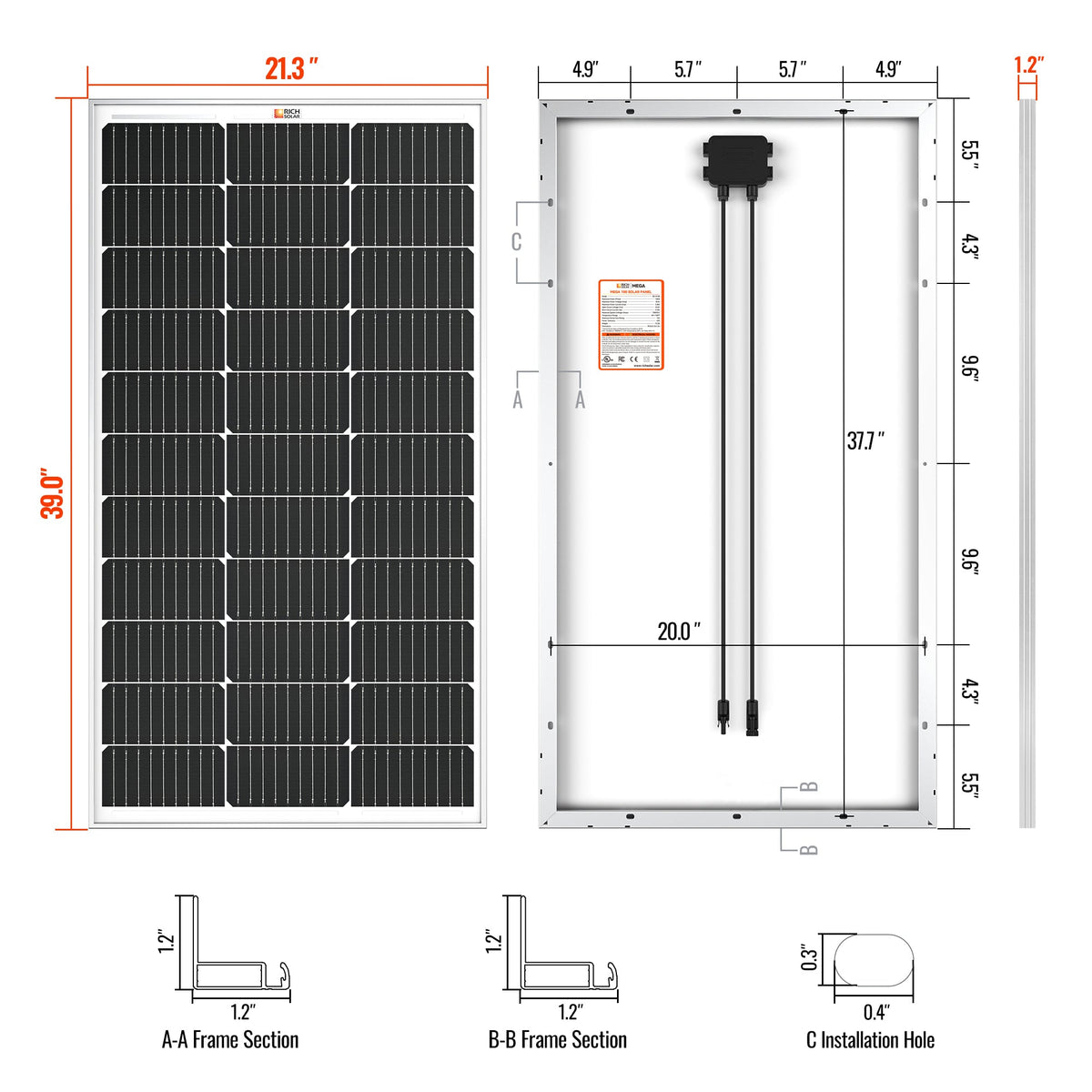

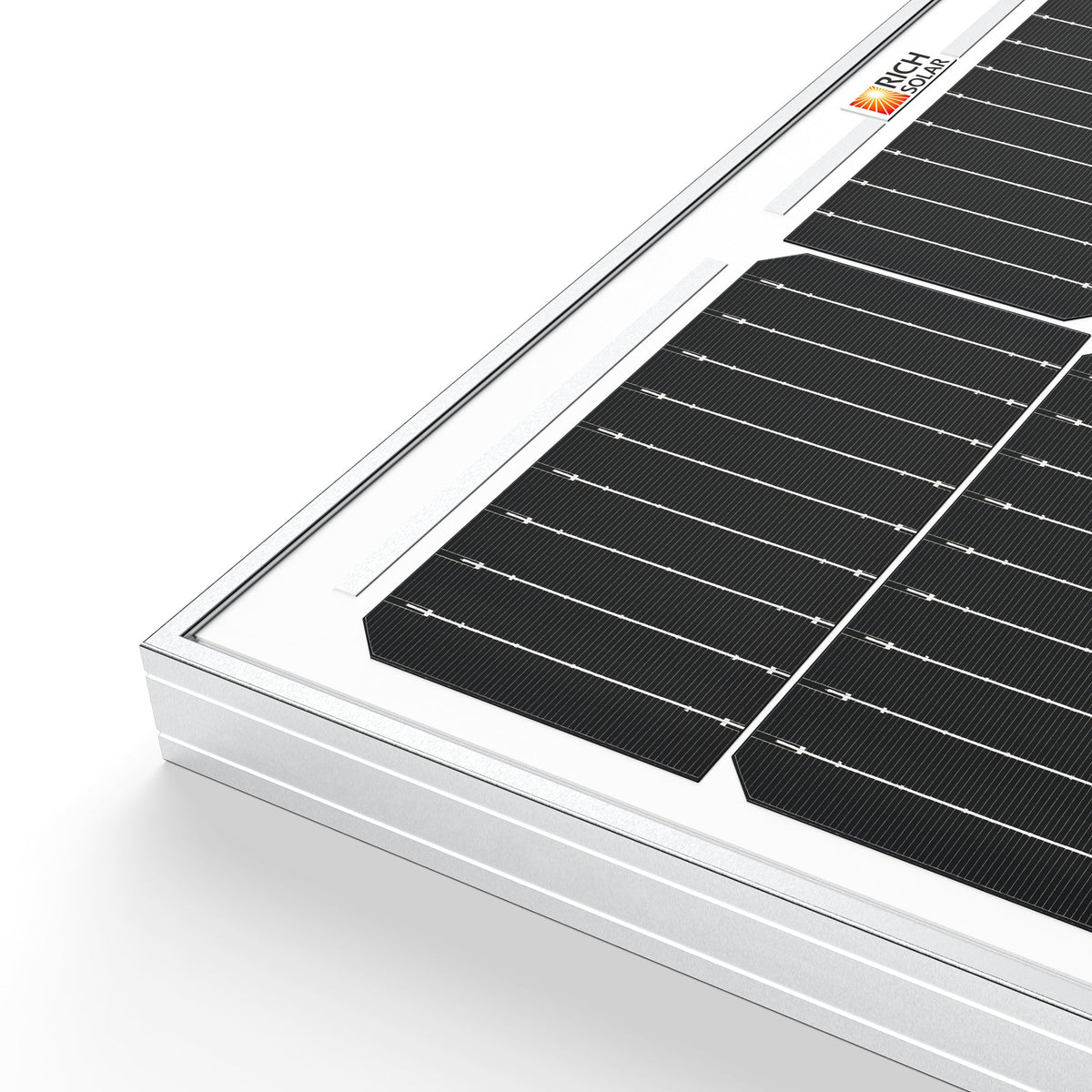

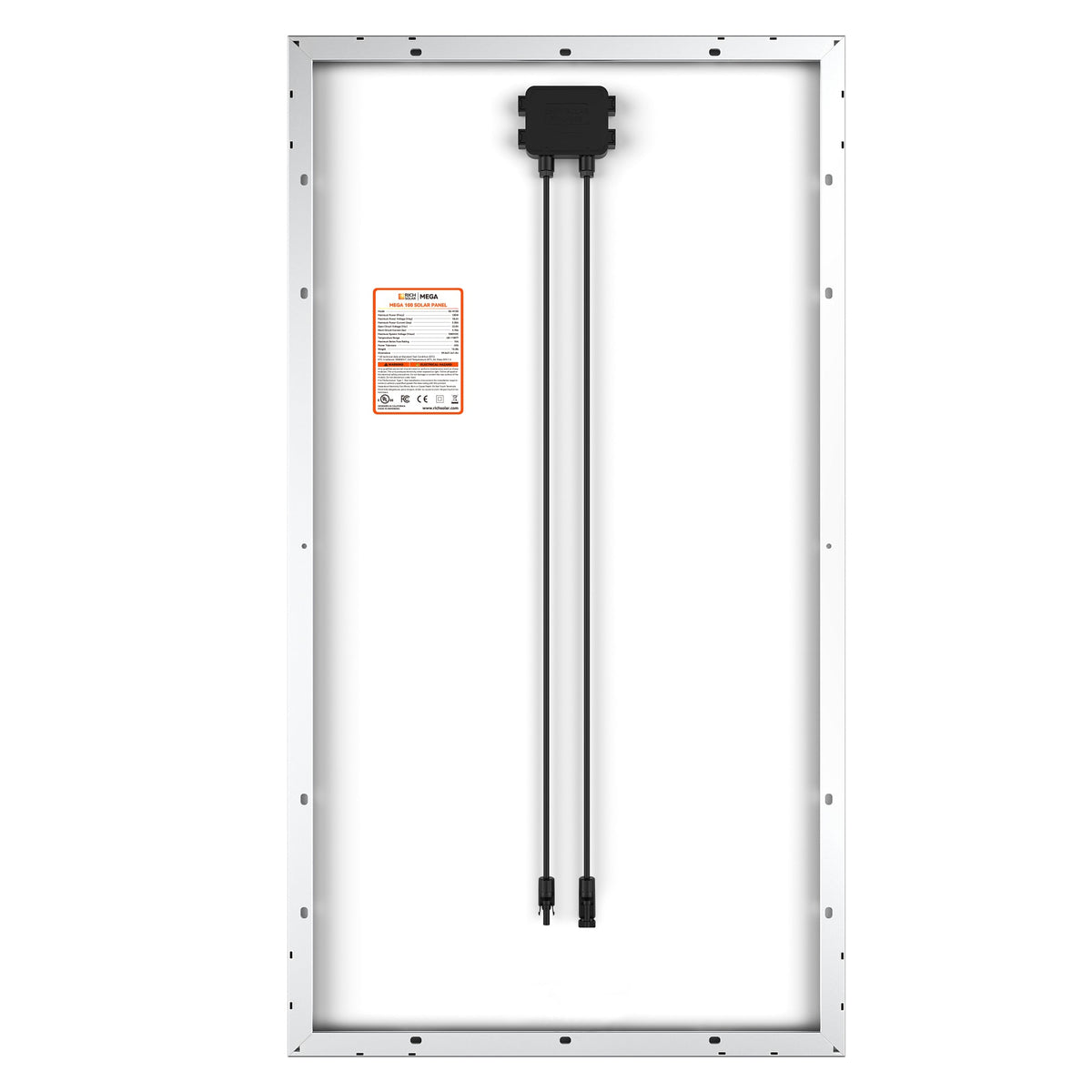

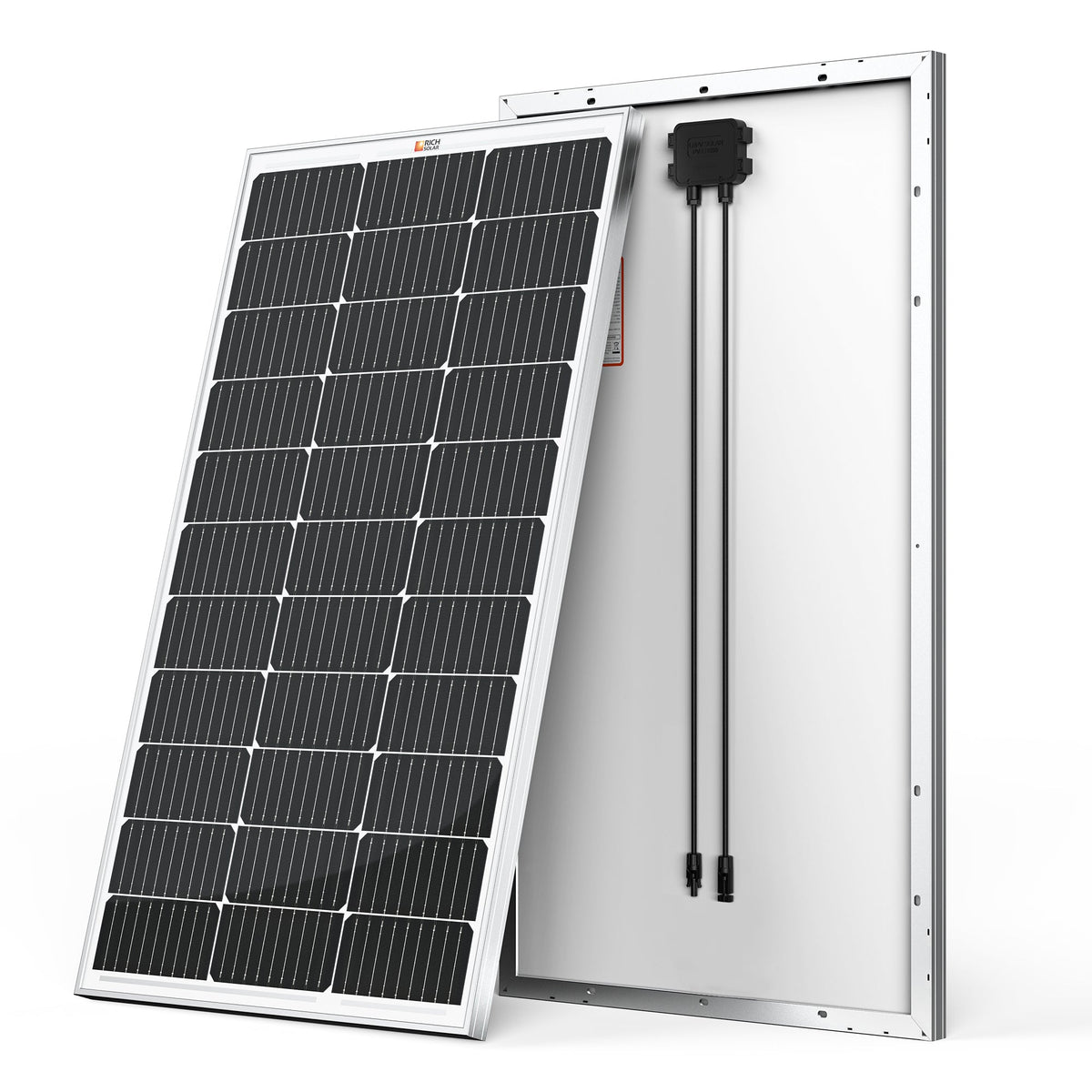

Anodized aluminum frame – lightweight, strong, and corrosion-resistant. MC4 connectors with 3 ft pre-attached cables for quick and easy installation. It takes standard Z-brackets on a flat roof, or a tilt mount to angle it toward winter sun. The panel measures 39.0 × 21.3 × 1.2 in and weighs 13.2 lb.

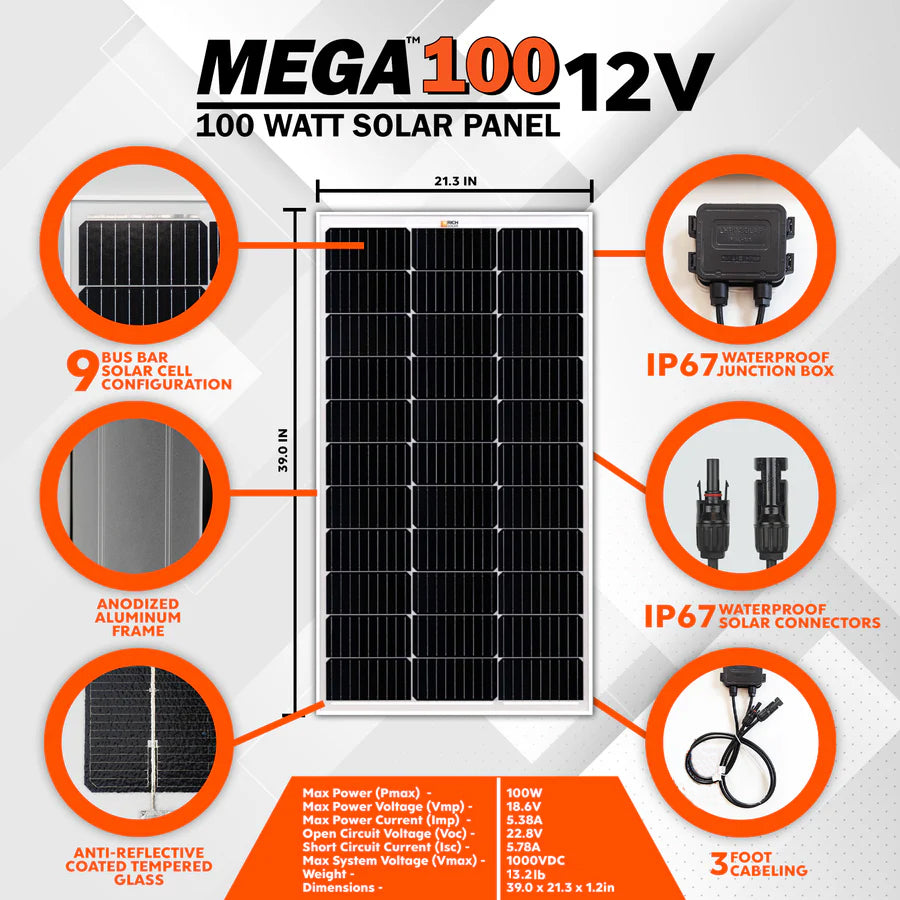

| Specification | Value |
|---|---|
| Maximum power (Pmax) | 100W |
| Open circuit voltage (Voc) | 22.8V |
| Maximum power voltage (Vmp) | 18.6V |
| Short circuit current (Isc) | 5.78A |
| Maximum power current (Imp) | 5.38A |
| Maximum system voltage | 1000VDC |
| Nominal battery voltage | 12V |
| Dimensions | 39.0 × 21.3 × 1.2 in |
| Weight | 13.2 lb |
| Frame | Anodized aluminum frame |
| Connectors | MC4 connectors with 3 ft pre-attached cables for quick and easy installation |
| Certifications | UL 61730, IEC 61215, and CSA C22.2 standards |
| Warranty | 25-year output warranty |
- 1 x MEGA 100 100W 12V solar panel
- Panel Leads (Pair): 12AWG, 3 ft each

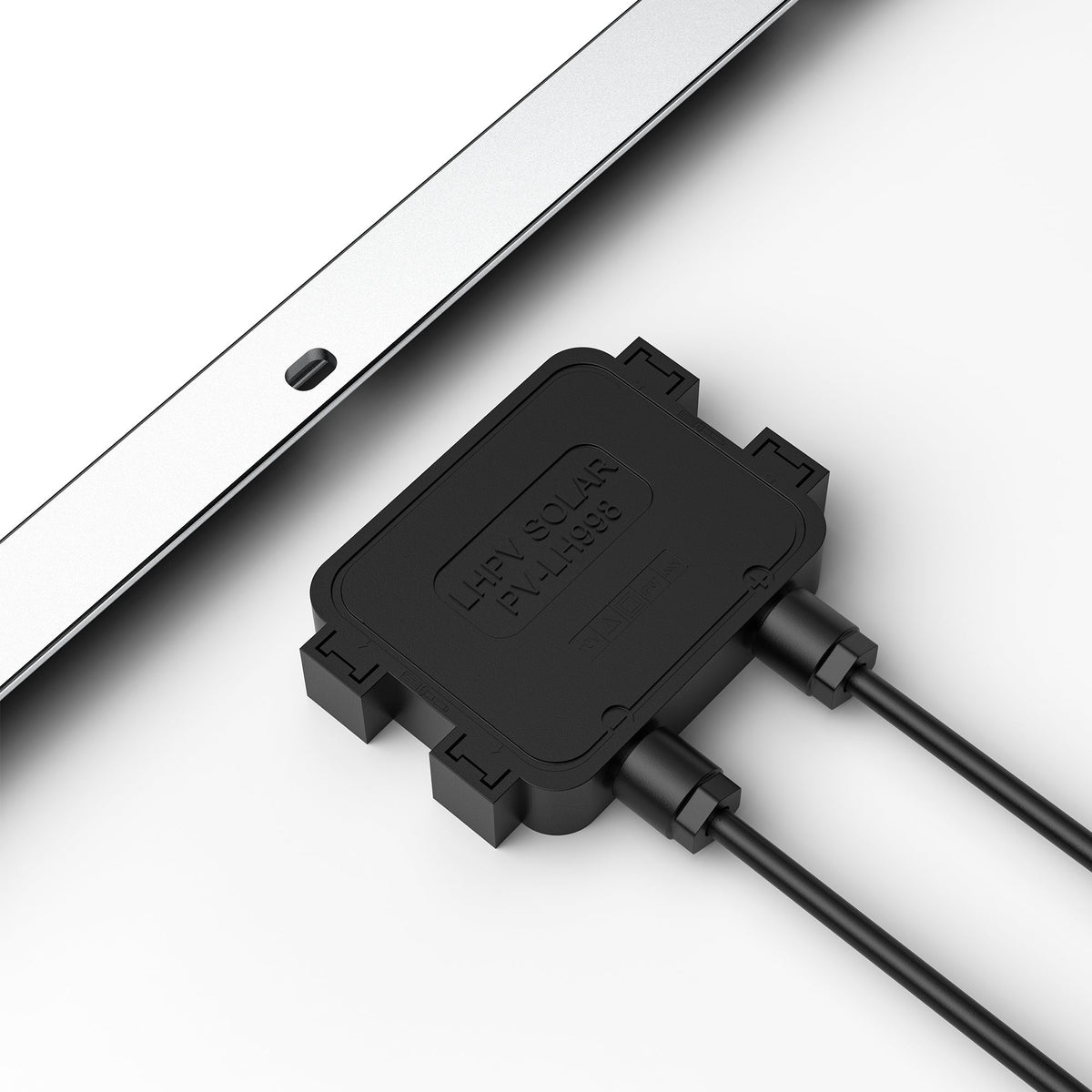

- Waterproof junction box and solar connectors
- Charge controller: a 30A PWM or MPPT charge controller — browse charge controllers
- Cable: 10 AWG solar extension cable pair with MC4 connectors — browse wiring & cables
- Mount: Z-brackets, tilt mounts or pole mounts — browse panel mounts
Want it all in one box? See our complete solar kits.
Free Shipping
On all orders
30-Day Returns
Hassle-free returns
25 Year Warranty
On panels & more
Secure Payments
100% protected
Frequently Asked Questions
How much power does this panel produce per day?
Roughly 400–500Wh on a clear day, based on 4–5 peak sun hours. Expect less in winter, in cloudy weather, or if the panel is not angled toward the sun.
Do I need a 12V or 24V battery for this panel?
This is a 12V panel, so it pairs most simply with a 12V battery bank through a PWM or MPPT controller. You can also feed a 24V or 48V bank by wiring panels in series into an MPPT controller — check the controller's maximum input voltage first.
How do I mount it?
The frame has pre-drilled mounting holes that take Z-brackets for a flat roof, tilt mounts to angle it toward winter sun, or pole and ground mounts for a fixed array. Our team can advise on 1-332-291-6885.
