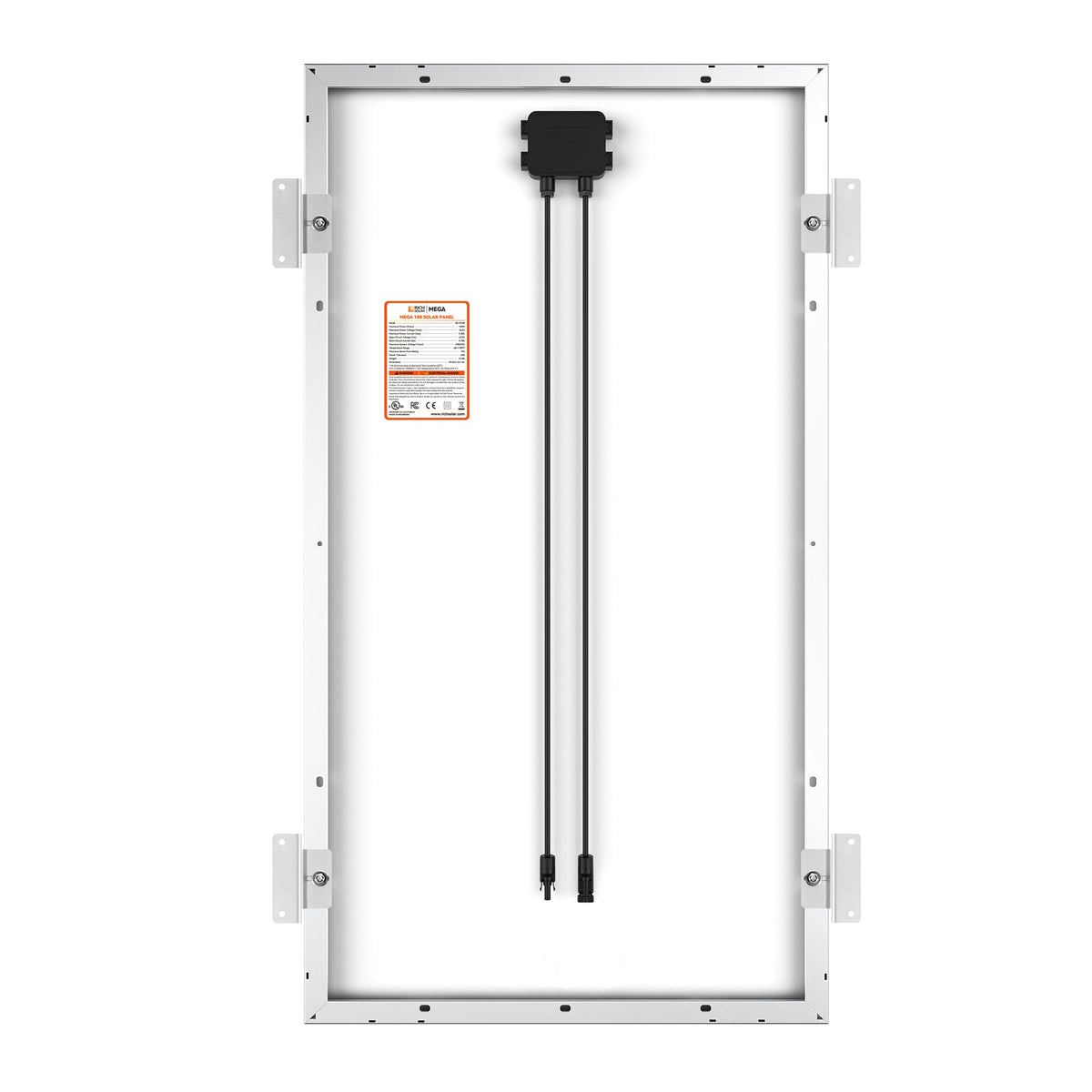

MEGA 100 – 100W 12V Solar Panel with 3/4 Z-Brackets
Pallet of 100W panels for cabin and home arrays.
SKU:RS-M100-MB-44
Regular price
$6,199.99 USD

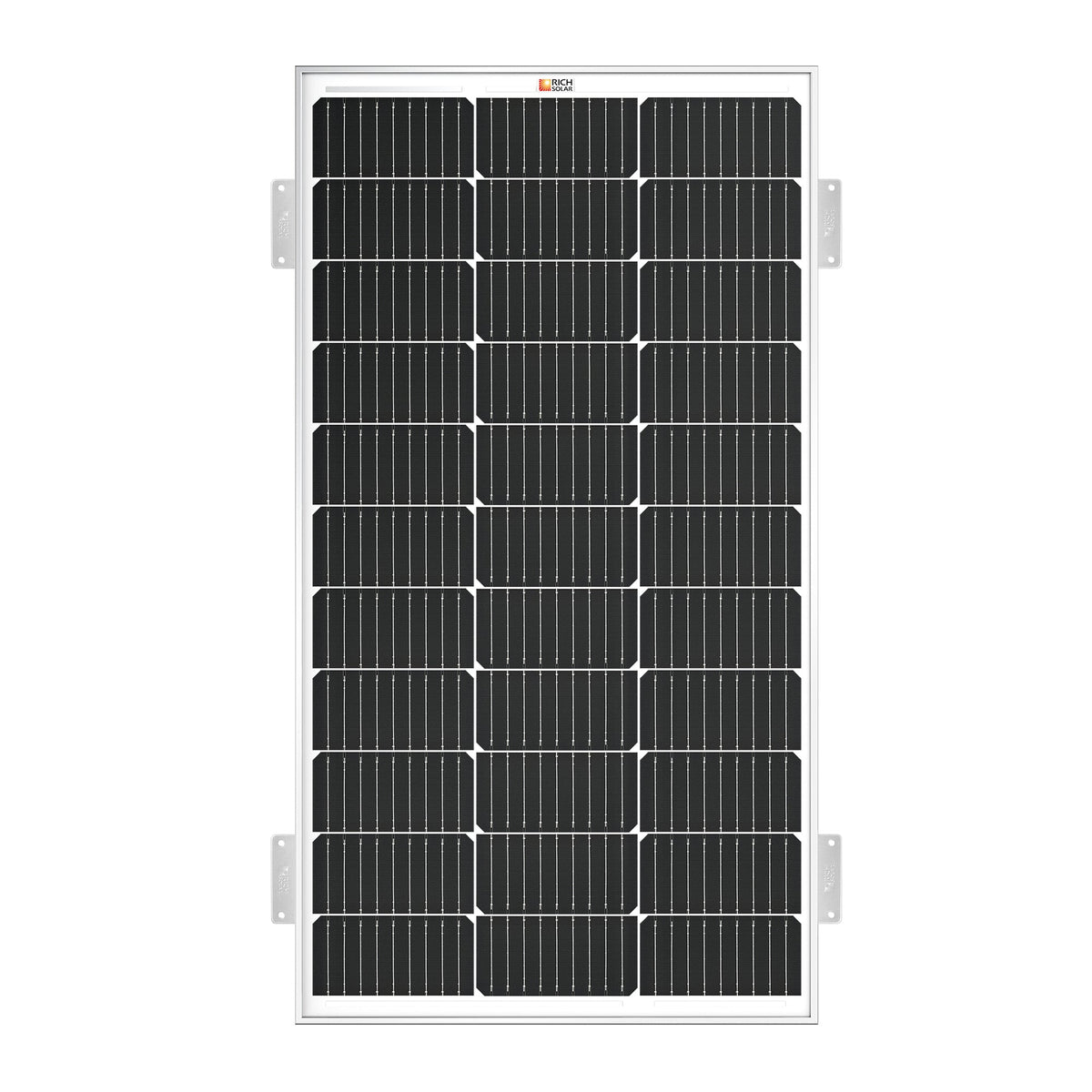

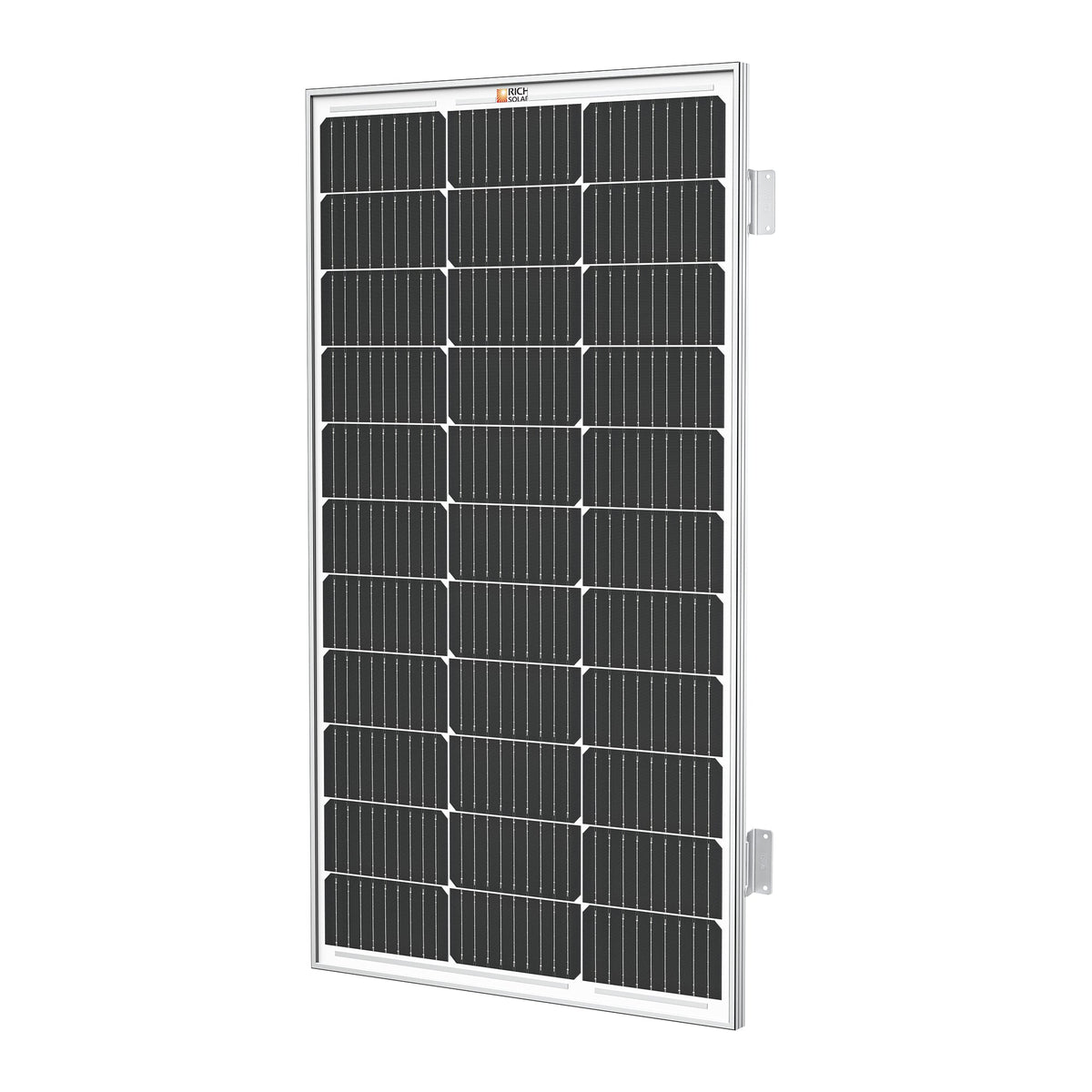

100W 12V monocrystalline solar panel.
9-busbar monocrystalline cells with up to 22.6% efficiency.

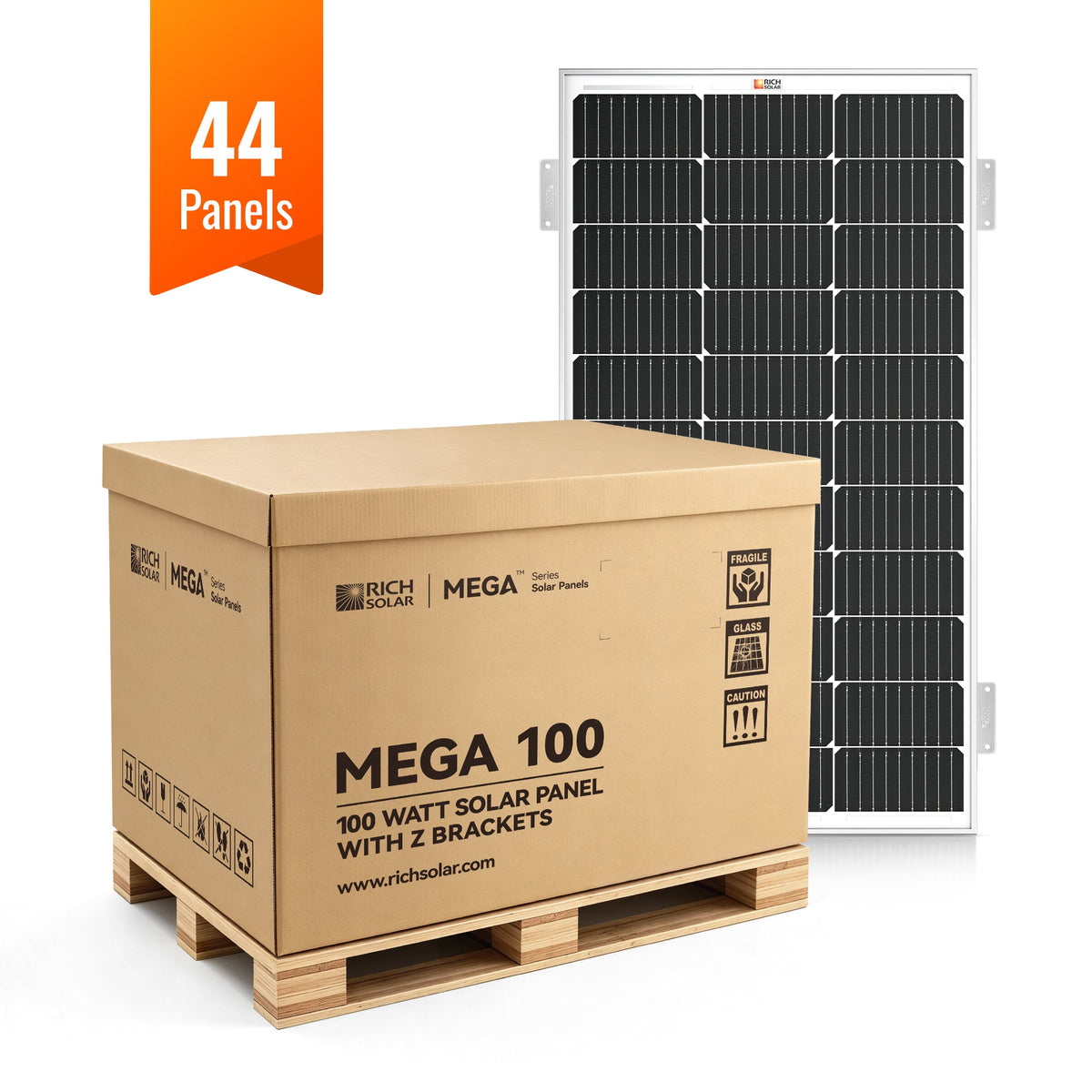

Supplied as a pallet of 44 panels.
25-year output warranty.
Need help choosing the right kit?
Talk to a Solar Expert:
1-332-291-6885
Quantity
Quantity
Guaranteed Safe Checkout
Deliver to
Get it between
Product Information
100W 12V Solar Panel for Cabins, Homes and Large Ground-Mount Arrays
Each MEGA 100 module produces 100W, so a 44-panel pallet delivers around 4.4kW of array. On a clear day that is roughly 20kWh, enough to run a cabin or a well-equipped off-grid home.
It wires straight to a 12V battery through a PWM or MPPT charge controller. Add a second or third panel in parallel as your power needs grow, or move to a 24V panel if you are building a larger bank.

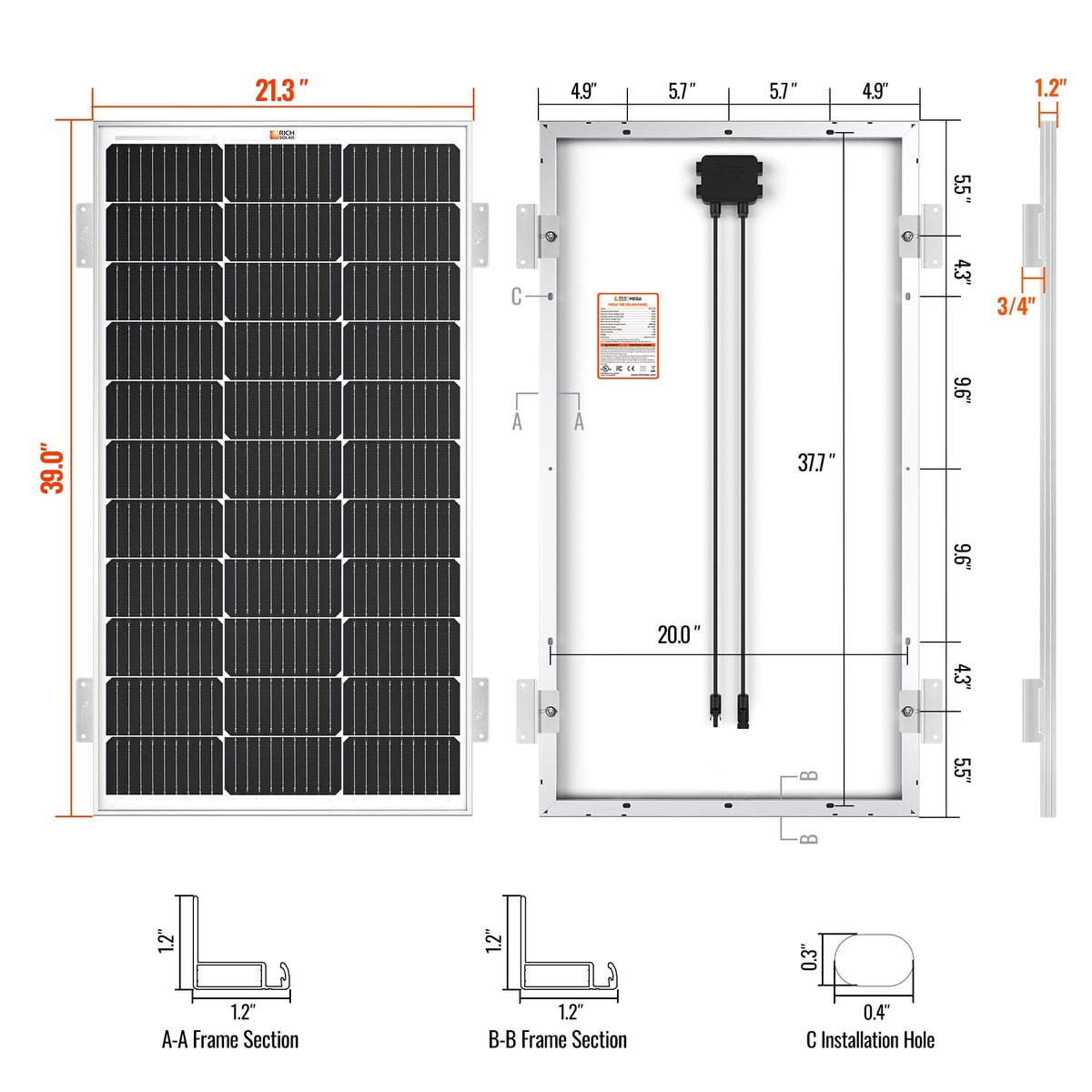

Anodized aluminum frame – lightweight, strong, and corrosion-resistant. MC4 connectors with 3 ft pre-attached cables for quick and easy installation. Z-brackets are supplied with this bundle. The panel measures 39.0 × 21.3 × 1.2 in and weighs 13.2 lb.
| Specification | Value |
|---|---|
| Maximum power (Pmax) | 100W |
| Open circuit voltage (Voc) | 22.8V |
| Maximum power voltage (Vmp) | 18.7V |
| Short circuit current (Isc) | 5.78A |
| Nominal battery voltage | 12V |
| Dimensions | 39.0 × 21.3 × 1.2 in |
| Weight | 13.2 lb |
| Frame | Anodized aluminum frame |
| Connectors | MC4 connectors with 3 ft pre-attached cables for quick and easy installation |
| Certifications | UL 61730, IEC 61215, and CSA C22.2 standards |
| Warranty | 25-year output warranty |
- 44 x MEGA 100 100W solar panels

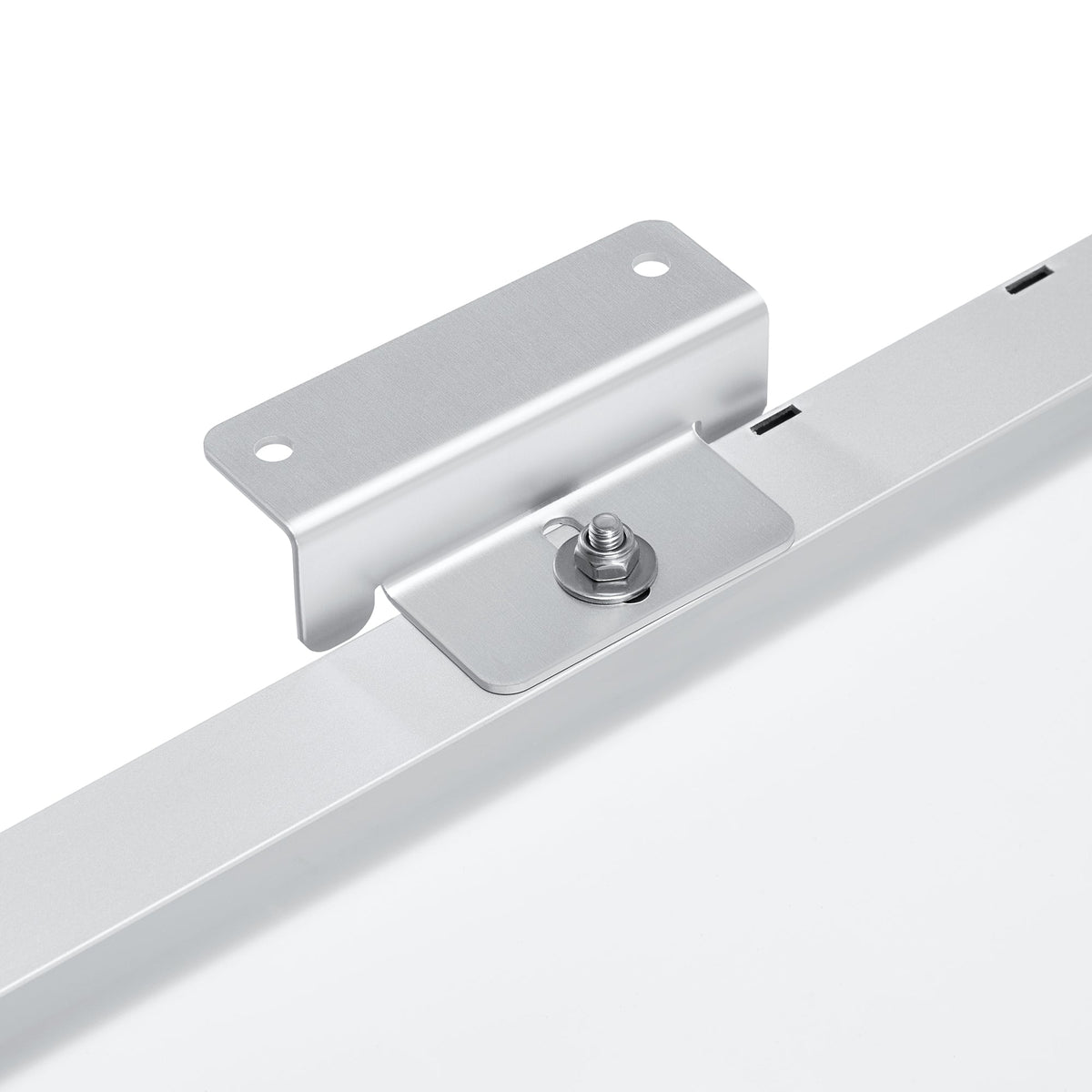

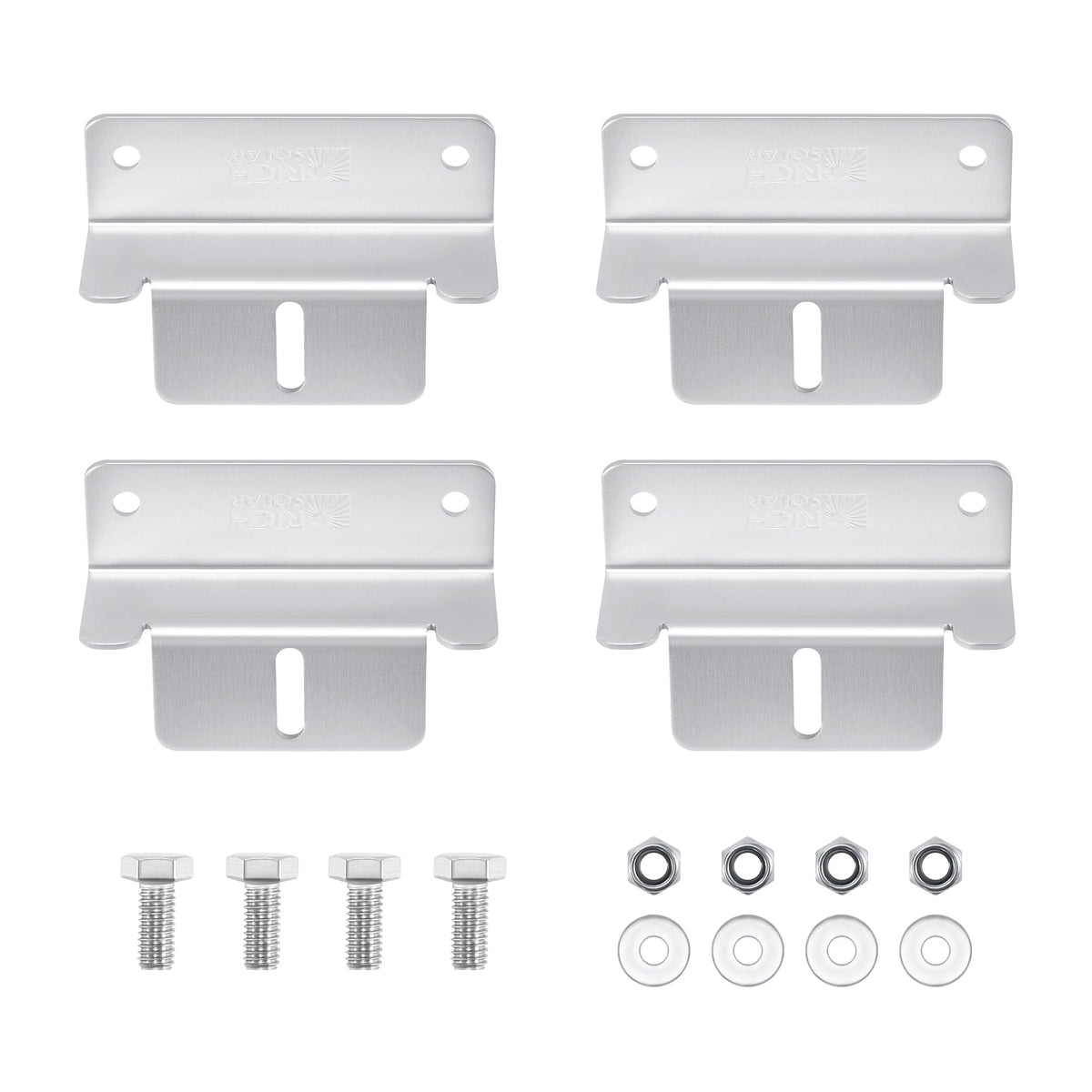

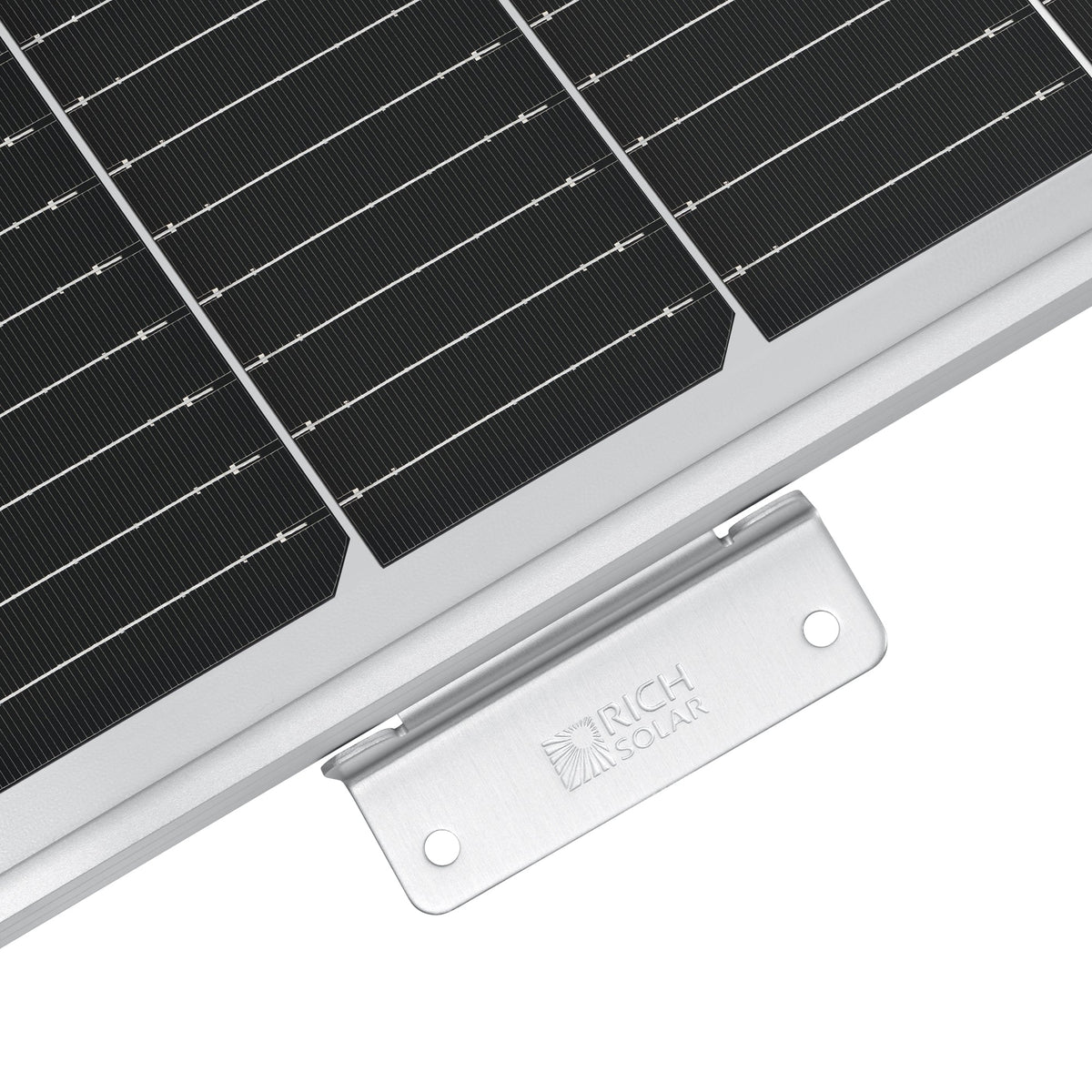

- 3/4 in. anodized aluminum Z-brackets for quick and secure installation.
- Panel Leads (Pair): 12AWG, 3 ft each

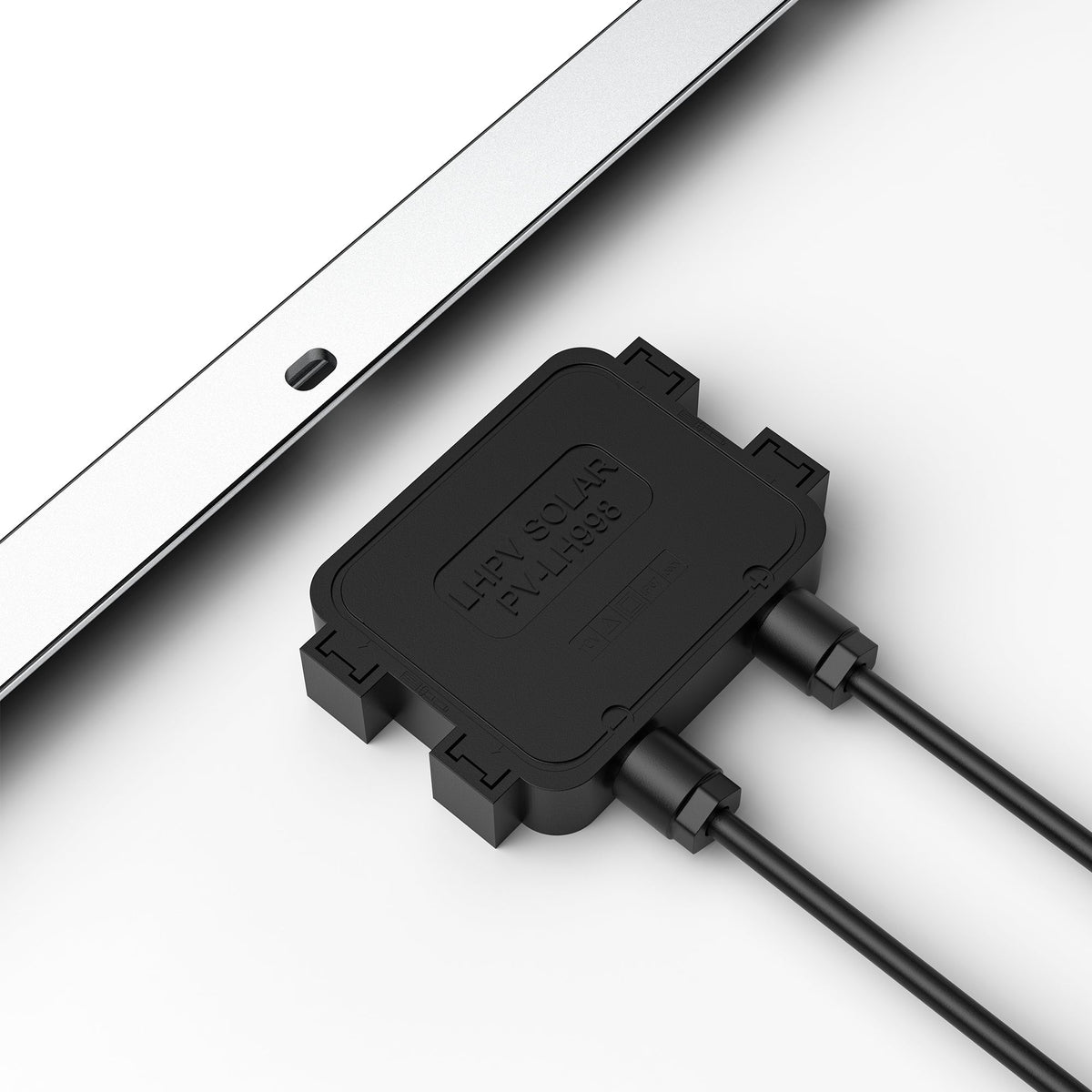

- Waterproof junction box and solar connectors
- Charge controller: a 30A PWM or MPPT charge controller — browse charge controllers
- Cable: 10 AWG solar extension cable pair with MC4 connectors — browse wiring & cables
- Mount: Z-brackets included; tilt and pole mounts also available — browse panel mounts
Want it all in one box? See our complete solar kits.
Free Shipping
On all orders
30-Day Returns
Hassle-free returns
25 Year Warranty
On panels & more
Secure Payments
100% protected
Frequently Asked Questions
How much power does this panel produce per day?
Each 100W module makes roughly 400–500Wh on a clear day, so a 44-panel pallet produces about 19.8kWh. Output is lower in winter and in cloudy regions.
Do I need a 12V or 24V battery for this panel?
This is a 12V panel, so it pairs most simply with a 12V battery bank through a PWM or MPPT controller. You can also feed a 24V or 48V bank by wiring panels in series into an MPPT controller — check the controller's maximum input voltage first.
How do I mount it?
Z-brackets are included in this bundle. The frame has pre-drilled mounting holes that take Z-brackets for a flat roof, tilt mounts to angle it toward winter sun, or pole and ground mounts for a fixed array. Our team can advise on 1-332-291-6885.
