MEGA 100 PRO FLEX | 100W 24V Flexible Solar Panel | Ultra-Lightweight for RV, Marine, Off-Grid & Overland
100W 24V flexible panel.
SKU:UGS-F100PB
Regular price
$169.99 USD
100W 24V flexible solar panel.
10-busbar monocrystalline cells with up to 22.8% efficiency.
Bends to curved roofs and weighs a fraction of a glass panel.
Weatherproof construction.
Need help choosing the right kit?
Talk to a Solar Expert:
1-332-291-6885
Quantity
Quantity
Guaranteed Safe Checkout
Deliver to
Get it between
Product Information
Features
- 24V off-grid flexible solar panel.
- 10-busbar monocrystalline cells with up to 22.8% efficiency.

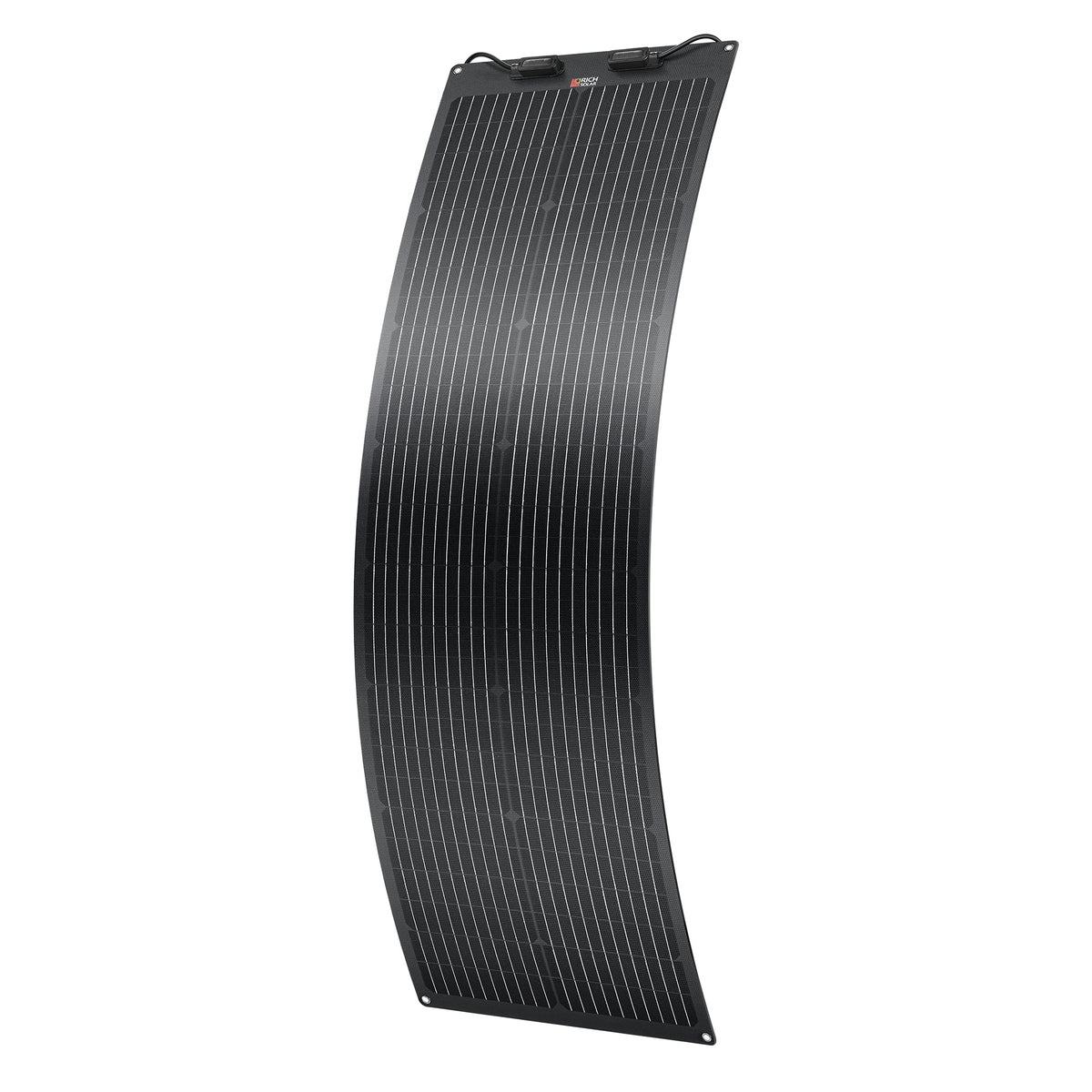

- Ultra-thin 0.1 in. profile and bends up to 360° to fit curved surfaces.
- Lightweight design at just 4.8 lb for easy handling and installation.
- Power tolerance 0 to +5W ensures at least the rated output.
- Excellent low-light performance on cloudy days and at dawn or dusk.
- Low temperature coefficient of -0.35%/°C for reliable high-temperature performance
- Non-destructive cell cutting technology minimizes micro-cracks for enhanced durability.
- Advanced manufacturing processes and premium materials improve PID resistance.
- Rated for 5400 Pa snow loads and 2400 Pa wind loads.
- Ideal for RVs, boats, trailers, vans, and other curved off-grid applications.
Installation
- Pre-drilled mounting holes and adhesive backing for flexible installation.
- MC4 connectors with 3 ft pre-attached cables for quick and easy installation
Built-in Components
- Panel Leads (Pair): 12 AWG, 3 ft each
- IP68-rated waterproof junction box
- IP67-rated waterproof solar connectors
Specifications
- Maximum Power (Pmax): 100W
- Maximum Power Voltage (Vmp): 34.2V
- Maximum Power Current (Imp): 2.92A
- Open Circuit Voltage (Voc): 40.8V
- Short Circuit Current (Isc): 3.15A
- Maximum System Voltage (Vmax): 1500V DC
- Maximum Series Fuse Rating: 15A
- Temperature Range: -40~+185°F
- Weight: 4.8 lb

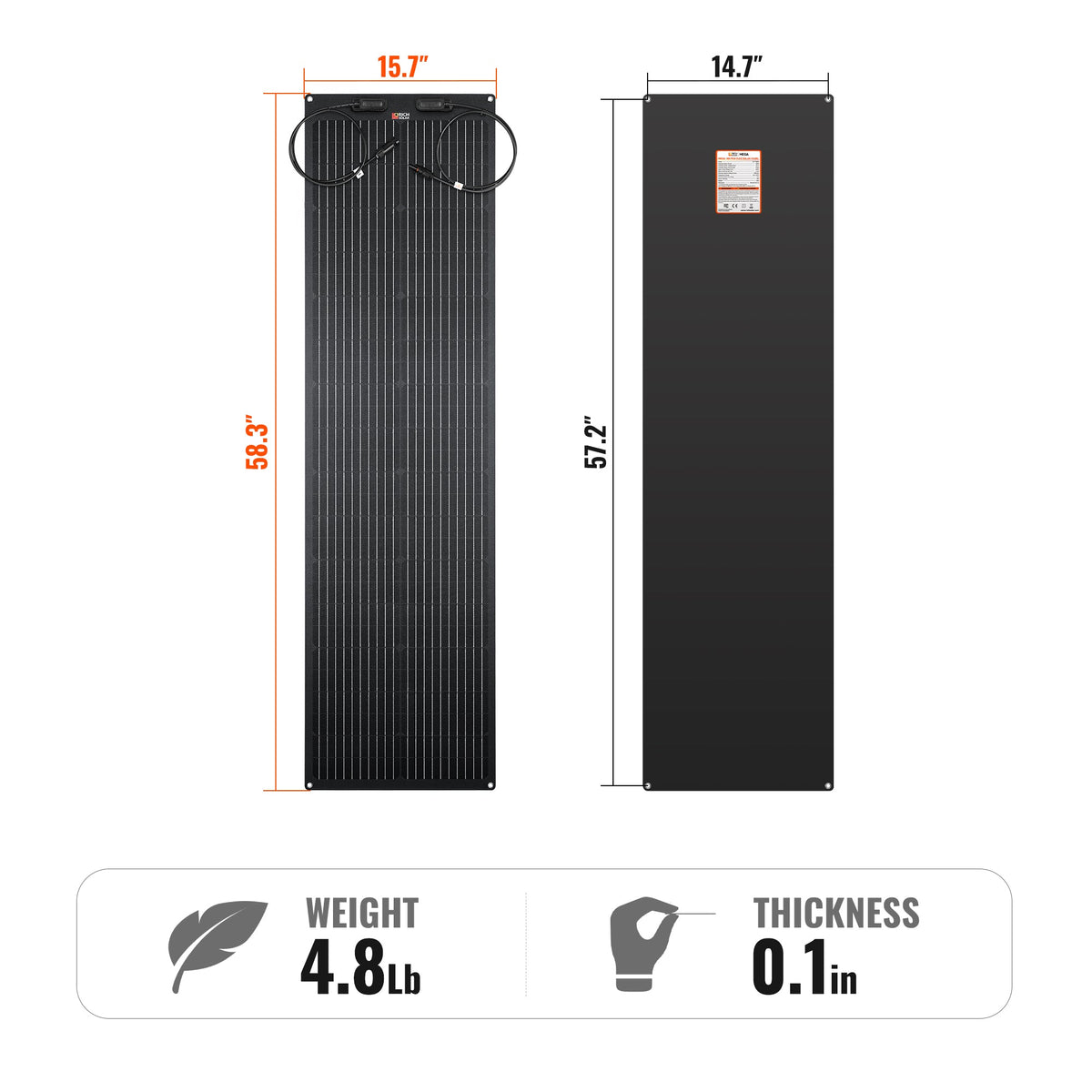

- Dimensions: 58.3 x 15.7 x 0.1 in
- Material and Workmanship Warranty: 1 year
- Package Dimensions: 61 × 2 × 19 in
| Specification | Value |
|---|---|
| Maximum Power (Pmax) | 100 W |
| Maximum Power Voltage (Vmp) | 34.2 V |
| Maximum Power Current (Imp) | 2.92 A |
| Open Circuit Voltage (Voc) | 40.8 V |
| Short Circuit Current (Isc) | 3.15 A |
| Maximum System Voltage (Vmax) | 1500 V DC |
| Maximum Series Fuse Rating | 15 A |
| Temperature Range | -40~+185°F |
| Weight | 4.8 lb |
| Dimensions | 58.3 x 15.7 x 0.1 in |
| Material and Workmanship Warranty | 1 year |
| Package Dimensions | 61 × 2 × 19 in |
- 1 x MEGA 100 PRO FLEX
- Pre-attached leads with solar connectors
- User manual
Free Shipping
On all orders
30-Day Returns
Hassle-free returns
25 Year Warranty
On panels & more
Secure Payments
100% protected
Frequently Asked Questions
How much power does it produce per day?
Roughly 400–500Wh on a clear day, based on 4–5 peak sun hours. Less in winter and in cloudy weather.
Do I need a charge controller?
Yes. Connecting a panel straight to a battery risks overcharging it. A 30A PWM or MPPT controller is enough for this panel.
How do I mount a flexible panel?
Bond it to a clean, dry surface with a suitable adhesive, or screw through the eyelets. Leave an air gap or mount on a light-coloured surface where you can — flexible panels run hotter than framed ones, and heat costs output.
