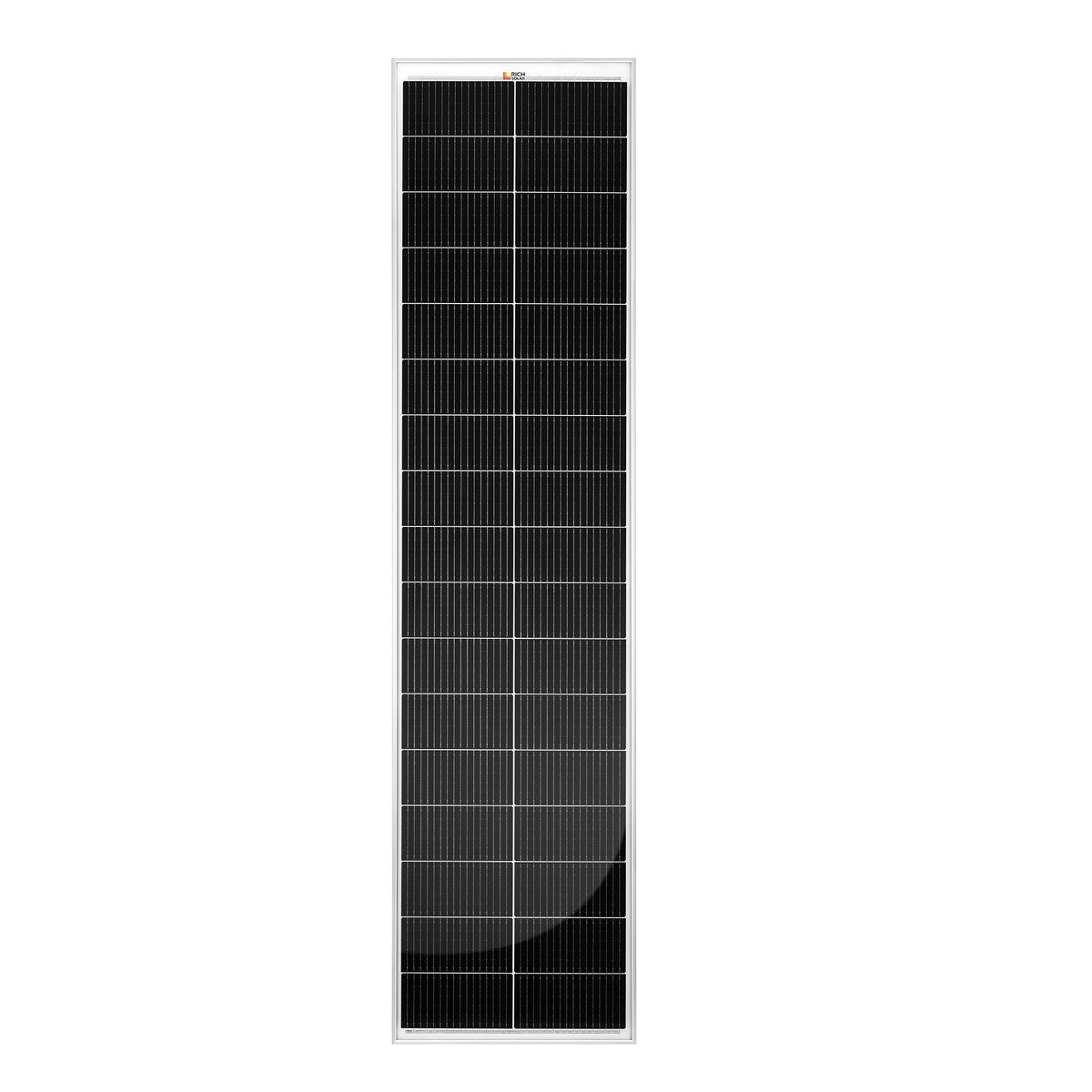

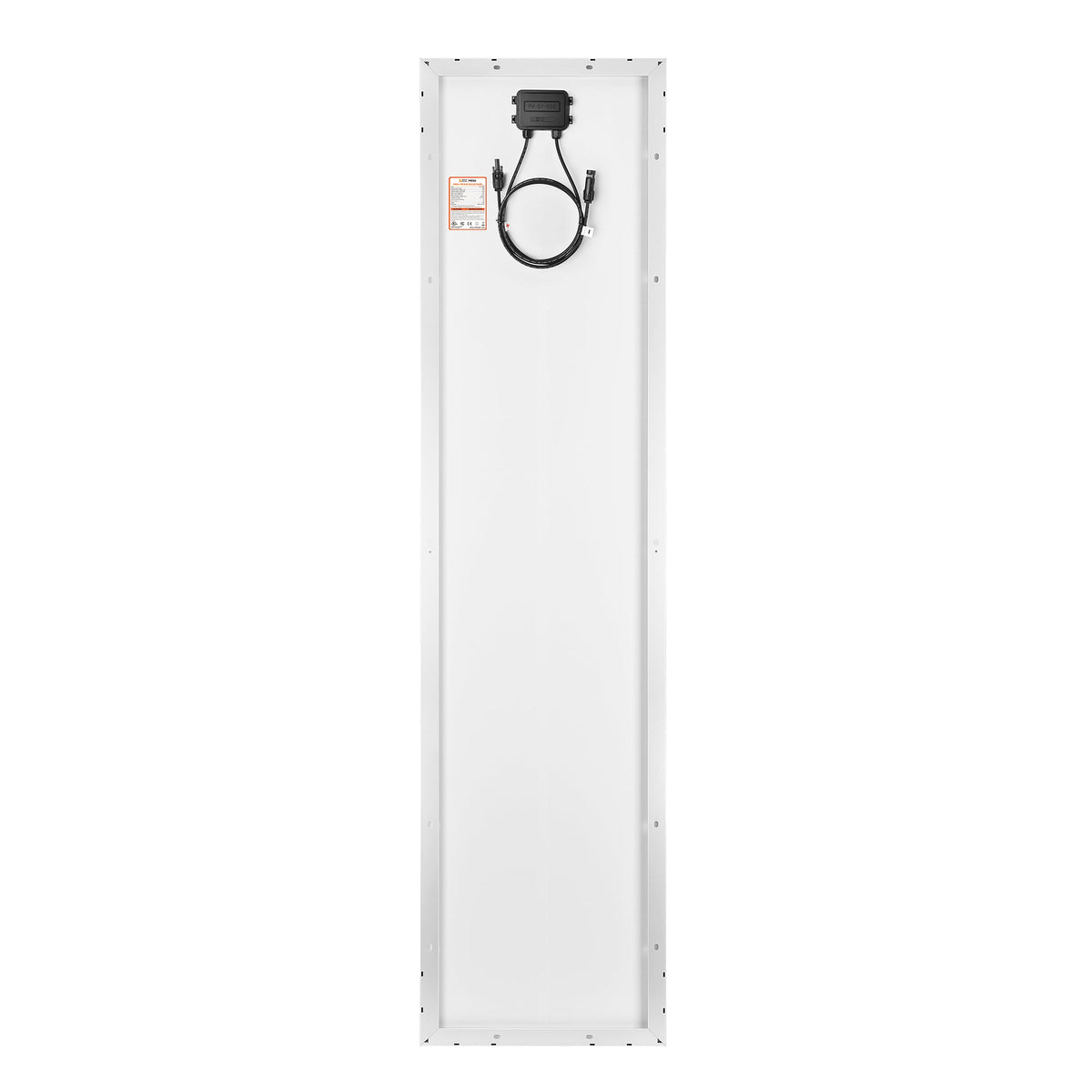

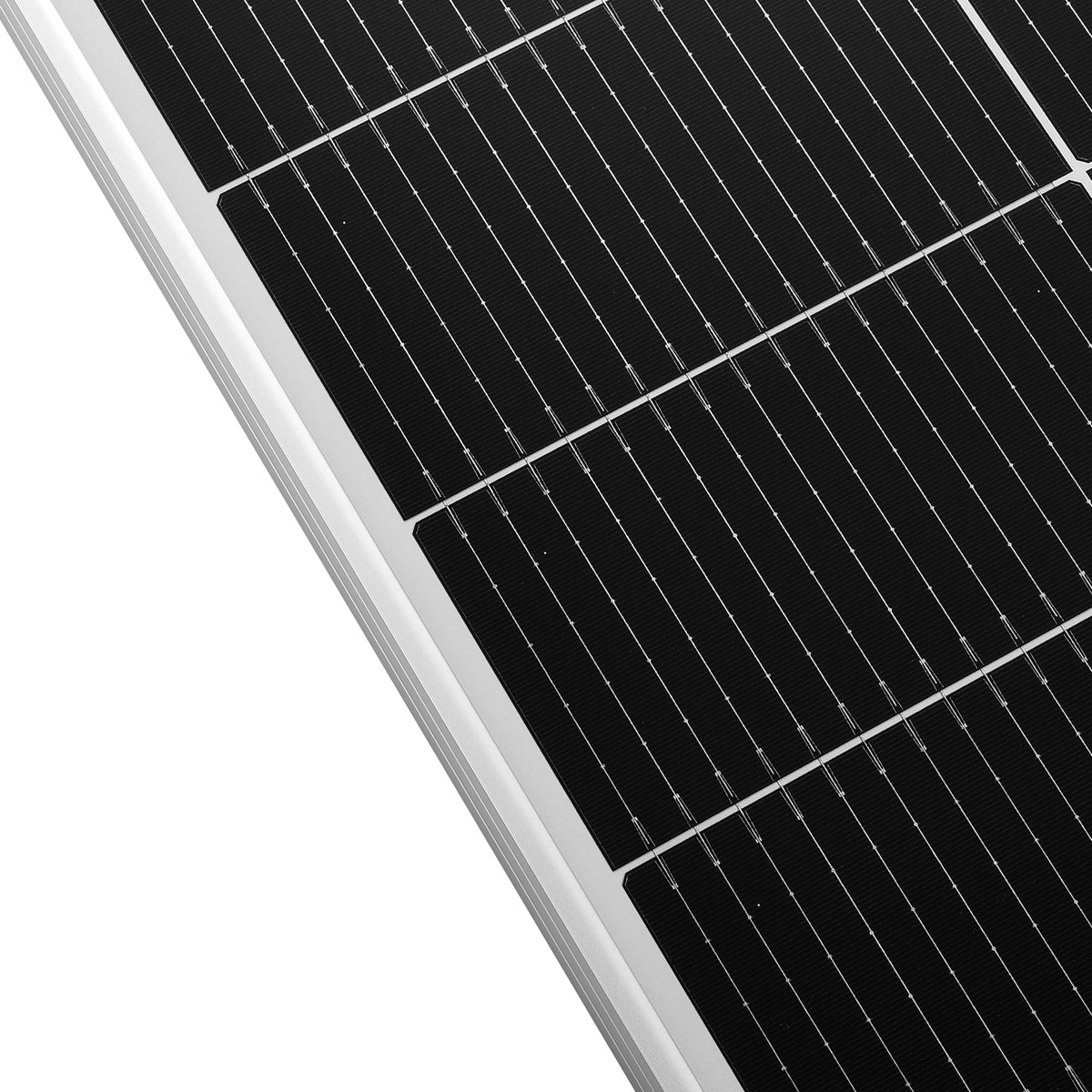

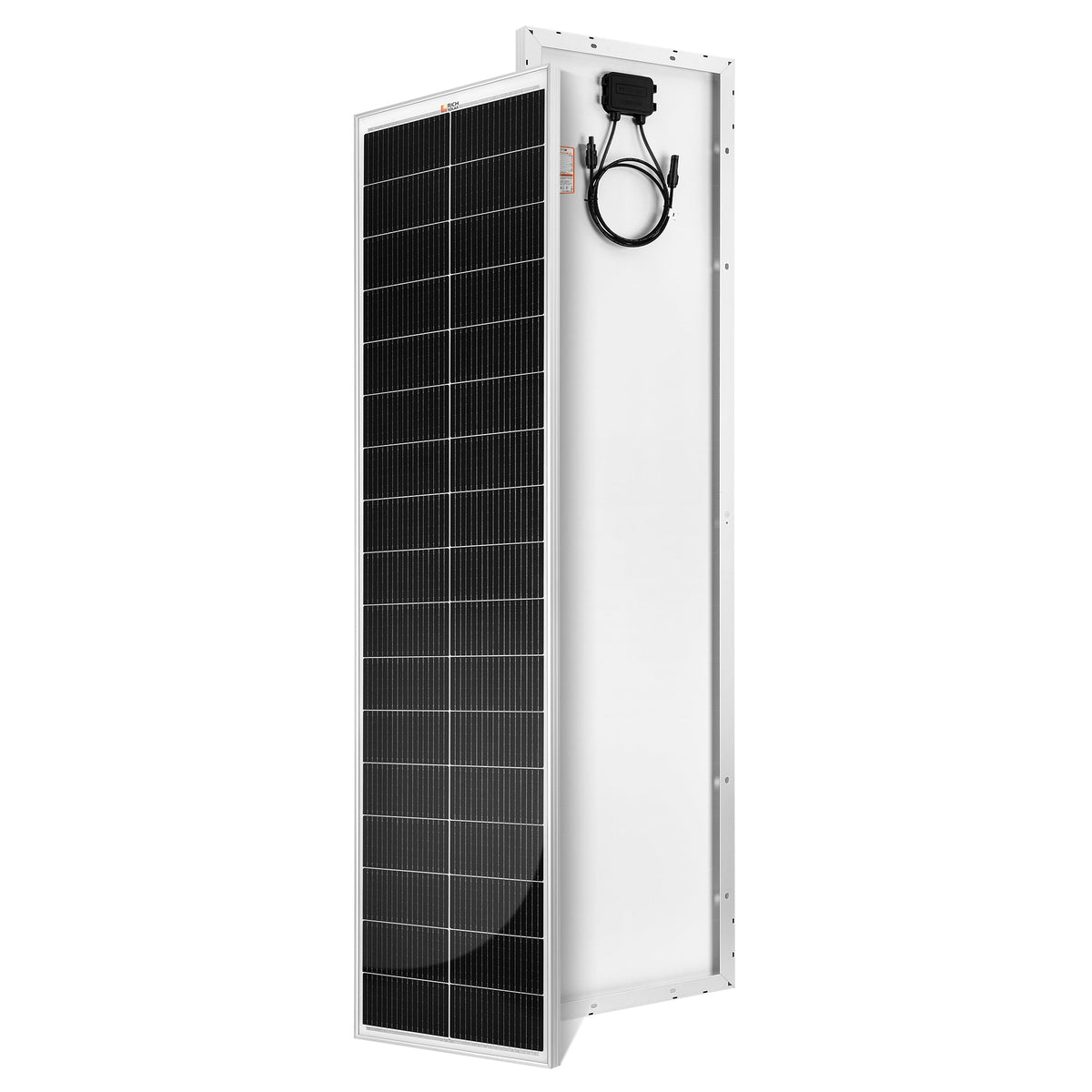

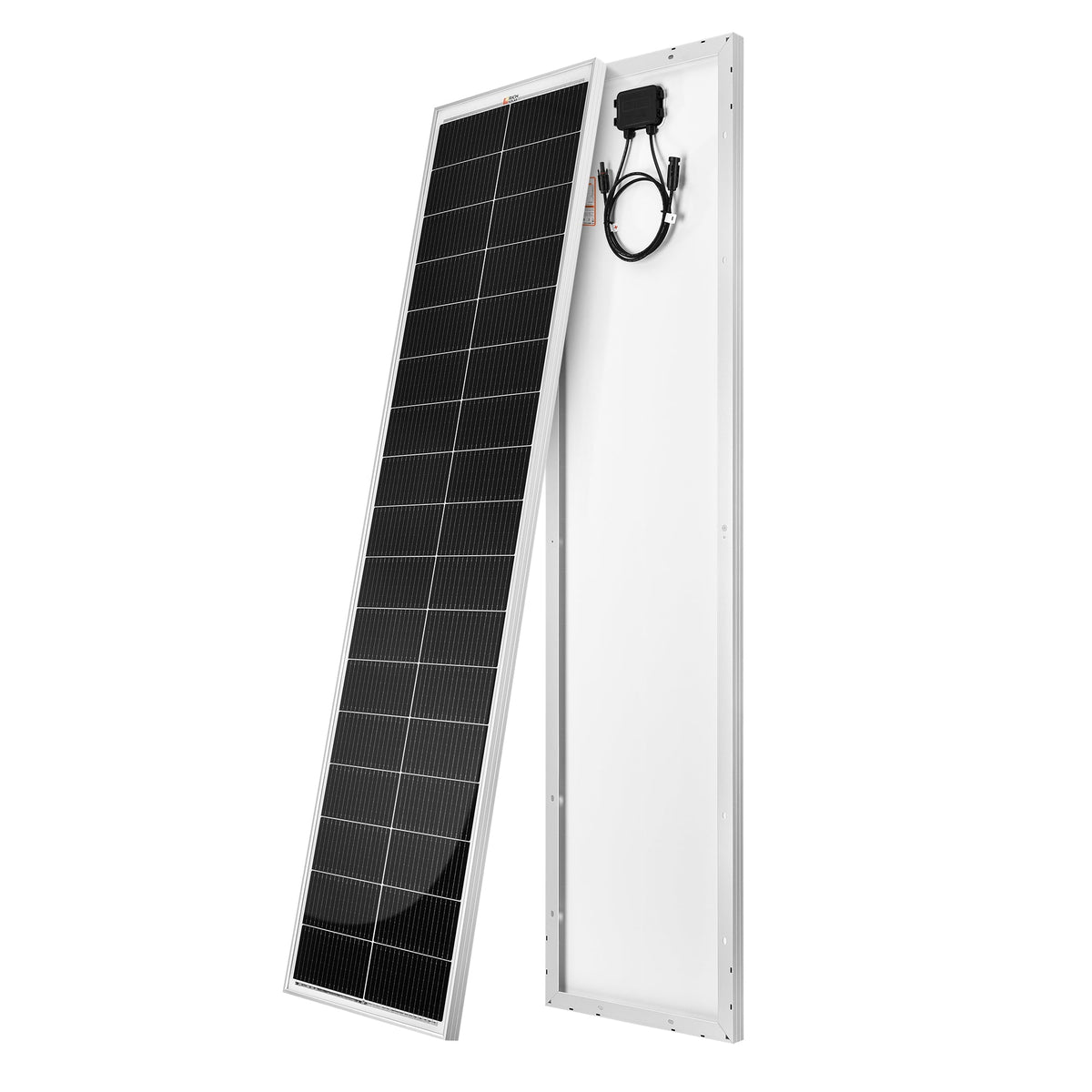

MEGA 130 Slim – 130W 12V Narrow Solar Panel
SKU:RS-M130SL
Product Information
130W 12V Solar Panel for Vans, Campers and Overlanders
The MEGA 130 Slim produces roughly 520–650Wh on a clear day. That is enough to keep LED lights, a vent fan, Wi-Fi and phone charging going in vans, campers and overlanders.
It wires straight to a 12V battery through a PWM or MPPT charge controller. Add a second or third panel in parallel as your power needs grow, or move to a 24V panel if you are building a larger bank.
Anodized aluminum frame – lightweight, strong, and corrosion-resistant. MC4 connectors with 3 ft pre-attached cables for quick and easy installation. It takes standard Z-brackets on a flat roof, or a tilt mount to angle it toward winter sun. The panel measures 65.0 x 15.8 x 1.2 in and weighs 15.4 lb.
| Specification | Value |
|---|---|
| Maximum power (Pmax) | 130W |
| Open circuit voltage (Voc) | 23.6V |
| Maximum power voltage (Vmp) | 19.6V |
| Short circuit current (Isc) | 6.92A |
| Maximum power current (Imp) | 6.63A |
| Maximum system voltage | 1000 VDC |
| Nominal battery voltage | 12V |

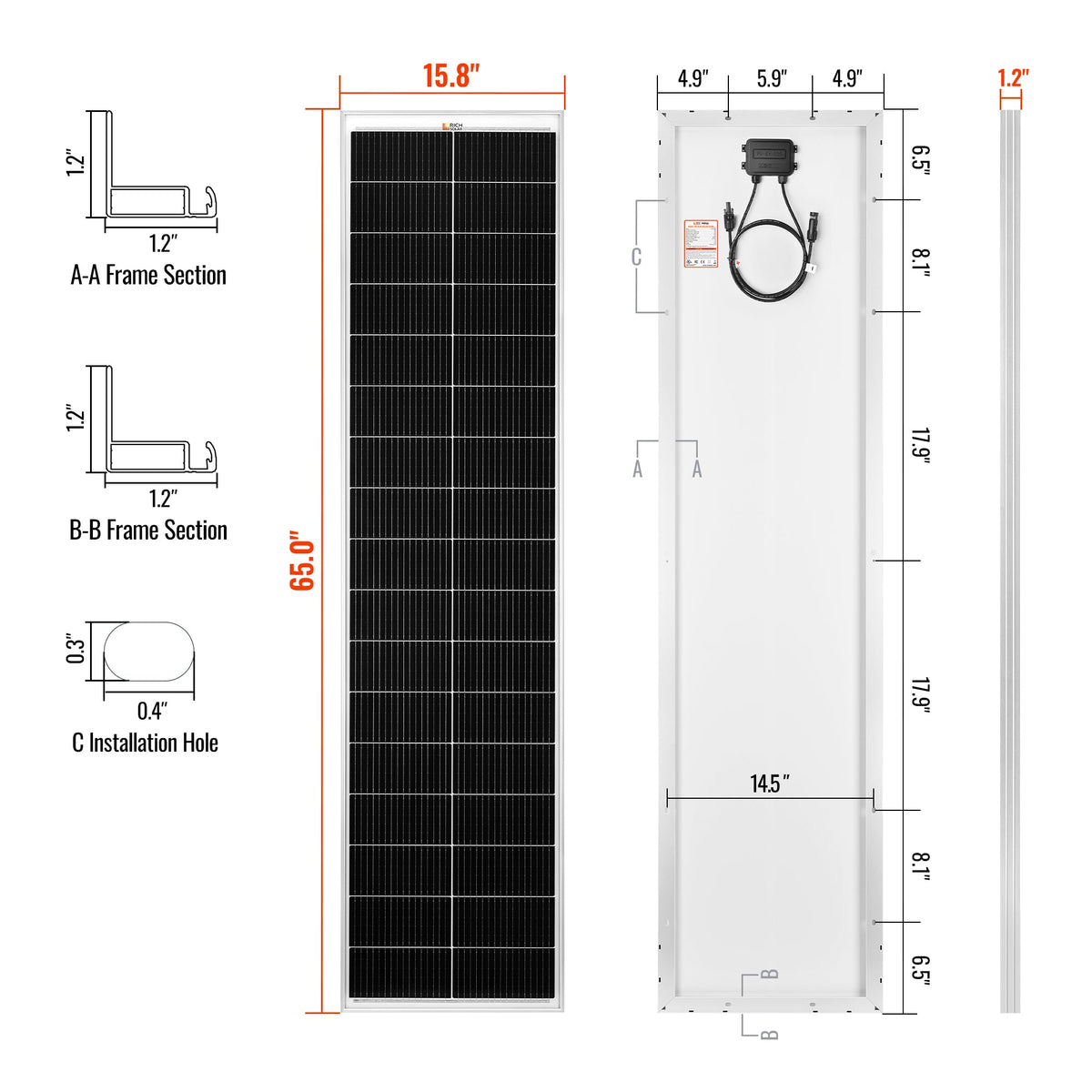

| Dimensions | 65.0 x 15.8 x 1.2 in |
| Weight | 15.4 lb |
| Frame | Anodized aluminum frame |
| Connectors | MC4 connectors with 3 ft pre-attached cables for quick and easy installation |
| Certifications | UL 61730, IEC 61215, and CSA C22.2 standards |
| Warranty | 25-year output warranty |
- 1 x MEGA 130 Slim 130W 12V solar panel
- Panel leads (pair): 12 AWG, 3 ft each

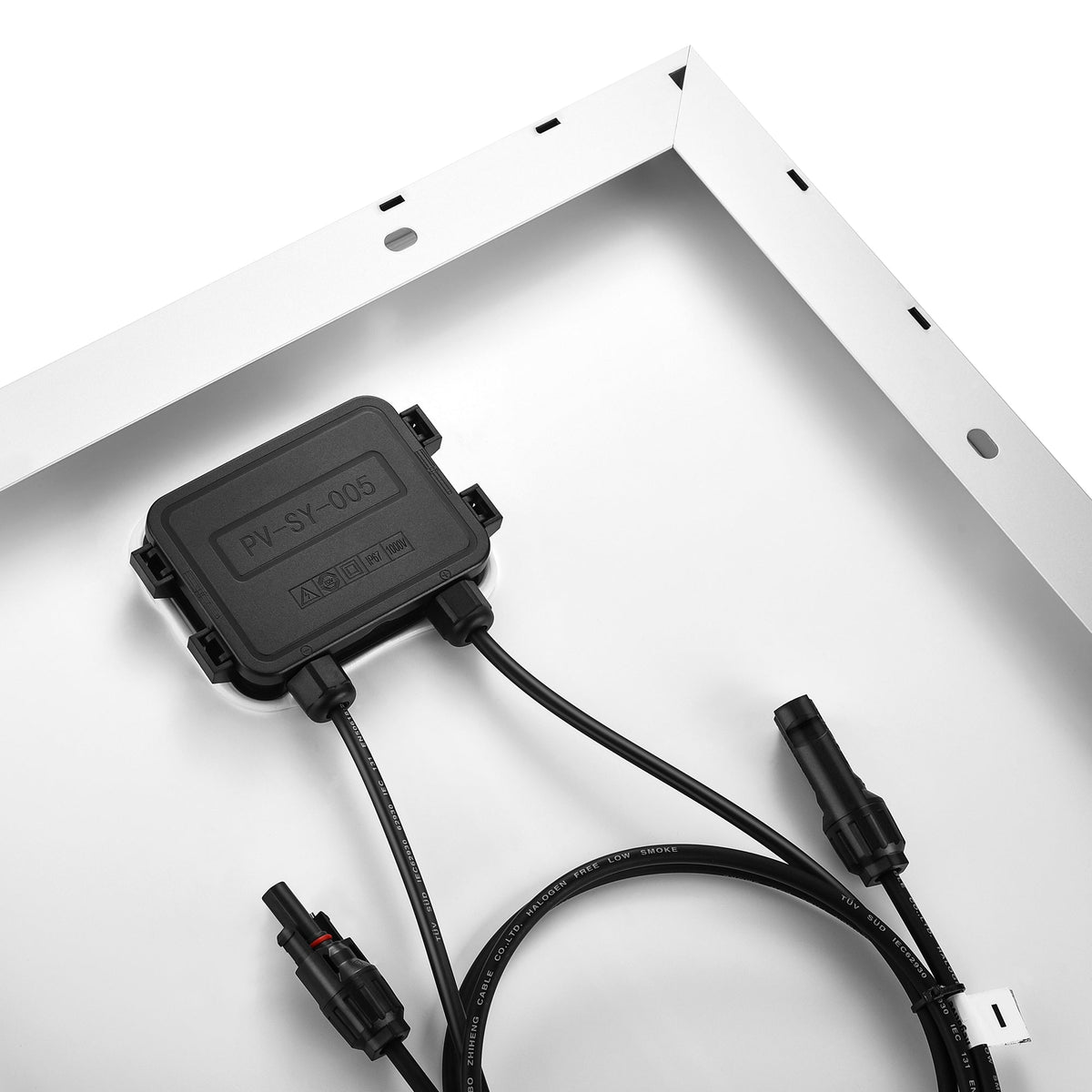

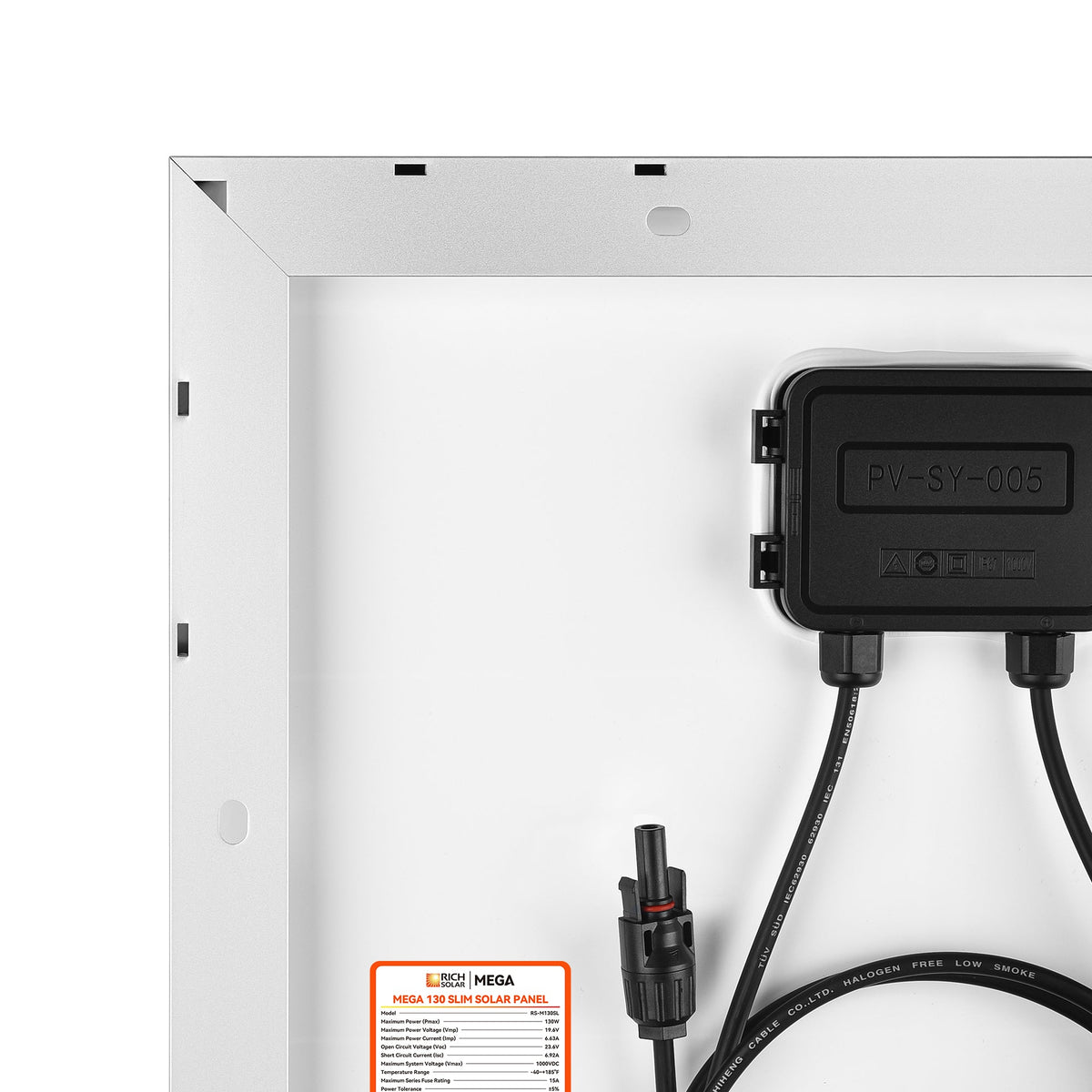

- Waterproof junction box and solar connectors
- Charge controller: a 30A PWM or MPPT charge controller — browse charge controllers
- Cable: 10 AWG solar extension cable pair with MC4 connectors — browse wiring & cables
- Mount: Z-brackets, tilt mounts or pole mounts — browse panel mounts
Want it all in one box? See our complete solar kits.
