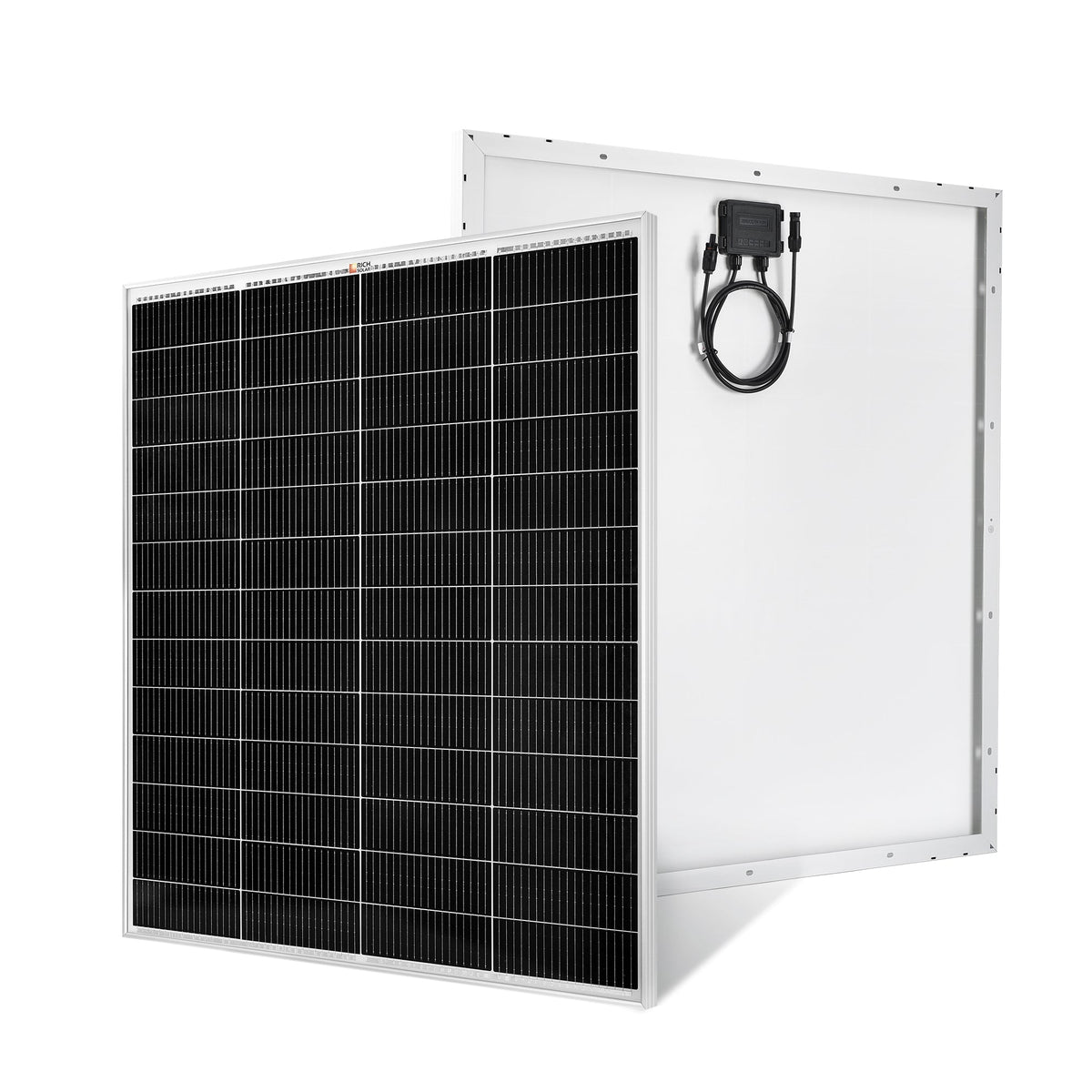

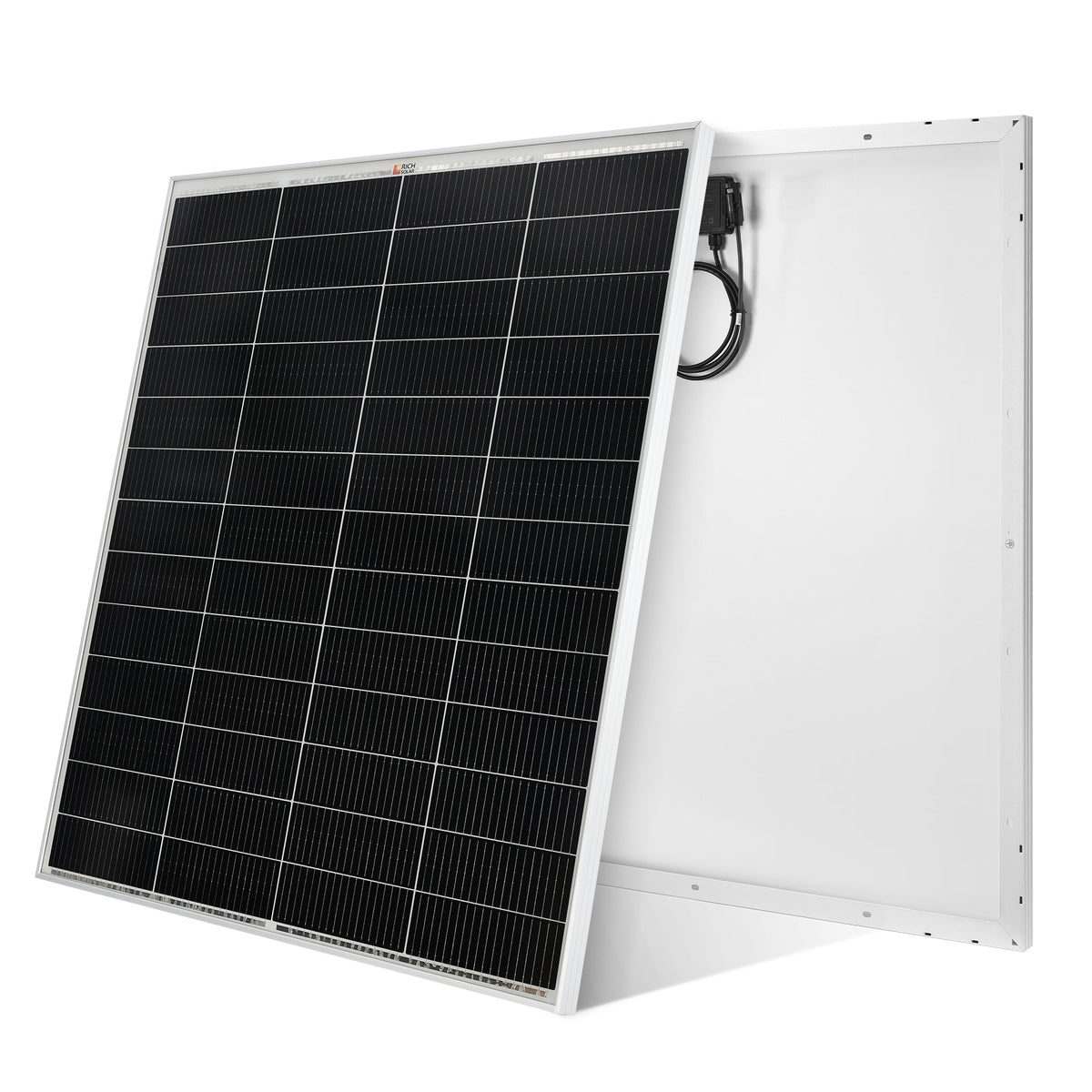

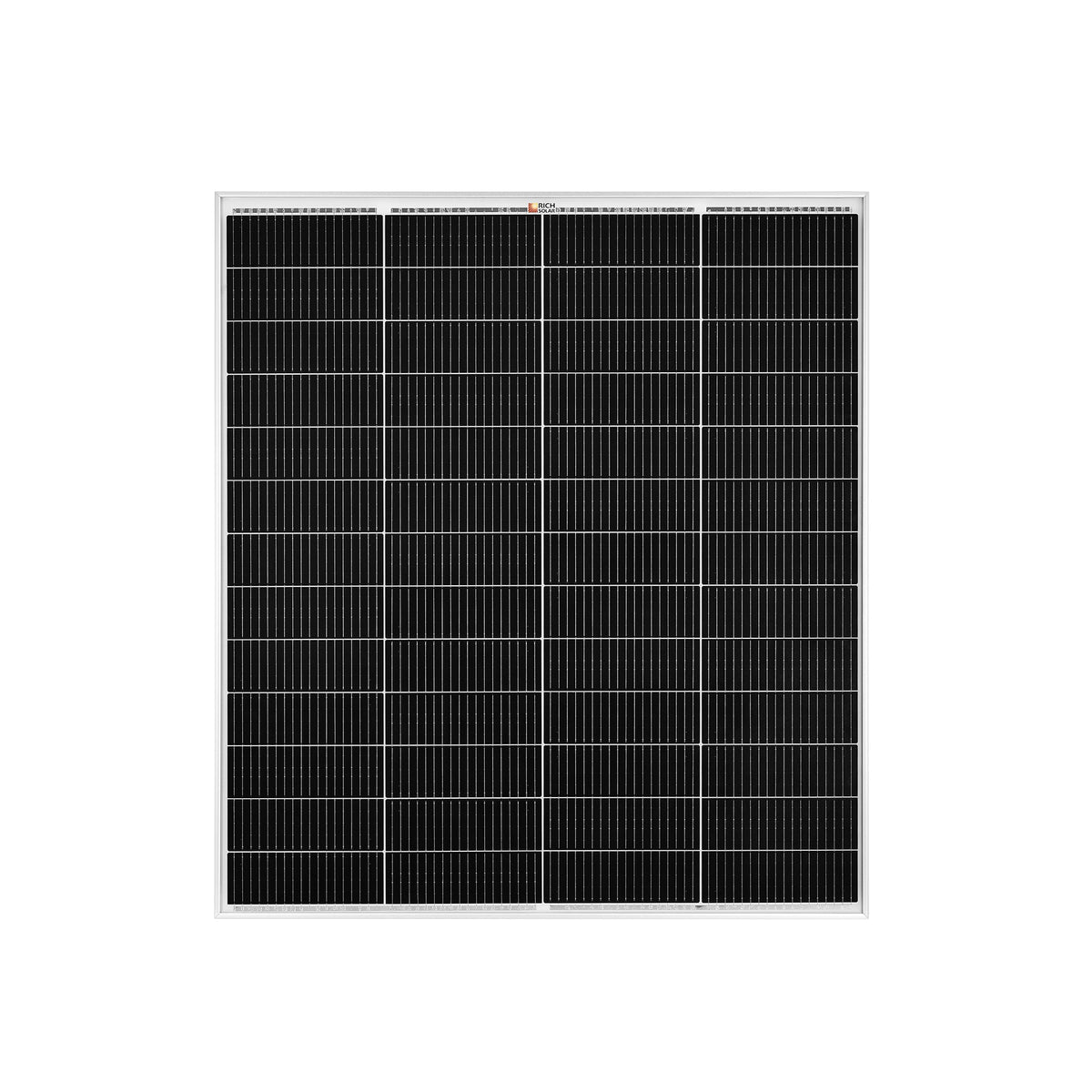

MEGA 175 Pro – 175W 24V Solar Panel with 20ft Cable
SKU:RS-M175PQ
Product Information
175W 24V Solar Panel for Cabins, Tiny Homes and 24V and 48V Systems
The MEGA 175 Pro produces roughly 700–880Wh on a clear day. That is enough to keep lights, a fridge, water pump and device charging going in cabins, tiny homes and 24V and 48V systems.
At 30.3V nominal it suits 24V and 48V battery banks through an MPPT controller, losing less power over long cable runs than a 12V panel. Wire several in series to raise array voltage within your controller's input limit.

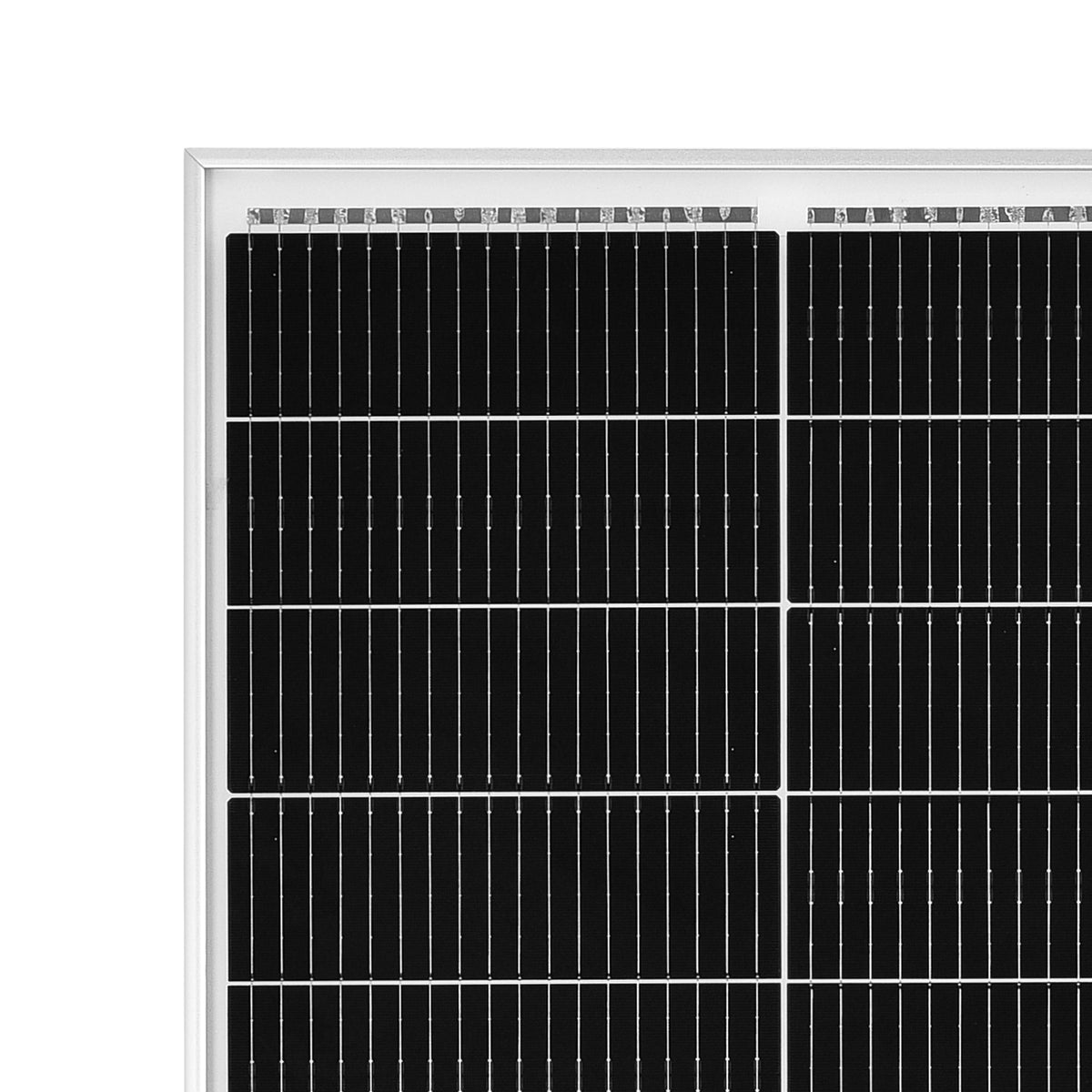

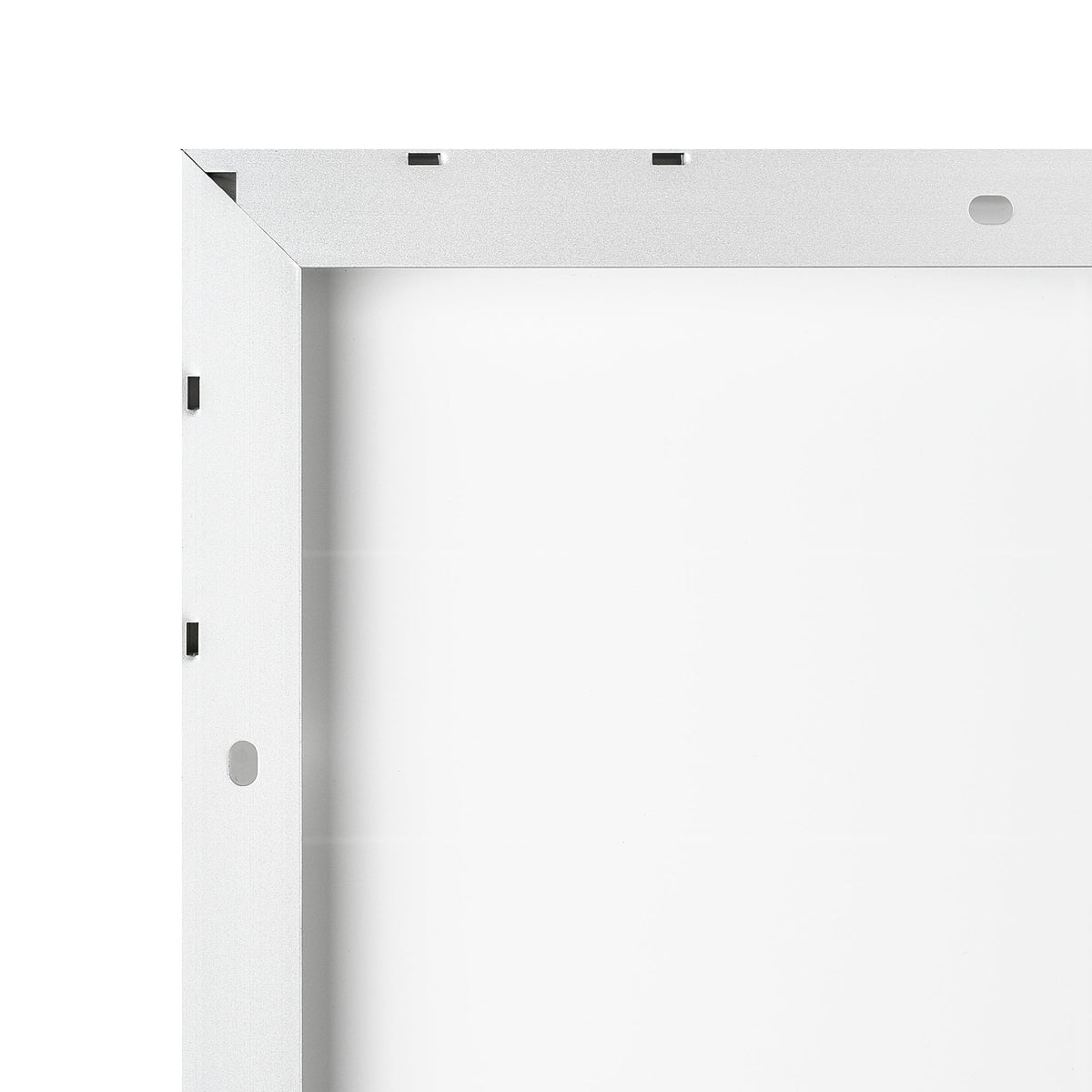

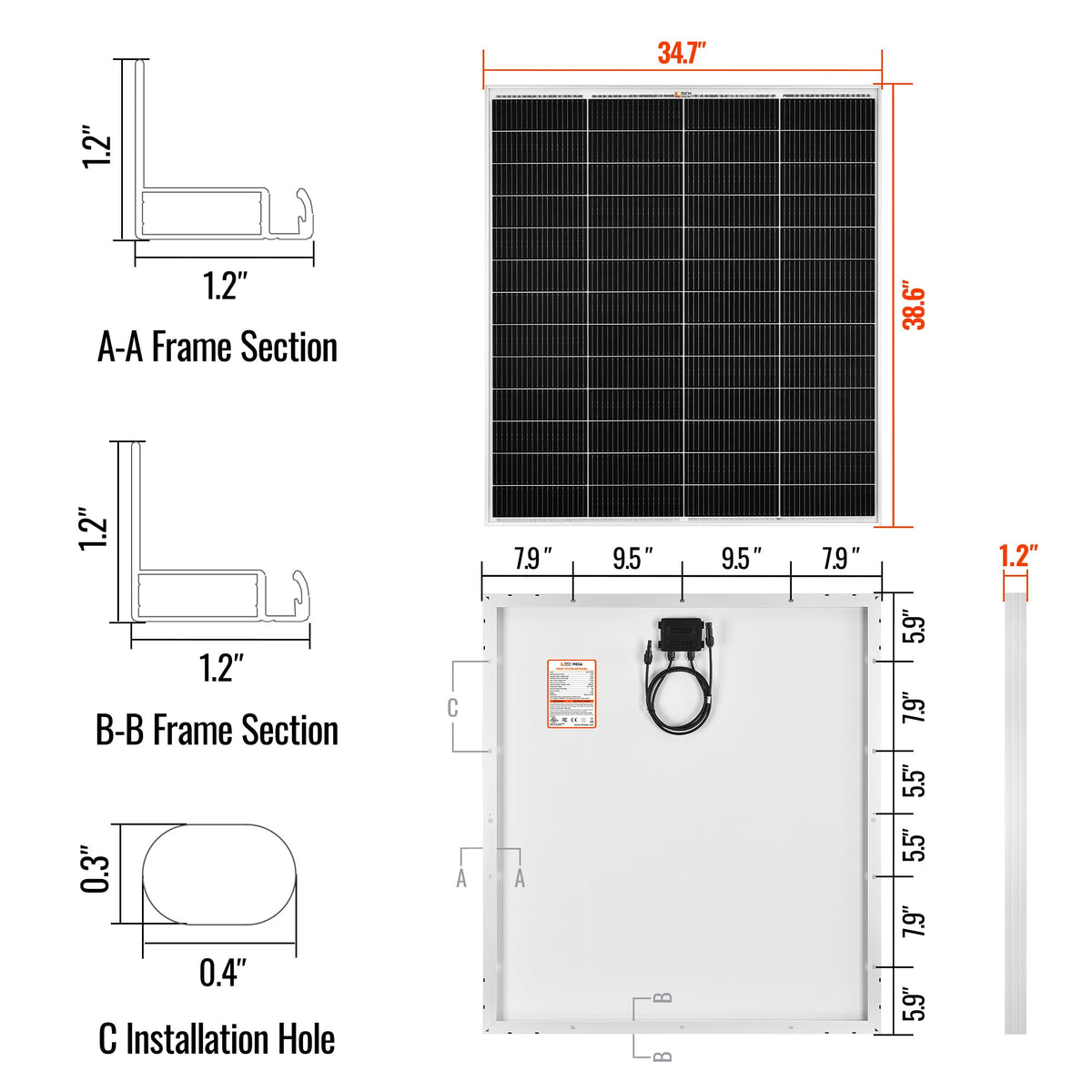

Anodized aluminum frame – lightweight, strong, and corrosion-resistant. MC4 connectors with 3 ft pre-attached cables for quick and easy installation. It takes standard Z-brackets on a flat roof, or a tilt mount to angle it toward winter sun. The panel measures 38.6 x 34.7 x 1.2 in and weighs 20.3 lb.
| Specification | Value |
|---|---|
| Maximum power (Pmax) | 175W |
| Open circuit voltage (Voc) | 36.4V |
| Maximum power voltage (Vmp) | 30.3V |
| Short circuit current (Isc) | 5.93A |
| Maximum power current (Imp) | 5.79A |
| Maximum system voltage | 1500VDC |
| Nominal battery voltage | 24V |
| Dimensions | 38.6 x 34.7 x 1.2 in |
| Weight | 20.3 lb |
| Frame | Anodized aluminum frame |

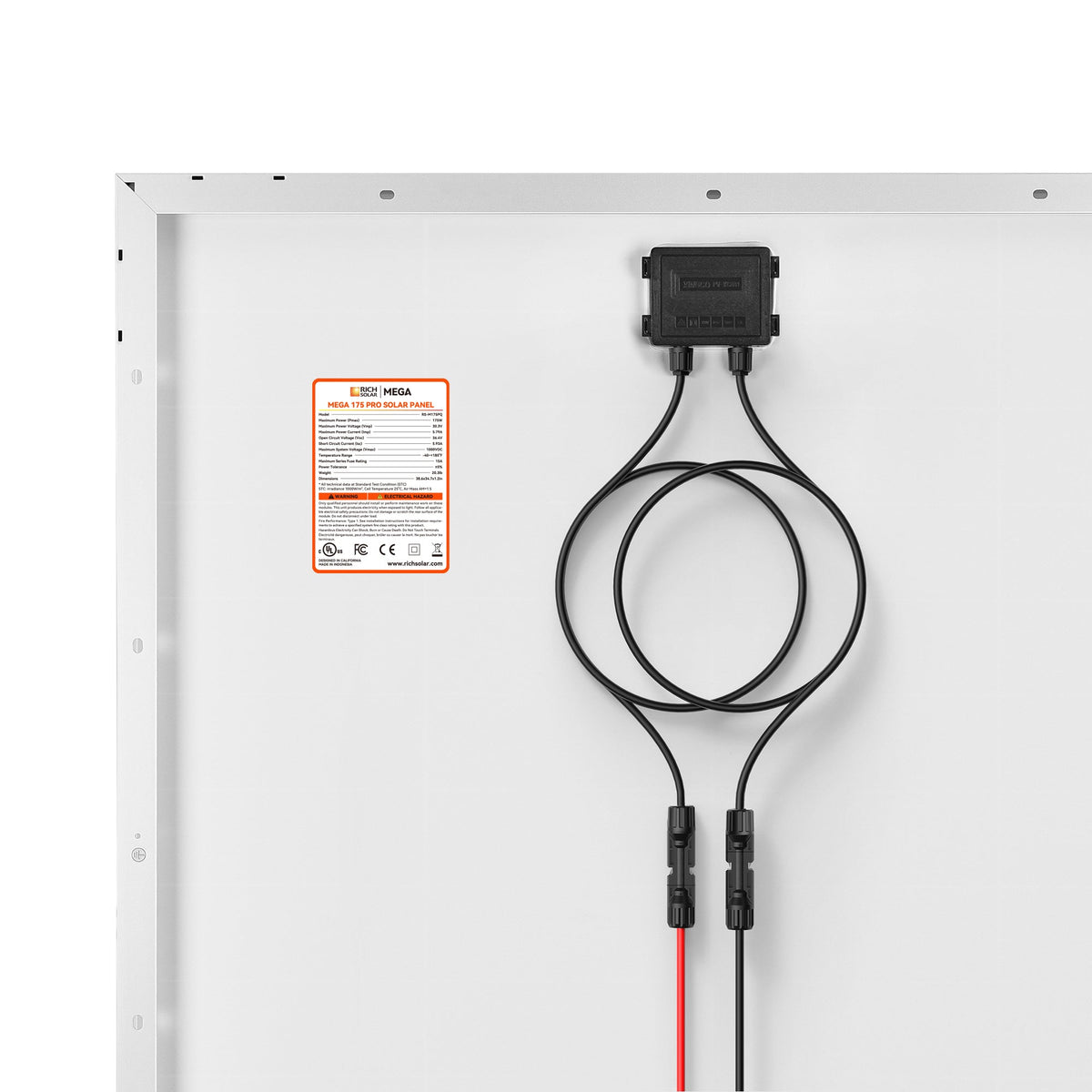

| Connectors | MC4 connectors with 3 ft pre-attached cables for quick and easy installation |
| Certifications | UL 61730, IEC 61215, and CSA C22.2 standards |
| Warranty | 25-year output warranty |

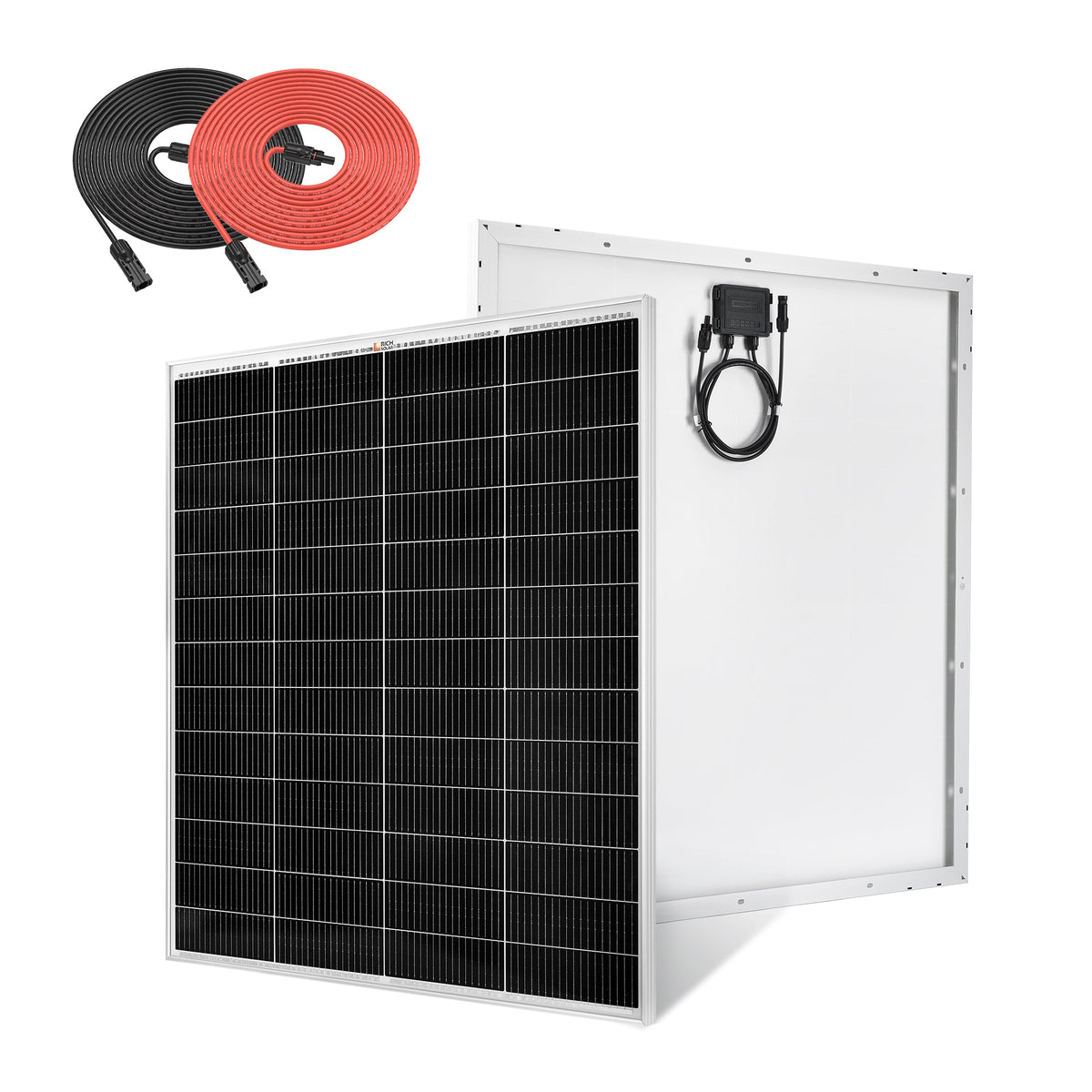

- 1 x MEGA 175 Pro 175W 24V solar panel

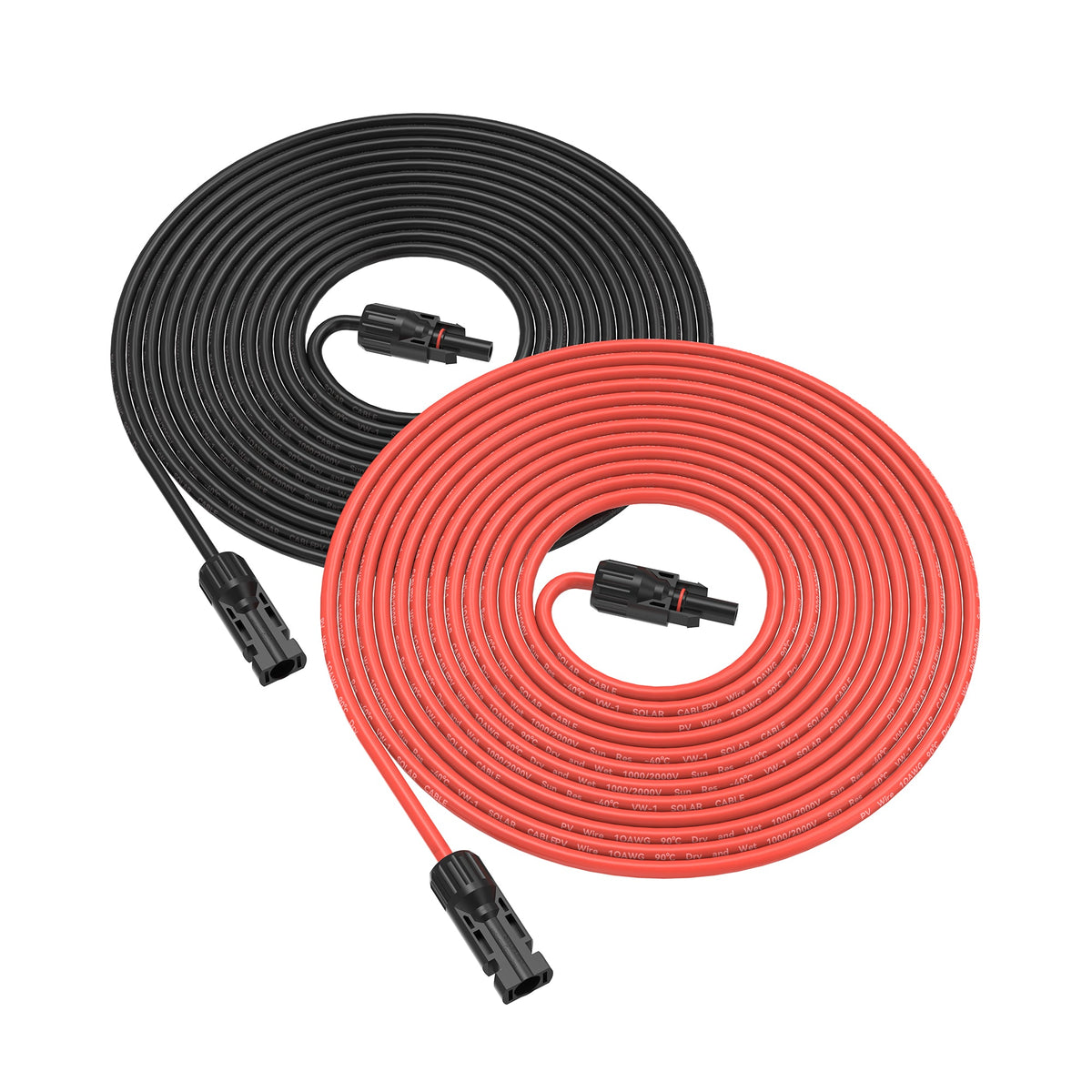

- 20ft solar extension cable set
- Panel Leads (Pair): 12 AWG, 3 ft each

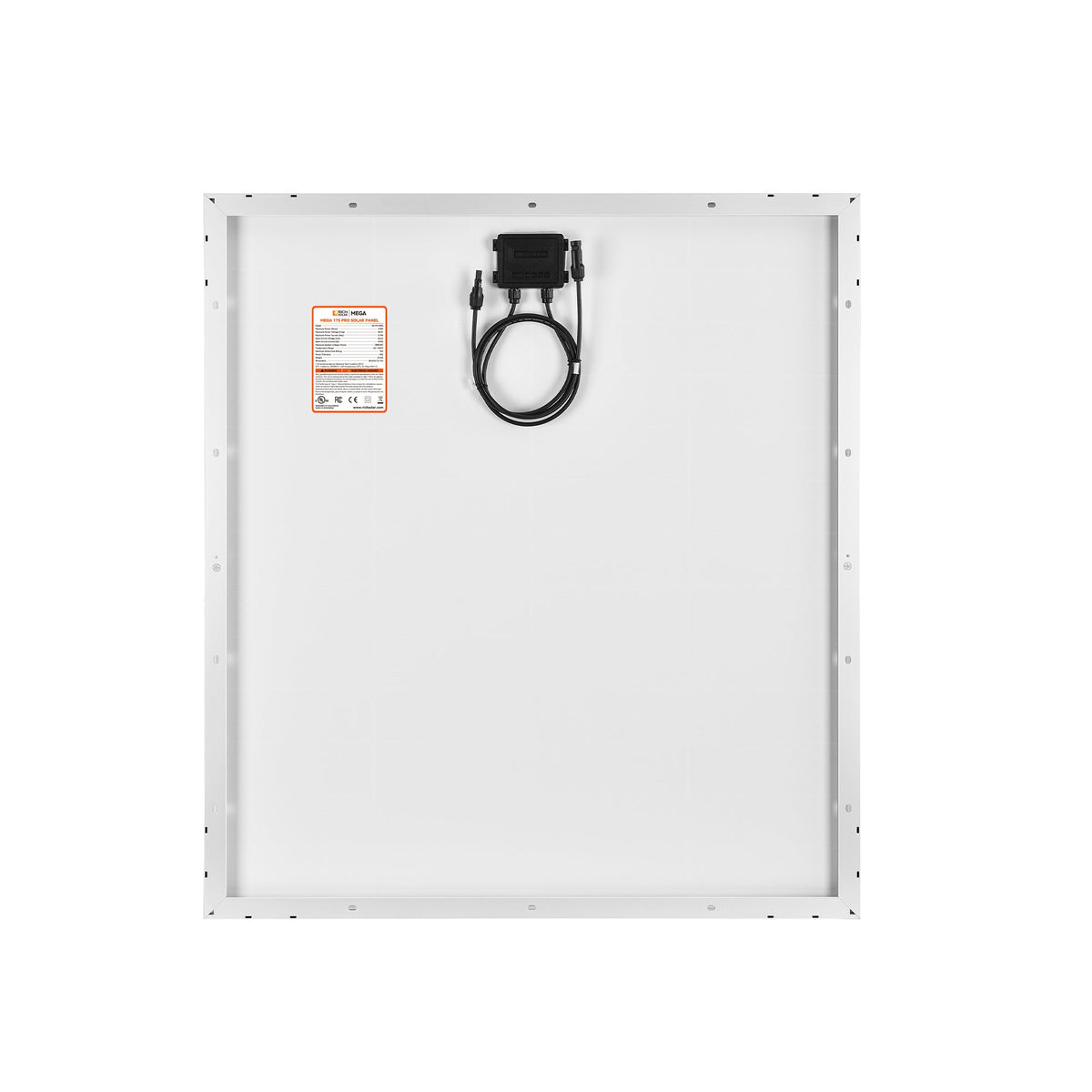

- Waterproof junction box and solar connectors
- Charge controller: an MPPT charge controller sized to your array — browse charge controllers
- Cable: 10 AWG solar extension cable pair with MC4 connectors — browse wiring & cables
- Mount: Z-brackets, tilt mounts or pole mounts — browse panel mounts
Want it all in one box? See our complete solar kits.
