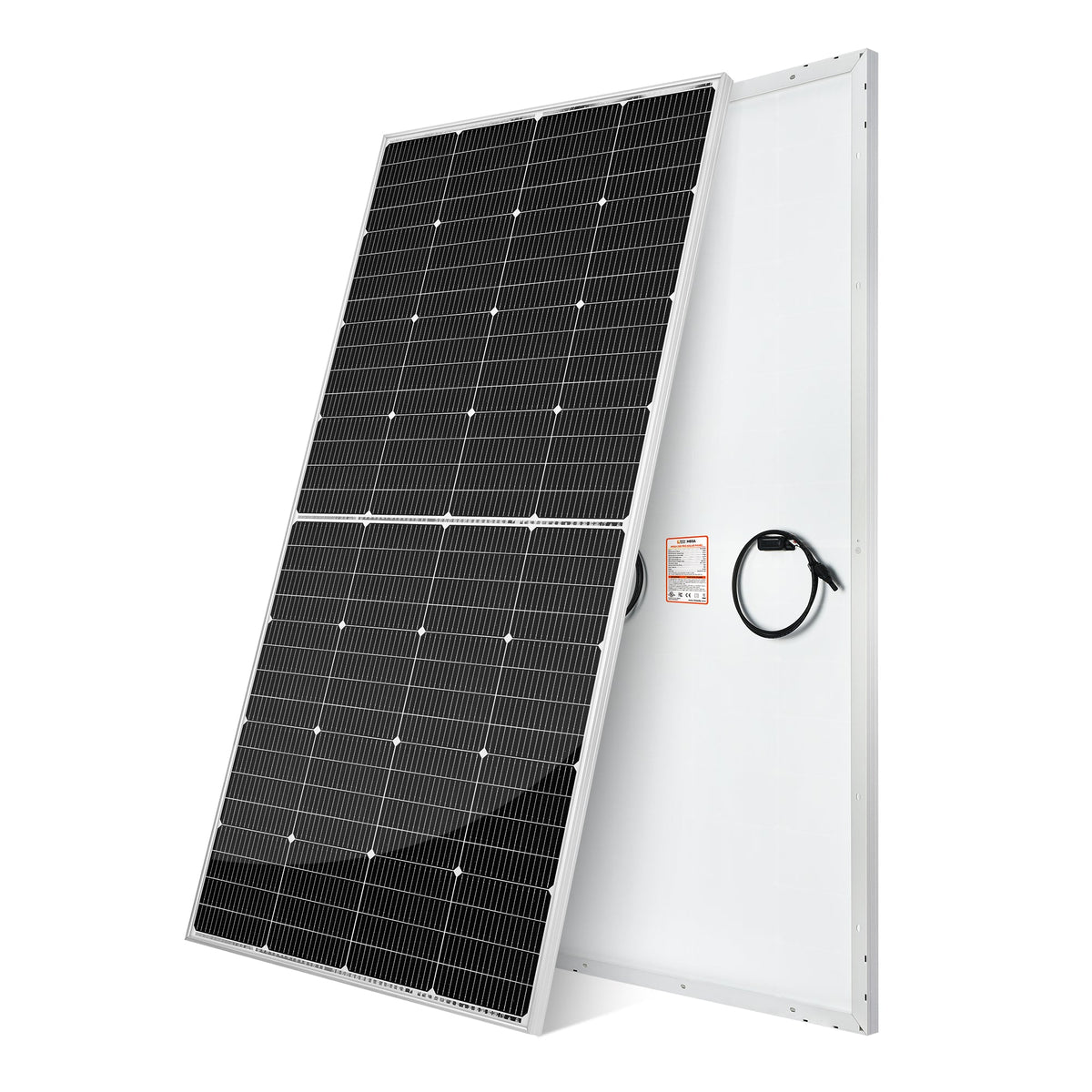

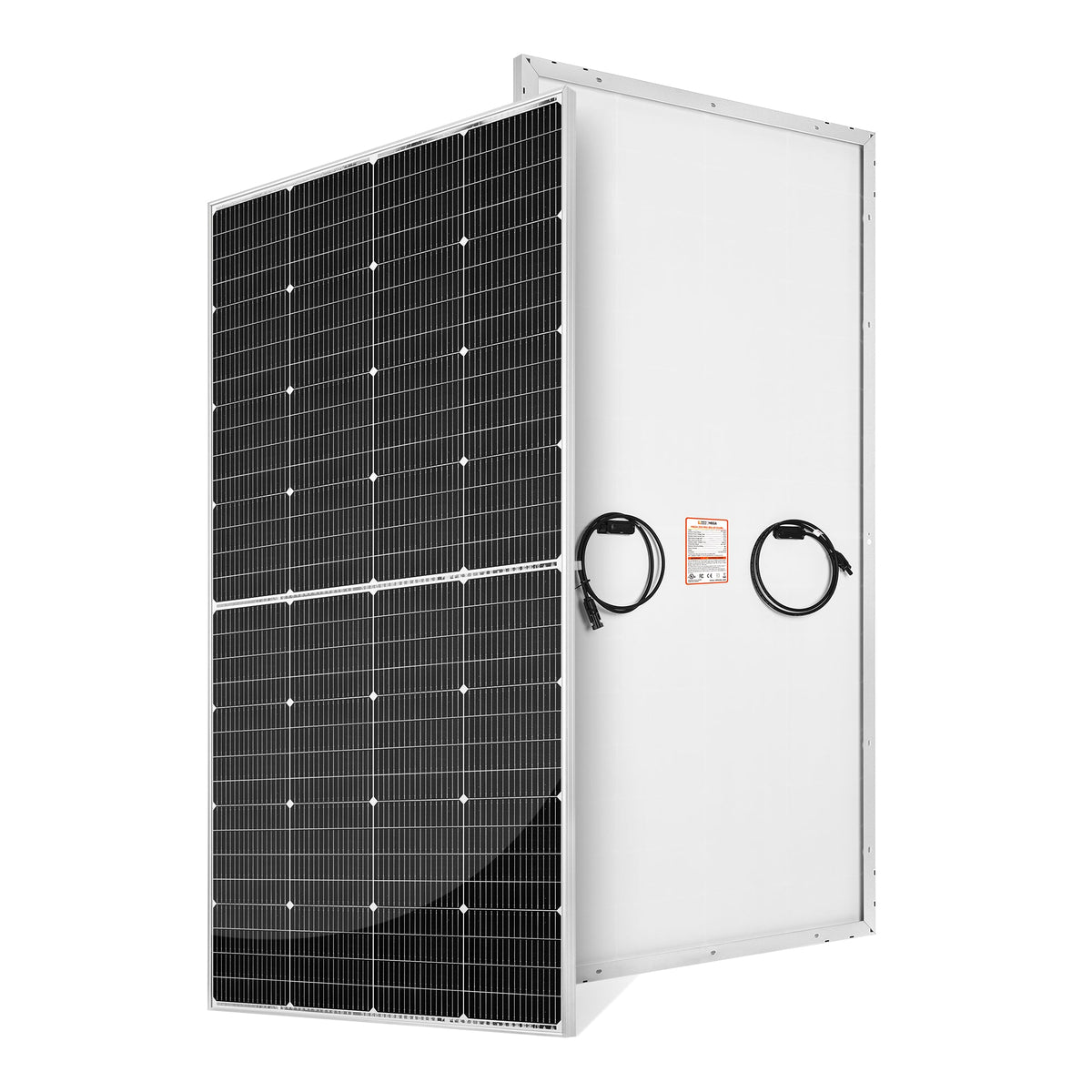

MEGA 250 Pro – 250W 24V Off-Grid Solar Panel
SKU:RS-M250P
Product Information
250W 24V Solar Panel for Cabins, Tiny Homes and 24V and 48V Systems
The MEGA 250 Pro produces roughly 1000–1250Wh on a clear day. That is enough to keep lights, a fridge, water pump and device charging going in cabins, tiny homes and 24V and 48V systems.
At 36.9V nominal it suits 24V and 48V battery banks through an MPPT controller, losing less power over long cable runs than a 12V panel. Wire several in series to raise array voltage within your controller's input limit.

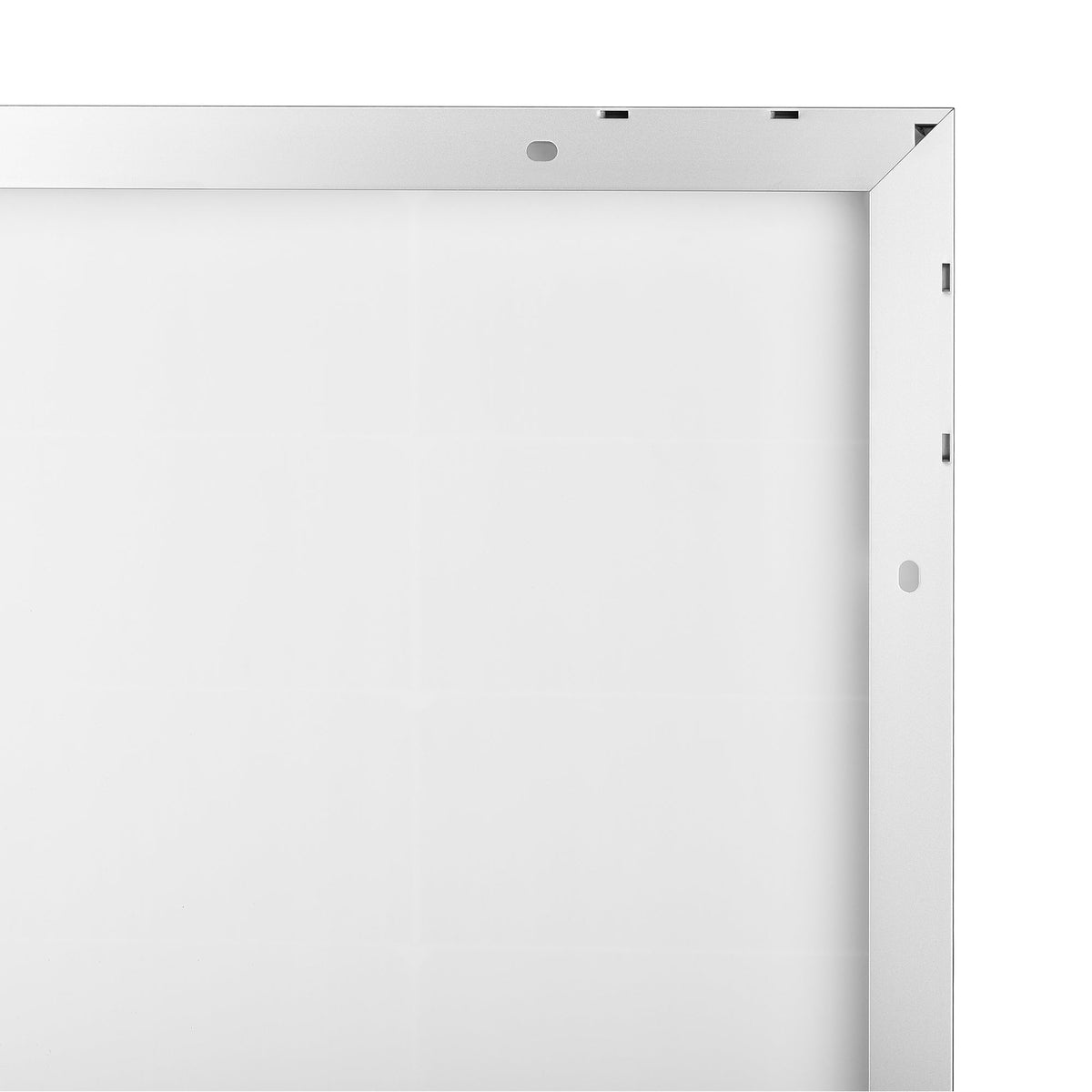

Anodized aluminum frame – lightweight, strong, and corrosion-resistant. MC4 connectors with 4 ft pre-attached cables for quick and easy installation. It takes standard Z-brackets on a flat roof, or a tilt mount to angle it toward winter sun. The panel measures 60.6 x 29.9 x 1.2 in and weighs 26.9 lb.
| Specification | Value |
|---|---|
| Maximum power (Pmax) | 250W |
| Open circuit voltage (Voc) | 44.7V |
| Maximum power voltage (Vmp) | 36.9V |
| Short circuit current (Isc) | 7.24A |
| Maximum power current (Imp) | 6.78A |
| Maximum system voltage | 1500 VDC |
| Nominal battery voltage | 24V |

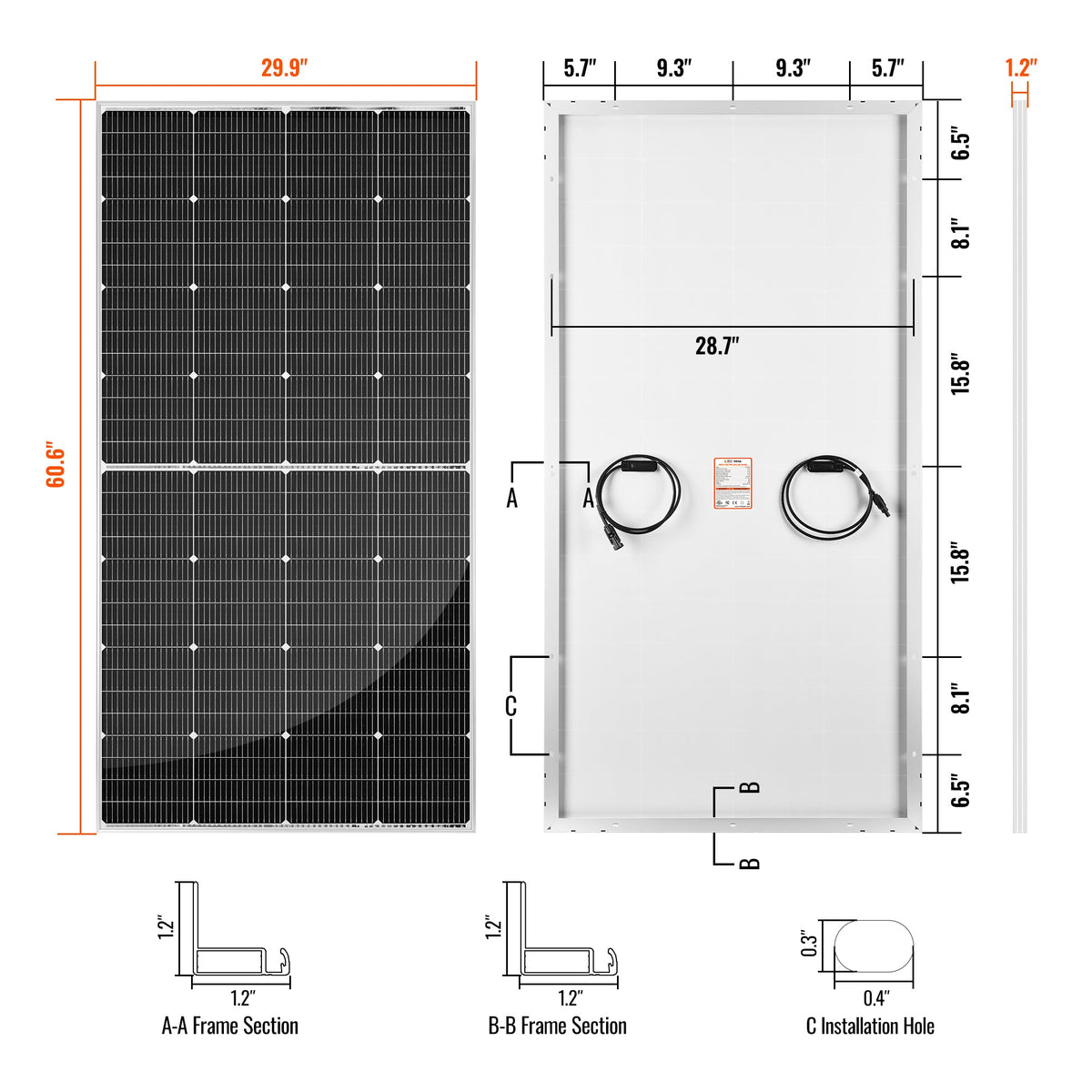

| Dimensions | 60.6 x 29.9 x 1.2 in |
| Weight | 26.9 lb |
| Frame | Anodized aluminum frame |
| Connectors | MC4 connectors with 4 ft pre-attached cables for quick and easy installation |
| Certifications | UL 61730, IEC 61215, and CSA C22.2 standards |
| Warranty | 25-year output warranty |
- 1 x MEGA 250 Pro 250W 24V solar panel
- Panel Leads (Pair): 12 AWG, 4 ft each

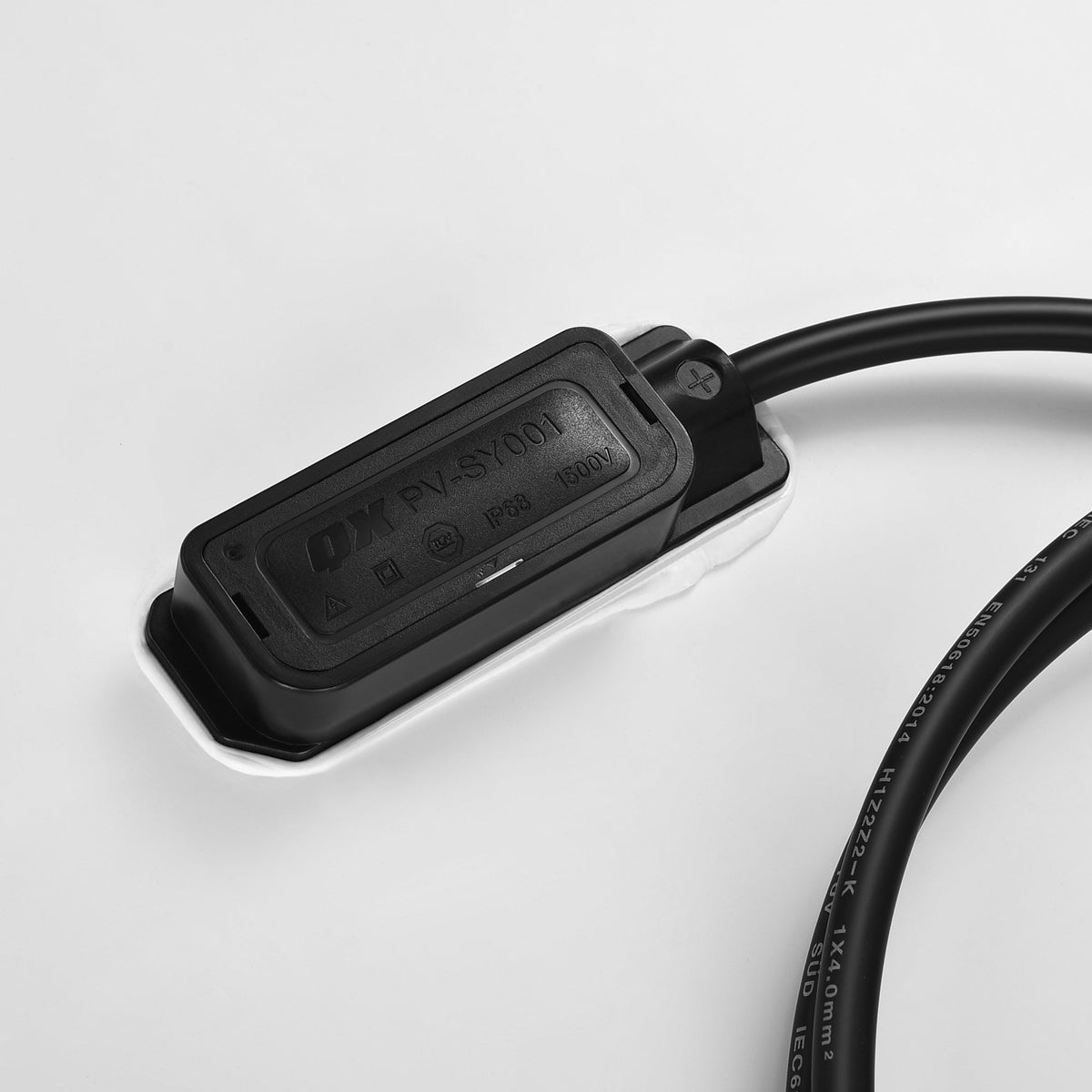

- Waterproof junction box and solar connectors
- Charge controller: an MPPT charge controller sized to your array — browse charge controllers
- Cable: 10 AWG solar extension cable pair with MC4 connectors — browse wiring & cables
- Mount: Z-brackets, tilt mounts or pole mounts — browse panel mounts
Want it all in one box? See our complete solar kits.
