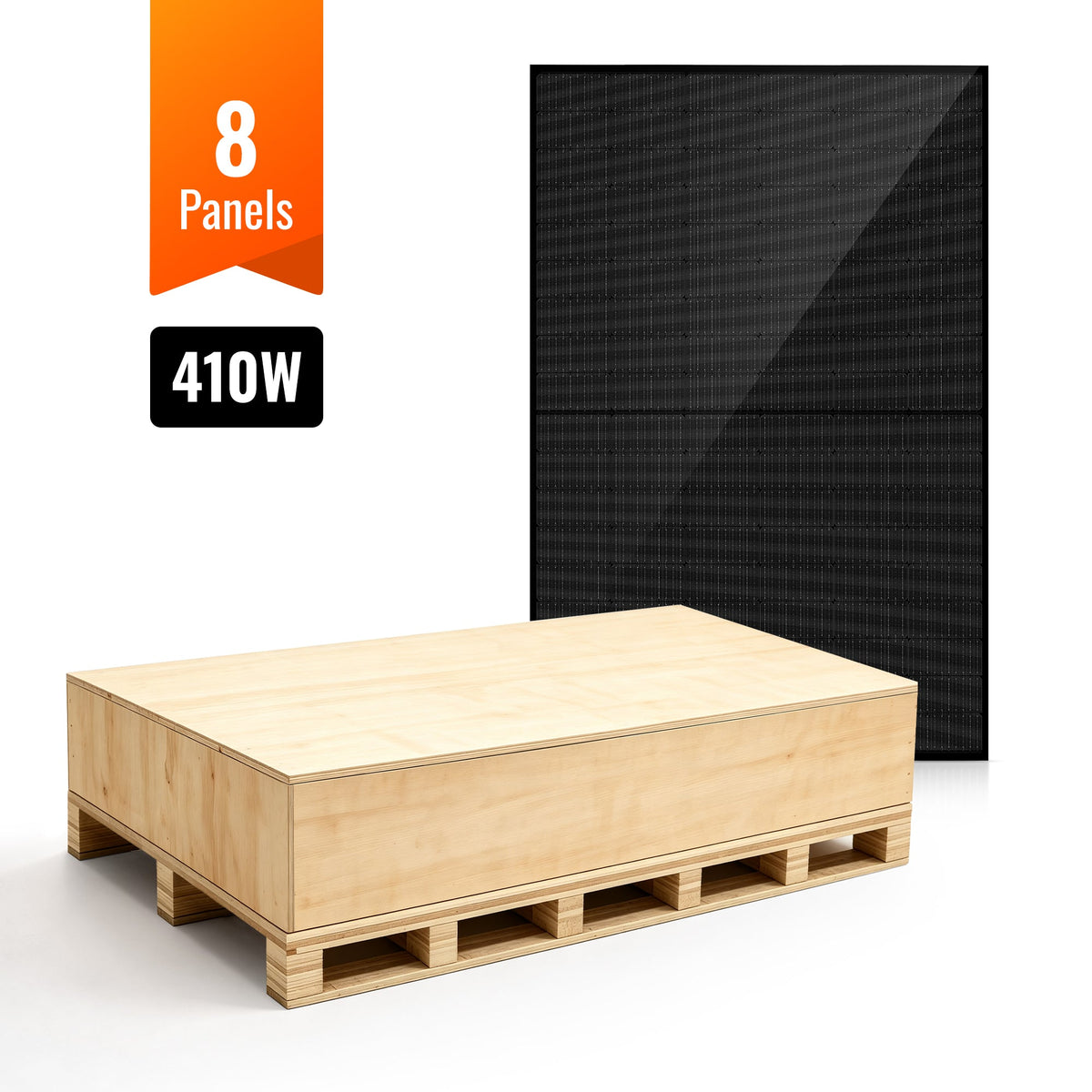

MEGA 410 – 410W 24V Solar Panel Pallet
SKU:RS-M410-8
Product Information
410W 24V Solar Panel for Cabins, Homes and Ground-Mount Arrays
Each MEGA 410 module produces 410W, so an 8-panel pallet delivers around 3.3kW of array. On a clear day that is roughly 15kWh, enough to run a cabin or a well-equipped off-grid home.
At 31.3V nominal it suits 24V and 48V battery banks through an MPPT controller, losing less power over long cable runs than a 12V panel. Wire several in series to raise array voltage within your controller's input limit.

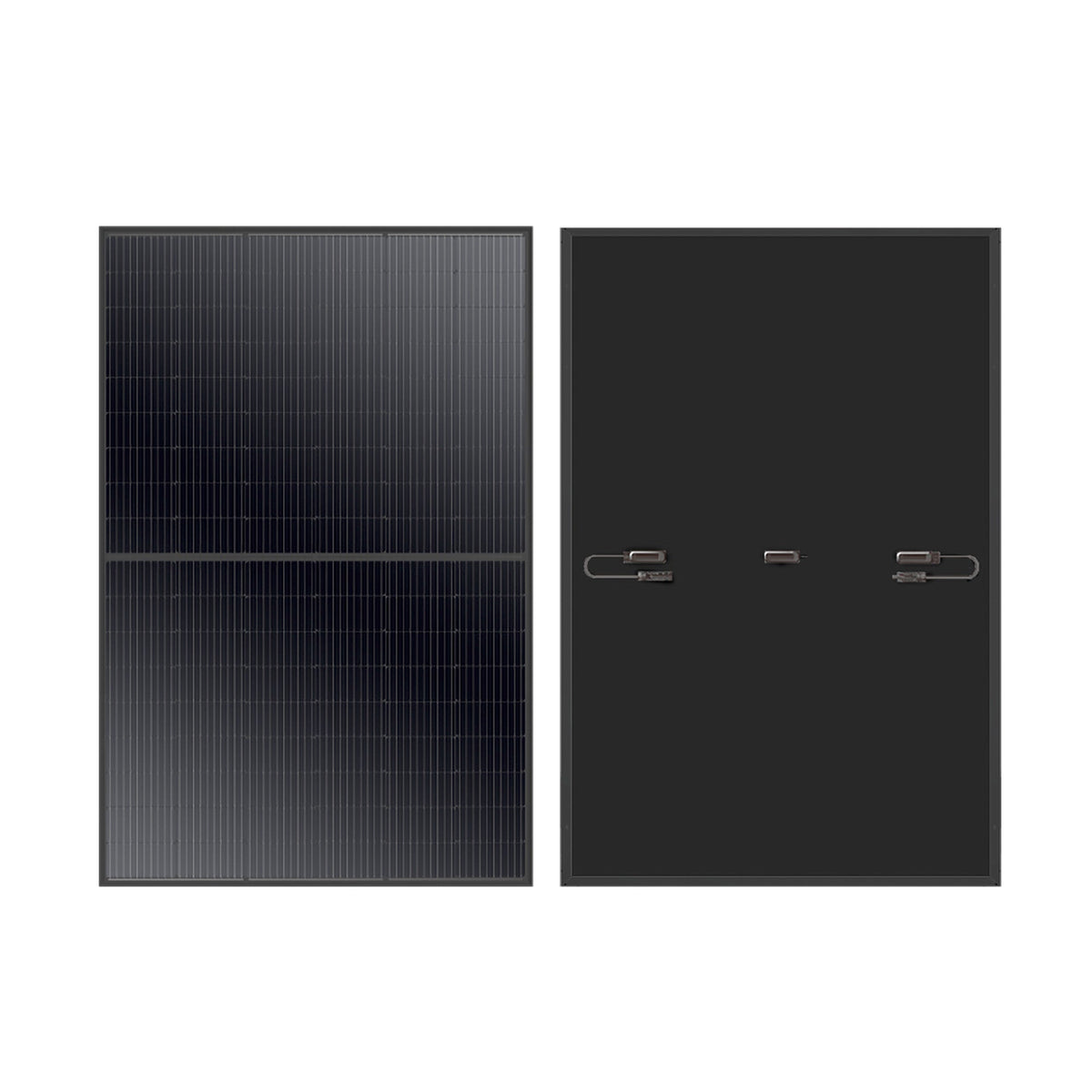

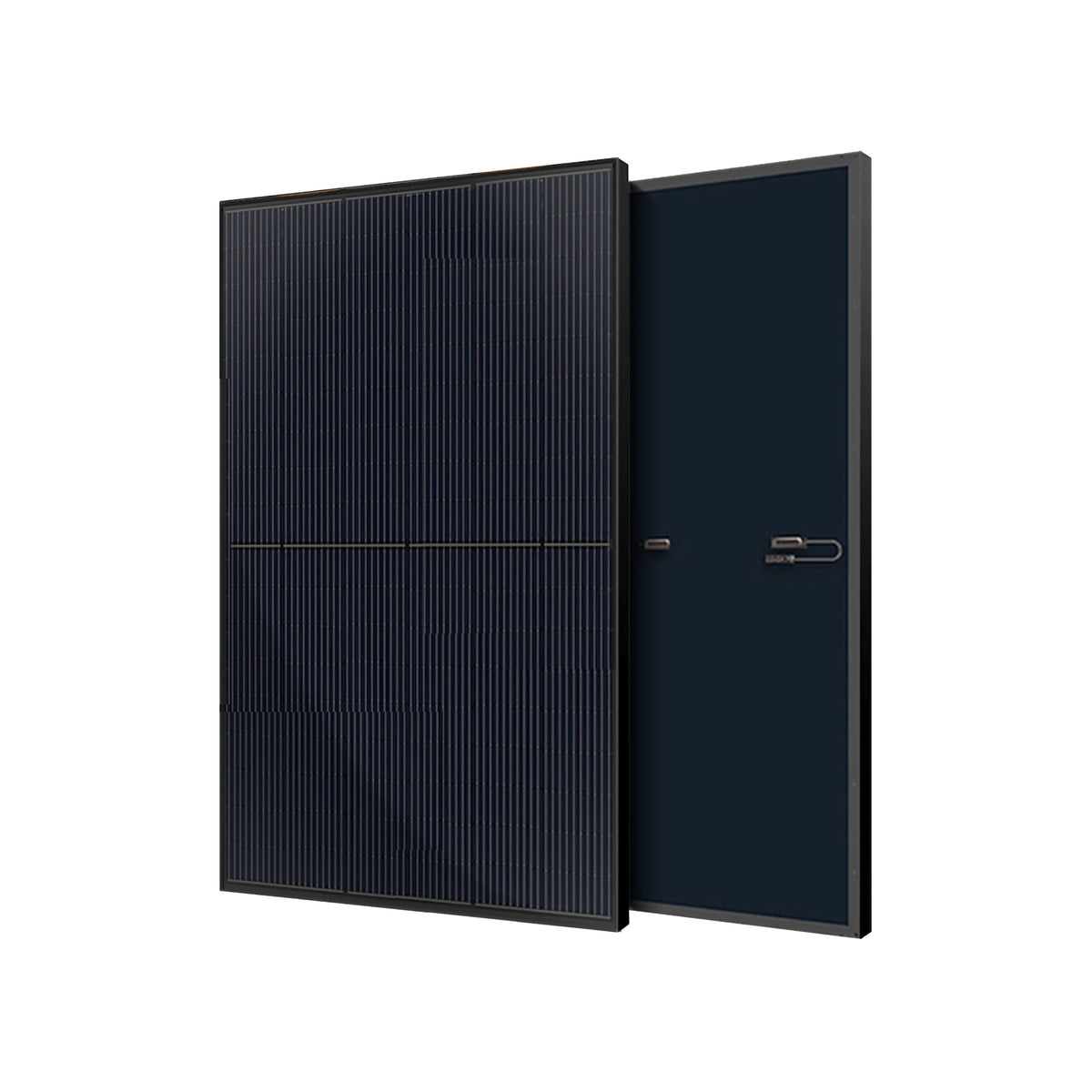

Anodized aluminum frame – lightweight, strong, and corrosion-resistant. MC4 connectors with 4 ft pre-attached cables for quick and easy installation. It takes standard Z-brackets on a flat roof, or a tilt mount to angle it toward winter sun. The panel measures 67.8 x 44.7 x 1.2 in and weighs 45.2 lb.
| Specification | Value |
|---|---|
| Maximum power (Pmax) | 410W |
| Open circuit voltage (Voc) | 37.5V |
| Maximum power voltage (Vmp) | 31.3V |
| Short circuit current (Isc) | 13.8A |
| Maximum power current (Imp) | 13.1A |
| Maximum system voltage | 1500VDC |
| Nominal battery voltage | 24V |
| Dimensions | 67.8 x 44.7 x 1.2 in |
| Weight | 45.2 lb |
| Frame | Anodized aluminum frame |
| Connectors | MC4 connectors with 4 ft pre-attached cables for quick and easy installation |
| Certifications | UL 61730, IEC 61215, and CSA C22.2 standards |
| Warranty | 25-year limited power output warranty |

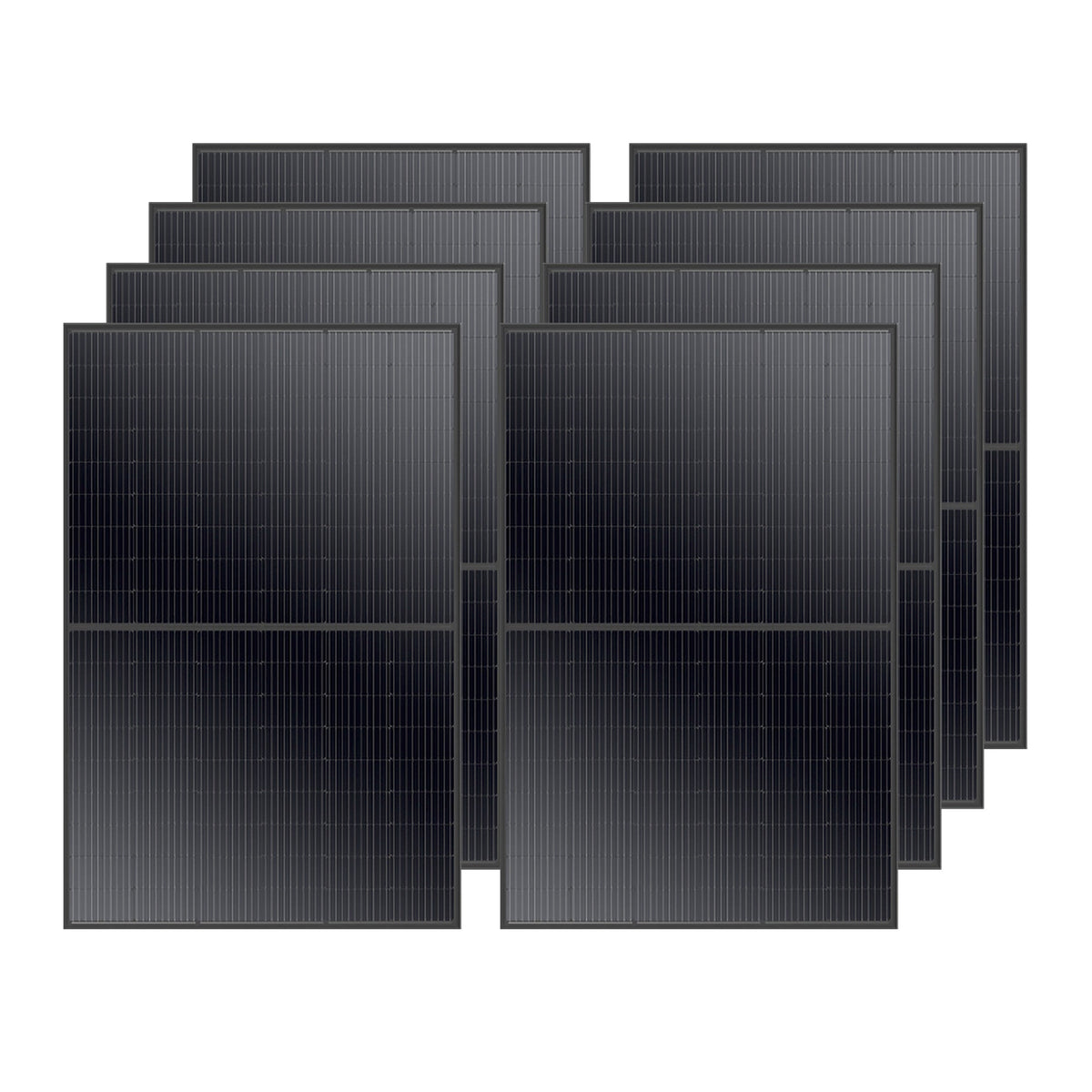

- 8 x MEGA 410 410W solar panels
- Panel Leads (Pair): 12 AWG, 4 ft each
- Waterproof junction box and solar connectors
- Charge controller: an MPPT charge controller sized to your array — browse charge controllers
- Cable: 10 AWG solar extension cable pair with MC4 connectors — browse wiring & cables
- Mount: Z-brackets, tilt mounts or pole mounts — browse panel mounts
Want it all in one box? See our complete solar kits.
