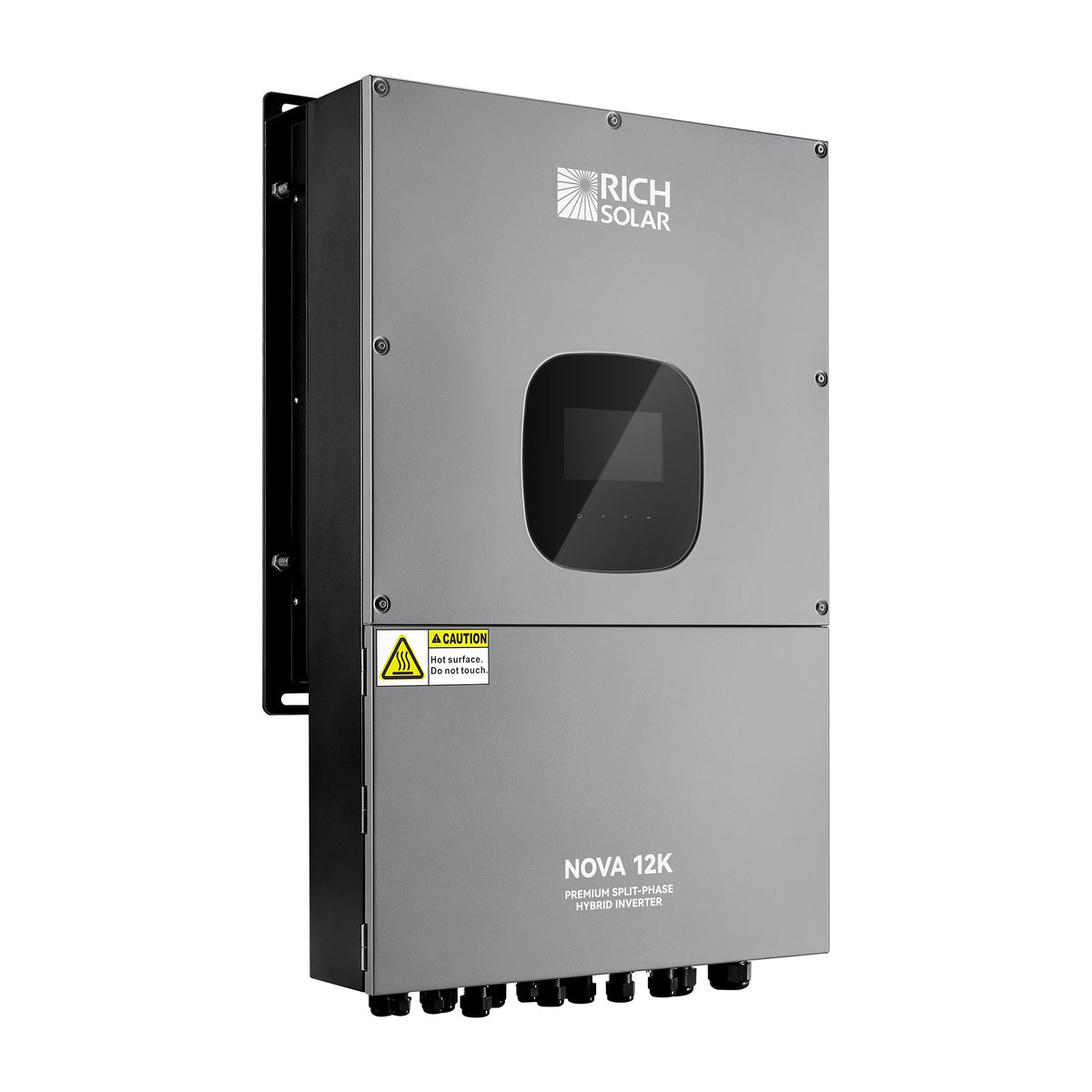

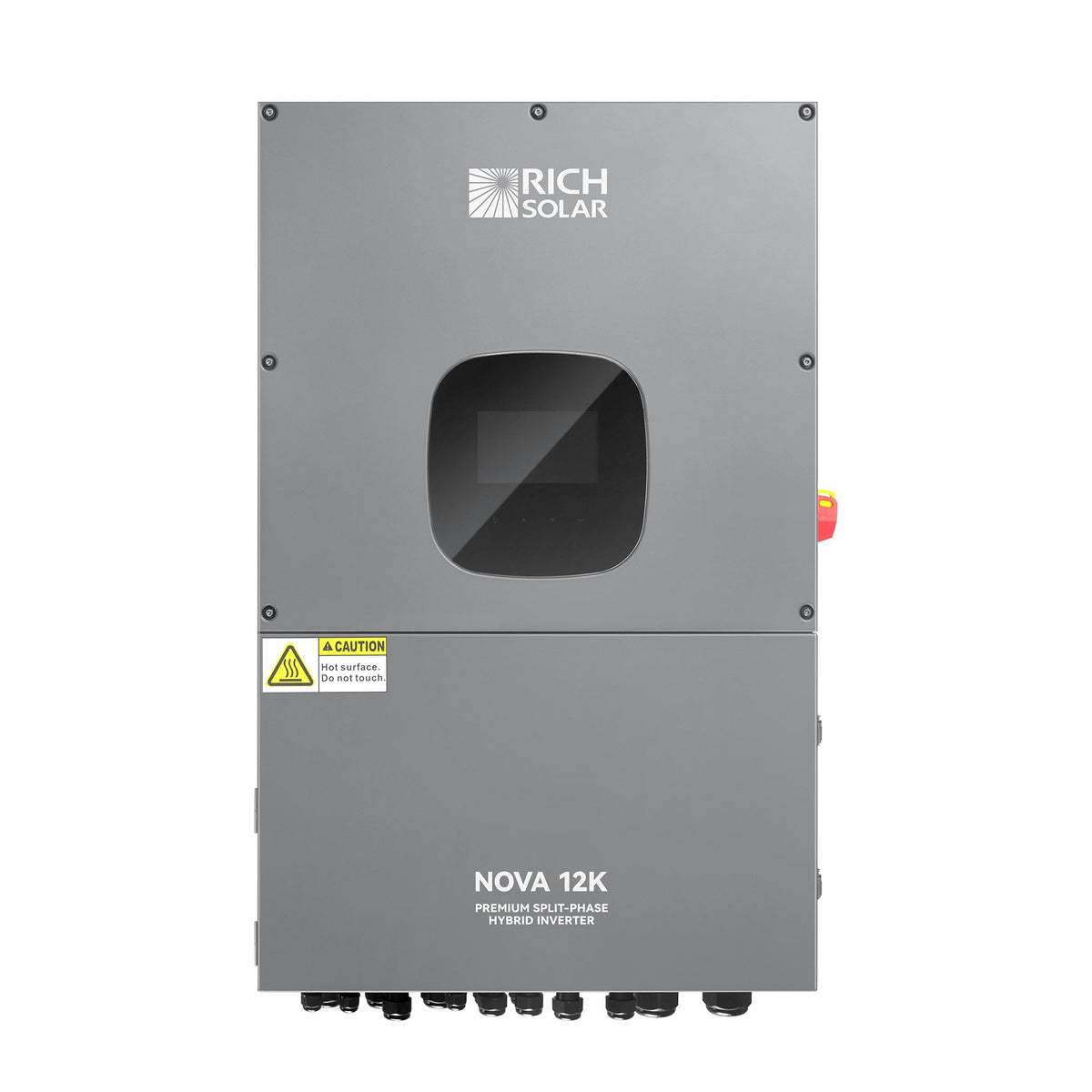

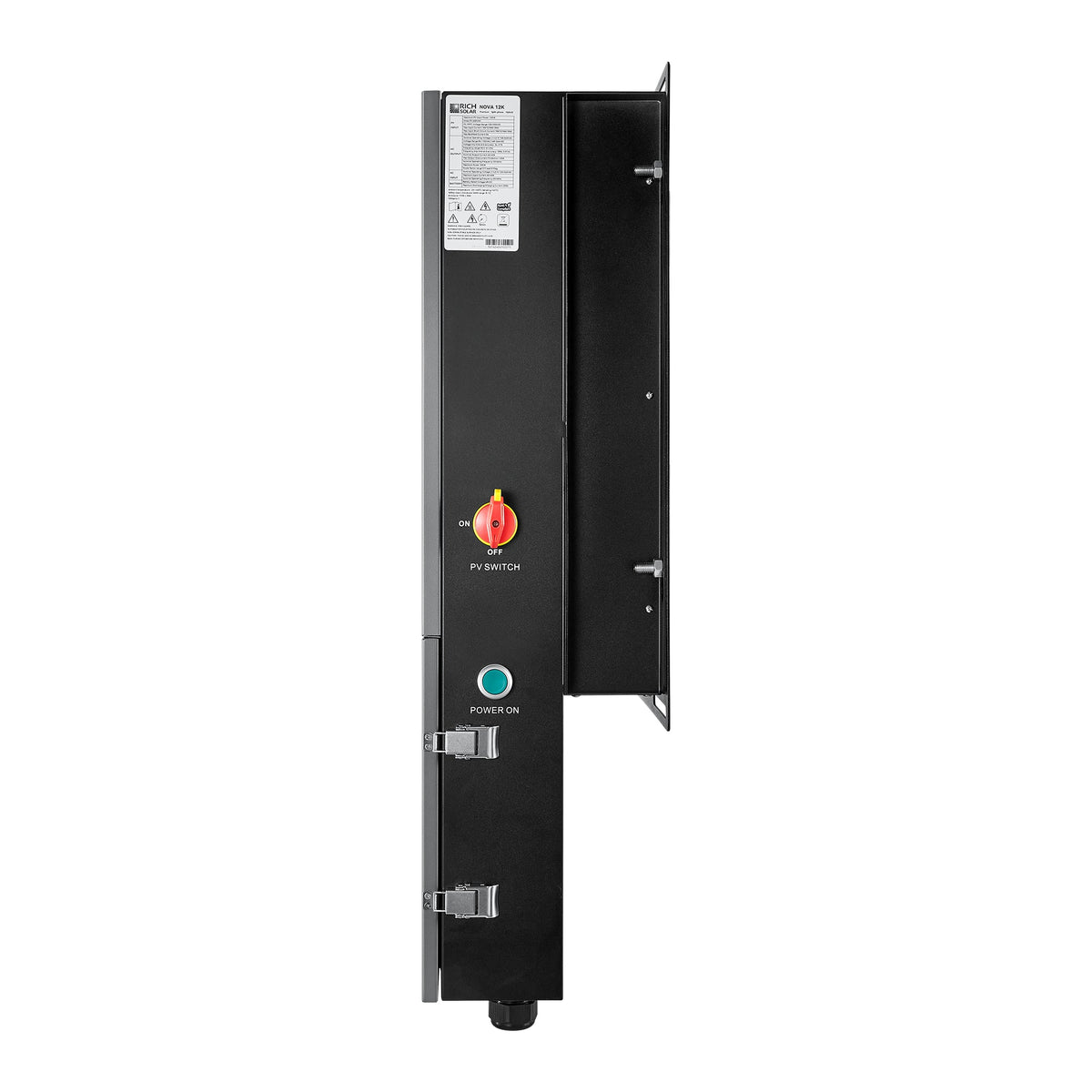

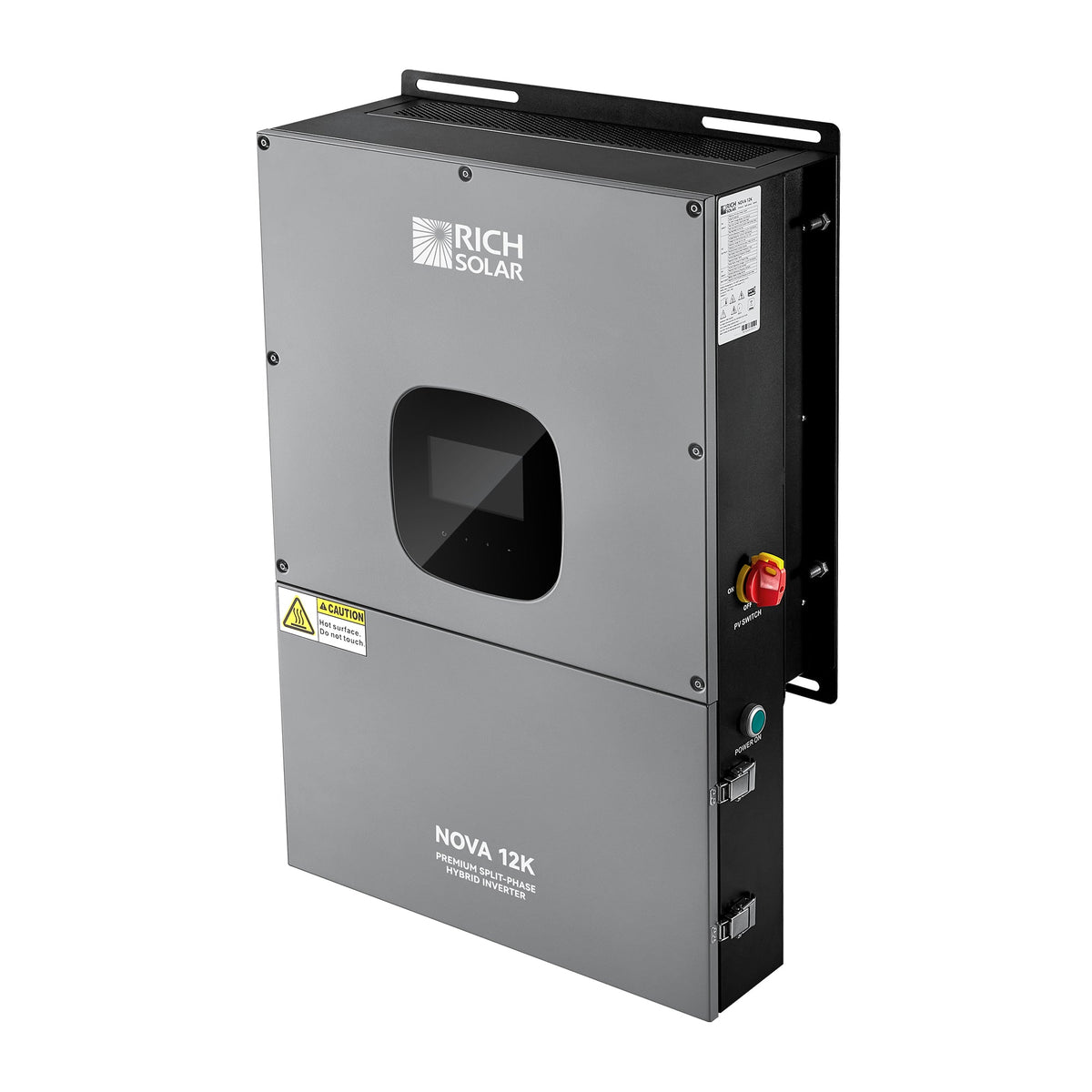

NOVA 12K – 10,000W 48V Split-Phase Hybrid Inverter
10,000W 48V hybrid inverter.
SKU:RS-H12K
Regular price
$2,999.99 USD
10,000W continuous output.
48V DC input, pure sine wave output at 120VAC (P-N) / 208VAC (P-P) / 240VAC (P-P).
Built-in MPPT solar charging — up to 12,000W of panels.
UL 1741SA/SB, CSA C22.2 No. 107.1, IEEE 1547.
Need help choosing the right kit?
Talk to a Solar Expert:
1-332-291-6885
Quantity
Quantity
Guaranteed Safe Checkout
Deliver to
Get it between
Product Information
10,000W 48V Hybrid Inverter for Whole-Home Backup and Large Off-Grid Systems
The NOVA 12K does three jobs in one box: it inverts 48V battery power to AC, runs an MPPT solar charge controller taking up to 12,000W of panels, and charges the batteries from the grid or a generator when the sun falls short.
Pure sine wave output matters for anything with a motor, a compressor or a circuit board — laptops, microwaves, fridges, CPAP machines and power tools all run cooler and quieter on it than on modified sine.
Size the battery bank to the load, not just the inverter: a 10,000W inverter can draw well over 208A from a 48V bank at full output, so cable gauge and battery discharge rating matter as much as the inverter itself. Call us on 1-332-291-6885 if you want the sizing checked.
| Specification | Value |
|---|---|
| Maximum DC Power | 12,000W |
| Working DC Voltage Range | 120–550VDC |
| Maximum DC Voltage | 600VDC |
| Start-up Voltage | 125VDC |
| MPPT | Dual Inputs – 2 × 18A (30A Max) |
| AC Start-up Voltage | 85VAC per Phase |
| Auto Restart Voltage | 90VAC per Phase |
| Acceptable Input Voltage Range | 85–140VAC per Phase |
| Nominal Frequency | 50Hz / 60Hz |
| AC Input Power | 10,000VA / 10,000W |
| Maximum AC Input Current | 60A |
| Rated Power | 10,000VA / 10,000W |
| Output Voltage | 120VAC (P-N) / 208VAC (P-P) / 240VAC (P-P) |
| Output Frequency | 50Hz / 60Hz (Auto Sensing) |
| Output Current | 41.7A per Phase |
| Output Waveform | Pure Sine Wave |
| Efficiency (DC to AC) | 91% |
| Nominal DC Voltage | 48VDC |
| Maximum Battery Discharging Current | 200A |
| Maximum Charging Current | 200A |
| Safety Standards | UL 1741SA/SB, CSA C22.2 No. 107.1, IEEE 1547 |
| Regulatory Compliance | CEC Listed, FCC Part 15 Class B |
| Grid Compliance | CA Rule 21 and HECO Rule 14H |
| Communication Interface | RS232, USB, BMS, WiFi |
| Ingress Protection | IP65 |
| Operating Temperature | -13°F to 140°F |

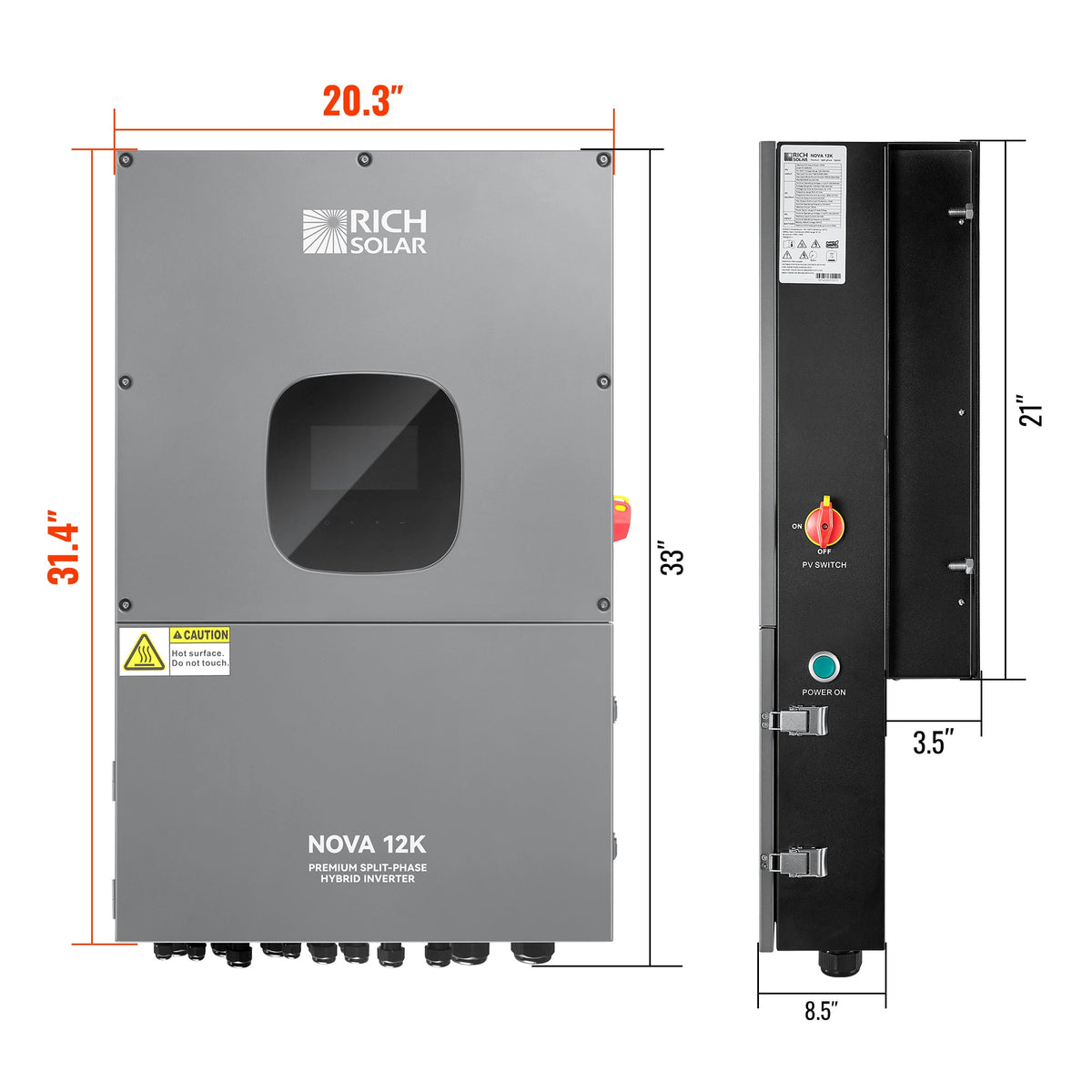

| Dimensions | 8.5 × 20.3 × 28.1 in |
| Net Weight | 112 lb |
- 1 x NOVA 12K
- Advanced safety features include AFD (NEC 690.11), RSD (NEC 690.12), ground fault detection (NEC 690.5), and PV input lightning protection.
- User manual
Free Shipping
On all orders
30-Day Returns
Hassle-free returns
25 Year Warranty
On panels & more
Secure Payments
100% protected
Frequently Asked Questions
What can this inverter run?
Anything up to 10,000W continuous. That covers lights, a fridge, laptops and power tools, and larger loads like a microwave or small air conditioner. The daily total depends on your battery bank, not the inverter.
What size battery do I need?
Work from your daily watt-hours, not the inverter rating. As a rule, a 48V bank should be able to deliver the inverter's full output without exceeding its discharge rating, and this unit charges at up to 200A. We can size it with you on 1-332-291-6885.
Can it charge from the grid or a generator?
Yes. It accepts AC input from the grid or a generator and charges the batteries at up to 200A, as well as charging from solar.
