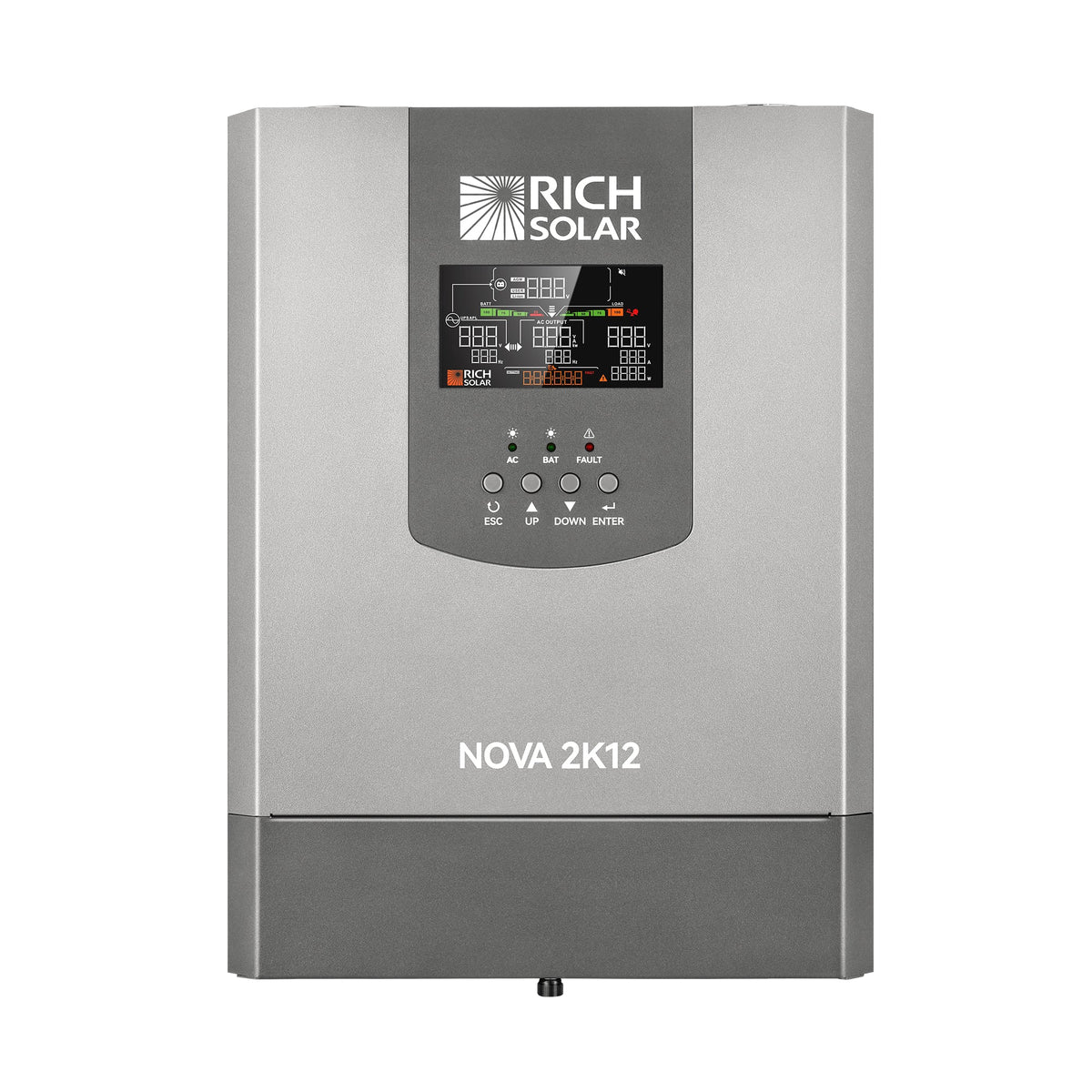

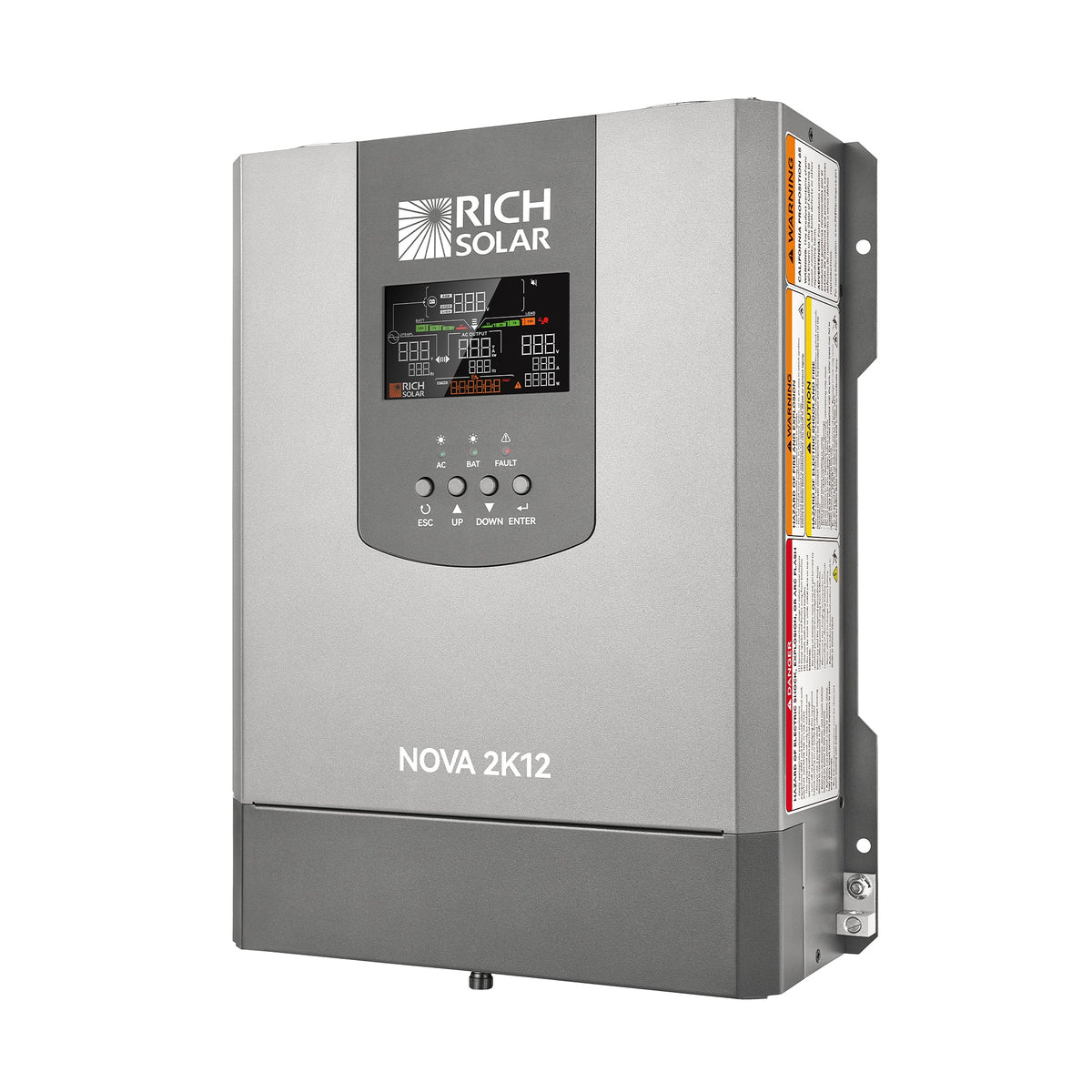

NOVA 2K12 – 2,000W 12V Inverter with Transfer Switch
SKU:RS-V2P12TS
Product Information
2,000W 12V Pure Sine Wave Inverter for RVs and Vans on Shore Power
The NOVA 2K12 delivers 2,000W of pure sine wave AC from a 12V battery, and its built-in transfer switch hands over to shore power automatically whenever you plug in — no manual switching, no interruption to what is running.
Pure sine wave output matters for anything with a motor, a compressor or a circuit board — laptops, microwaves, fridges, CPAP machines and power tools all run cooler and quieter on it than on modified sine. Total harmonic distortion stays <5%.
Size the battery bank to the load, not just the inverter: a 2,000W inverter can draw well over 167A from a 12V bank at full output, so cable gauge and battery discharge rating matter as much as the inverter itself. Call us on 1-332-291-6885 if you want the sizing checked.
| Specification | Value |
|---|---|
| Nominal DC Voltage | 12V DC |
| Operating voltage range | LBCO–18.0V DC |
| Nominal current at full load | 192A DC |
| Nominal Input Voltage | 120V AC |
| Operating Voltage Range | 80–140V AC (Full Power) |
| Input Frequency | 50Hz / 60Hz Selectable |
| Rated Output Power | 2000W |
| Surge Power | 4000W (5 sec) |
| Output voltage options | 120V AC, 110V AC, or 108V AC |
| Continuous current | 16.7A |
| Output Frequency | 50Hz or 60Hz Selectable |
| Total Harmonic Distortion (THD) | <5% |
| Peak Efficiency | 91% |
| Transfer Time | <20ms |
| Transfer Relay Rating (A) | 30A |
| Communication | RS232 / RS485 |
| Operating Temperature | -40°F to 160°F |
| Operating Humidity | 5%–95% RH (Non-Condensing) |

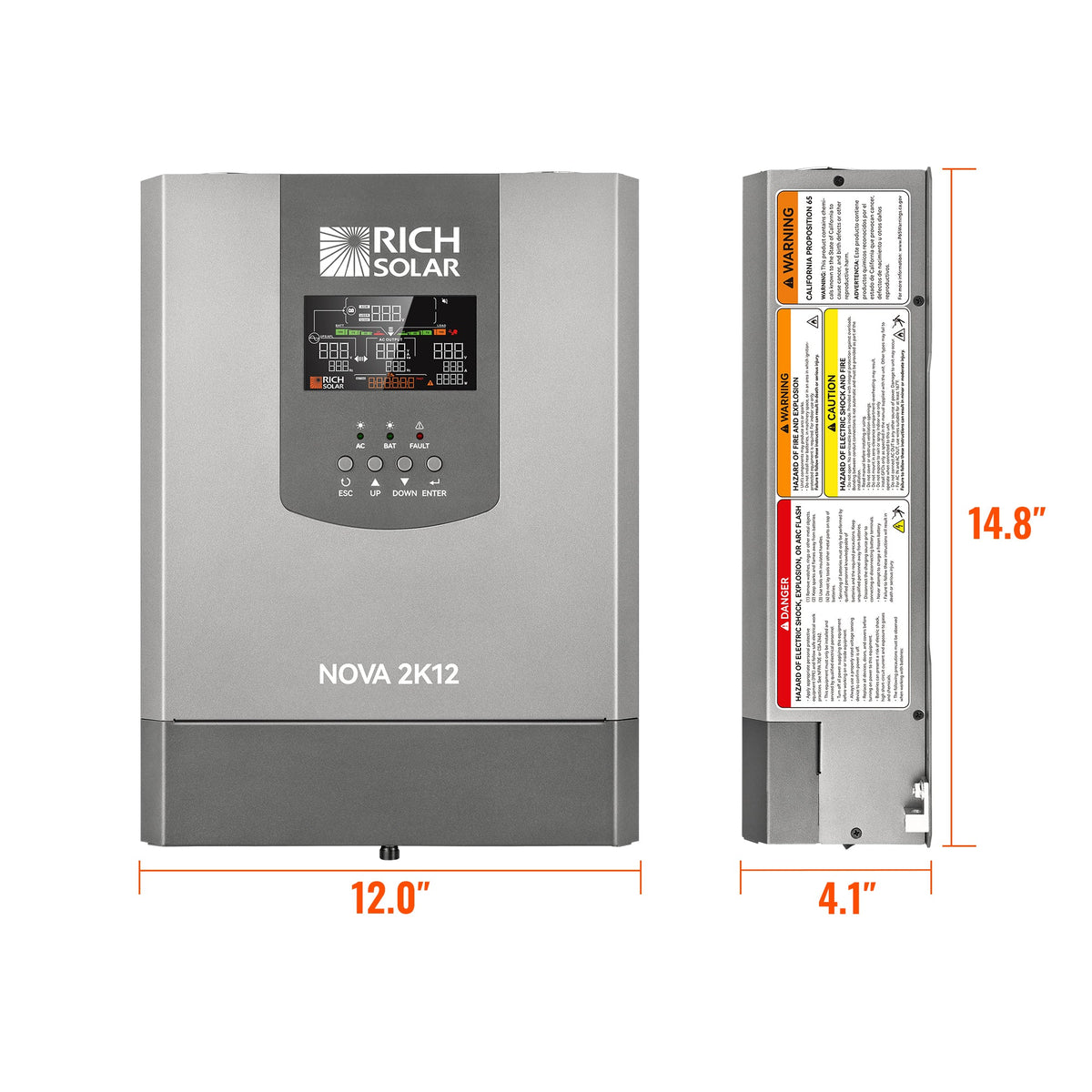

| Dimensions | 14.8 × 12.0 × 4.1 in |
| Net Weight | 15.9 lb |
| Package Dimensions | 20 × 9 × 17 in |
| Gross Weight | 21 lb |
| Safety Certification | UL 458 |
| EMC Compliance | FCC Part 15 |
- 1 x NOVA 2K12
- Supports automatic inverter ON/OFF with the vehicle's ignition circuit or a manual remote switch.
- User manual
