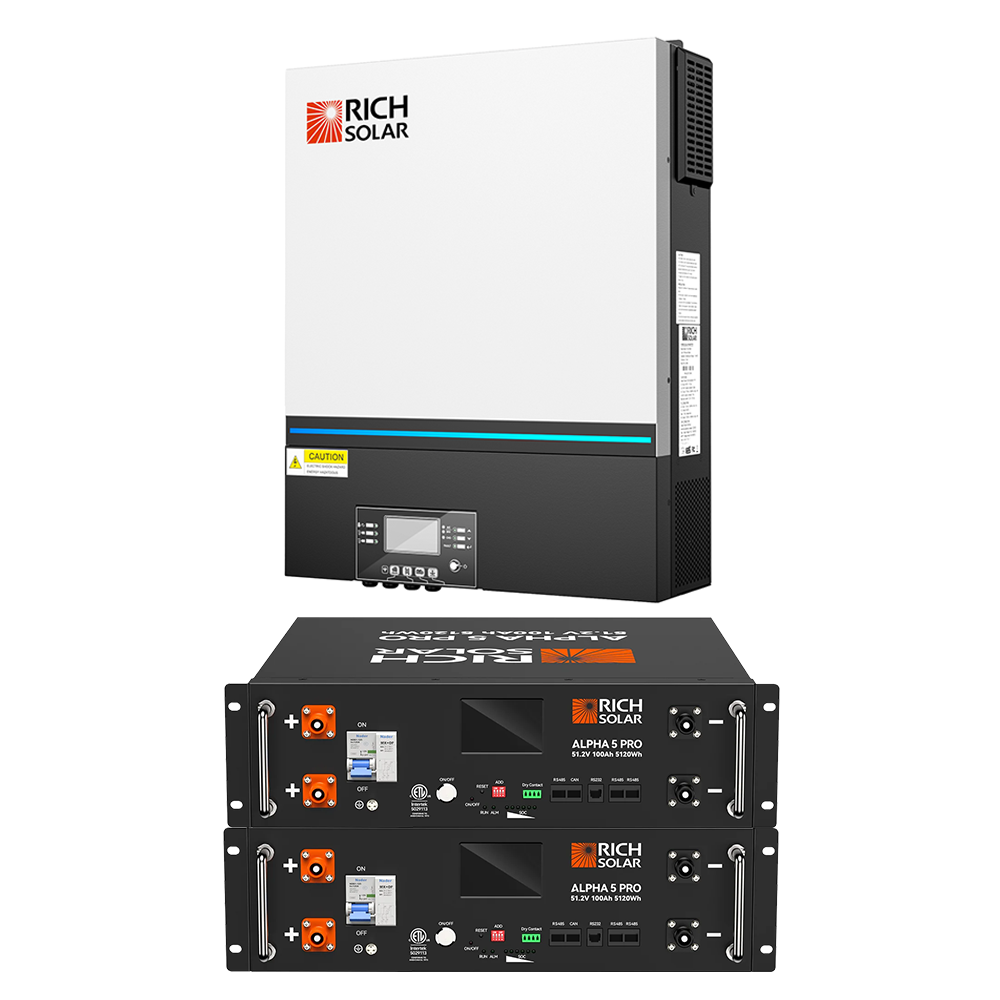

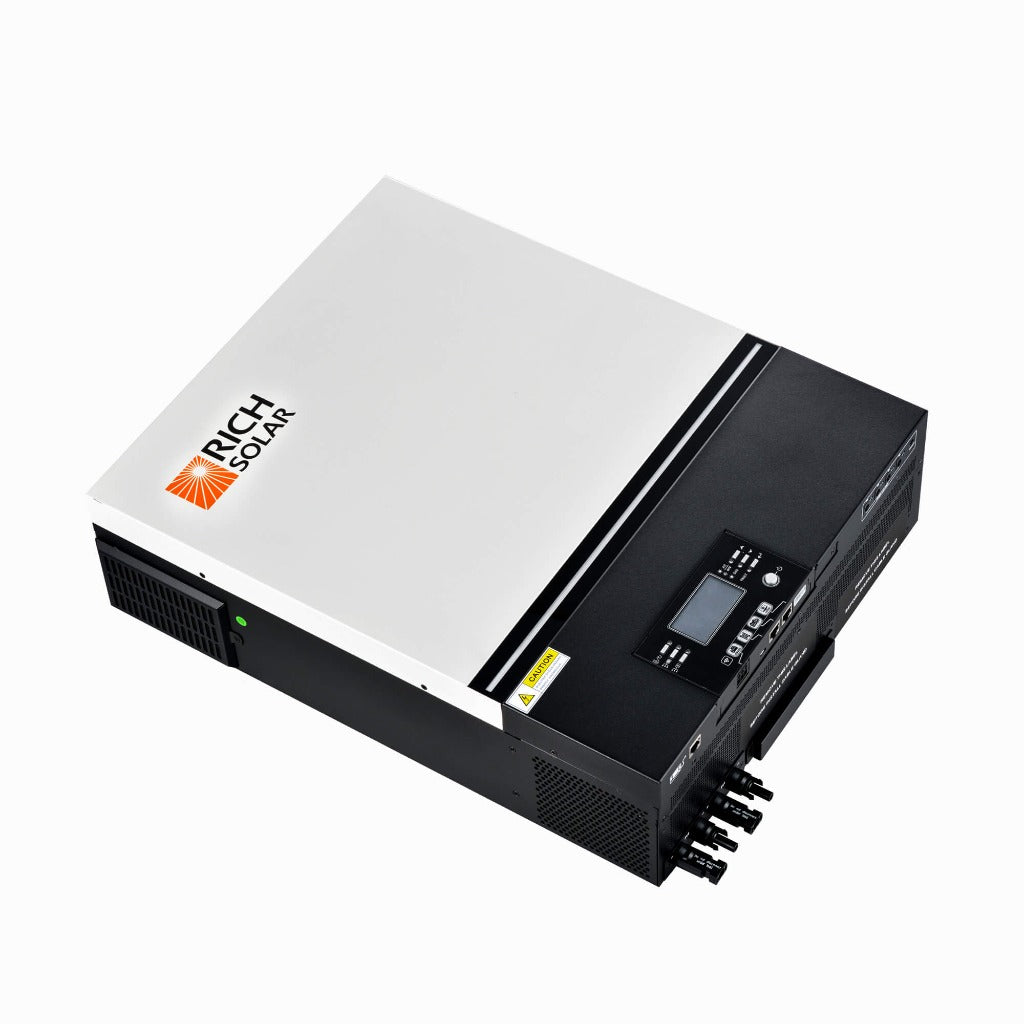

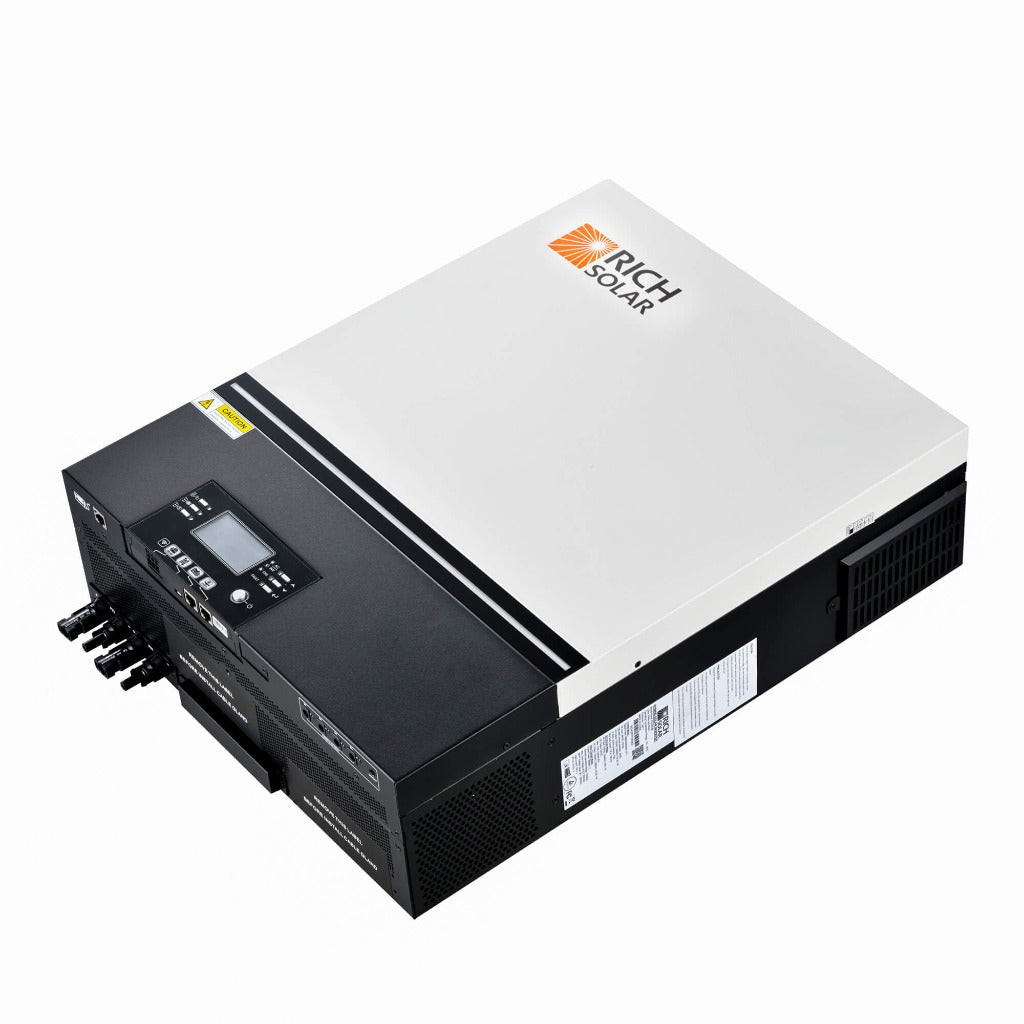

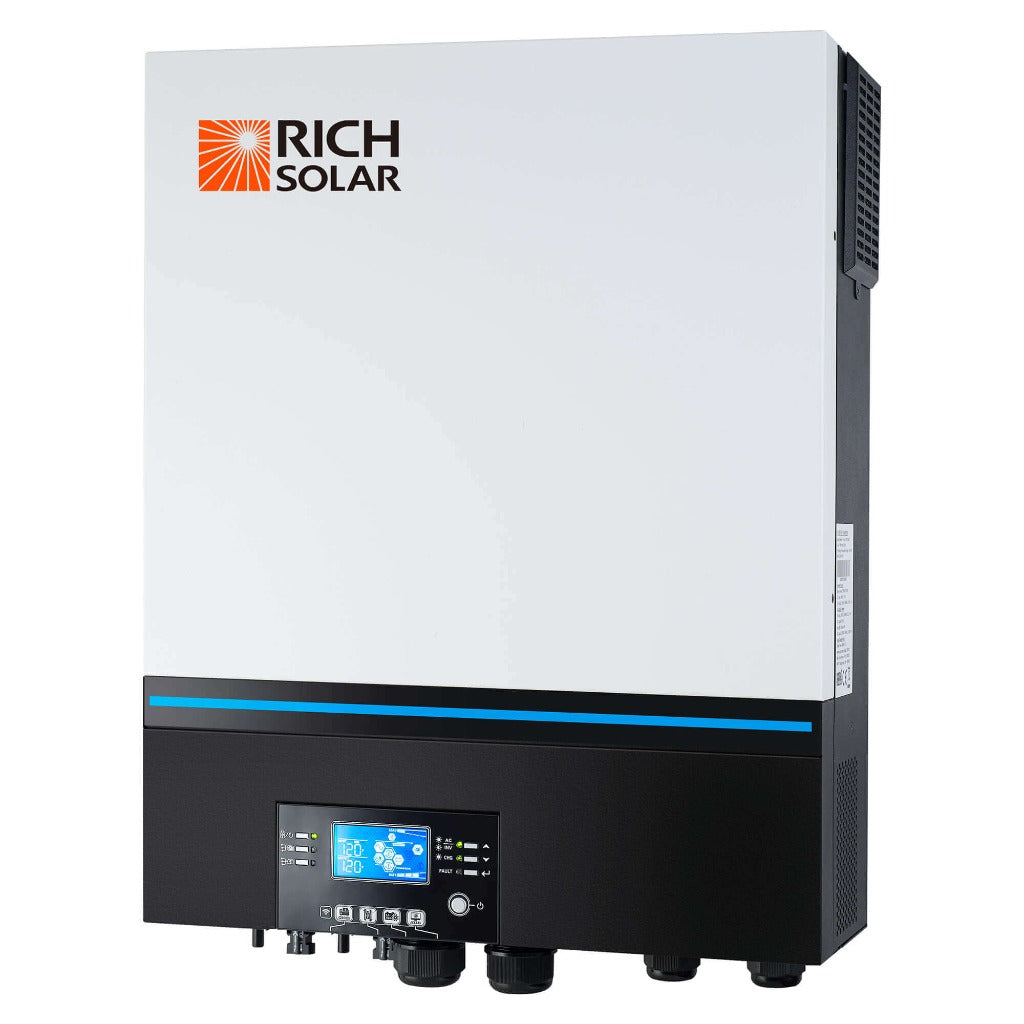

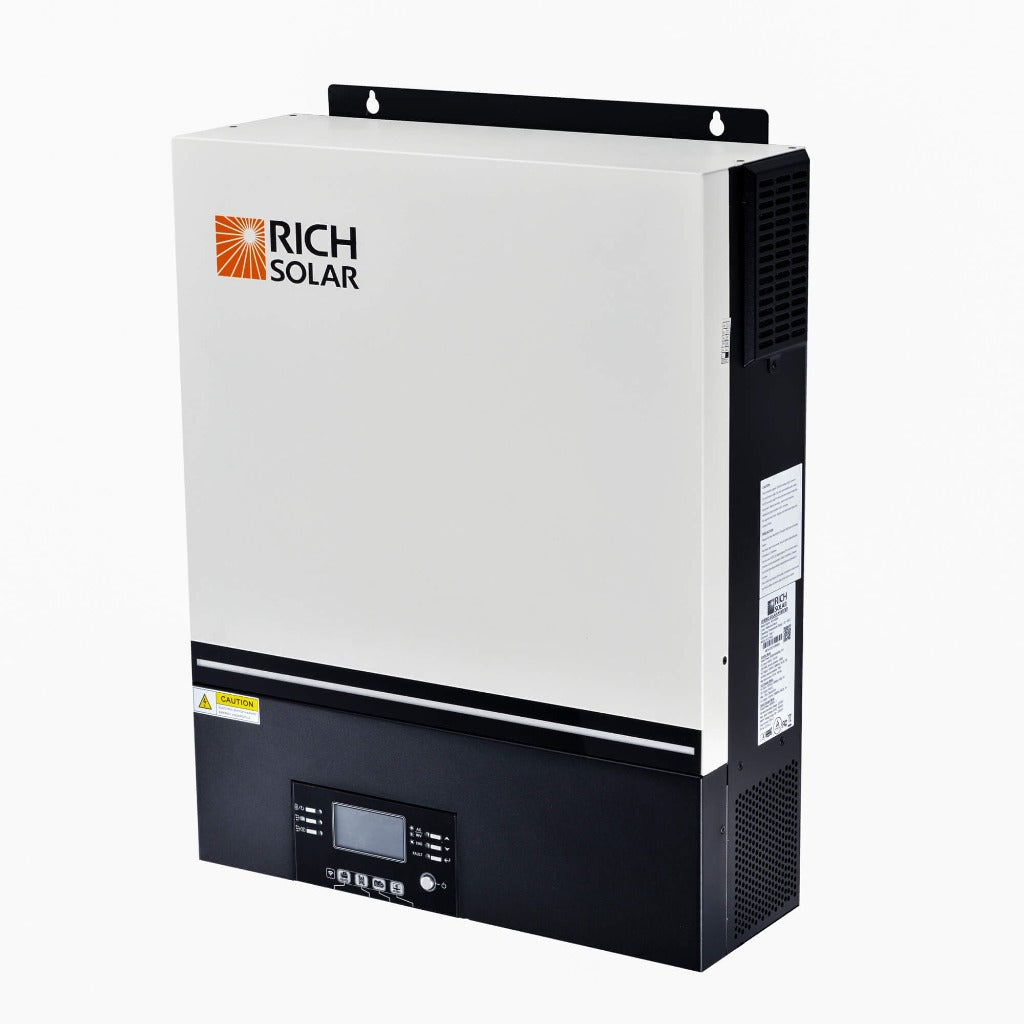

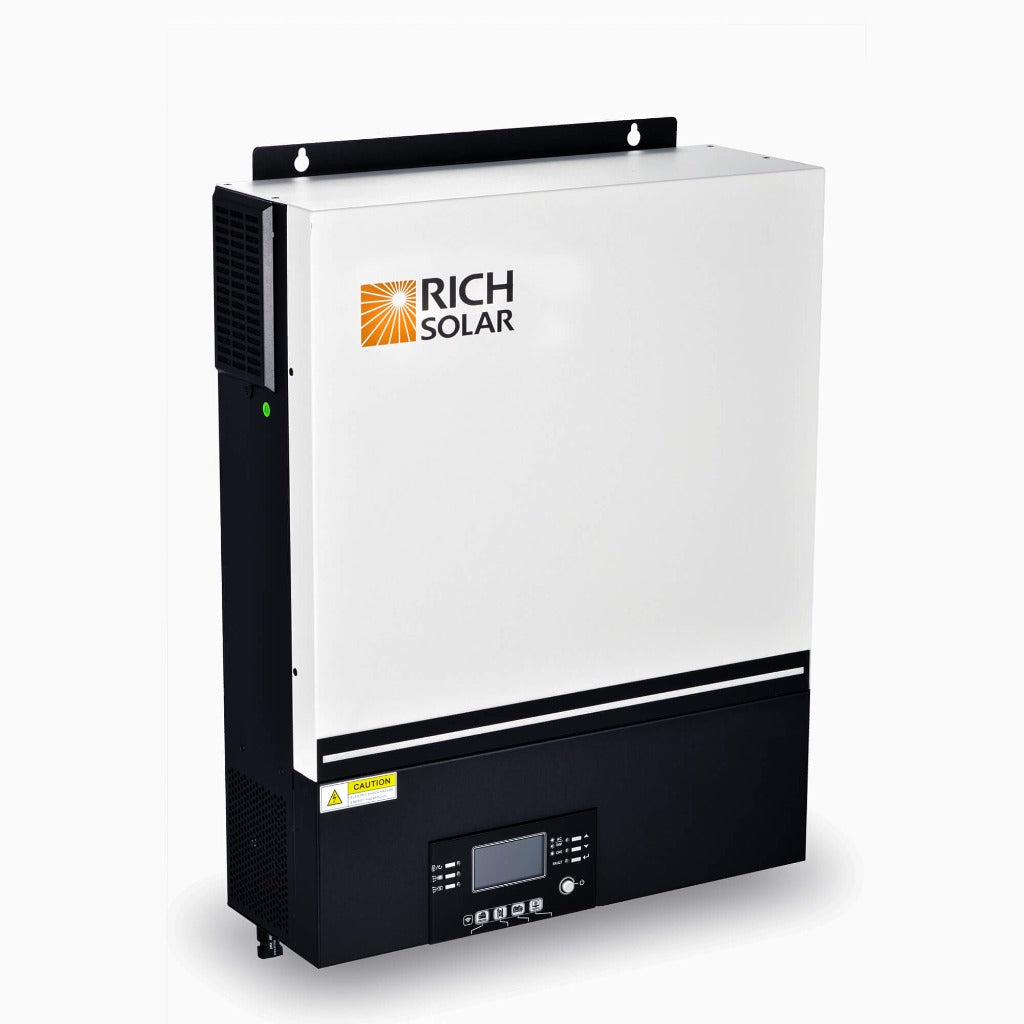

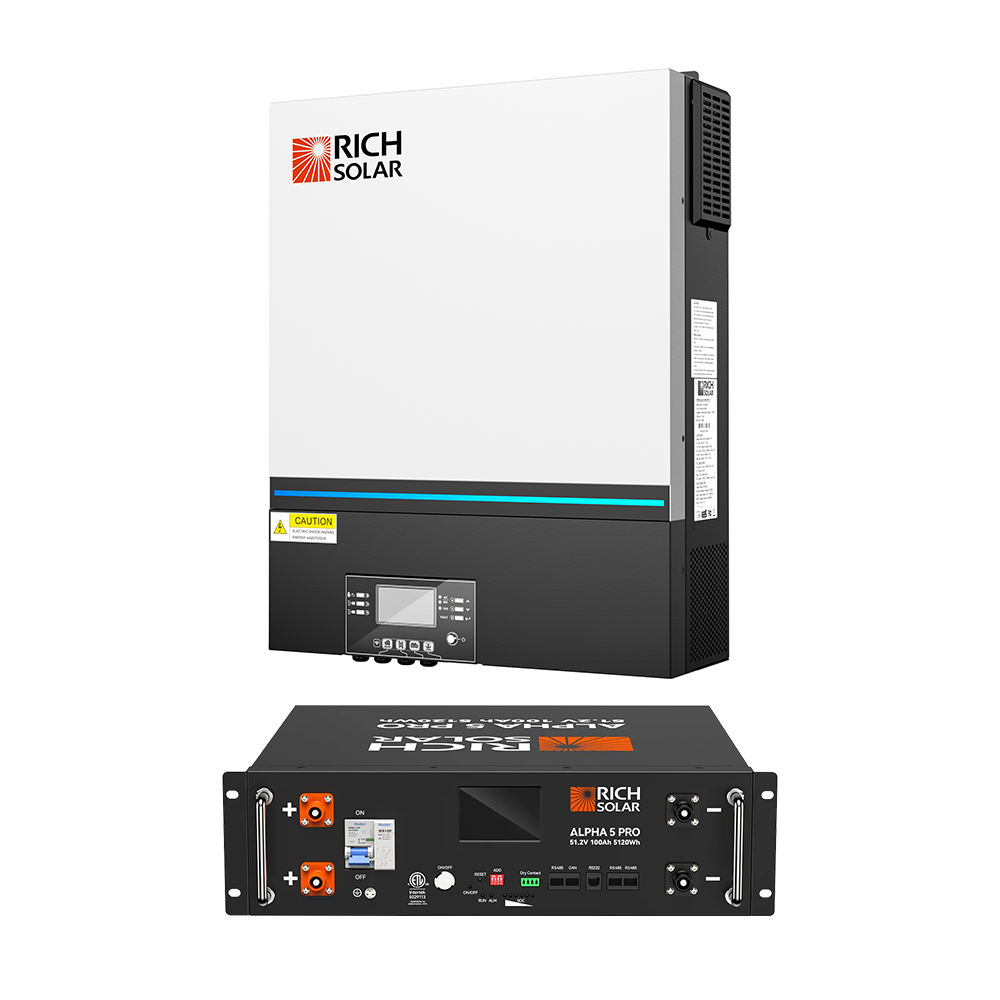

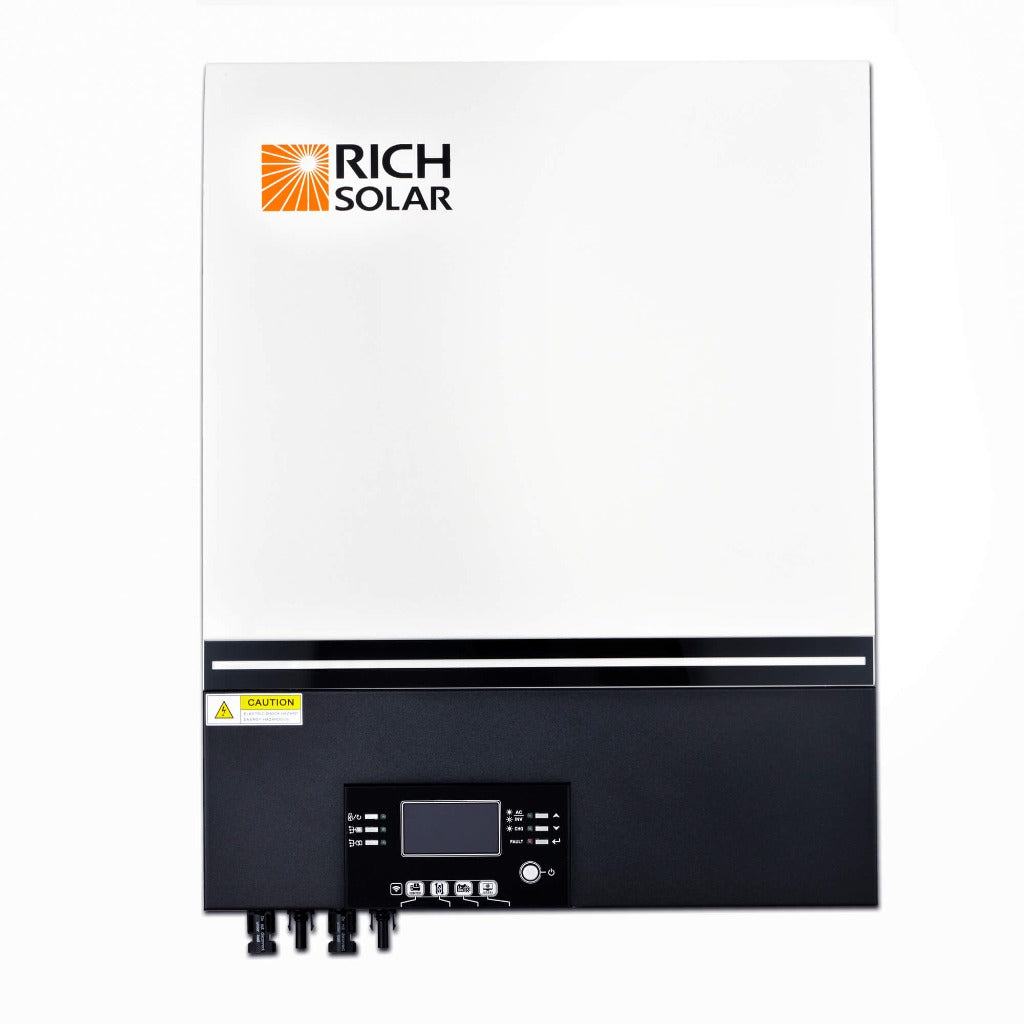

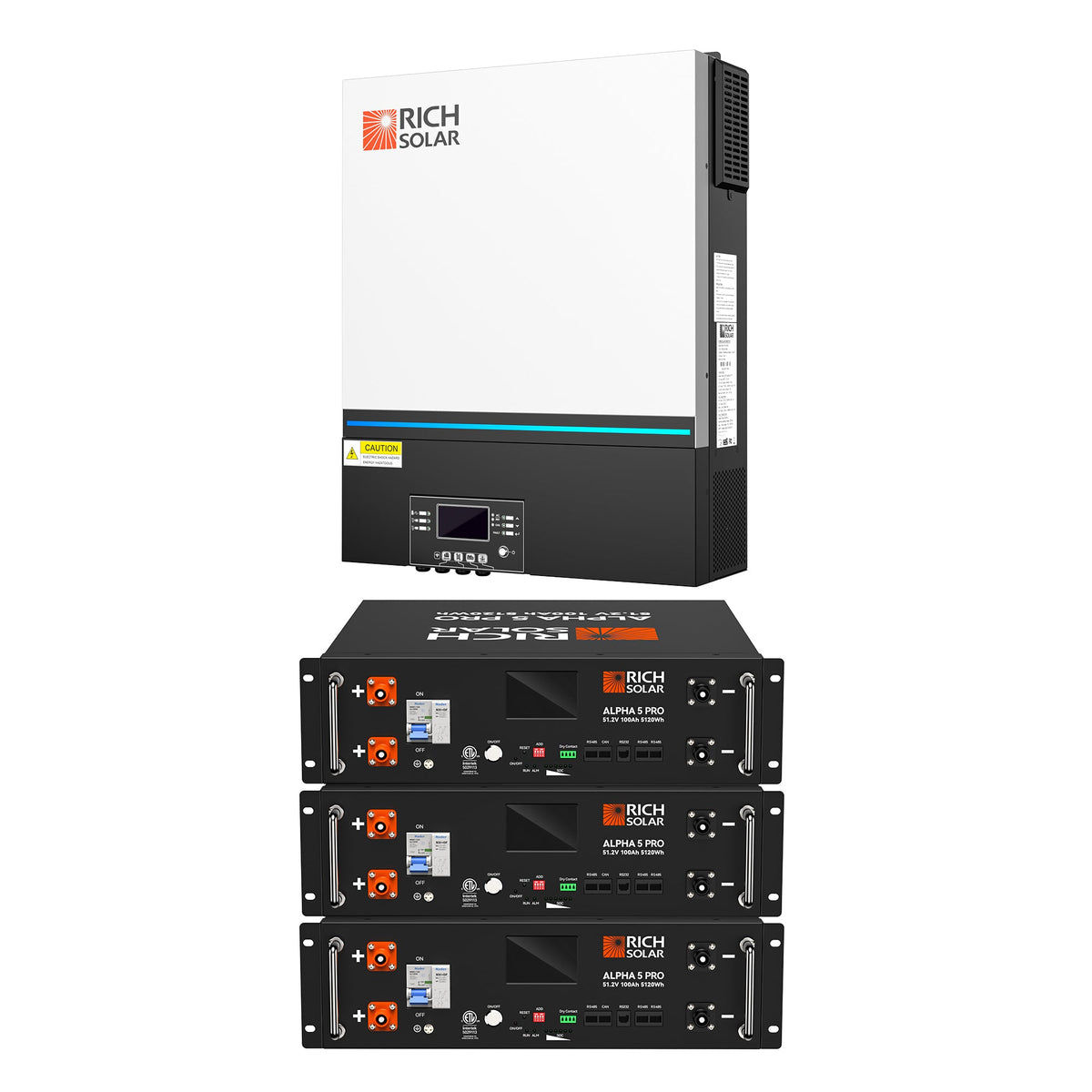

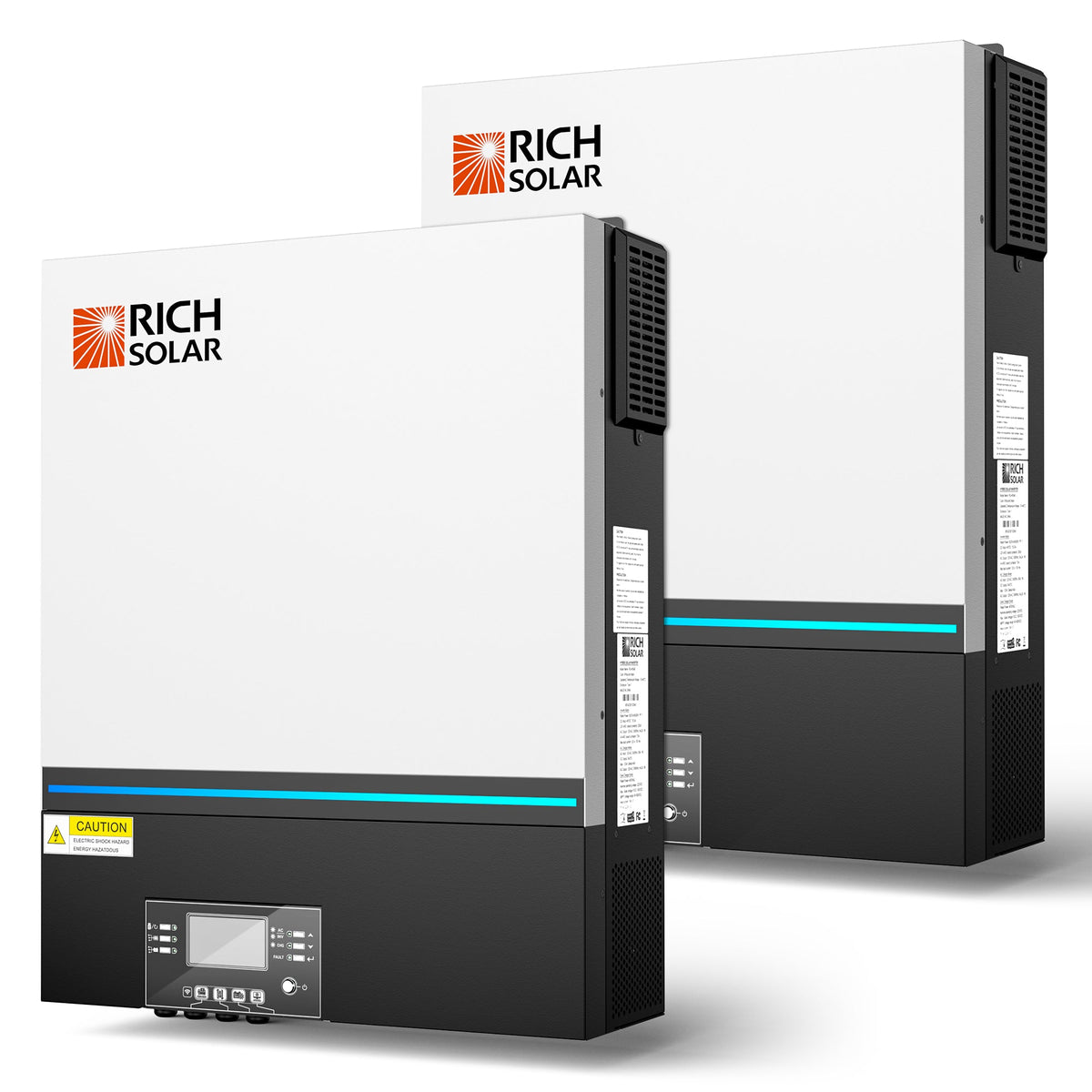

NOVA 6548 – 6,500W 48V Off-Grid Hybrid Inverter
6,500W 48V hybrid inverter.
SKU:RS-H6548
Regular price
$1,299.99 USD
6,500W continuous output, 13,000W (5 Seconds) surge.
48V DC input, pure sine wave output at 120V AC ±5%.
Built-in MPPT solar charging — up to 8000W of panels.
UL 1741.
Need help choosing the right kit?
Talk to a Solar Expert:
1-332-291-6885
Quantity
Quantity
Guaranteed Safe Checkout
Deliver to
Get it between
Product Information
6,500W 48V Hybrid Inverter for Cabins and Off-Grid Homes
The NOVA 6548 does three jobs in one box: it inverts 48V battery power to AC, runs an MPPT solar charge controller taking up to 8000W of panels, and charges the batteries from the grid or a generator when the sun falls short.
Pure sine wave output matters for anything with a motor, a compressor or a circuit board — laptops, microwaves, fridges, CPAP machines and power tools all run cooler and quieter on it than on modified sine.
Size the battery bank to the load, not just the inverter: a 6,500W inverter can draw well over 135A from a 48V bank at full output, so cable gauge and battery discharge rating matter as much as the inverter itself. Call us on 1-332-291-6885 if you want the sizing checked.
| Specification | Value |
|---|---|
| Maximum PV Input Power | 8000W |
| Solar Charger Type | MPPT |
| MPPT Operating Voltage Range | 90V DC–230V DC |
| Maximum PV Open Circuit Voltage | 250V DC |
| Maximum PV Input Current | 18A x 2 |
| Input Voltage Waveform | Sinusoidal (Utility or Generator) |
| Nominal Input Voltage | 120V AC |
| Maximum AC Input Voltage | 150V AC |
| Max AC Input Current | 60A |
| Nominal Input Frequency | 50Hz / 60Hz (Auto Detection) |
| Transfer Time | 10ms (UPS) / 20ms (Appliances) |
| Efficiency (Line Mode) | >95% |
| Rated Output Power | 6500VA / 6500W |
| Surge Power | 13,000W (5 Seconds) |
| Output Voltage | 120V AC ±5% |
| Output Waveform | Pure Sine Wave |
| Output Frequency | 50Hz / 60Hz |
| Peak Efficiency | 91% |
| Optional DC Output | 12V DC ±7%, 100W |
| Nominal DC Input Voltage | 48V DC |
| Maximum Charge Current | 120A |
| Bulk Charging Voltage | 58.4V DC (Flooded) / 56.4V DC (AGM / Gel) |
| Float Charging Voltage | 54V DC |
| Overcharge Protection | 66V DC |
| Parallel Capability | Up to 6 Units |
| Communication Interface | USB, RS232, RS485, CAN-BUS, Wi-Fi, Dry Contact |
| Operating Temperature | -14°F to 104°F |
| Dimensions | 5.8 × 17.0 × 21.8 in |
| Net Weight | 40.6 lb |
| Safety Certification | UL 1741 |
- 1 x NOVA 6548
- Mounting and connection hardware as listed in the specifications
- User manual
Free Shipping
On all orders
30-Day Returns
Hassle-free returns
25 Year Warranty
On panels & more
Secure Payments
100% protected
Frequently Asked Questions
What can this inverter run?
Anything up to 6,500W continuous, with 13,000W (5 Seconds) available briefly for start-up surges. That covers lights, a fridge, laptops and power tools, and larger loads like a microwave or small air conditioner. The daily total depends on your battery bank, not the inverter.
What size battery do I need?
Work from your daily watt-hours, not the inverter rating. As a rule, a 48V bank should be able to deliver the inverter's full output without exceeding its discharge rating. We can size it with you on 1-332-291-6885.
Can it charge from the grid or a generator?
Yes. It accepts AC input from the grid or a generator and charges the batteries, as well as charging from solar.
