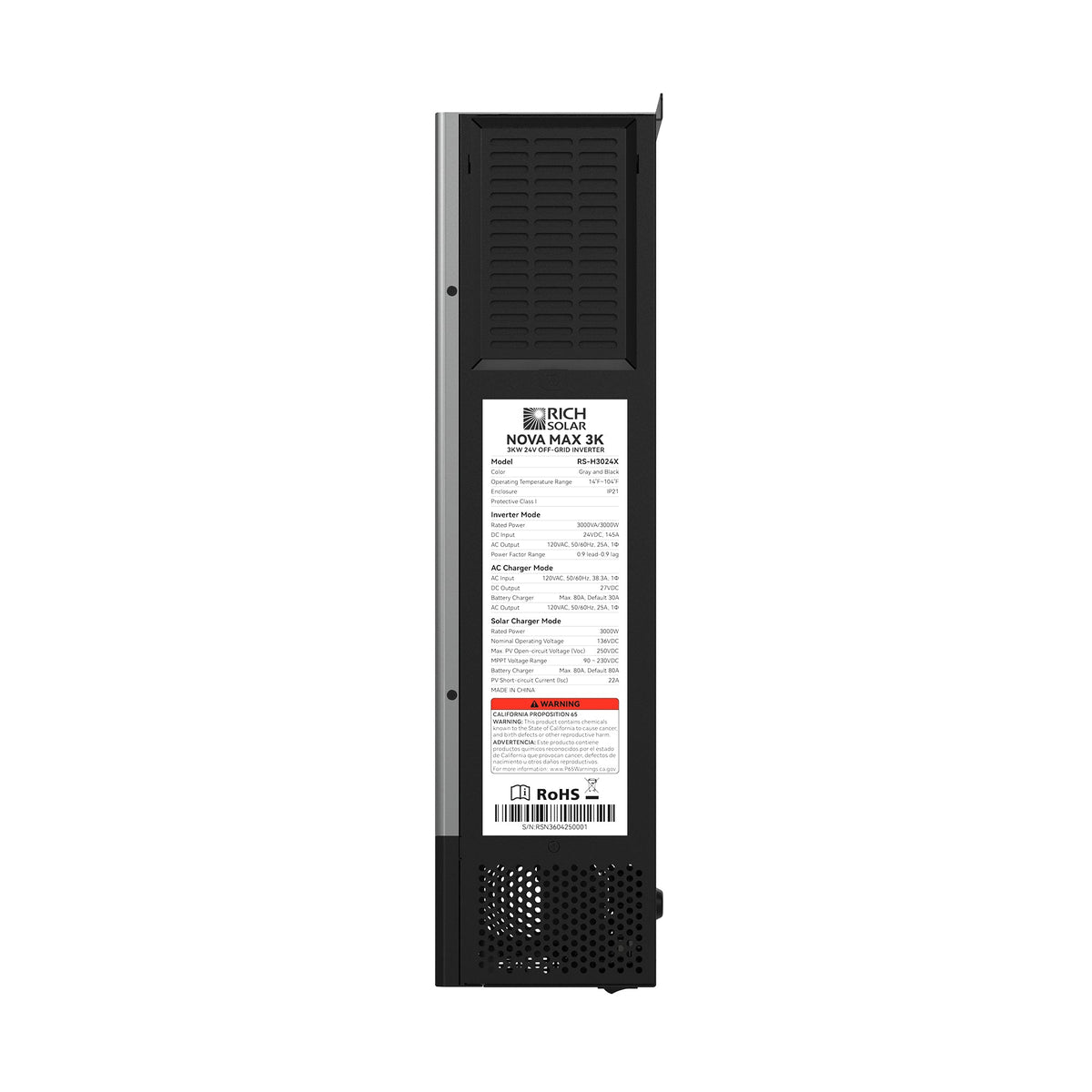

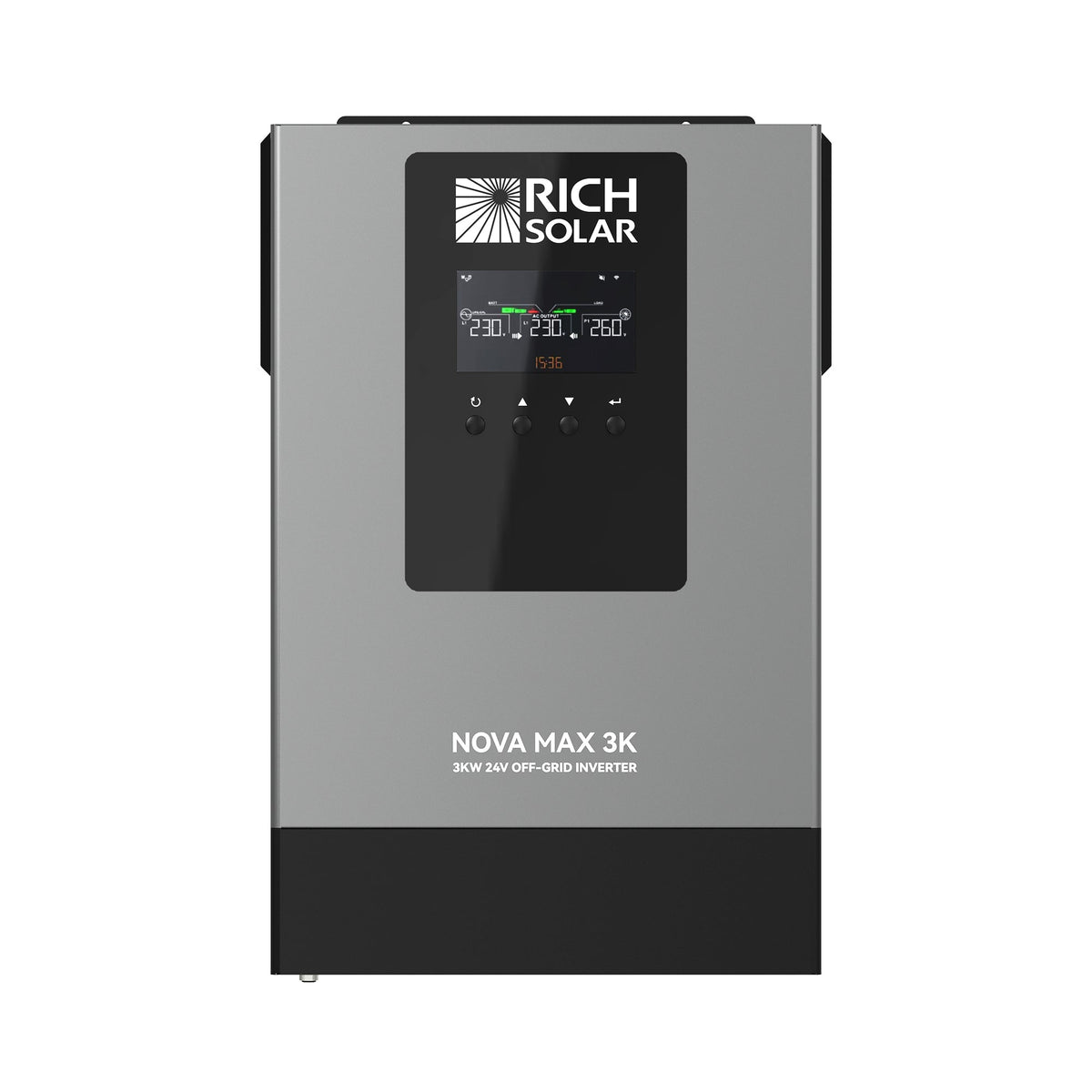

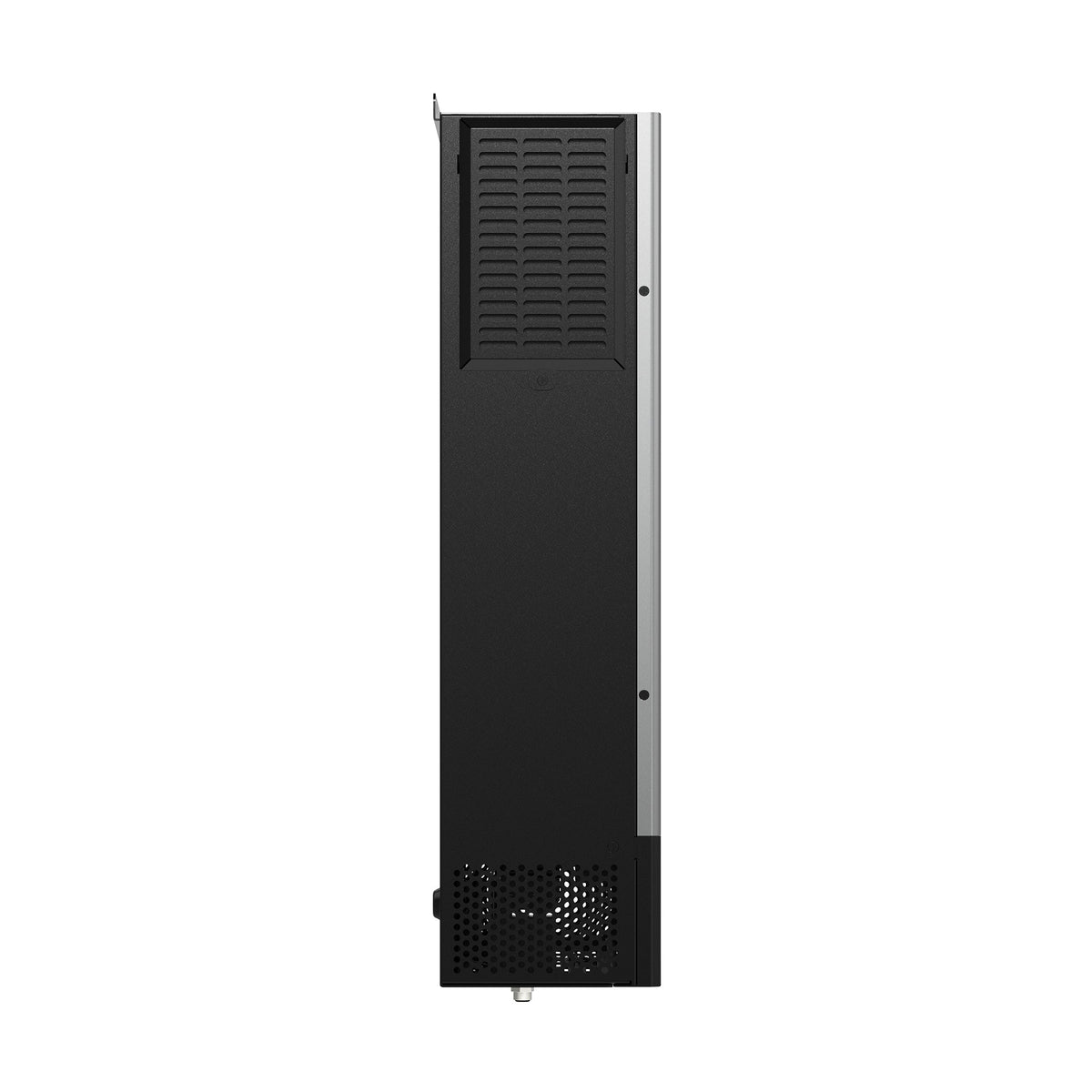

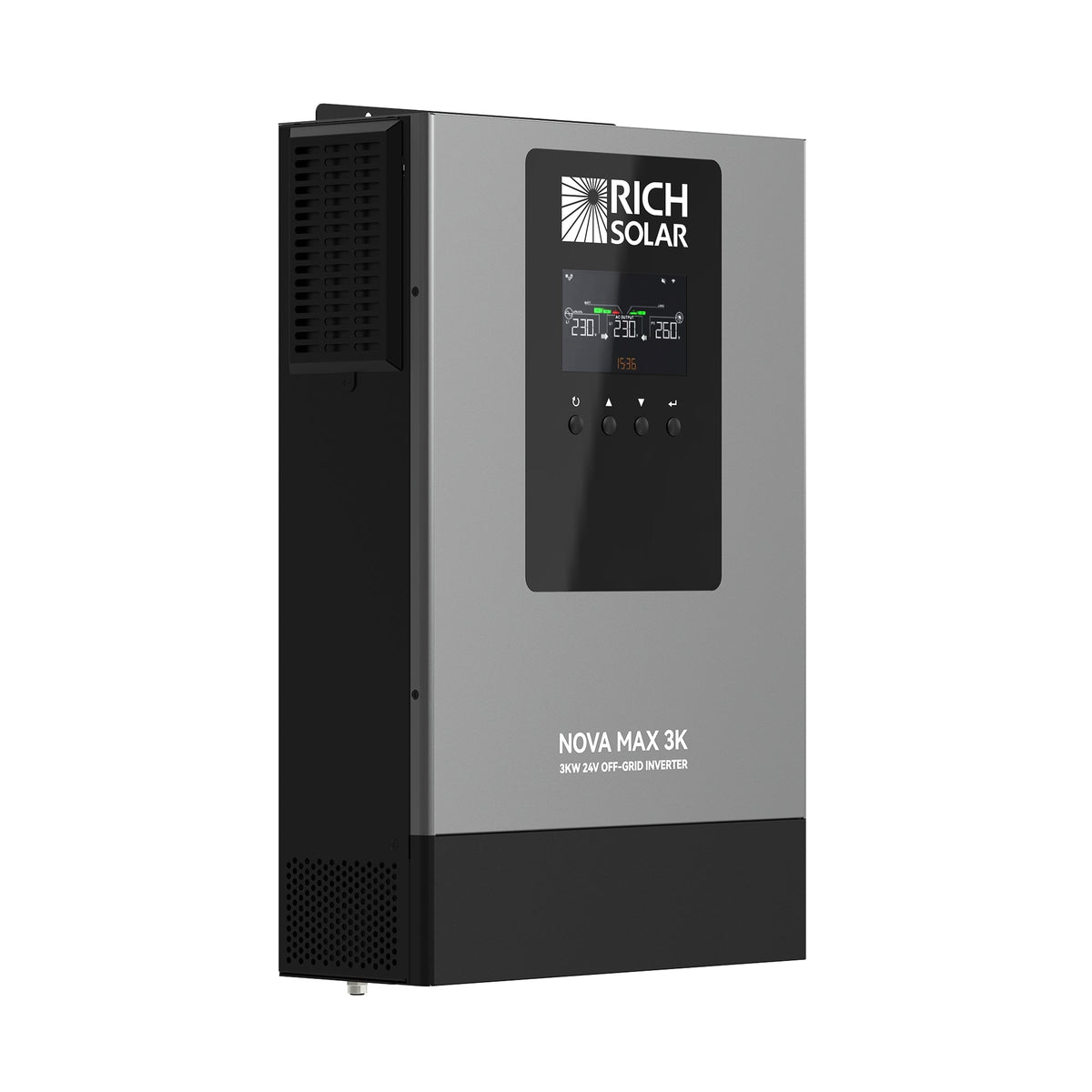

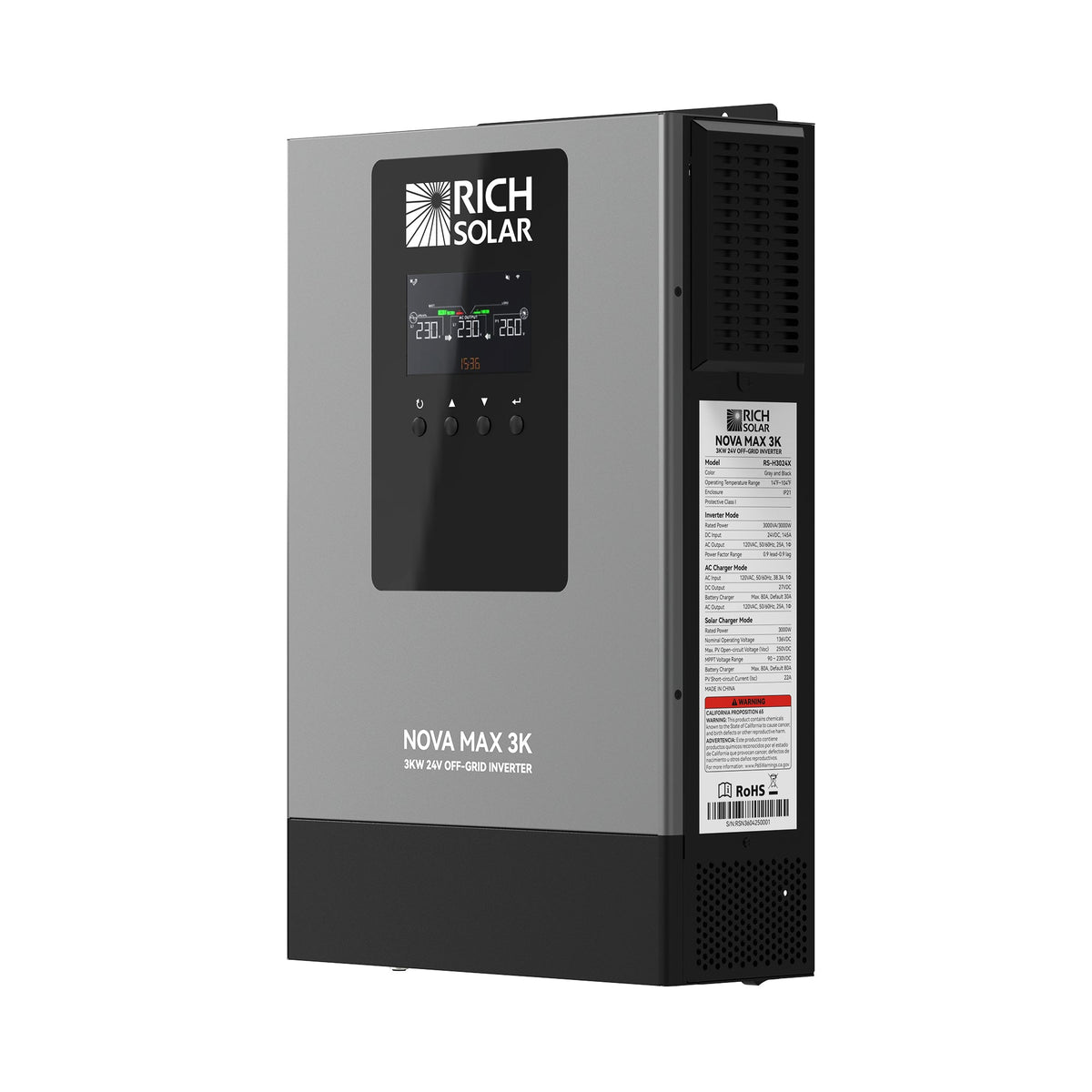

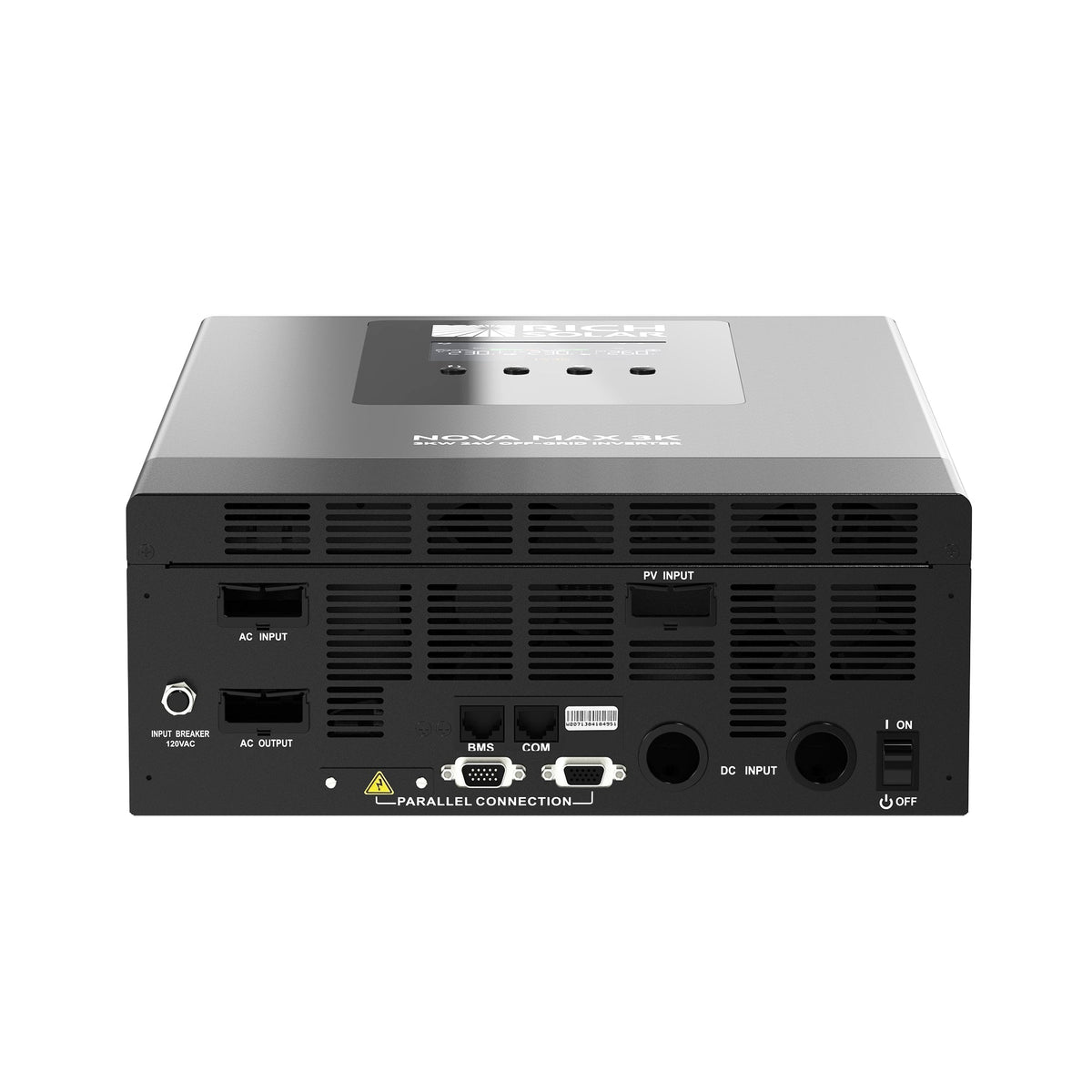

NOVA MAX 3K – 3,000W 24V Off-Grid Hybrid Inverter
3,000W 24V hybrid inverter.
SKU:RS-H3024X
Regular price
$799.99 USD
3,000W continuous output, 6,000W (5 Seconds) surge.
24V DC input, pure sine wave output at 120V AC ±5%.
Built-in MPPT solar charging — up to 3000W of panels.
Up to >95% efficient.
Need help choosing the right kit?
Talk to a Solar Expert:
1-332-291-6885
Quantity
Quantity
Guaranteed Safe Checkout
Deliver to
Get it between
Product Information
3,000W 24V Hybrid Inverter for Sheds, Cabins and Small Off-Grid Systems
The NOVA MAX 3K does three jobs in one box: it inverts 24V battery power to AC, runs an MPPT solar charge controller taking up to 3000W of panels, and charges the batteries from the grid or a generator when the sun falls short.
Pure sine wave output matters for anything with a motor, a compressor or a circuit board — laptops, microwaves, fridges, CPAP machines and power tools all run cooler and quieter on it than on modified sine.
Size the battery bank to the load, not just the inverter: a 3,000W inverter can draw well over 125A from a 24V bank at full output, so cable gauge and battery discharge rating matter as much as the inverter itself. Call us on 1-332-291-6885 if you want the sizing checked.
| Specification | Value |
|---|---|
| Rated PV Power | 3000W |
| Maximum PV Open Circuit Voltage | 250V DC |
| PV Array MPPT Voltage Range | 90V DC–230V DC |
| Maximum Input Current | 22A |
| Start-up Voltage | 80V ± 5V DC |
| Input Voltage Waveform | Sinusoidal (Utility or Generator) |
| Nominal Input Voltage | 120V AC |
| Maximum AC Input Voltage | 150V AC |
| Nominal Input Frequency | 50Hz / 60Hz (Auto Detection) |
| Transfer Time | 10ms (UPS) / 20ms (Appliances) |
| Efficiency (Line Mode) | >95% |
| Rated Power | 3000W |
| Surge Power | 6000W (5 Seconds) |
| Output Voltage | 120V AC ±5% |
| Output Waveform | Pure Sine Wave |
| Output Frequency | 50Hz / 60Hz |
| Peak Efficiency | 91% |
| Nominal DC Input Voltage | 24V DC |
| MPPT Charge Controller | 80A |
| Bulk Charging Voltage | 29.2V DC (Flooded) / 28.8V DC (AGM / Gel) |
| Float Charging Voltage | 27.6V DC |
| Overcharge Protection | 33V DC |
| Compatible Battery Types | AGM, Gel, Flooded, and Lithium Batteries |
| Operating Temperature | 14°F to 104°F |
| Storage Temperature | 5°F to 140°F |

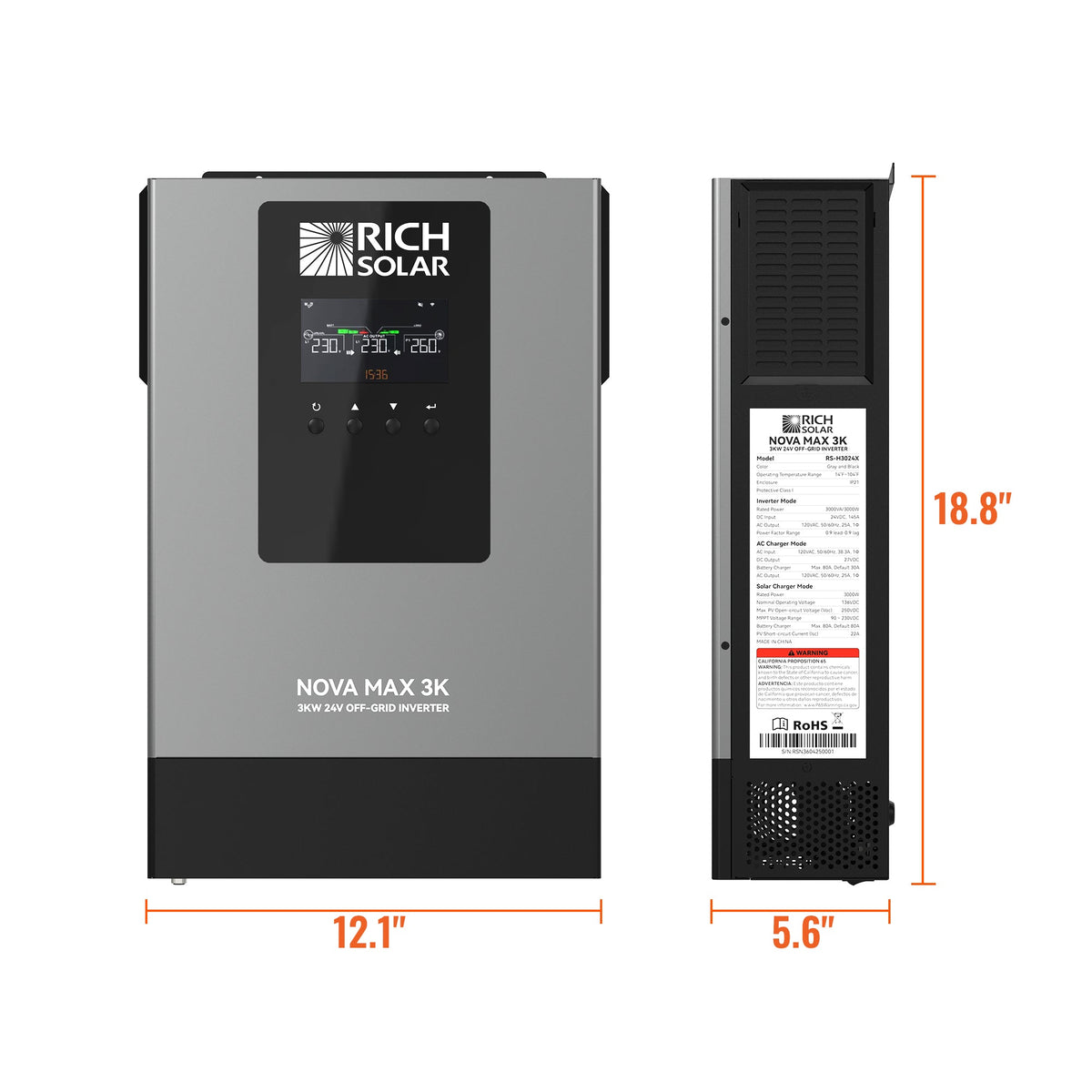

| Dimensions | 5.61 × 12.12 × 18.80 in |
| Net Weight | 26.5 lb |
| Package Dimensions | 24 × 8 × 16 in |
| Gross Weight | 30 lb |

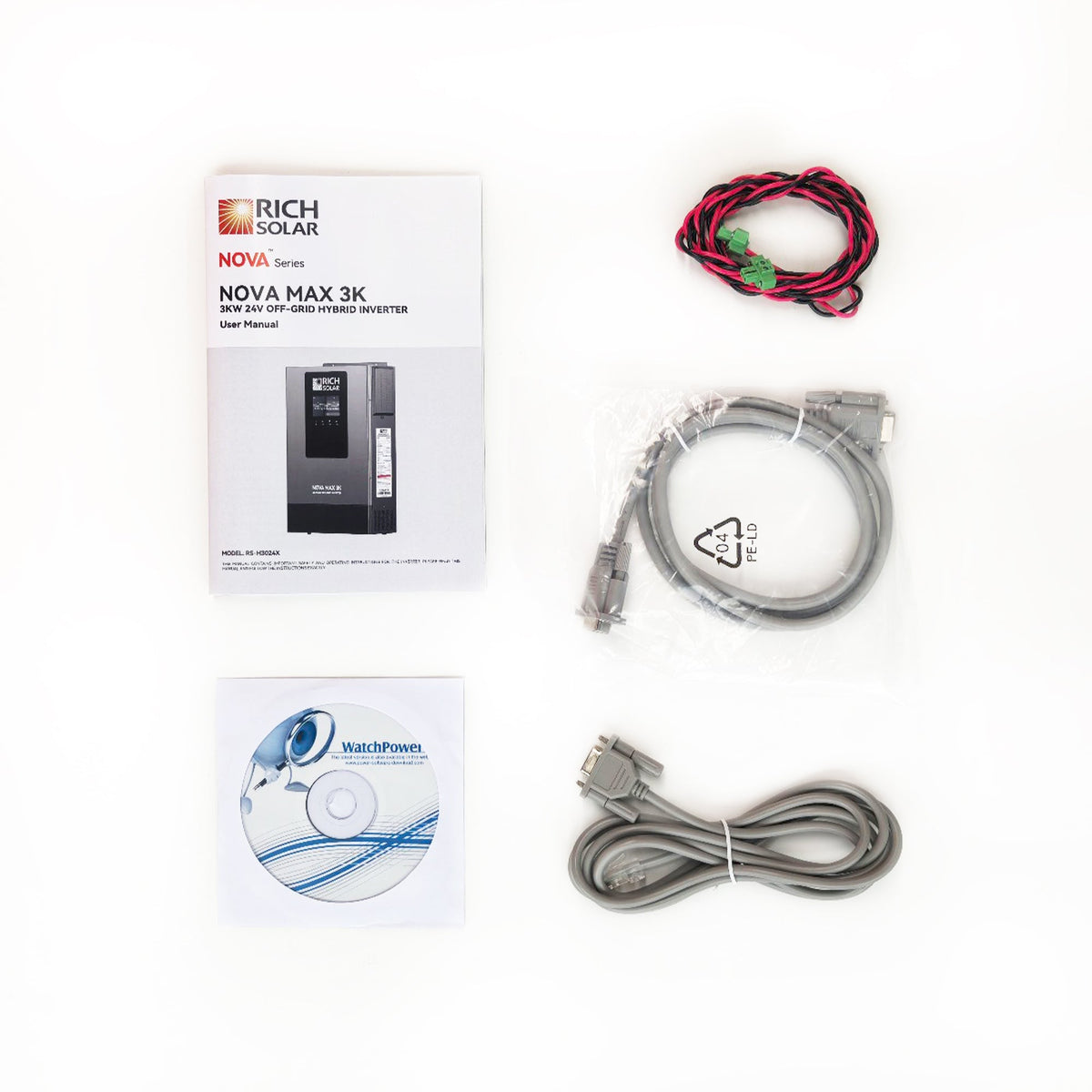

- 1 x NOVA MAX 3K
- Mounting and connection hardware as listed in the specifications
- User manual
Free Shipping
On all orders
30-Day Returns
Hassle-free returns
25 Year Warranty
On panels & more
Secure Payments
100% protected
Frequently Asked Questions
What can this inverter run?
Anything up to 3,000W continuous, with 6,000W (5 Seconds) available briefly for start-up surges. That covers lights, a fridge, laptops and power tools, and larger loads like a microwave or small air conditioner. The daily total depends on your battery bank, not the inverter.
What size battery do I need?
Work from your daily watt-hours, not the inverter rating. As a rule, a 24V bank should be able to deliver the inverter's full output without exceeding its discharge rating. We can size it with you on 1-332-291-6885.
Can it charge from the grid or a generator?
Yes. It accepts AC input from the grid or a generator and charges the batteries, as well as charging from solar.
