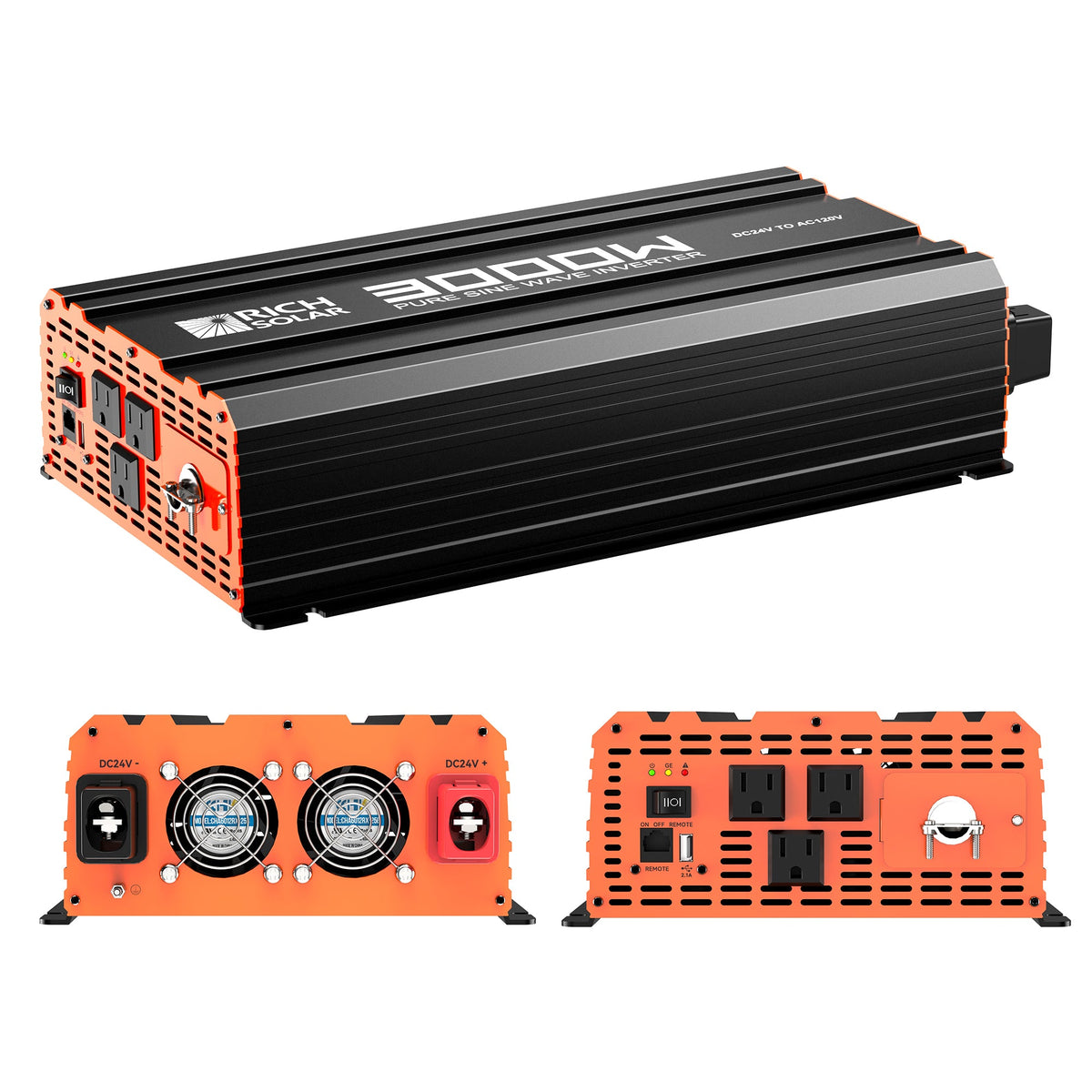

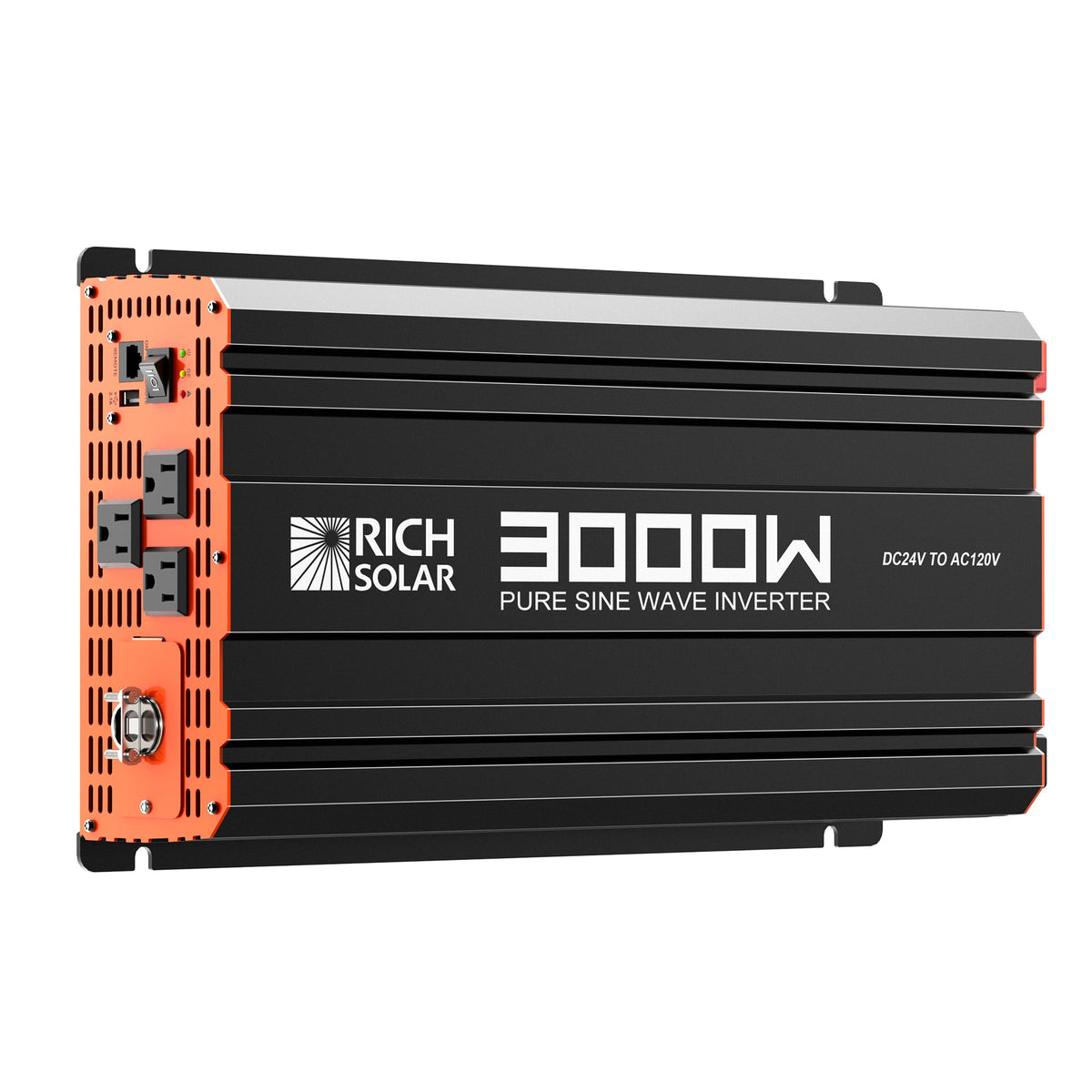

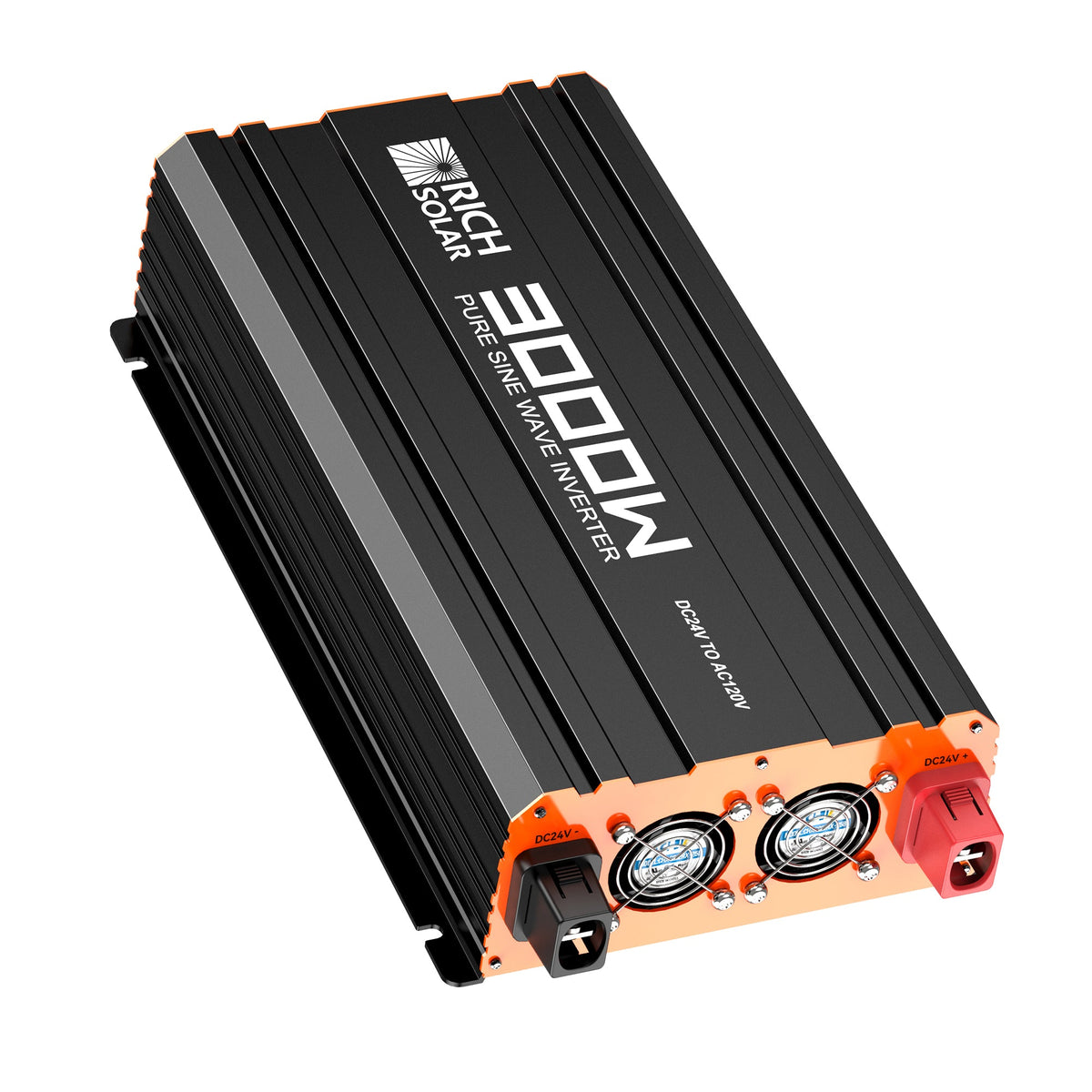

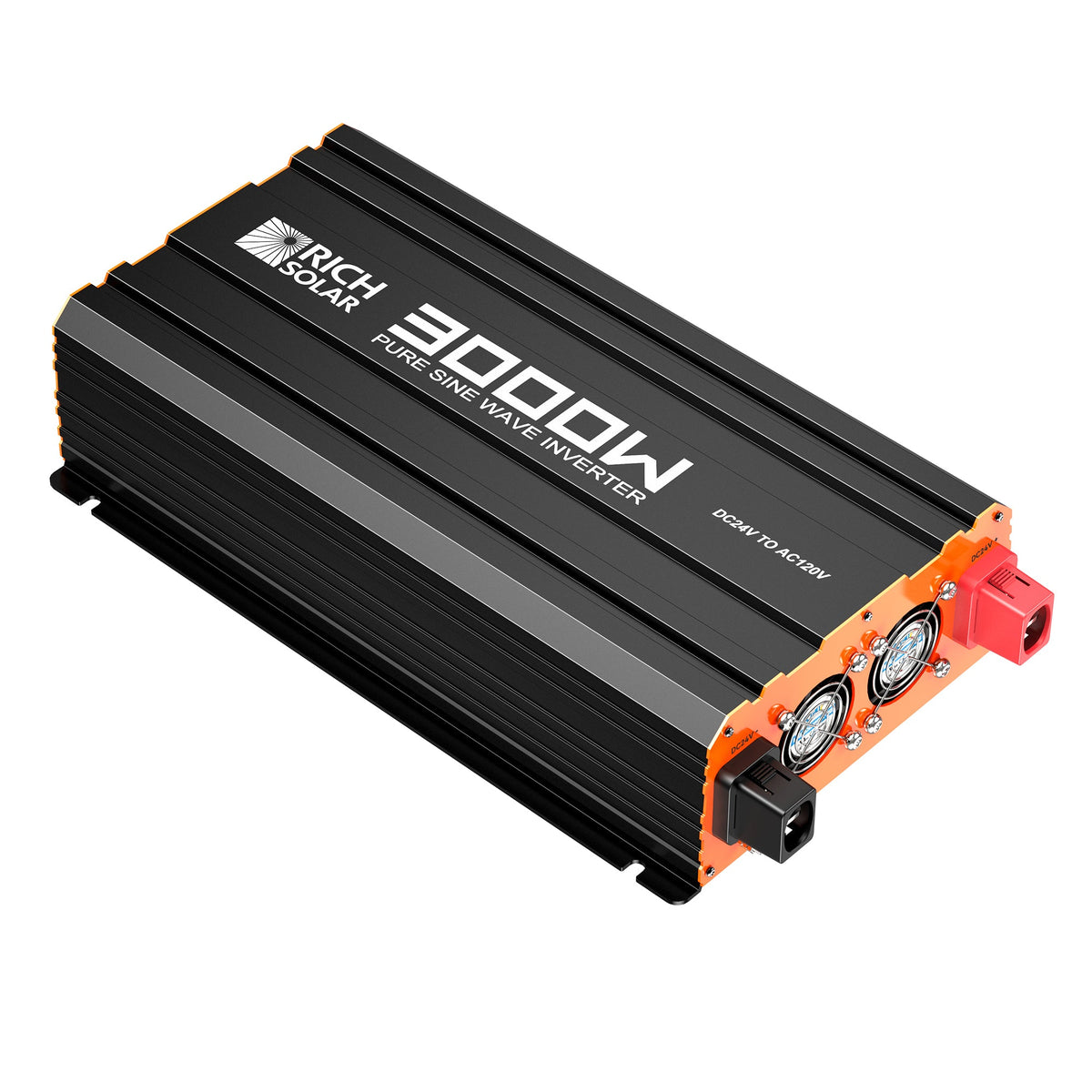

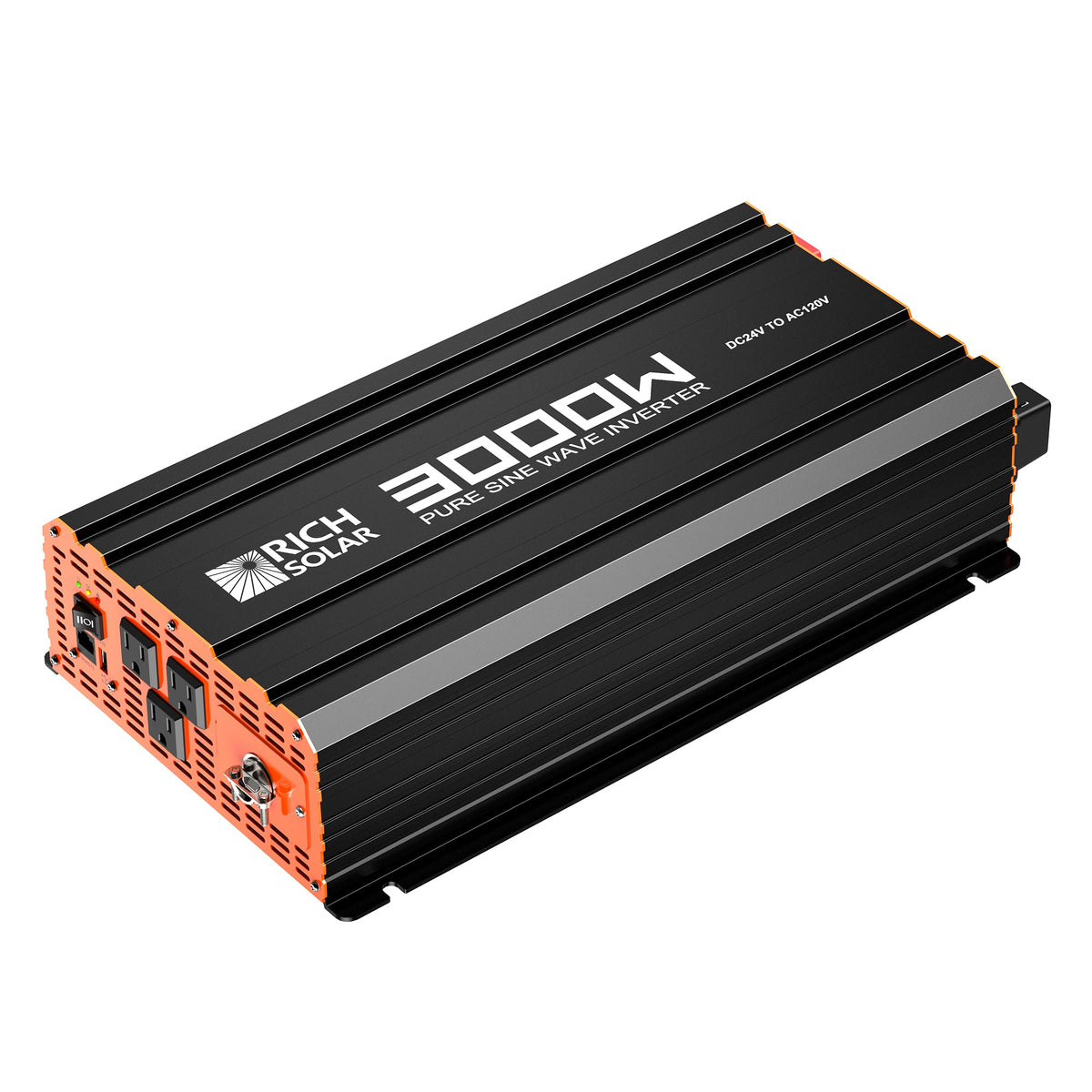

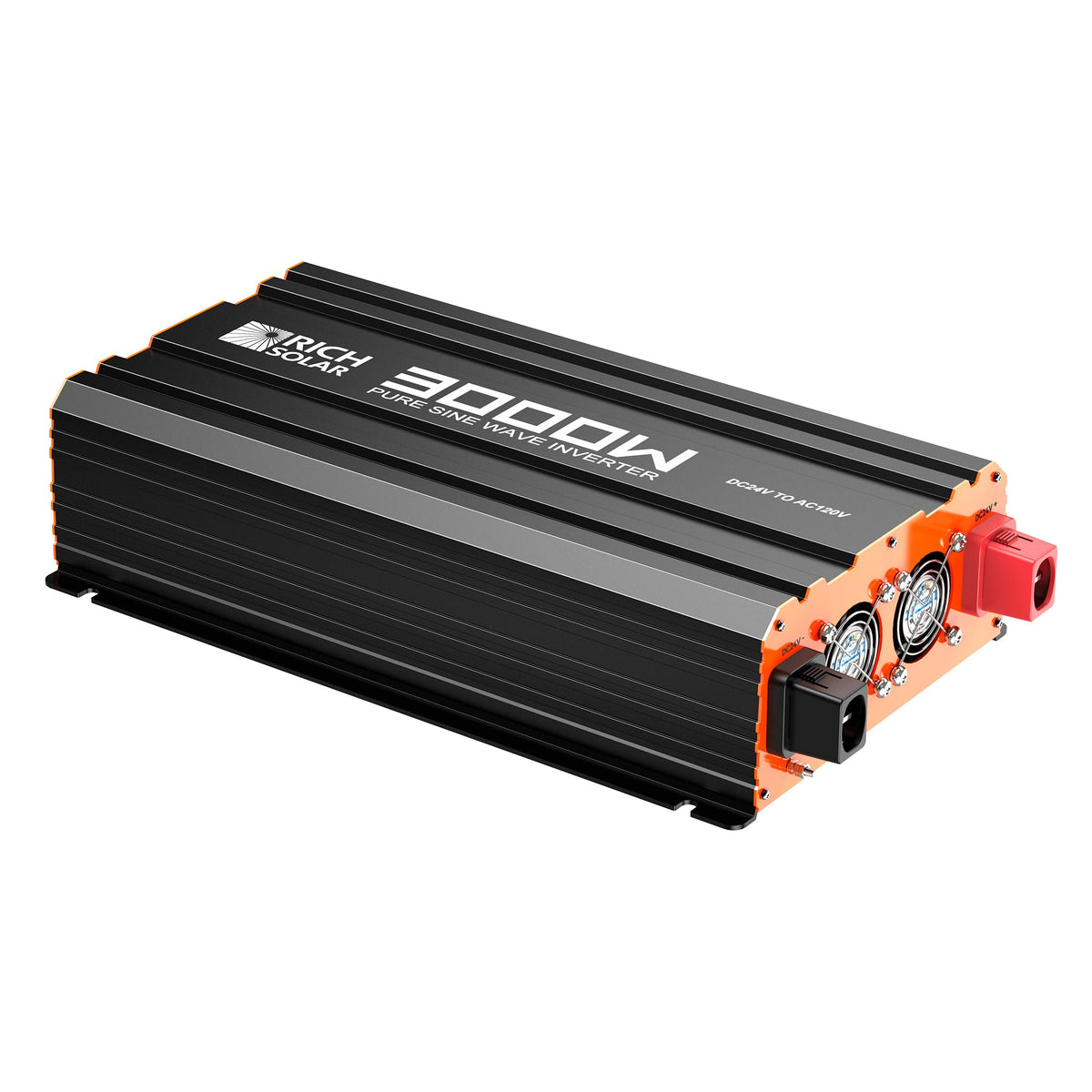

NOVA PURE MAX 3K – 3,000W 24V Pure Sine Wave Inverter
SKU:RS-V3P24
Product Information
3,000W 24V Pure Sine Wave Inverter for Cabins, Workshops and 24V Systems
The NOVA PURE MAX 3K turns 24V battery power into 3,000W of clean, pure sine wave AC, with 6,000W of surge headroom for motors and compressors starting up.
Pure sine wave output matters for anything with a motor, a compressor or a circuit board — laptops, microwaves, fridges, CPAP machines and power tools all run cooler and quieter on it than on modified sine. Total harmonic distortion stays <3%. It works with 24v deep-cycle and lithium (bms) batteries.
Size the battery bank to the load, not just the inverter: a 3,000W inverter can draw well over 125A from a 24V bank at full output, so cable gauge and battery discharge rating matter as much as the inverter itself. Call us on 1-332-291-6885 if you want the sizing checked.
| Specification | Value |
|---|---|
| Nominal DC Voltage | 24V DC |
| Compatible Batteries | 24V Deep-Cycle and Lithium (BMS) Batteries |
| Rated Output Power | 3000W |
| Surge Power | 6000W |
| Output Voltage | 120V AC |
| Output Frequency | 60Hz |
| Output Waveform | Pure Sine Wave |
| Total Harmonic Distortion (THD) | <3% |
| Peak Efficiency | >88% |
| AC Outlets | 3 |
| USB Output | 5V / 2.1A |
| Power Output Control | AC On/Off switch |

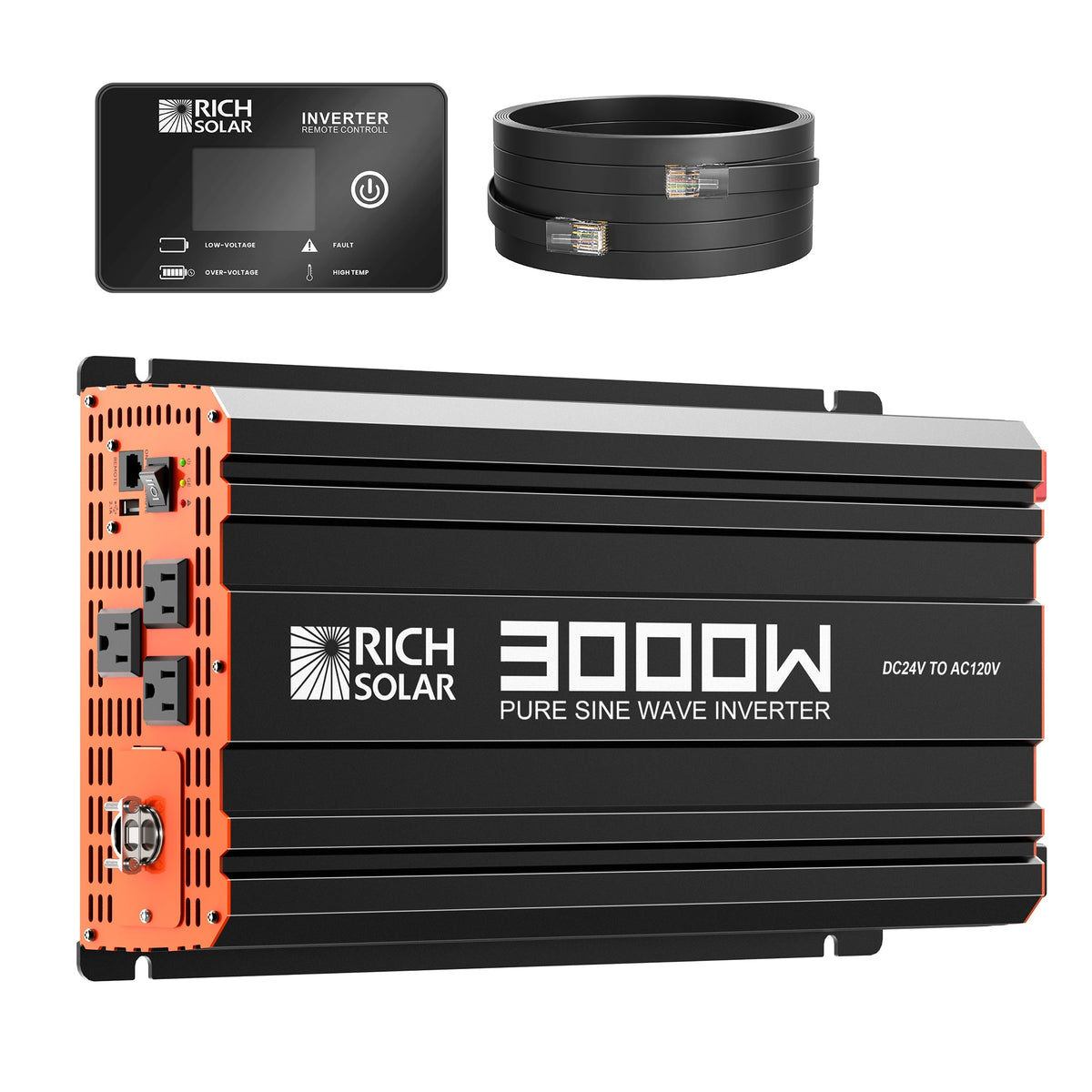

| Remote Control | Included |
| Cooling | Thermally Controlled Fan |
| Operating Temperature | 14°F to 122°F |
| Dimensions | 18.7 × 9.6 × 4.0 in |
| Net Weight | 12.1 lb |
| Package Dimensions | 21 × 6 × 12 in |
| Gross Weight | 15 lb |
| Safety Certification | ETL Listed (UL 458) |
| Compliance | FCC, CE, and RoHS |
- 1 x NOVA PURE MAX 3K
- Enables convenient remote ON/OFF operation.
- User manual
