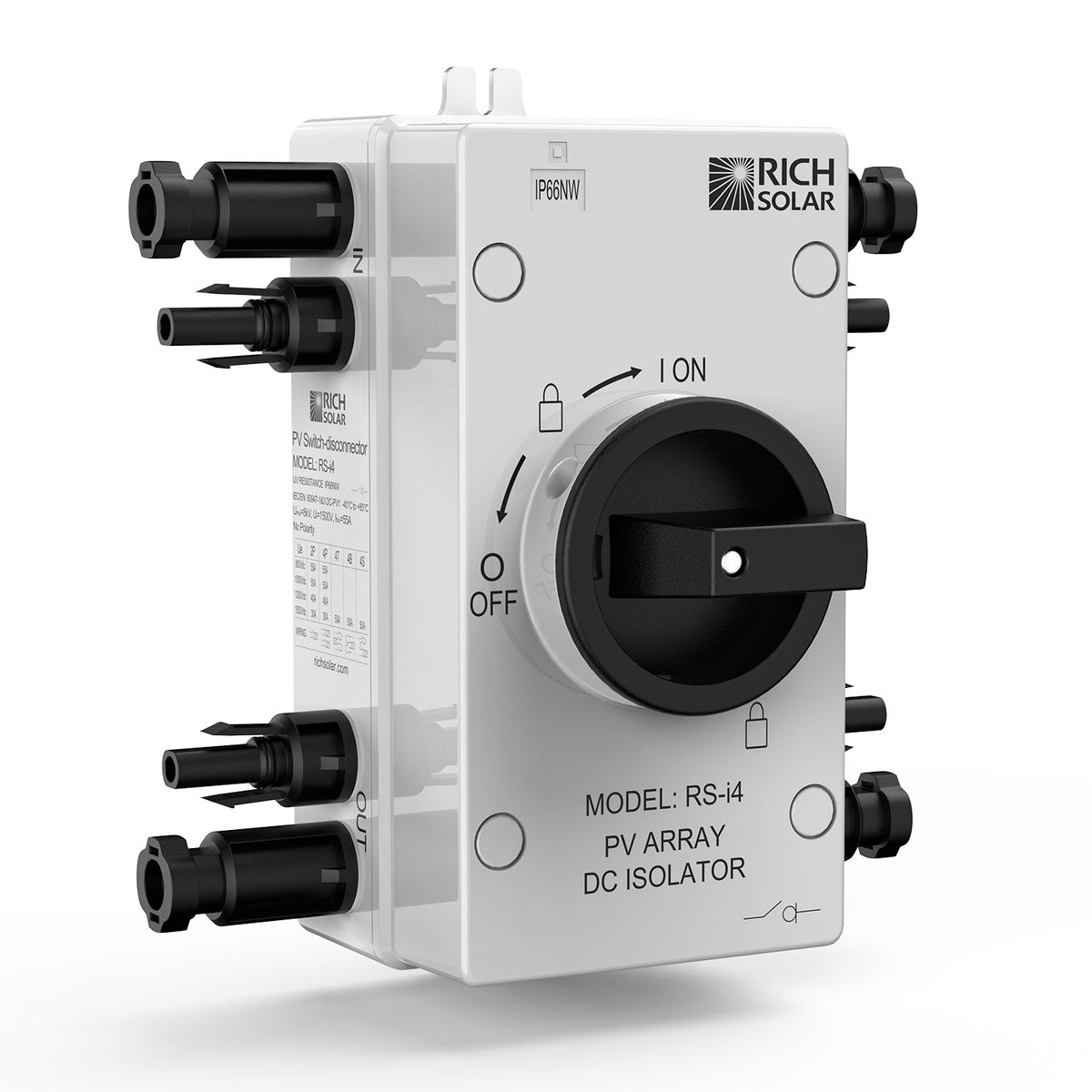

PV DC Disconnect Switch – 1500V 40A, 4-Pole, 2 Strings
40A · 1500V — isolate two solar strings.
SKU:RS-i4
Regular price
$109.99 USD
1500V, 40A.
Safely isolates your solar array from connected equipment.
Weatherproof: IP66NW.
CE, UL 508I.
Need help choosing the right kit?
Talk to a Solar Expert:
1-332-291-6885
Quantity
Quantity
Guaranteed Safe Checkout
Deliver to
Get it between
Product Information
PV DC Disconnect Switch to isolate two solar strings in Solar, RV and Marine Systems

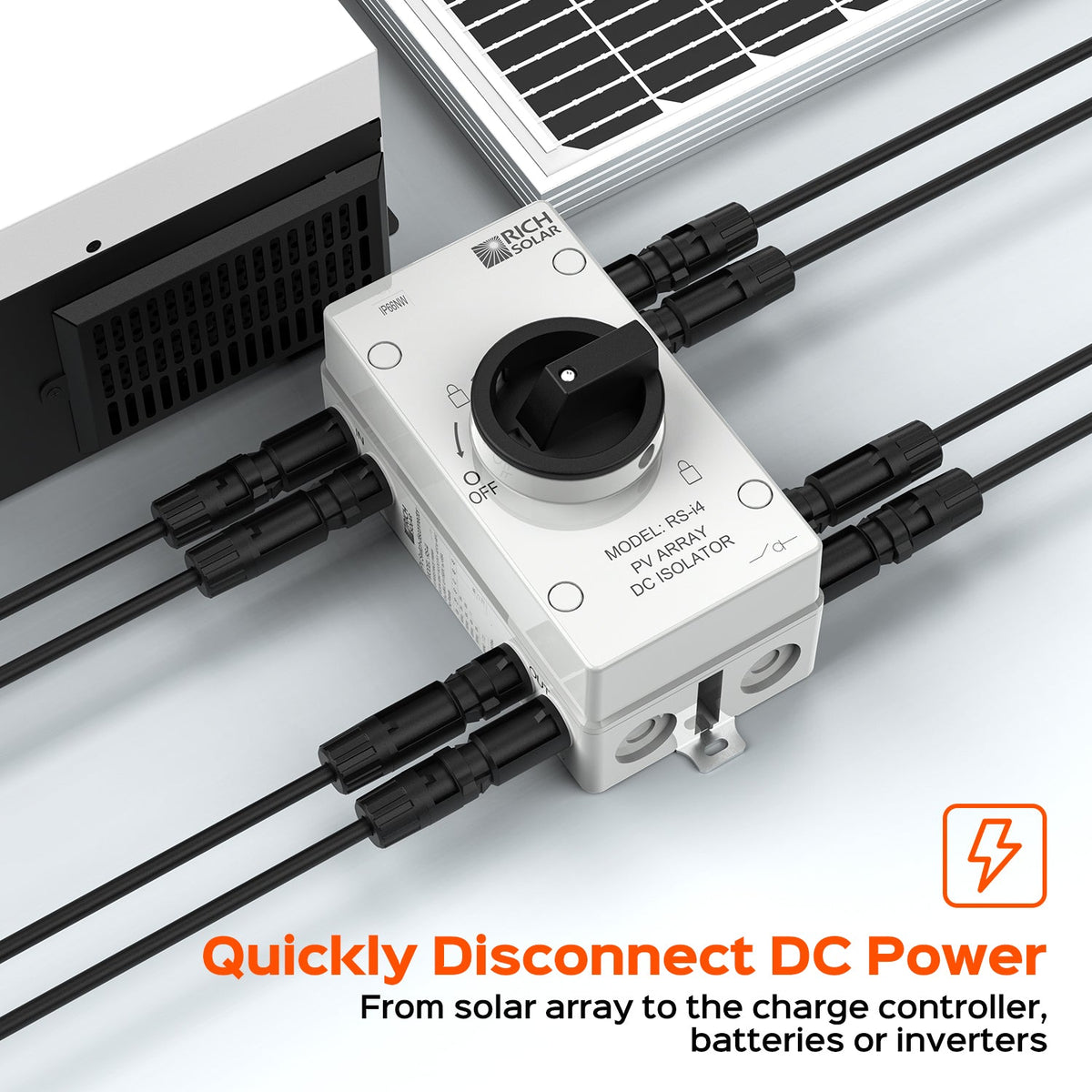

This switch sits between your solar array and the charge controller or inverter, giving you one place to cut power before you work on the system. It is rated to 1500V, 40A.
Size it above the maximum current of the circuit it protects, not below. If you are unsure which rating you need, call us on 1-332-291-6885.
Convenient connections for quick setup.
| Specification | Value |
|---|---|
| Rated Insulation Voltage (Ui) | 1500V |
| Rated Thermal Current (Ith) | 40A |
| Poles / Circuit | 4P in series |
| Supported PV Strings | 2 PV strings |
| Impulse Withstand Voltage | 8 kV |
| IP Rating | IP66NW |
| Arc Suppression Time | <3ms |
| Operating Temperature | -40℉ to 158℉ |
| Housing Material | Flame-retardant PC (UL94 V-0) |

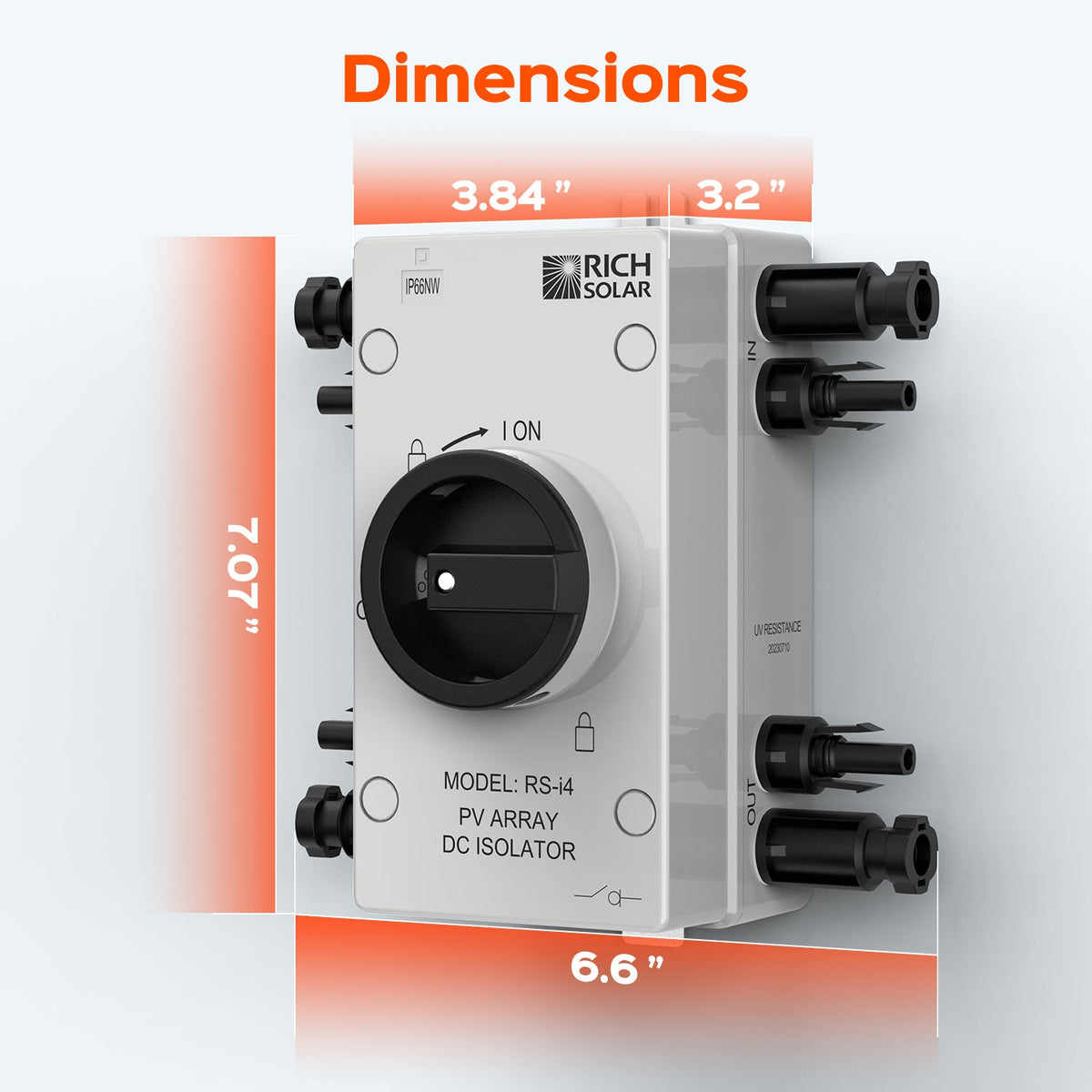

| Dimensions | 7.1x 6.8 x 4.3 in |
| Net Weight | 1.6 lb |

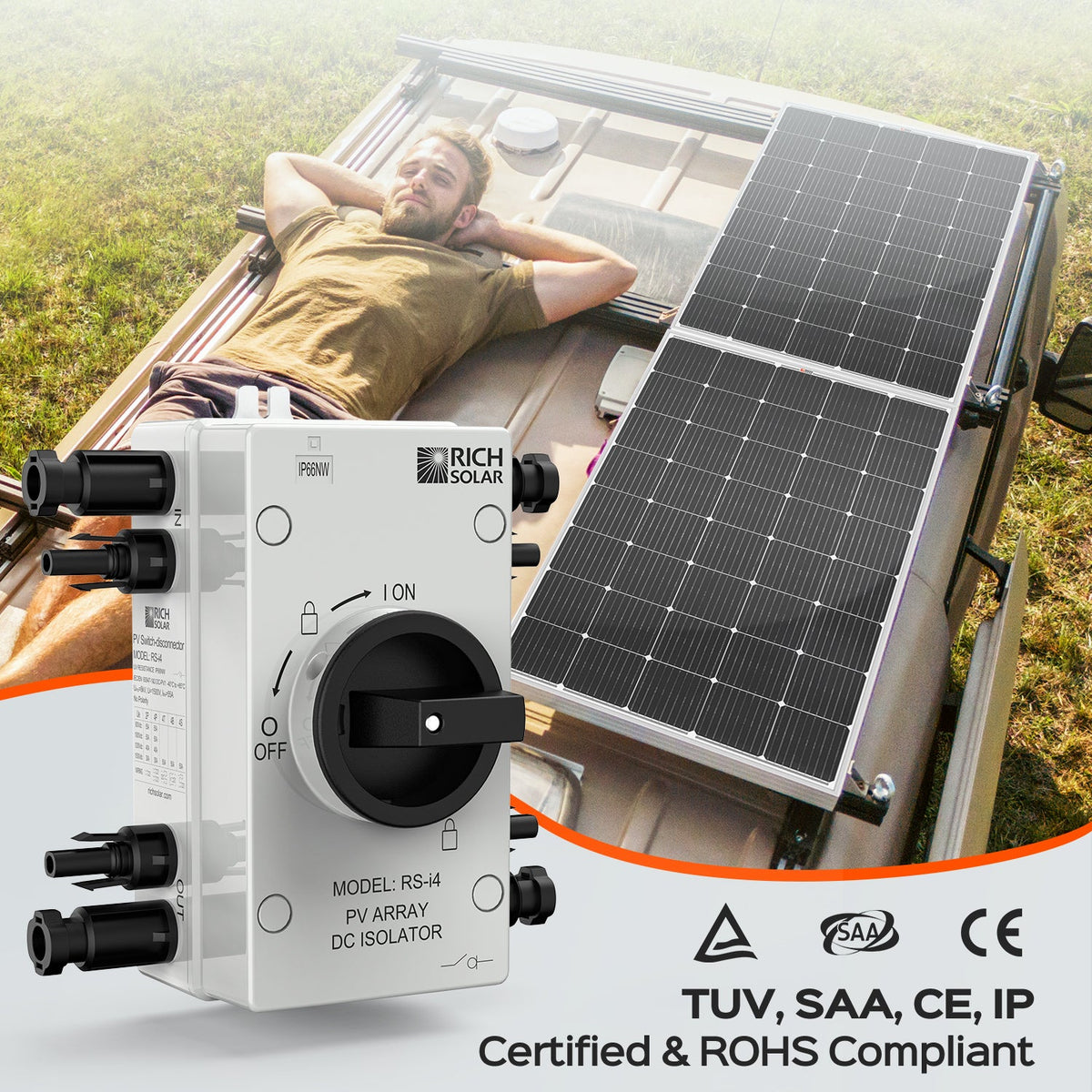

| Certifications | CE, UL 508I |
| Warranty | 3 years |
| Package Dimensions | 8 × 5 × 8 in |
| Gross Weight | 3 lb |
- 1 x PV DC Disconnect Switch
- Use only the connectors and terminals supplied with this product. Crimp the terminals using the specified crimping tool, and ensure each connector is fully inserted and securely locked with an audible “click.”
- User manual
Free Shipping
On all orders
30-Day Returns
Hassle-free returns
25 Year Warranty
On panels & more
Secure Payments
100% protected
Frequently Asked Questions
What size breaker or switch do I need?
Pick a rating above the maximum current of the circuit, with headroom. Sizing depends on your array, inverter and cable gauge — call us on 1-332-291-6885 and we will size it with you.
Can I use this on both AC and DC circuits?
Check the rated voltage row in the specifications: 1500V. DC and AC ratings are different, and a DC-only device must not be used on an AC circuit.
Can it be installed outdoors?
Yes — it is rated IP66NW. Mount it so water drains away from the enclosure and keep glands facing down.
