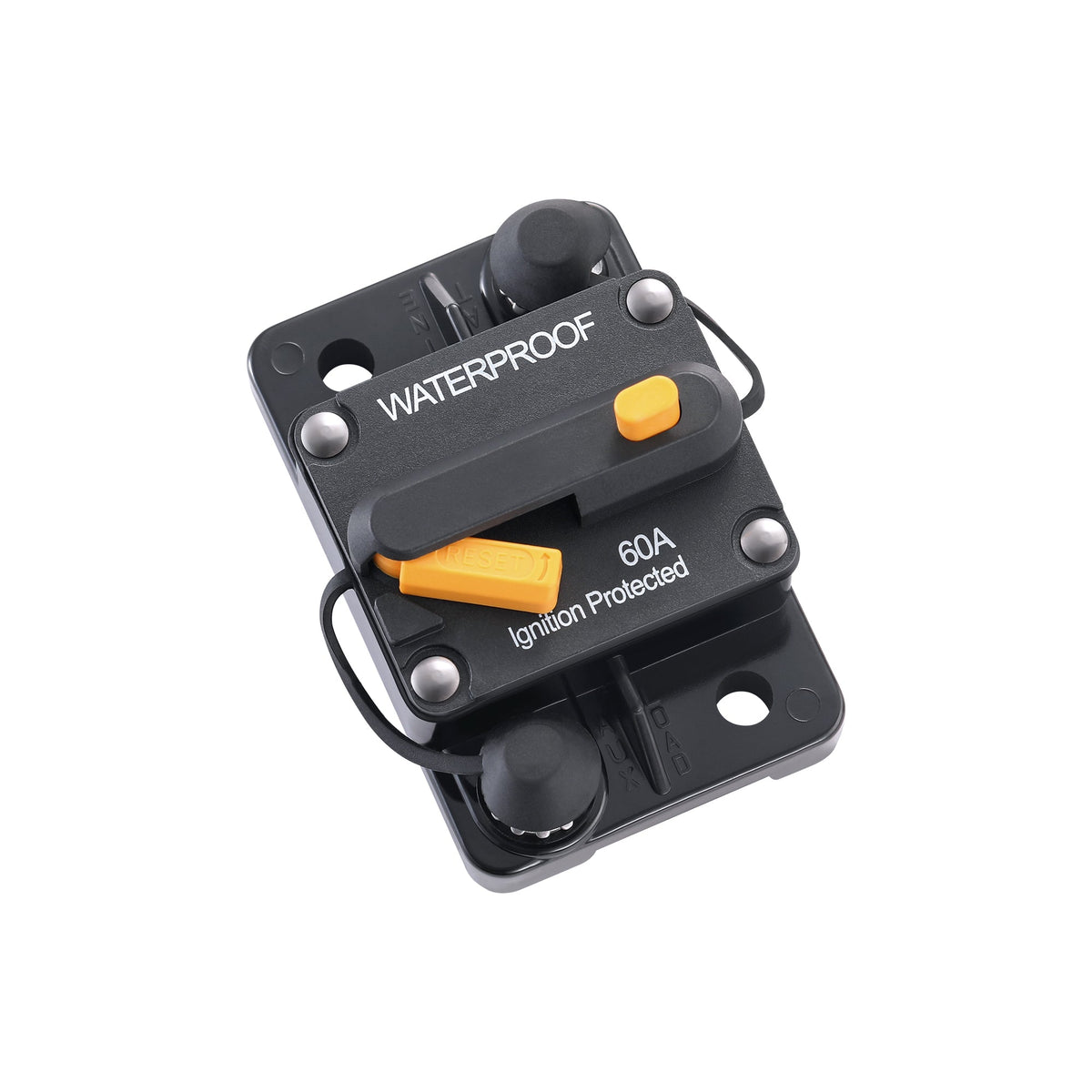

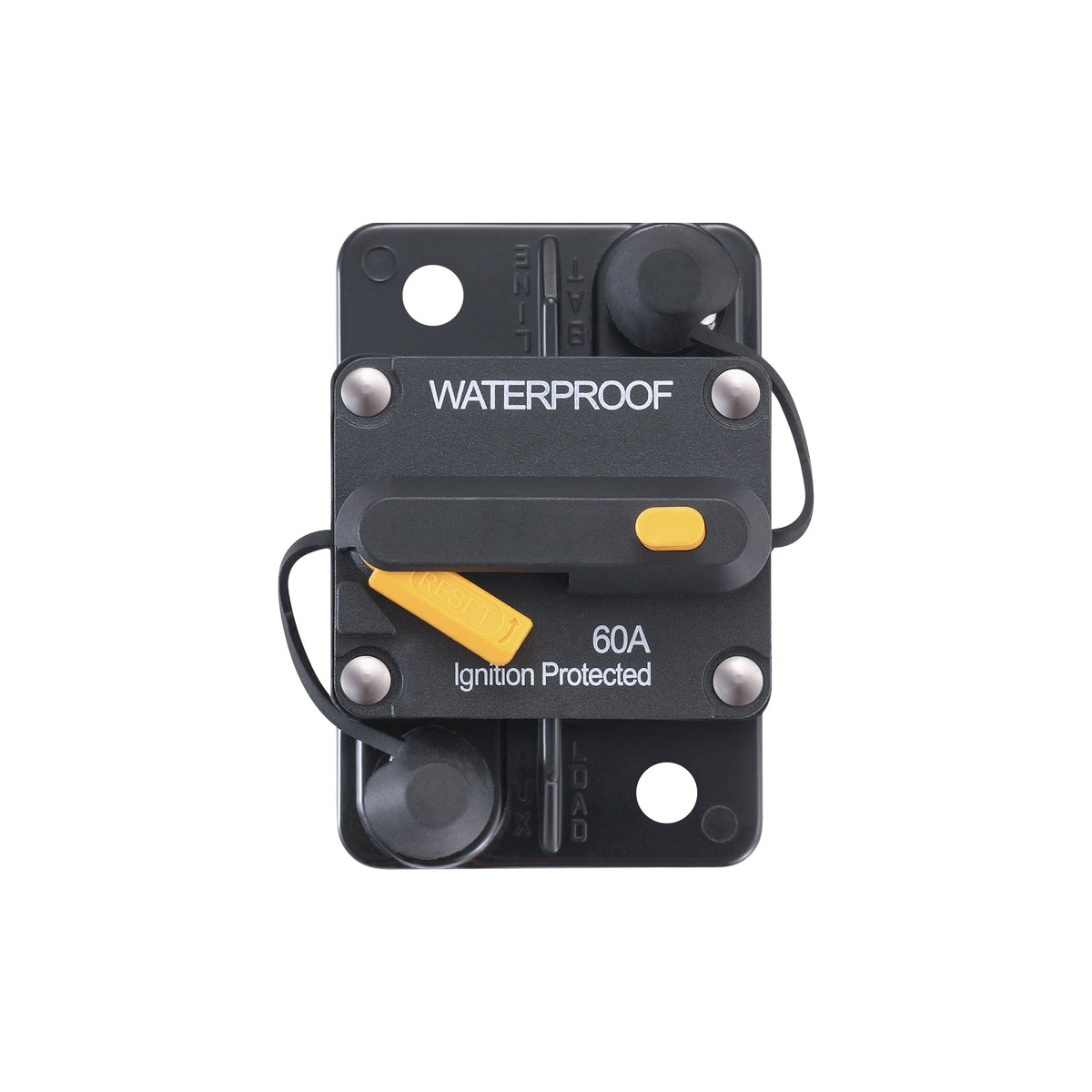

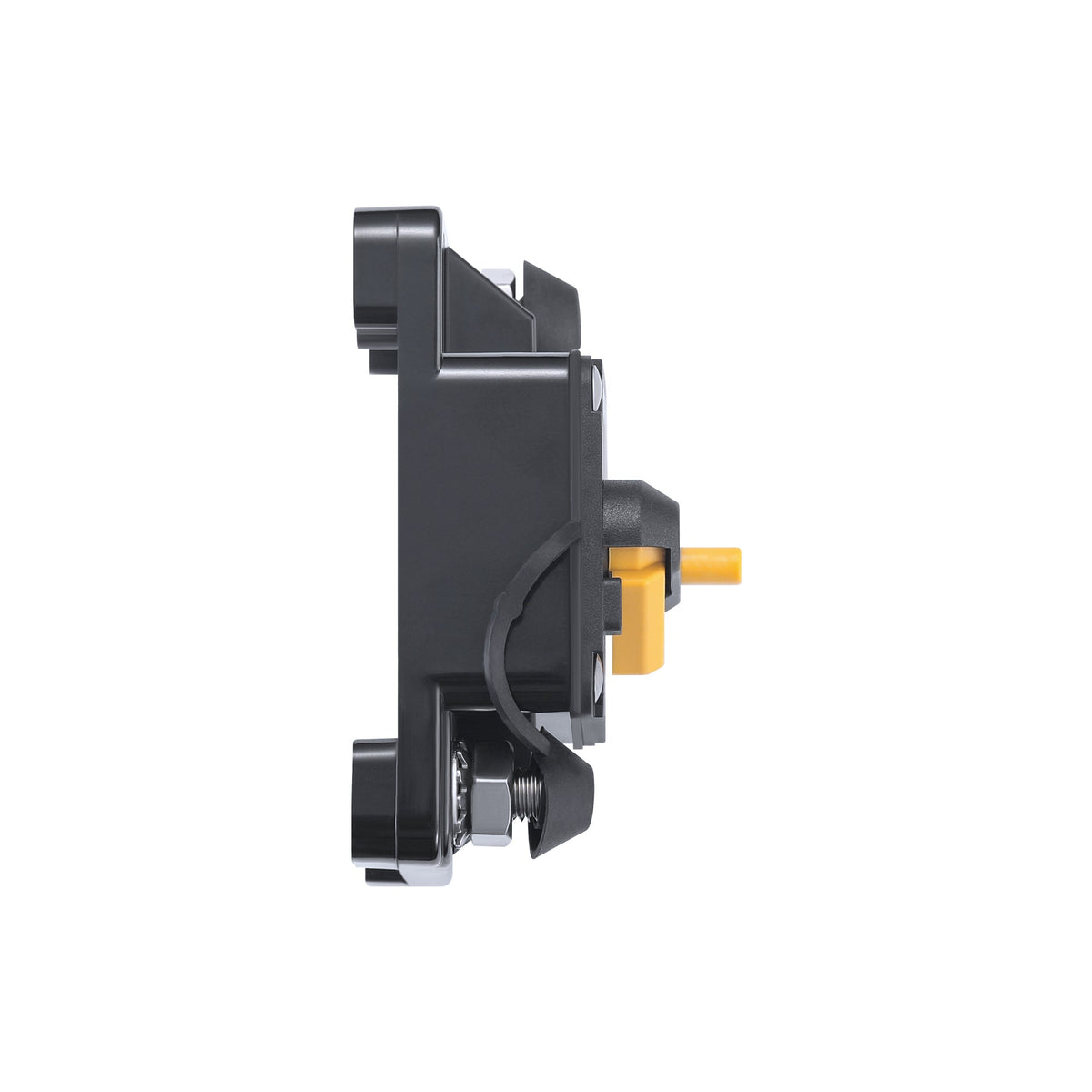

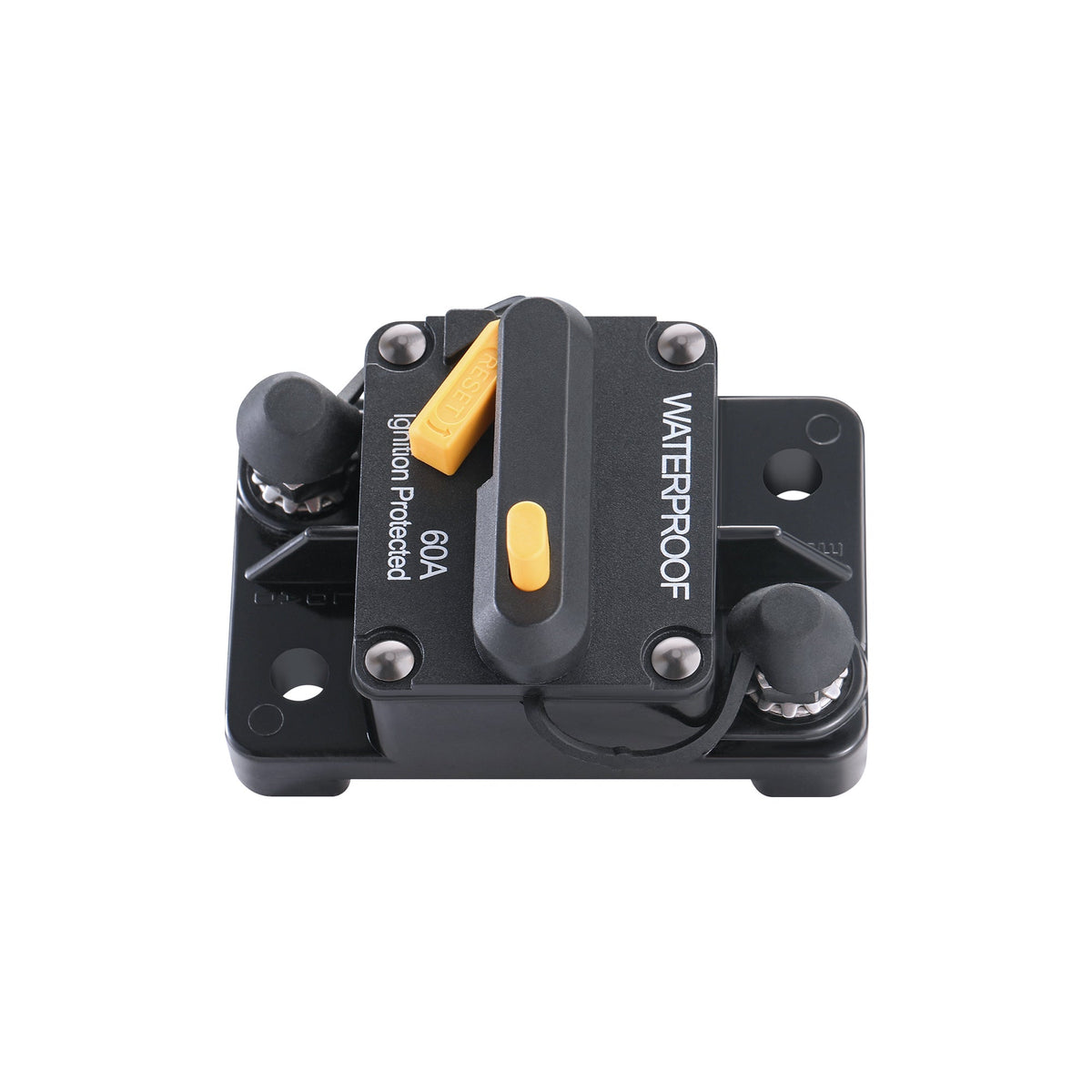

Single-Pole Waterproof DC Circuit Breaker – 30A to 250A
25A–250A · 30VDC, 48VDC — protect a battery circuit.
SKU:RS-CB30
Regular price
$27.99 USD
30VDC, 48VDC, 25A–250A.
Protects DC systems from overloads and short circuits with a 3,000A @ 30VDC interrupt rating.
Sealed construction protects against water, dust, and harsh outdoor environments.
SAE J1625, SAE J1171 (Ignition Protected), ABYC E-11, CE.
Need help choosing the right kit?
Talk to a Solar Expert:
1-332-291-6885
Quantity
Quantity
Guaranteed Safe Checkout
Deliver to
Get it between
Product Information
Single-Pole Waterproof DC Circuit Breaker to protect a battery circuit in Solar, RV and Marine Systems
This switch sits between your battery bank and everything it feeds, giving you one place to cut power before you work on the system. It is rated to 30VDC, 48VDC, 25A–250A.

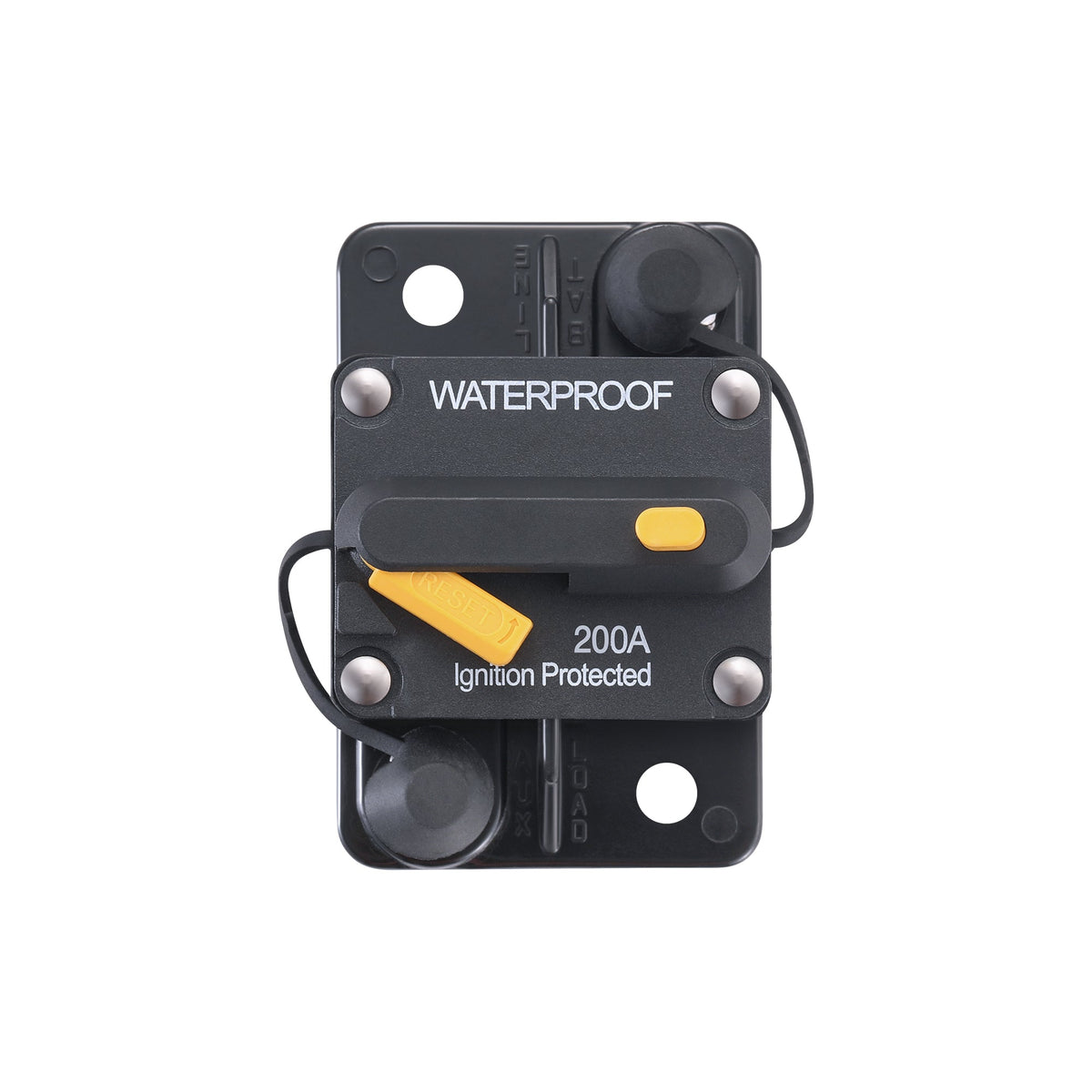

Size it above the maximum current of the circuit it protects, not below. This product comes in 30A, 40A, 60A, 80A, 100A, 120A, 150A, 200A, 250A so you can match it to your wiring. If you are unsure which rating you need, call us on 1-332-291-6885.

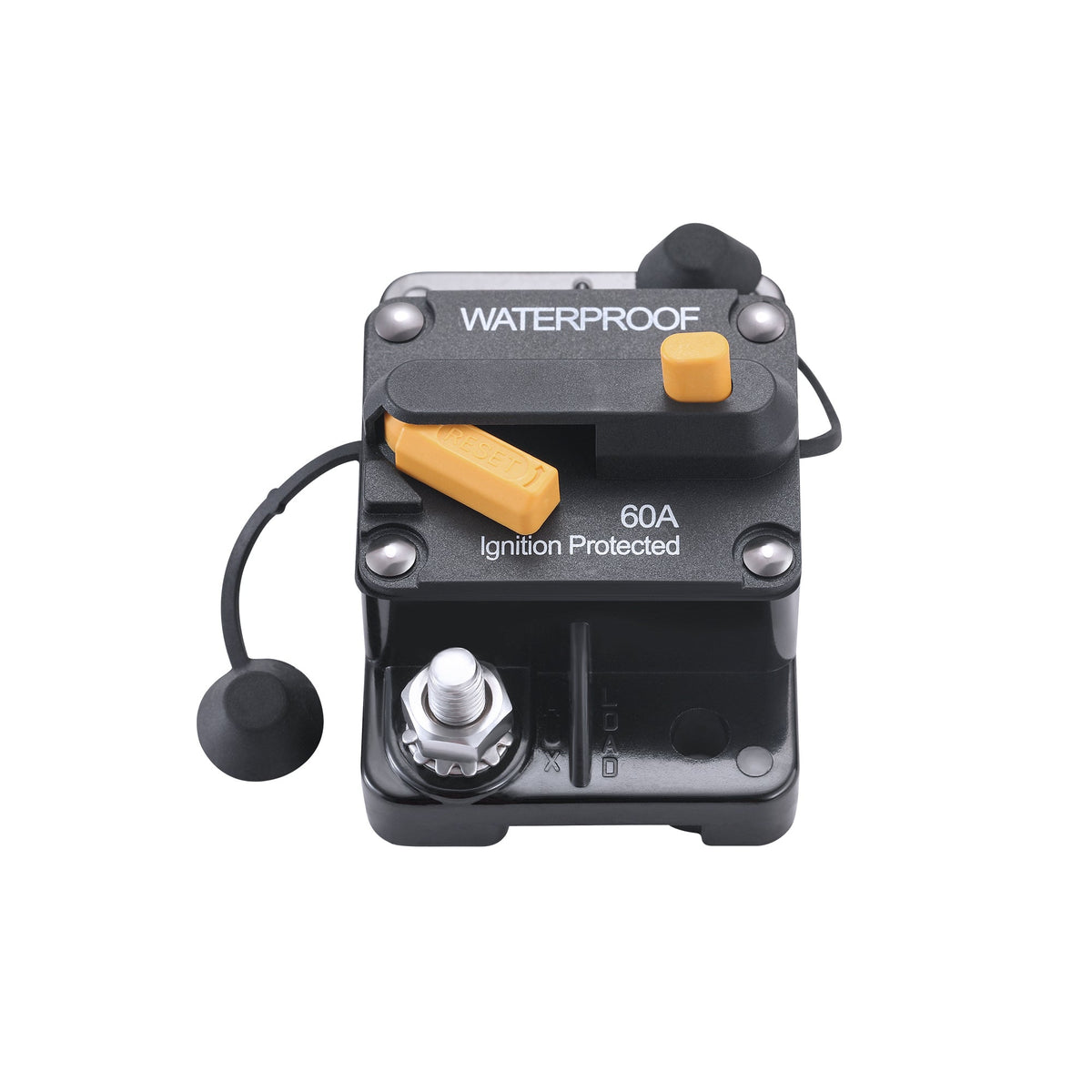

Supports flexible installation with 1/4"-28 or 3/8"-16 threaded stud terminals.
| Specification | Value |
|---|---|
| Current Ratings | 25A–250A |
| Rated Voltage | 30VDC, 48VDC |
| Interrupt Rating | 3,000A @ 30VDC |
| Operating Temperature | -25°F to 180°F |
| Storage Temperature | -30°F to 300°F |
| Housing Material | UL94 V-0 Flame-Retardant Thermoset Plastic |
| Terminal Type | 1/4"-28 or 3/8"-16 Threaded Studs |
| Max Terminal Torque | 50 in-lbs (5.6 N·m) |
| Mounting | Panel or Surface Mount |
| Waterproof Rating | IP67 |
| Certifications | SAE J1625, SAE J1171 (Ignition Protected), ABYC E-11, CE |
| Package Dimensions | 4 × 6 × 3 in |
| Gross Weight | 1 lb |
- 1 x Single-Pole Waterproof DC Circuit Breaker

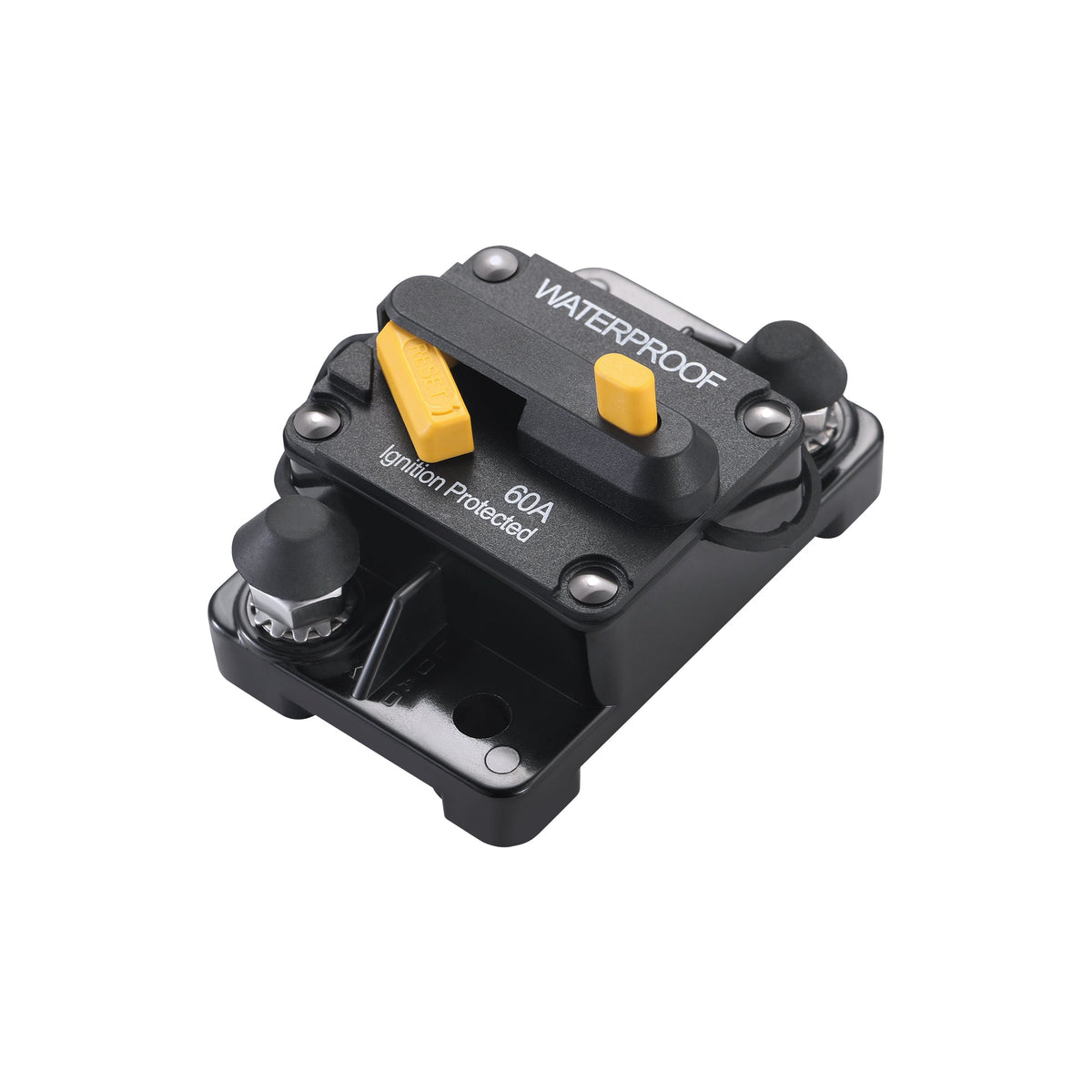

- Features a push-to-trip button and reset lever for easy testing and quick power restoration.
- User manual
Free Shipping
On all orders
30-Day Returns
Hassle-free returns
25 Year Warranty
On panels & more
Secure Payments
100% protected
Frequently Asked Questions
What size breaker or switch do I need?
Pick a rating above the maximum current of the circuit, with headroom. Sizing depends on your array, inverter and cable gauge — call us on 1-332-291-6885 and we will size it with you.
Can I use this on both AC and DC circuits?
Check the rated voltage row in the specifications: 30VDC, 48VDC. DC and AC ratings are different, and a DC-only device must not be used on an AC circuit.
Can it be installed outdoors?
Check the protection rating in the specifications before mounting it in an exposed position.
