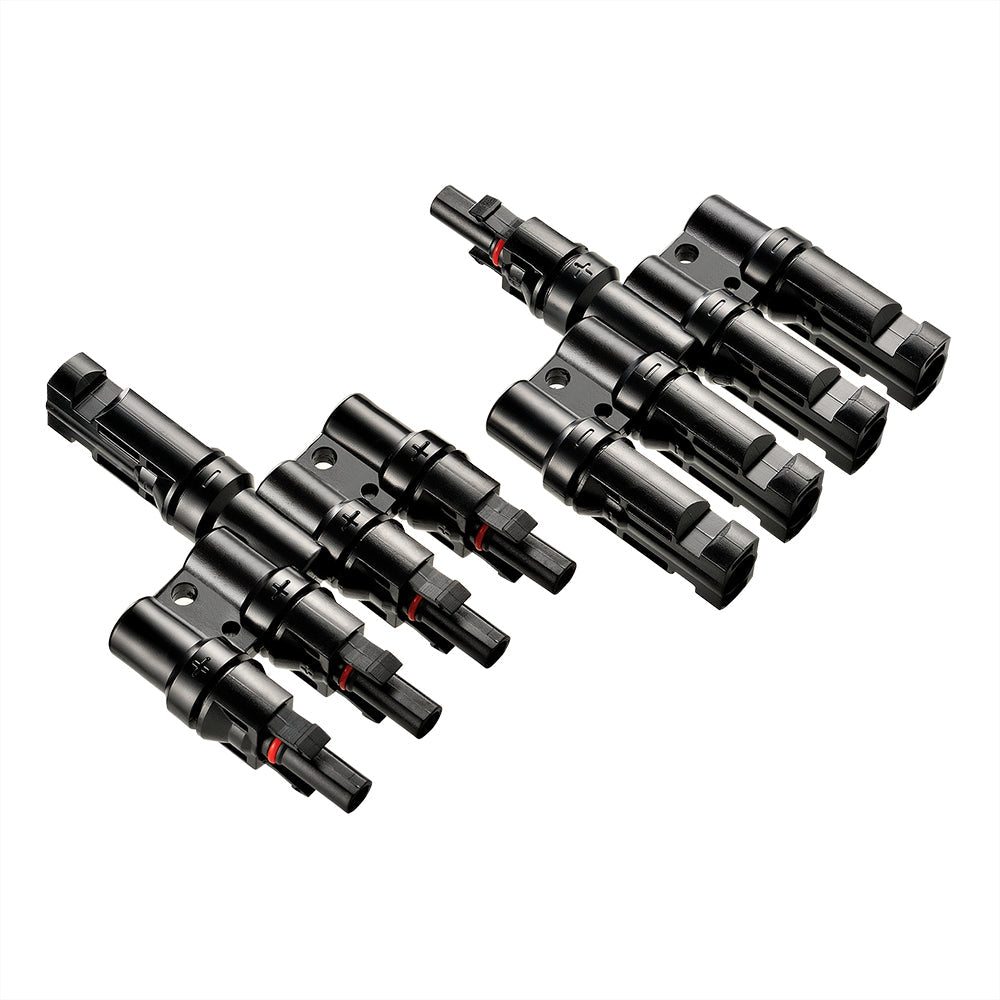

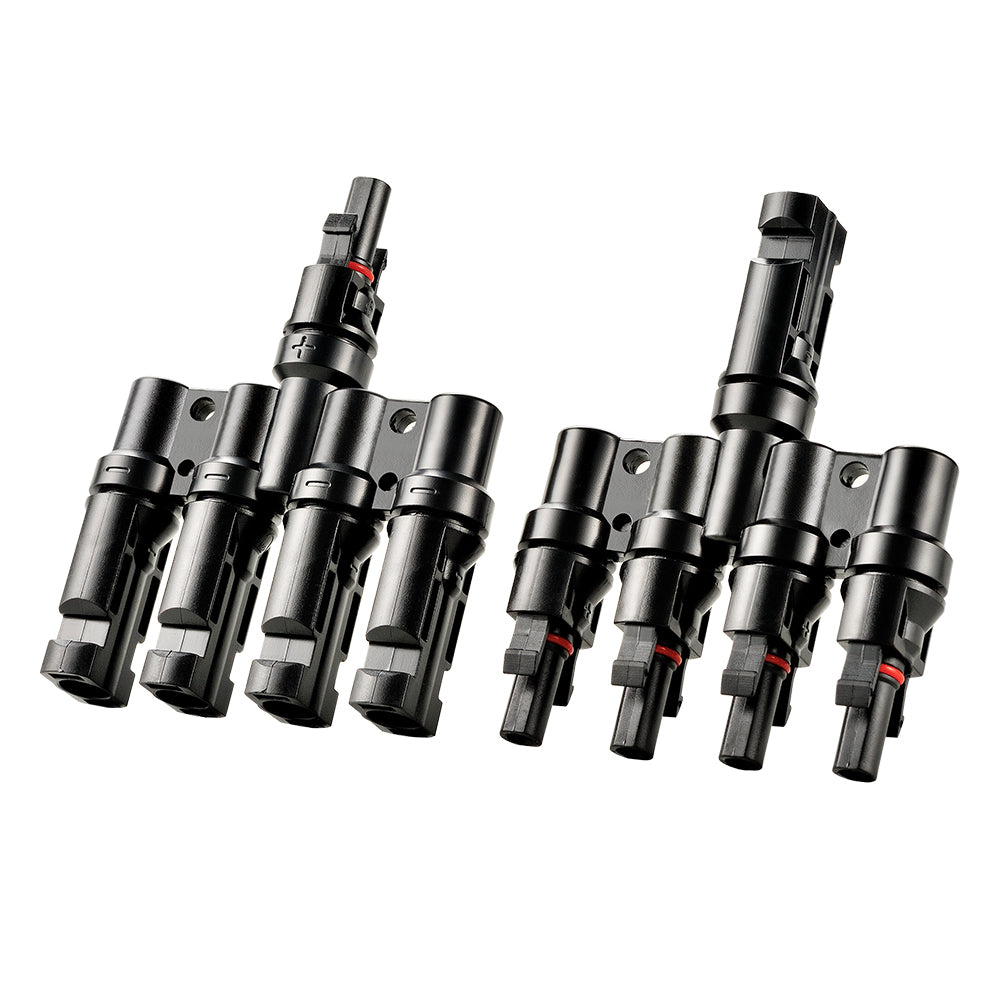

Y Branch Parallel Connectors 4-to-1 | 4-to-1 Weatherproof Parallel Connectors for Solar Panels | Easy Install
Y Branch Parallel Connectors 4-to-1
SKU:UGS-T4
Regular price
$17.99 USD
4-to-1 Parallel Connection.
Plug-and-Play Design.
Low Contact Resistance.
Outdoor Ready.
Need help choosing the right kit?
Talk to a Solar Expert:
1-332-291-6885
Quantity
Quantity
Guaranteed Safe Checkout
Deliver to
Get it between
Product Information
Features
- 4-to-1 Parallel Connection: Easily connects four solar panels in parallel.
- Plug-and-Play Design: Quick and simple installation without extra tools.
- Low Contact Resistance: Provides a reliable and efficient connection.
- Outdoor Ready: IP67 rated for waterproof and dustproof protection.
- Durable Construction: Built for demanding solar and outdoor applications.
Specifications
- Rated Current: 30A
- Maximum Voltage: 1000VDC
- Waterproof Rating: IP67
- Wire Range: 10AWG, 12AWG
- Insulation Material: PPO + PA
- Contact Material: Tinned Copper
- Temperature Range: -40°F ~ +194°F
- Safety Class: II
-
Package Dimensions: 7 × 8 in
- Gross Weight: 1 lb
| Specification | Value |
|---|---|
| Rated Current | 30A |
| Maximum Voltage | 1000VDC |
| Waterproof Rating | IP67 |
| Wire Range | 10AWG, 12AWG |
| Insulation Material | PPO + PA |
| Contact Material | Tinned Copper |
| Temperature Range | -40°F ~ +194°F |
| Safety Class | II |
| Package Dimensions | 7 × 8 in |
| Gross Weight | 1 lb |
- 1 x Y Branch Parallel Connectors 4-to-1
- Fittings and hardware as listed in the specifications
- User manual
Free Shipping
On all orders
30-Day Returns
Hassle-free returns
25 Year Warranty
On panels & more
Secure Payments
100% protected
Frequently Asked Questions
What is this used for?
Easily connects four solar panels in parallel.
Will it fit my system?
Check the specifications against your own equipment — ratings, connector type and voltage all need to match. We can confirm compatibility on 1-332-291-6885.
Is anything else needed to install it?
The item ships with the fittings listed in the specifications. You may need basic tools and cable suited to your own run.
